BSH-120-01-H-D-DP-EM2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BSH-120-01-H-D-DP-EM2

BSH-120-01-H-D-DP-EM2: DescriptionBoard Connector, 240 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket,; CategoryThe connector The connector; File Size333KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

BSH-120-01-H-D-DP-EM2 Overview

Board Connector, 240 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket,

BSH-120-01-H-D-DP-EM2 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Is Samacsys	N
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	240
Base Number Matches	1

Preview

Download Datasheet

View All

REVISION F

DO NOT

SCALE FROM

THIS PRINT

ASO ONLY (APPLICATION SPECIFIC ORDER)

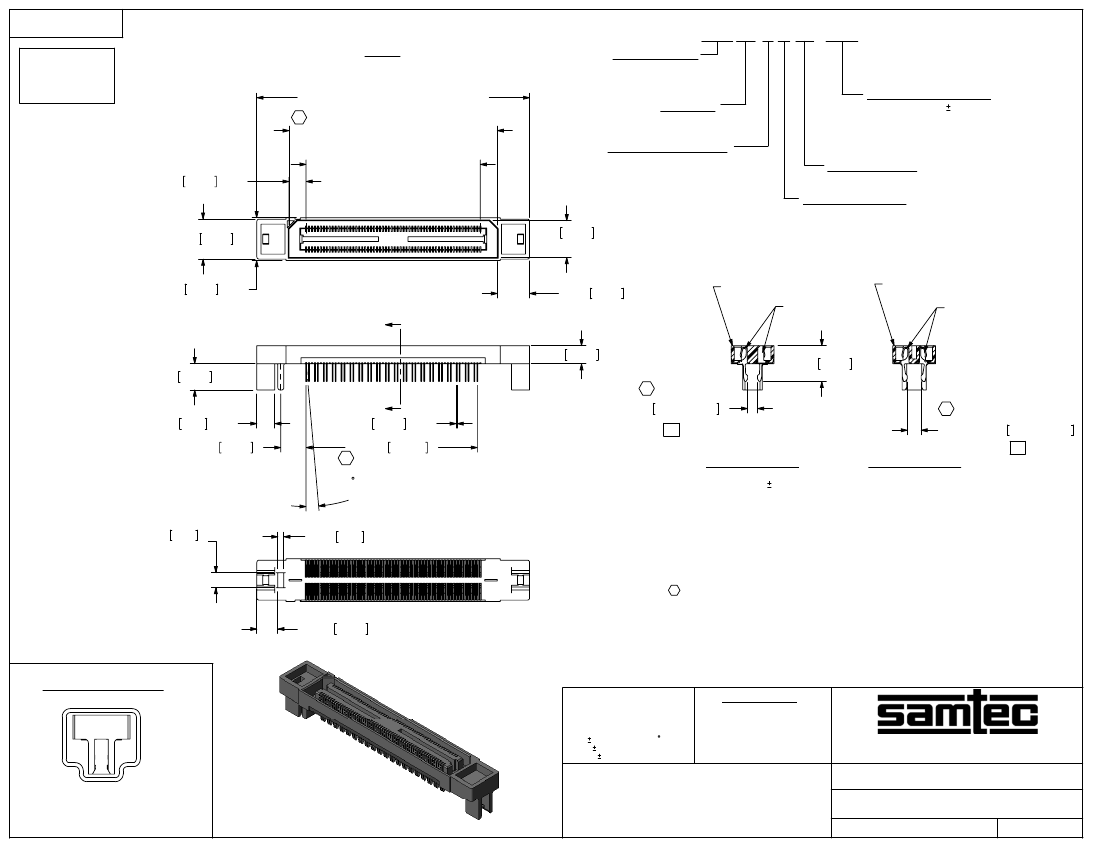

FIG. 1

BSH-040-01-X-D-DP-EMX

(No OF POSITIONS x .01969[.5000])

+ .6368[16.175] REF

BSH-XXX-01-X-D-DP-EMX

No OF POSITIONS

-020, -040, -060,

*-080, *-100, *-120

(PER ROW)

LEAD STYLE

-01

PLATING SPECIFICATION

-L: LIGHT SELECTIVE GOLD,

MATTE TIN TAILS

(USE C-162-XX-L-2)

-F: FLASH SELECTIVE GOLD,

MATTE TIN TAILS

(USE C-162-XX-F-2)

-H: HEAVY GOLD

(USE C-162-XX-H-2)

(No OF POSITIONS x .01969[.5000])

+ .2068[5.253] REF

(No OF POS -1) x .01969[.5000]

EDGE MOUNT THICKNESS

-EM2: .064[1.63] .004 PCB (USE

BSH-XXX-01-D-EM2 & C-162-01-X-2)

-EM3: (USE BSH-XXX-01-D-EM3

& C-162-02-X-2)

SEE NOTE 6

DIFFERENTIAL PAIR

ROW SPECIFICATION

-D: DOUBLE (USE BSH-XXX-01-D-EMX)

* = SEE NOTE 7

BSH-060-01-D-EM3

C-162-02-X

.1132 2.876 REF

.2664 6.767

.245 6.223

REF

.2850 7.239 REF

.215 5.461 REF

BSH-060-01-D-EM2

C-162-01-X

"A"

.120 3.048 REF

.175 4.445 REF

.2380 6.045

"A"

.120 3.05 REF

.1682 4.273

.0060 0.152 REF

.0660±.0030 1.676±0.076

EDGE MOUNT THICKNESS

-EM2: .064[1.63] .004 PCB

.0920±.0030 2.337±0.076

1.1420 29.007

SECTION "A-A"

2 MAX SWAY

(TYP)

EDGE MOUNT THICKNESS

-EM3:

SEE NOTE 6

(DIFFERENT AS SHOWN, OTHERWISE

SAME AS -EM2 PCB THICKNESS)

SECTION "A-A"

.100 2.54

REF

.040 1.02 REF

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. CONTACT RETENTION: 4 OZ MIN.

3. DELETED.

4. PARTS ARE "MOLD TO POSITION".

5. MAX VARIANCE OF .002.

6. -EM3 IS NOT A STANDARD OFFERING; AVAILABLE AS AN ASP ONLY. PLEASE

CONTACT SAMTEC INTERCONNECT PROCESSING GROUP WITH ORDER INQUIRIES

7. FOR NEW APPLICATIONS REQUIRING THESE NUMBER OF POSITIONS, PLEASE CONTACT

SAMTEC INTERCONNECT PROCESSING GROUP.

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

.1400 3.556 REF

PACKAGING VIEW

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01[.3]

.XXX: .005[.13]

.XXXX: .0020[.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 1.5:1

TUBE: PT-1-24-02-38

PLUG: TP-03

INSULATOR: VECTRA E130i, COLOR: BLACK

CONTACT: PHOS BRONZE, 510 SPRING TEMPER

THICKNESS: .0060

F:\DWG\MISC\MKTG\BSH-XXX-01-X-D-DP-EMX-MKT.SLDDRW

.5mm EDGE MOUNT DP SOCKET ASSEMBLY

BSH-XXX-01-X-D-DP-EMX

5/31/2000

SHEET

BY:

CHAD F
