S-14L60BF datasheet, PDF - EEWORLD Datasheet

S-14L60BF: DescriptionMicrocontroller, 4-Bit, MROM, 1MHz, CMOS, PDSO28, SOP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size385KB，7 Pages; ManufacturerABLIC

Download Datasheet Parametric View All

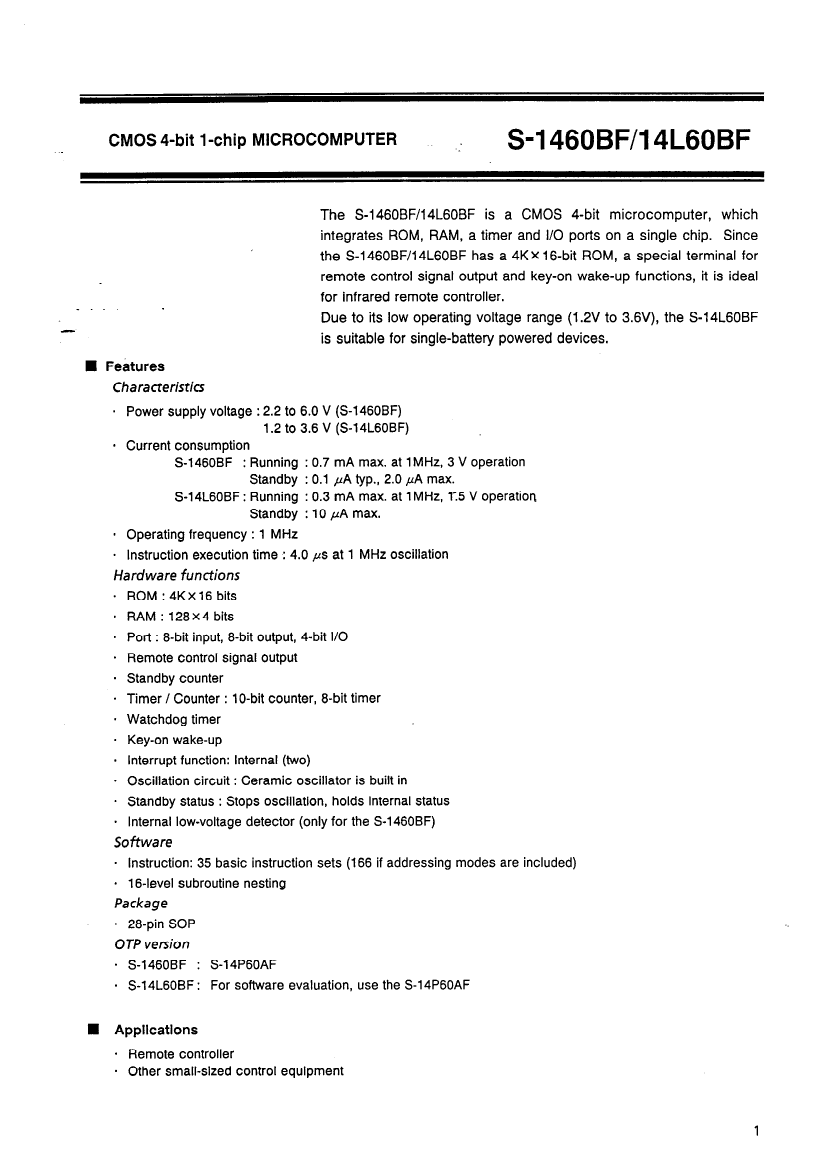

S-14L60BF Overview

Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDSO28, SOP-28

Parameter Name	Attribute value
Maker	ABLIC
Parts packaging code	SOIC
package instruction	SOP,
Contacts	28
Reach Compliance Code	unknown
Is Samacsys	N
Has ADC	NO
Address bus width
bit size	4
maximum clock frequency	1 MHz
DAC channel	NO
DMA channel	NO
External data bus width

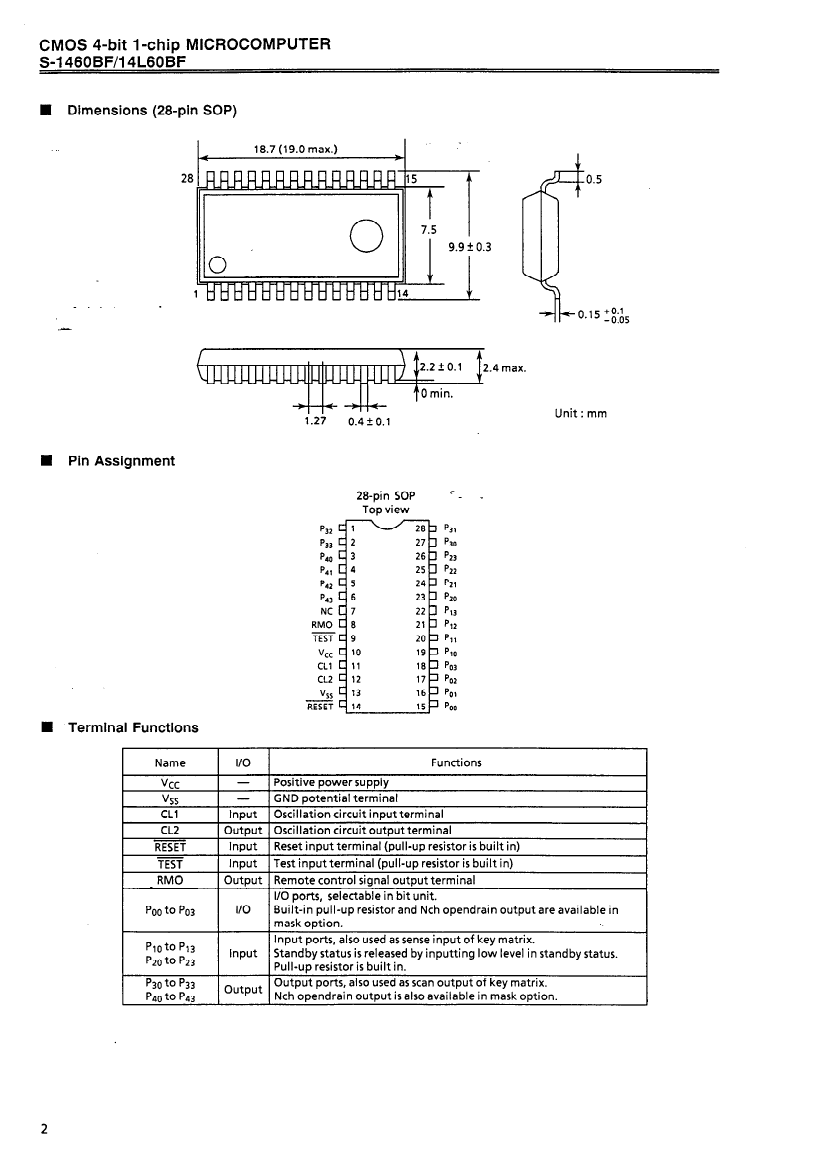

JESD-30 code	R-PDSO-G28
length	18.7 mm
Number of I/O lines	20
Number of terminals	28

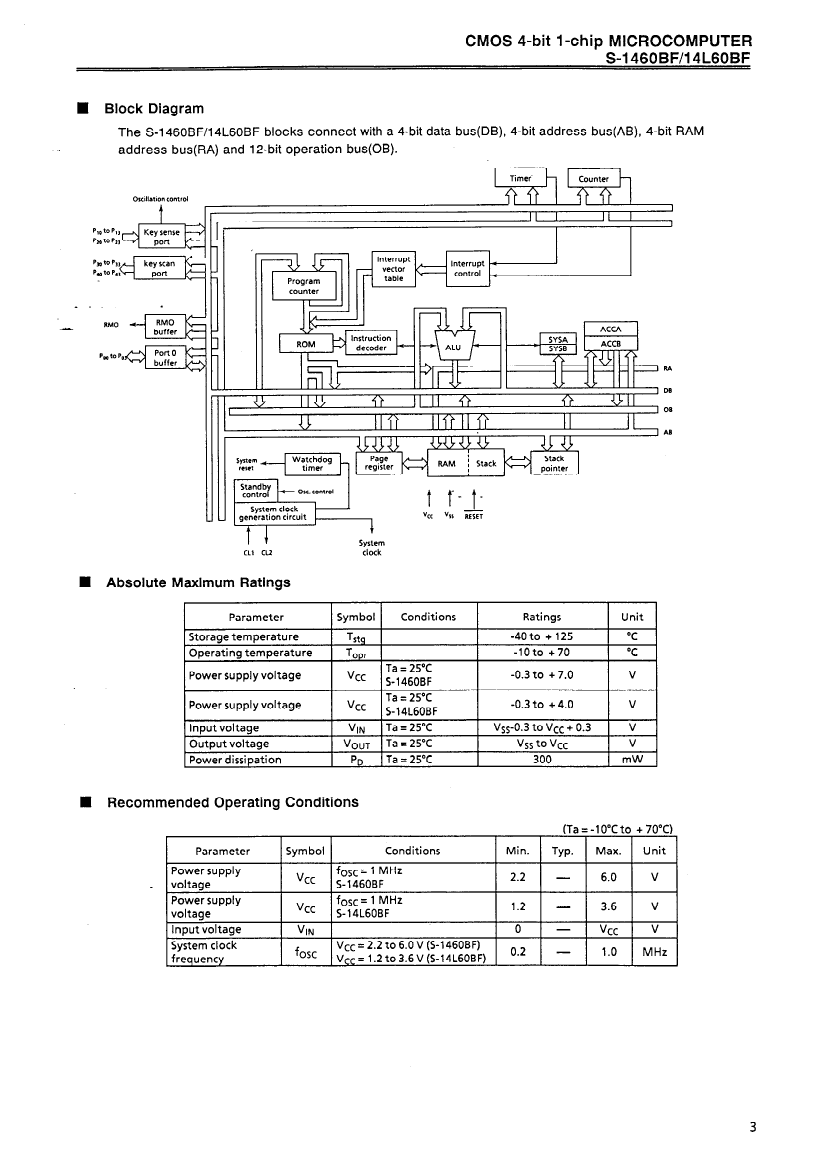

Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	2.4 mm
speed	1 MHz
Maximum slew rate	1 mA

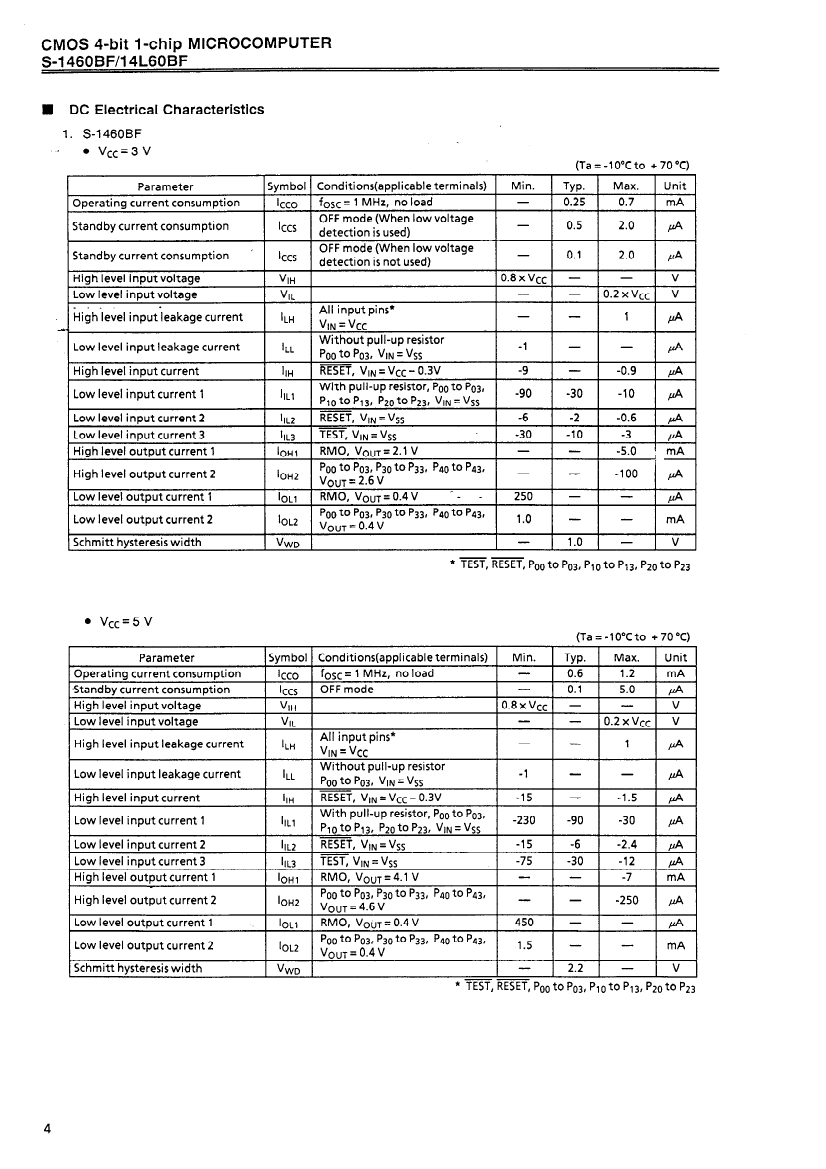

Maximum supply voltage	3.6 V
Minimum supply voltage	1.2 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
