S-8435GF-WD-T1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> S-8435GF-WD-T1

S-8435GF-WD-T1: DescriptionSwitching Regulator, Voltage-mode, 30kHz Switching Freq-Max, CMOS, PDSO5, SOT-89, 5PIN; CategoryPower/power management The power supply circuit; File Size1MB，41 Pages; ManufacturerABLIC

Download Datasheet Parametric Compare View All

S-8435GF-WD-T1 Overview

Switching Regulator, Voltage-mode, 30kHz Switching Freq-Max, CMOS, PDSO5, SOT-89, 5PIN

S-8435GF-WD-T1 Parametric

Parameter Name	Attribute value
Maker	ABLIC
Parts packaging code	SOT-89
package instruction	LSOF,
Contacts	5
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Control Technology	PULSE FREQUENCY MODULATION
Maximum input voltage	10 V
Minimum input voltage	0.9 V
JESD-30 code	R-PDSO-F5
length	4.5 mm
Number of functions	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	4.4 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSOF
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum supply current (Isup)	0.015 mA
surface mount	YES
Switch configuration	BOOST
Maximum switching frequency	30 kHz
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	FLAT
Terminal pitch	1.5 mm
Terminal location	DUAL
width	2.5 mm
Base Number Matches	1

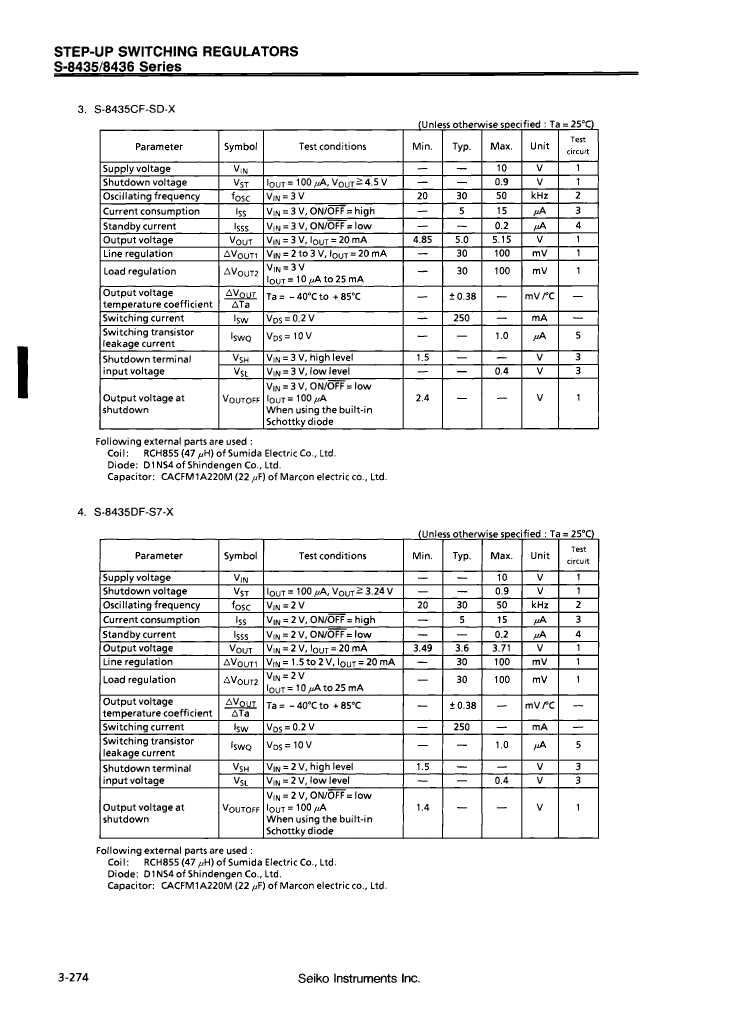

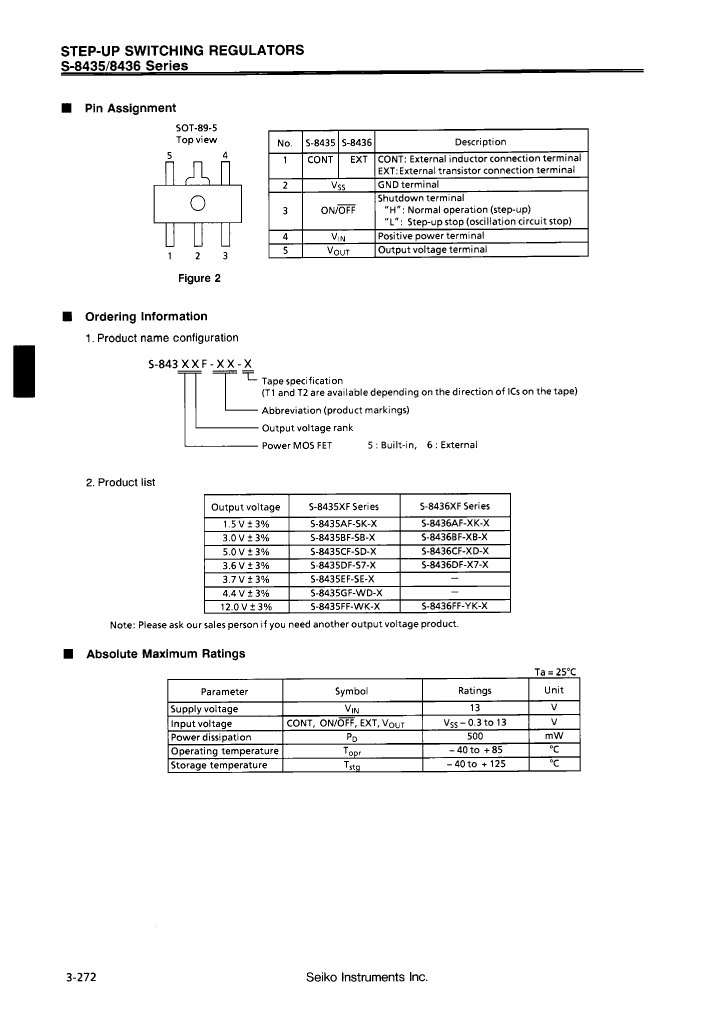

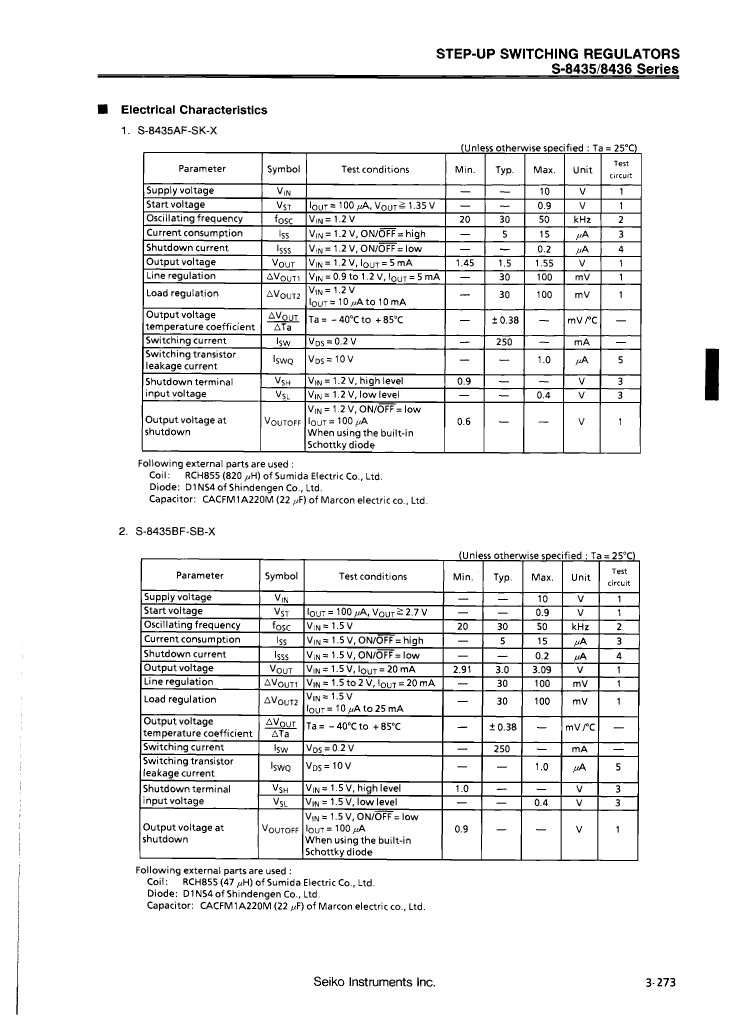

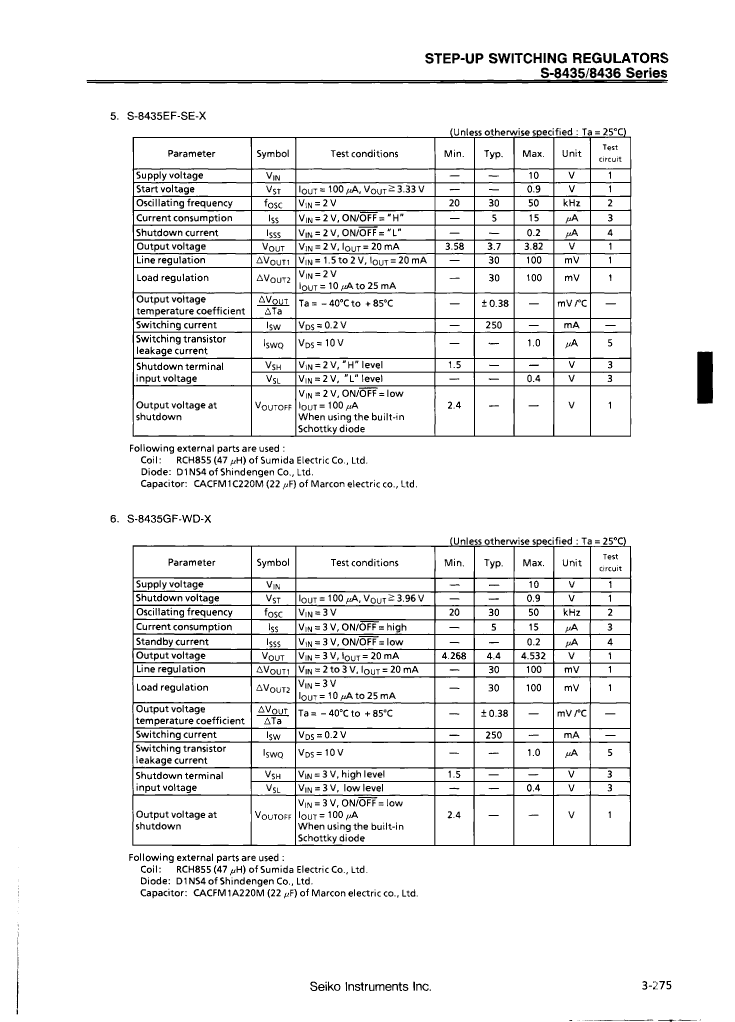

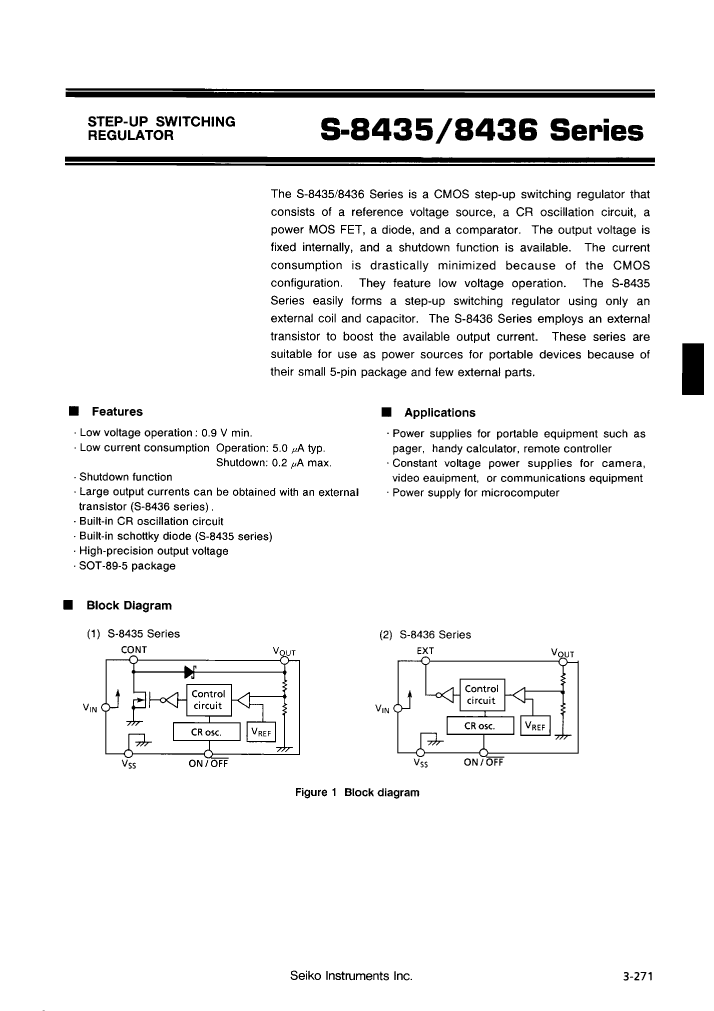

Preview

Download Datasheet

View All

S-8435GF-WD-T1 Related Products

	S-8435GF-WD-T1	S-8435GF-WD-T2	S-8436AF-XK-T1	S-8436AF-XK-T2
Description	Switching Regulator, Voltage-mode, 30kHz Switching Freq-Max, CMOS, PDSO5, SOT-89, 5PIN	Switching Regulator, Voltage-mode, 30kHz Switching Freq-Max, CMOS, PDSO5, SOT-89, 5PIN	Switching Controller, Voltage-mode, 30kHz Switching Freq-Max, CMOS, PDSO5, SOT-89, 5PIN	Switching Controller, Voltage-mode, 30kHz Switching Freq-Max, CMOS, PDSO5, SOT-89, 5PIN
Maker	ABLIC	ABLIC	ABLIC	ABLIC
Parts packaging code	SOT-89	SOT-89	SOT-89	SOT-89
package instruction	LSOF,	LSOF,	LSOF,	LSOF,
Contacts	5	5	5	5
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	N
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING CONTROLLER	SWITCHING CONTROLLER
control mode	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE
Control Technology	PULSE FREQUENCY MODULATION	PULSE FREQUENCY MODULATION	PULSE FREQUENCY MODULATION	PULSE FREQUENCY MODULATION
Maximum input voltage	10 V	10 V	10 V	10 V
Minimum input voltage	0.9 V	0.9 V	0.9 V	0.9 V
JESD-30 code	R-PDSO-F5	R-PDSO-F5	R-PDSO-F5	R-PDSO-F5
length	4.5 mm	4.5 mm	4.5 mm	4.5 mm
Number of functions	1	1	1	1
Number of terminals	5	5	5	5
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Nominal output voltage	4.4 V	4.4 V	1.5 V	1.5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOF	LSOF	LSOF	LSOF
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.7 mm	1.7 mm	1.7 mm
Maximum supply current (Isup)	0.015 mA	0.015 mA	0.015 mA	0.015 mA
surface mount	YES	YES	YES	YES
Switch configuration	BOOST	BOOST	SINGLE	SINGLE
Maximum switching frequency	30 kHz	30 kHz	30 kHz	30 kHz
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	FLAT	FLAT	FLAT	FLAT
Terminal pitch	1.5 mm	1.5 mm	1.5 mm	1.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Base Number Matches	1	1	1	1
