MP-1-RFREQ7 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> MP-1-RFREQ7

Preview

MP-1-RFREQ7: DescriptionParallel - Fundamental Quartz Crystal, 6MHz Min, 7.999MHz Max, ROHS COMPLIANT, HERMETIC PACKAGE-2; CategoryPassive components Crystal/resonator; File Size376KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

MP-1-RFREQ7 Overview

Parallel - Fundamental Quartz Crystal, 6MHz Min, 7.999MHz Max, ROHS COMPLIANT, HERMETIC PACKAGE-2

MP-1-RFREQ7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MtronPTI
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Other features	AT CUT CRYSTAL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1000 µW
frequency stability	0.005%
frequency tolerance	30 ppm
JESD-609 code	e1
load capacitance	18 pF
Manufacturer's serial number	MP-1
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	7.999 MHz
Minimum operating frequency	6 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)
Series resistance	50 Ω
surface mount	NO
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Base Number Matches	1

Preview

Download Datasheet

View All

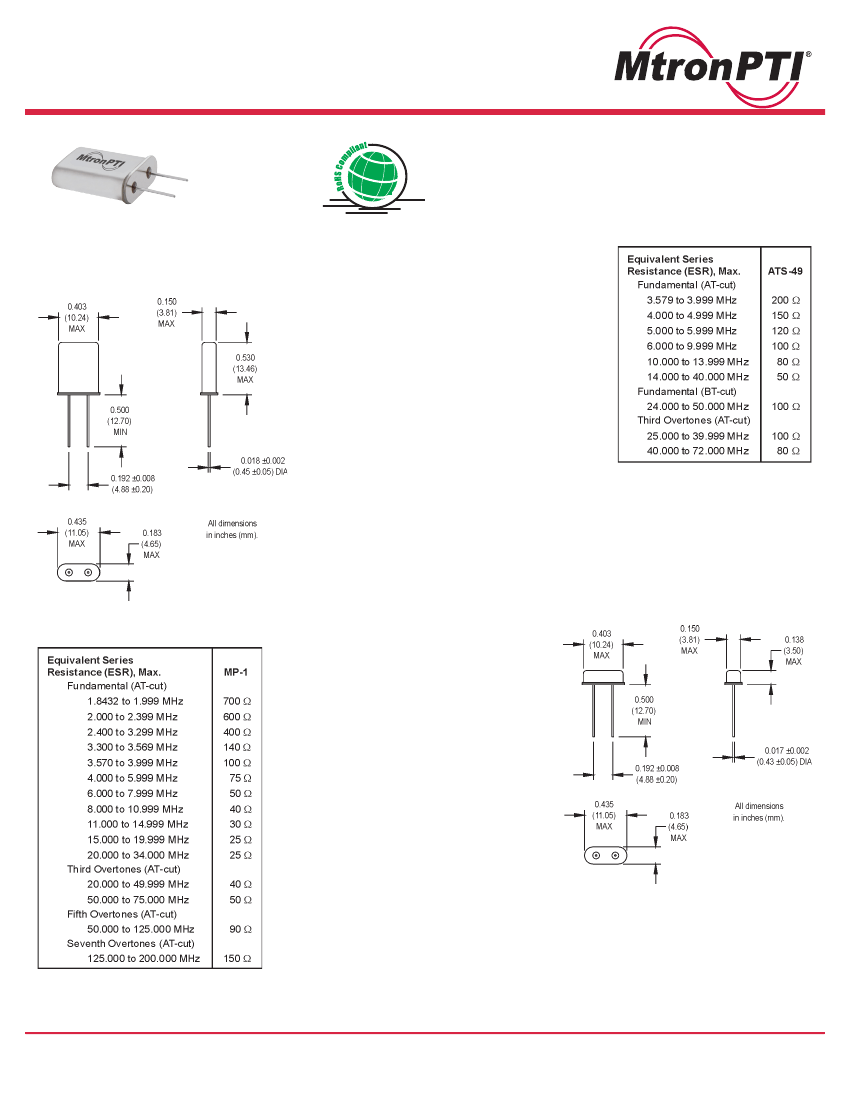

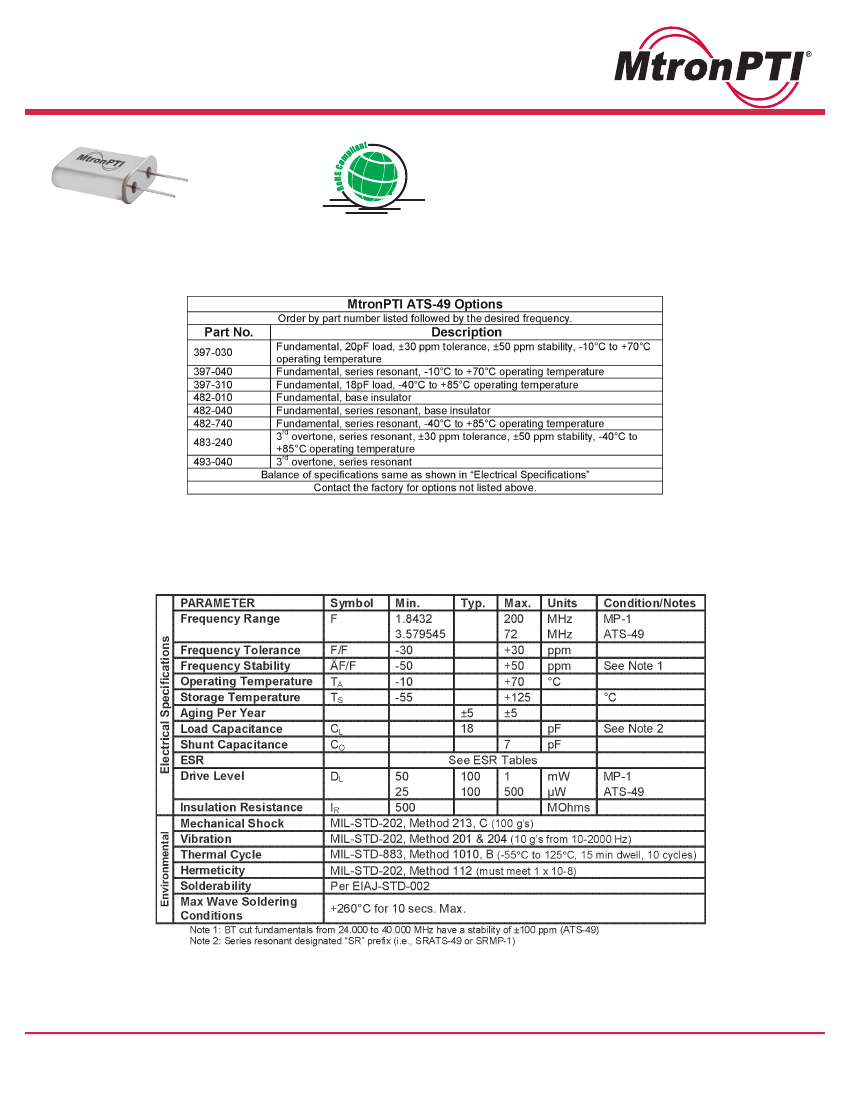

ATS-49 and MP-1 Crystals

MP-1

(HC-49/U)

00.0000 MHz

(customer specified frequency)

MP-1-R

(HC-49/U)

00.0000 MHz

(RoHS Compliant and customer specified frequency)

M1002Sxxx - Contact factory for datasheet.

*ATS-49 00.0000 MHz

(customer specified)

*ATS-49-R 00.0000 MHz

(RoHS Compliant and customer specified frequency )

M1004Sxxx - Contact factory for datasheet.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 08-07-07
