100W TO-247 HIGH POWER RESISTORS
Features………………………………………………………….
Non-inductive, high power resistor.
Thermally enhanced Industry standard TO-247 package.
Extremely Low thermal resistance, 1.3
°C/W
resistor hot spot to metal tab.
Complete thermal flow design available for easy implementation.
Superior vibration durability.
Small thin package for high density PCB installation.
RoHS compliant.
Applications………………………………………………………
High frequency circuits and wide band / linear amplifiers.
Switch mode and industrial RF power sources.
AC motor control, electronic load and drive circuits.
Automotive.
Industrial PC modules (IPM) and measurement systems.
RF circuit terminations.
Constant current and precision voltage sources
Specification
Dimensions (mm)
dia.3.2
Epoxy Molding
Copper Wire Leads
Conductor
Resistor Film
Alumina
Copper Plate
Structure and Material
MHP 140
100F
20
5.1
4.8
16.0
3+/-0.3
dia.0.8
10.9
20
Items
Power Rating
Power Rating
Resistance Range
Nominal Resistance Series
TCR
Tolerance
Operation Temp. Range
Rated Voltage (Max).
Dielectric Withstanding Voltage
Load Life
Humidity
Temperature Cycle
Soldering Heat (Max)
Solderability
Insulation Resistance
0.01-0.09
Ω
E6
250 ppm/°C
5%
Specification
100 Watts
3.0 Watts
0.1-9.1
Ω
E12
100 ppm/°C
5% and 1%
-55 - +155
°C
700V or
√(P*R)
2500 Volt
∆R
+/- (1.0 %+0.05
Ω)
∆R
+/- (1.0 %+0.05
Ω)
∆R
+/- (0.25 %+0.05
Ω)
∆R
+/- (0.25 %+0.05
Ω)
Min 95% coverage
Over 1000 MΩ
60 seconds.
10-220
Ω
E24
50 ppm/°C
1%
Free air.
Conditions
@ Tab Temp < 25°C
Extended resistance range to 51KΩ avail.
2.0
Ω
and 5.0
Ω
also available.
For -55 to +155°C
25°C, 90 min. ON, 30 min.OFF, 1000 hours.
40°C, 90-95% RH, DC 0.1W, 1000 hours.
-55°C, 30 min.,+155°C 30min., 5cycles.
250+/-5°C, 3 seconds,
230+/-5°C, 3 seconds.
Between terminals and metal back plate.
Vibration
∆R
+/- (0.25 %+0.05
Ω)

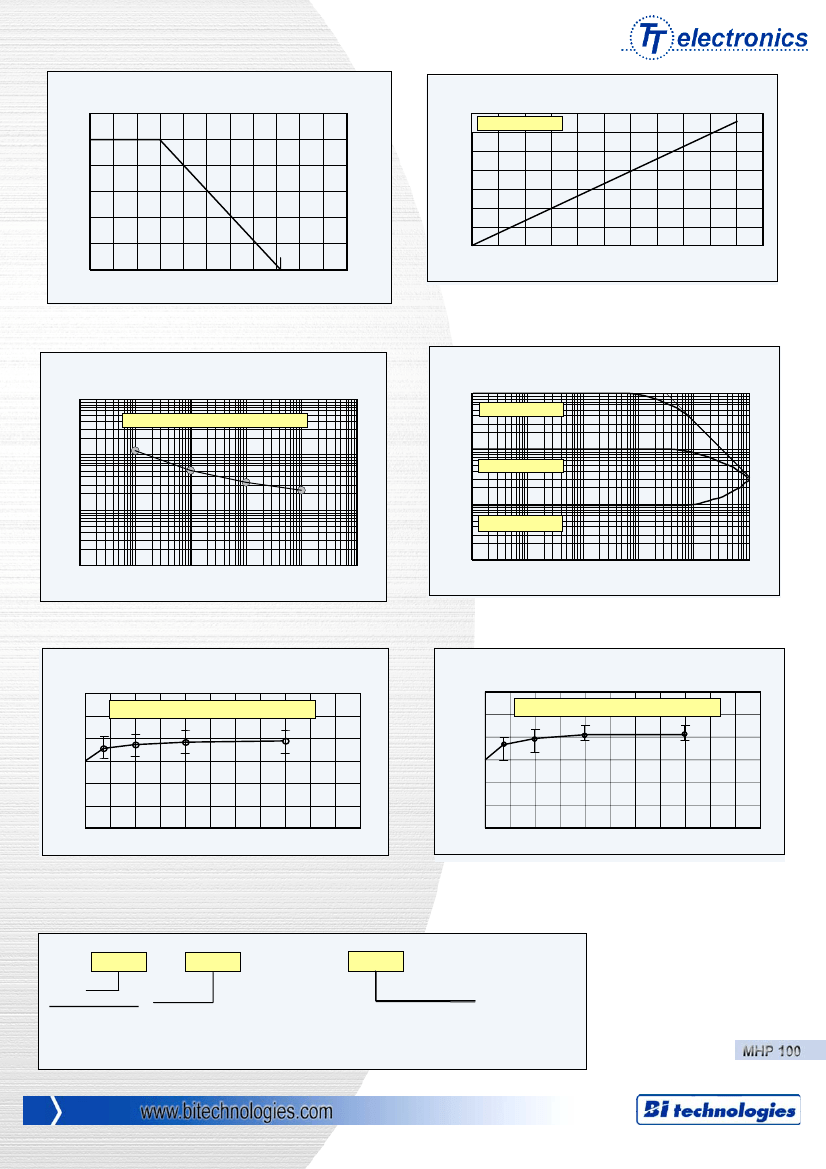

Notes:
Specifications subject to change without notice.
1. Electrically isolated metal tab.
2. Recommend the use of thermal grease between metal tab and heat sink.
3. Thermal design should account for a thermal resistance between resistor and tab of 1.3°C/W and a maximum resistor temperature of
155°C.
4. Resistances greater than 220Ω are available, please call factory.
5. For resistances from 220Ω to 51 KΩ the power rating shall be restricted to 50W.
6. Current rating: 25A maximum.
