G-PED-SP-2.75

Description
RF Connector Adapter, Female, Socket,
CategoryThe connector    The connector
File Size46KB,1 Pages
ManufacturerCorning Gilbert Inc
Download Datasheet Parametric View All

G-PED-SP-2.75 Overview

RF Connector Adapter, Female, Socket,

G-PED-SP-2.75 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Is SamacsysN
Body/casing typeSOCKET
Connector typeRF CONNECTOR ADAPTER
Contact point genderFEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberG-PED-SP
OptionsGENERAL PURPOSE
Panel mountingNO
Base Number Matches1

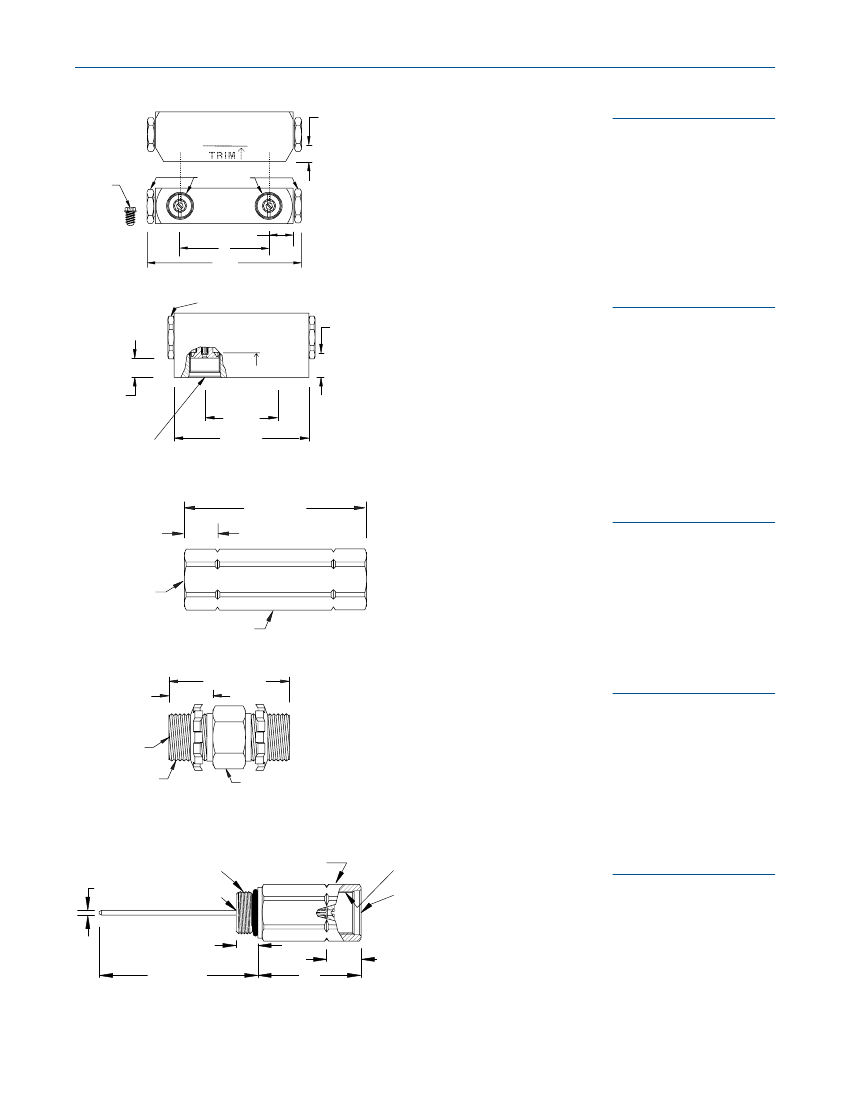

Splice Blocks and Socket Contact Adapters
1/2 [12.7 mm]
CENTER
CONDUCTOR
CUTTING
GUIDE
Ball Point
Seizure
Screw TYP
5/8-24 THD TYP
Splice Block
Part Number
G-SPB-2.00
G-SPB-2.75
B
2.00
2.75
A ball point seizure screw is utilized to
eliminate plating damage on the mating
pin connector.
.75 [19.05 mm] TYP
B
3.85
Screw Contact
3/4 [19.1 mm]
HEX TYP
1/2 [12.7 mm]
CENTER
CONDUCTOR
CUTTING
GUIDE
TRIM
Pedestal Splice Block
Part Number
G-PED-SP-1.50
G-PED-SP-2.00
G-PED-SP-2.75
(A)
3.35
3.85
4.60
(B)
1.50
2.00
2.75
Accepts .065”-0.75” pins
.38 [9.7 mm]
MIN TYP
B
"KS" FEMALE
INTERFACE TYP
A
Socket Contact
2.56 [65.1 mm]
1/2 [12.7 mm]
CENTER CONDUCTOR
CUTTING GUIDE TYP
Female Splice
Part Number
G-KS-KS-FS
G-KS-KS-FSL
Hex (A)
3/4
1-1/4
Accepts .065”-0.75” pins
5/8-24 THD TYP
Socket Contact
Hex A
2.07 [52.6 mm]
.75 [19.0 mm] TYP
Female Splice
Part Number
G-KS-KS-FS-EC
Accepts .065”-0.75” pins
5/8-24 THD TYP
Socket Contact
1/2 Pipe THD TYP
15/16 [23.8 mm] Hex
3/4 [19.1 mm] HEX.
5/8-24 THD.
.067 [1.7 mm] Dia. Pin
"KS" MALE
INTERFACE
5/8-24 THD.
"KS" FEMALE
INTERFACE
Extension Adapter
Part Number
G-EXT-1.5-SC-T
G-EXT-3-SC-T
G-EXT-4.5-SC-T
(B)
1.50
3.00
4.50
6.00
9.00
.31 [8.0 mm]
1/2 [12.7 mm]
CENTER CONDUCTOR
CUTTING GUIDE
B
G-EXT-6-SC-T
G-EXT-9-SC-T
2.31 [58.8 mm]
Accepts .065”-0.75” pins
Socket Contact
Corning Gilbert Broadband Products
Tel: 800 528 5567 / 623 245 1050 • Fax: 800 344 6358 / 623 939 3538
