Datasheet> All Categories > Discrete semiconductor> diode> EGP50F

Preview

EGP50F: DescriptionRectifier Diode, Avalanche, 1 Phase, 1 Element, 5A, 300V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size39KB，2 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

EGP50F Overview

Rectifier Diode, Avalanche, 1 Phase, 1 Element, 5A, 300V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2

EGP50F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	DO-201AD
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	UL RECOGNIZED
application	ULTRA FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

EGP50A........ EGP50G

5 Amp. Glass Passivated Avalanche Ultrafast Recovery Rectifier

Dimensions in mm.

DO-201AD

(Plastic)

Voltage

50 to 400 V.

Current

5 A at 55 ºC.

®

9.1

± 0.3

62.5

± 0.5

Mounting instructions

1. Min. distance from body to soldering point,

4 mm.

2. Max. solder temperature, 350 °C.

3. Max. soldering time, 3.5 sec.

4. Do not bend lead at a point closer than

3 mm. to the body.

•

Glass Passivated Junction

•

High current capability

•

The plastic material carries

U/L recognition 94 V-0

•

Terminals: Axial Leads

•

Polarity: Color band denotes cathode

EGP50A

EGP50B

EGP50D

EGP50F

EGP50G

Maximum Ratings, according to IEC publication No. 134

V

RRM

V

RMS

V

DC

I

F(AV)

I

FRM

I

FSM

t

rr

C

j

T

j

T

stg

E

RSM

Peak Recurrent reverse voltage (V)

Maximum RMS voltage

Maximum DC blocking voltage

Forward current at Tamb = 55 °C

Recurrent peak forward current (A)

8.3 ms. peak forward surge current

(Jedec Method)

50

35

50

100

70

100

200

140

200

5A

50 A

150 A

50 ns

100 pF

300

210

300

400

280

400

Max. reverse recovery time from

I

F

= 0.5 A ; I

R

= 1 A ; I

RR

= 0.25 A

Typical Junction Capacitance at 1 MHz

and reverse voltaje of 4V

DC

Operating temperature range

Storage temperature range

Maximum non repetitive peak

reverse avalanche energy.

I

R

= 1A ; T

J

= 25 ºC

Max. forward voltage drop at I

F

= 5 A

at 25 ºC

Max. reverse current at V

RRM

at 150 ºC

Max. thermal resistance ( l = 10 mm.)

– 65 to + 150 °C

20 mJ

Electrical Characteristics at Tamb = 25 °C

V

F

I

R

thj-a

1.0 V

5µA

50 µ A

20 °C/W

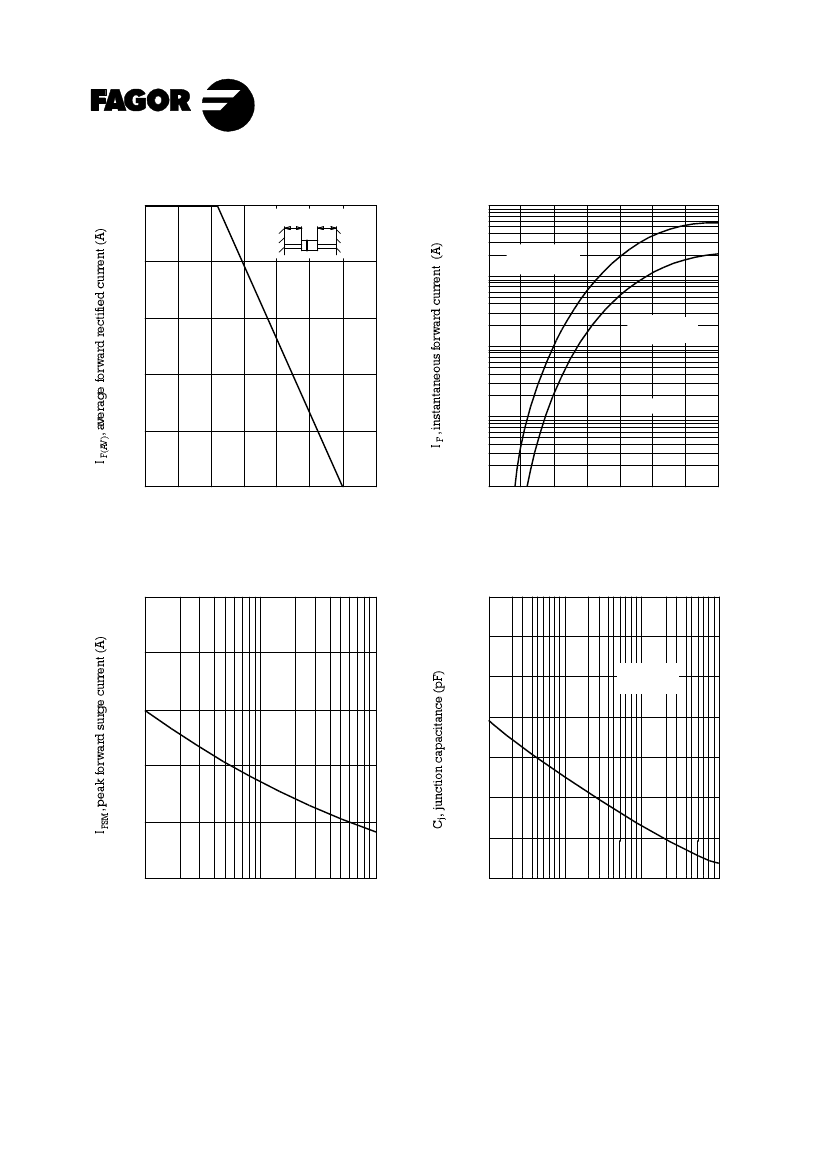

Feb - 00

1.25 V

EGP50F Related Products

	EGP50F	EGP50A	EGP50D	EGP50G	EGP50B
Description	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 5A, 300V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 5A, 50V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 5A, 200V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 5A, 400V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Parts packaging code	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD
package instruction	O-PALF-W2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	O-PALF-W2	PLASTIC PACKAGE-2
Contacts	2	2	2	2	2
Reach Compliance Code	compliant	not_compliant	not_compliant	compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1 V	1 V	1.25 V	1 V
JEDEC-95 code	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
JESD-609 code	e3	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1	1
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A	150 A
Number of components	1	1	1	1	1
Phase	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	5 A	5 A	5 A	5 A	5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	50 V	200 V	400 V	100 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs
surface mount	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1	-
Maker	-	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica
