BC075-13-C-L-A: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size151KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BC075-13-C-L-A Overview

Board Connector, 13 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

BC075-13-C-L-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
body width	0.059 inch
subject depth	0.083 inch
body length	0.531 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
maximum insertion force	1.0008 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	BC075
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	13
Evacuation force-minimum value	.1112 N
Base Number Matches	1

Preview

Download Datasheet

View All

3

1

2

4

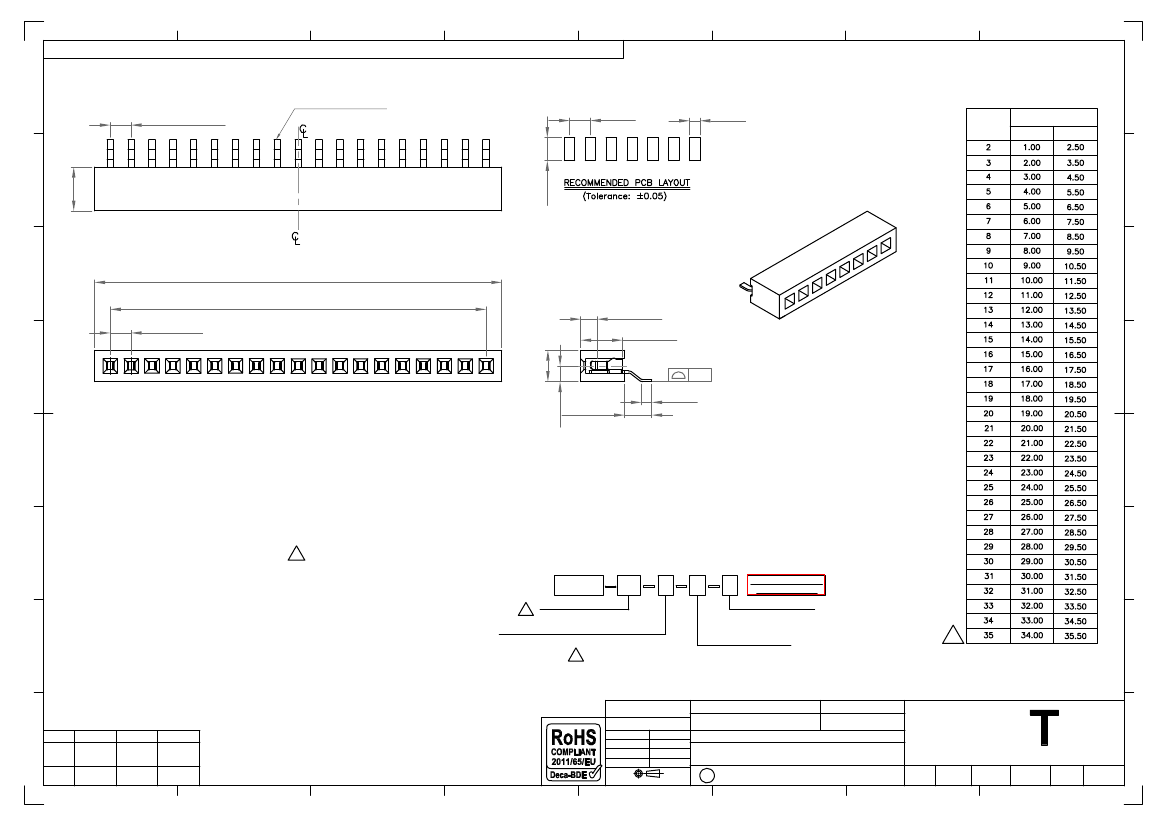

Global Connector Technology Ltd. - BC075: 1.00mm PITCH SOCKET, SINGLE ROW, SURFACE MOUNT, HORIZONTAL

A

0.30x0.10 PIN (Typ.)

5

6

7

8

A

1.00±0.05 (Typ.)

1.00

Typ (Non-Accum.)

0.50

(Typ.)

CONTACTS

DIMENSIONS

A

B

2.10

B

1.10

C

B±0.25

A±0.15

1.00 (Typ.)

C

0.79 ref.

2.00 ref.

1.50

D

0.10

0.50

0.75

1.3±0.20

E

Specifications

规格

:

Current Rating

电流额定值：

1 Amp

Insulator Resistance

绝缘电阻值

: 1000 MΩ min.

B

Dielectric Withstanding

耐电压：

AC 300 V

Contact Resistance

接触电阻值：

40 mΩ max.

Operating Temperature

工½温度：

-40°C to +105°C

Contact Material

端子物料：

Phosphor Bronze

Insulator Material

绝缘½物料

:

Standard

标准物料

: Polyester

聚酯

, LCP, UL 94V-0

Soldering Process

可焊性

:

LCP (Standard

标准物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Manual Solder

人工焊接

: 350°C for 3-5 sec

Mates with

配套之母座

(subject to pin length

在端子长度适合的条件下

):

BC020

BC025

BC030

BC032

BC034

F

Ordering Grid

BC075

C

XX

X

L

X

REQUEST SAMPLES

AND QUOTATION

G

No. of Contacts

02 to 35

Contact Plating

A = Gold Flash All Over

(Standard)

C = Tin All Over B

Packing Options

A = Tape and Reel

(Standard)

D = Tube

Insulator Material

L = LCP

(Standard)

C

G

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

BC075

Description:-

20 MAY 08

H

By

DETAIL

REV

DATE

ASE

Drawing

Release

A

20/05/08

SA

Plating &

Spec

B

21/12/09

SA

ECN:

BC075-001

C

10/11/10

X.°± 5°

.X°± 3°

X.X ± 0.25

X.XX ± 0.15

.XX°± 2°

X.XXX ± 0.10 .XXX°± 1°

X. ± 0.30

Third Angle Projection

1.00mm PITCH SOCKET, SINGLE ROW,

SURFACE MOUNT, HORIZONTAL

GC

Scale

NTS

H

Sheet No.

E & OE

1/1

www.gct.co

Drawn by

ASE

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

C

Material

See Note
