L-14811 datasheet, PDF - EEWORLD Datasheet

L-14811: DescriptionGeneral Purpose Inductor, 14420uH, 30%, 1 Element, Iron-ferrite-Core,; CategoryPassive components inductor; File Size45KB，1 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

Download Datasheet Parametric Compare View All

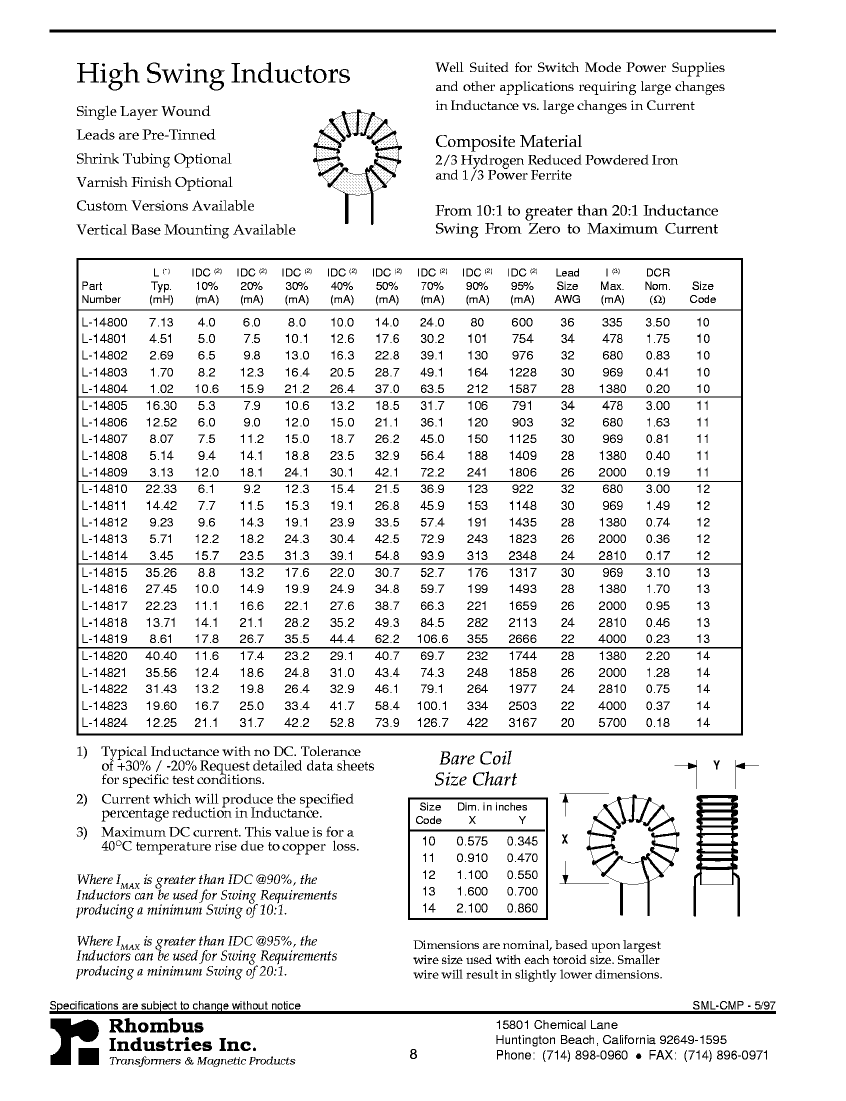

L-14811 Overview

General Purpose Inductor, 14420uH, 30%, 1 Element, Iron-ferrite-Core,

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
structure	Single Layer
core material	IRON-FERRITE
DC Resistance	1.49 Ω
Nominal inductance(L)	14420 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	L-14811
Number of functions	1
Number of terminals	2
Package diameter	27.94 mm
Package length	13.97 mm
Package form	Toroidal
Maximum rated current	0.969 A
series	HIGH SWING
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal surface	TIN
Terminal location	RADIAL
Terminal shape	PRINTED WIRING PIN
Tolerance	30%
Base Number Matches	1

	L-14811	L-14809
Description	General Purpose Inductor, 14420uH, 30%, 1 Element, Iron-ferrite-Core,	General Purpose Inductor, 3130uH, 30%, 1 Element, Iron-ferrite-Core,
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
structure	Single Layer	Single Layer
core material	IRON-FERRITE	IRON-FERRITE
DC Resistance	1.49 Ω	0.19 Ω
Nominal inductance(L)	14420 µH	3130 µH
Inductor Applications	DC-DC CONVERTER	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3
Manufacturer's serial number	L-14811	L-14809
Number of functions	1	1
Number of terminals	2	2
Package diameter	27.94 mm	23.114 mm
Package length	13.97 mm	11.938 mm
Package form	Toroidal	Toroidal
Maximum rated current	0.969 A	2 A
series	HIGH SWING	HIGH SWING
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	NO	NO
surface mount	NO	NO
Terminal surface	TIN	TIN
Terminal location	RADIAL	RADIAL
Terminal shape	PRINTED WIRING PIN	PRINTED WIRING PIN
Tolerance	30%	30%
Base Number Matches	1	1
