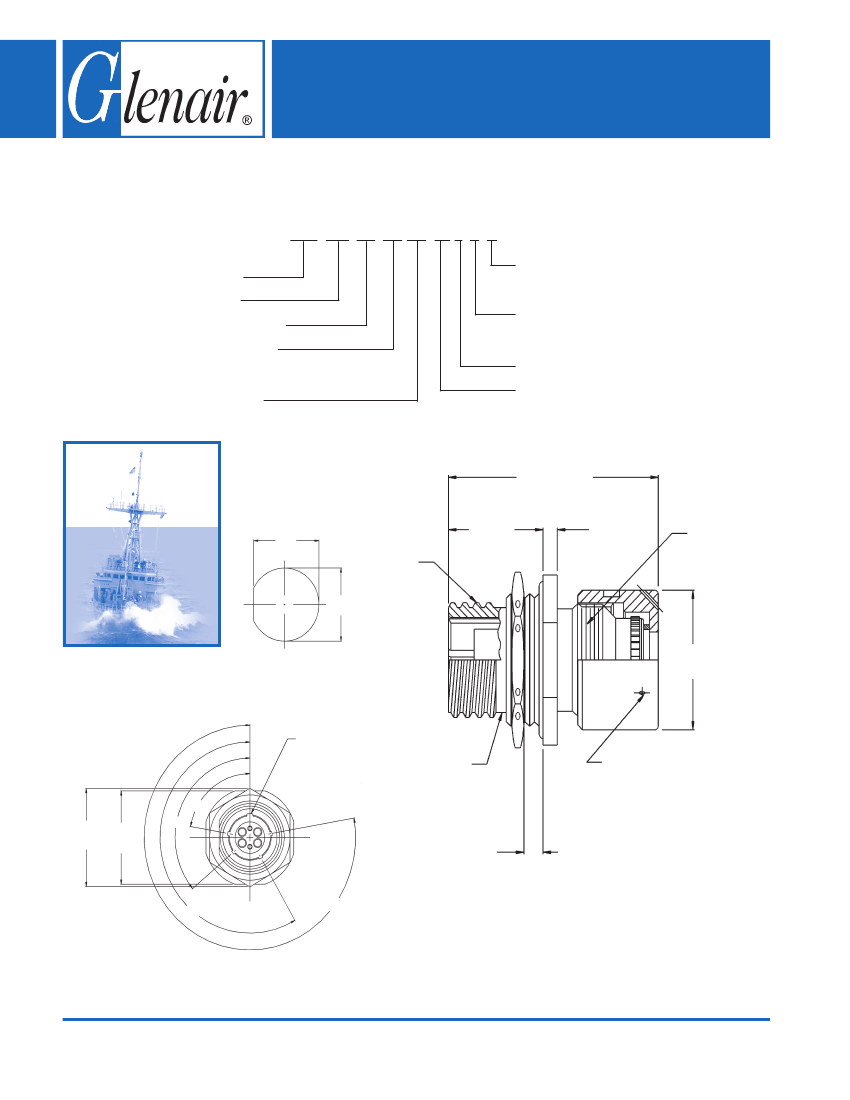

180-040-04 Jam Nut Mounted Receptacle
MIL-C-28876 Type Fiber Optic Connector
For use with MIL-T-29504/14 and /15 Termini
MIL-C-28876
HOW TO ORDER:
Product Series
Basic Number
Finish Symbol (Table II)
Shell Size (Table I)
180 - 040 NF 04 -13 - 04-1 P N
N = Without Backnut and Spacer
(When Using Backshell)
Omit for with Backnut and Spacer
Insert Designator:
P = Pin Insert
S = Socket Insert
Alternate Keying Position (Table IV)
Insert Arrangement, Dash No. (Table III)
06 = Plug Assembly
03 = Receptacle Assembly, Wall Mtg.
04 = Receptacle Assembly, Jam Nut Mtg.
The Standard
Fiber Optic Connector
for Shipboard Use
H
Flat
1.03 (26.2)
1.01 (25.7)
1.99 (50.4)
Max
.125 (3.2)
.105 (2.7)
See Note 2
A Thread
Size (Table I)
K Dia
RECOMMENDED
PANEL CUTOUT
C Dia
Master
Polarizing
Key
F Hex G
Corner Flat
B
A
Yellow
Band
3 Wire Holes
.188 (4.8) Panel Thickness
D
C
© 2004 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
F-6
180-040-04 Jam Nut Mounted Receptacle
MIL-C-28876 Type Fiber Optic Connector
For use with MIL-T-29504/14 and /15 Termini
TABLE I: SHELL SIZE
Shell
Size
11
13
15
"A" Thread
.IP- .2L-DS
.750
.875
1.062
F Hex
Max
1.290 (32.8)
1.435 (36.4)
1.650 (41.9)
G Flat
+ .010 (.005)
1.262 (32.1)
H Flat
+ .010 (.005)
.848 (21.5)
K Dia
+ .010 (.005)
.885 (22.5)
1.010 (25.7)
1.198 (30.4)
C Dia
Max
.960 (24.4)
1.085 (27.6)
1.255 (31.9)
1.387 (35.2) .973 (24.7)
1.575 (40.0) 1.160 (29.5)
TABLE III: INSERT ARRANGEMENT
Shell
Size
11
13
15
Insert
Arrangement
Dash No.
02
04
06 or 08
Number of
Terminus
Cavities
2
4
6 or 8
M
NF
TABLE II: FINISH
Symbol Finish Description
Electroless Nickel
Cadmium/Olive Drab over
Electroless Nickel
(500 Hour Salt Spray)
TABLE IV: ALTERNATE KEYING POSITION
Shell
Size
11
and
13
Keying
Position
1
2
3
4
5
6
1
2
3
4
5
6
A°
95
113
90
53
119
51
80
135
49
66
62
79
B°
141
156
145
156
146
141
142
170
169
140
145
153
C°
208
182
195
220
176
184
196
200
200
200
180
197
D°
236
292
252
255
298
242
293
310
244
257
280
272
15
NOTES:
1. Metric dimensions (mm) are in parentheses and are for reference only.
2. Backnut retained with thread locking compound.
© 2004 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
F-7
