180-040M06-15-06-5SN: DescriptionSINGLE MODE, SIMPLEX FIBER OPTIC CONNECTOR, PLUG; CategoryThe connector The connector; File Size112KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

180-040M06-15-06-5SN Overview

SINGLE MODE, SIMPLEX FIBER OPTIC CONNECTOR, PLUG

180-040M06-15-06-5SN Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	STANDARD: MIL-C-28876
Body/casing type	PLUG
Connection Type	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR
Coupling type	THREADED
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	180
model	SINGLE
Installation type	CABLE
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

Fiber Optic

Connectors

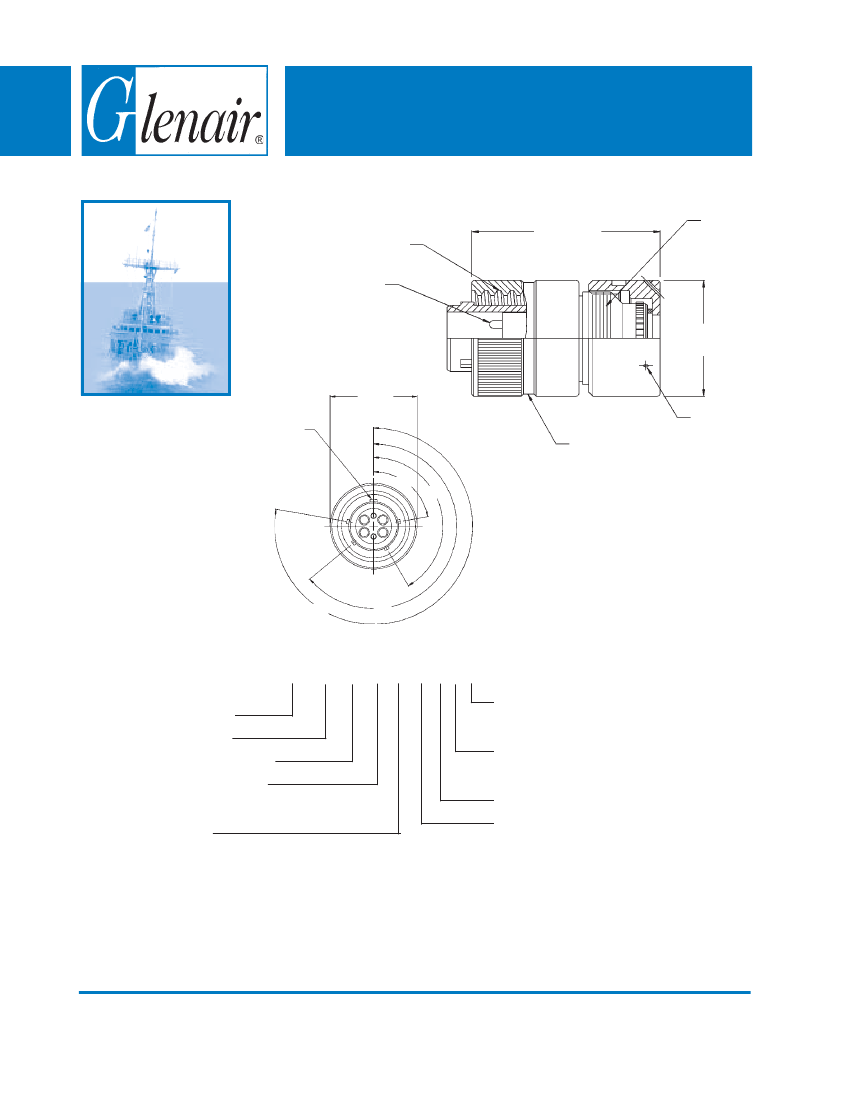

MIL-C-28876 Style Fiber Optic Connector

For use with MIL-T-29504/14 and /15 Termini

06 Plug

The Standard

Fiber Optic Connector

for Shipboard Use

A Thread Size

(Table I)

Alignment Pin

(2 Places)

1.87 (47.5)

Max

See Note 2

B Dia.

3 Wire Holes

Master

Polarizing

Key

Yellow Band

180-040 NF 06-13-04-1 P N

Product Series

Basic Number

Finish Symbol (Table II)

06 = Plug Assembly

03 = Receptacle Assembly, Wall Mtg.

04 = Receptacle Assembly, Jam Nut Mtg.

Shell Size

N = Without Backnut and Spacer

(When Using Backshell)

Omit for with Backnut and Spacer

Insert Designator:

P = Pin Insert

S = Socket Insert

Alternate Keying Position (Table IV)

Insert Arrangement, Dash No. (Table III)

CAGE Codes 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

C-18
