PXA941/04/S/08: Description32A, 600VAC, FEMALE, MAINS POWER CONNECTOR, SCREW, SOCKET; CategoryThe connector The connector; File Size78KB，2 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/

Download Datasheet Parametric View All

PXA941/04/S/08 Overview

32A, 600VAC, FEMALE, MAINS POWER CONNECTOR, SCREW, SOCKET

PXA941/04/S/08 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	STANDARDS: UL 94V-0; VDE
Body/casing type	SOCKET
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Contact material	BRASS
Coupling type	THREADED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	32A, 600VAC
Manufacturer's serial number	900
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Termination type	SCREW
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

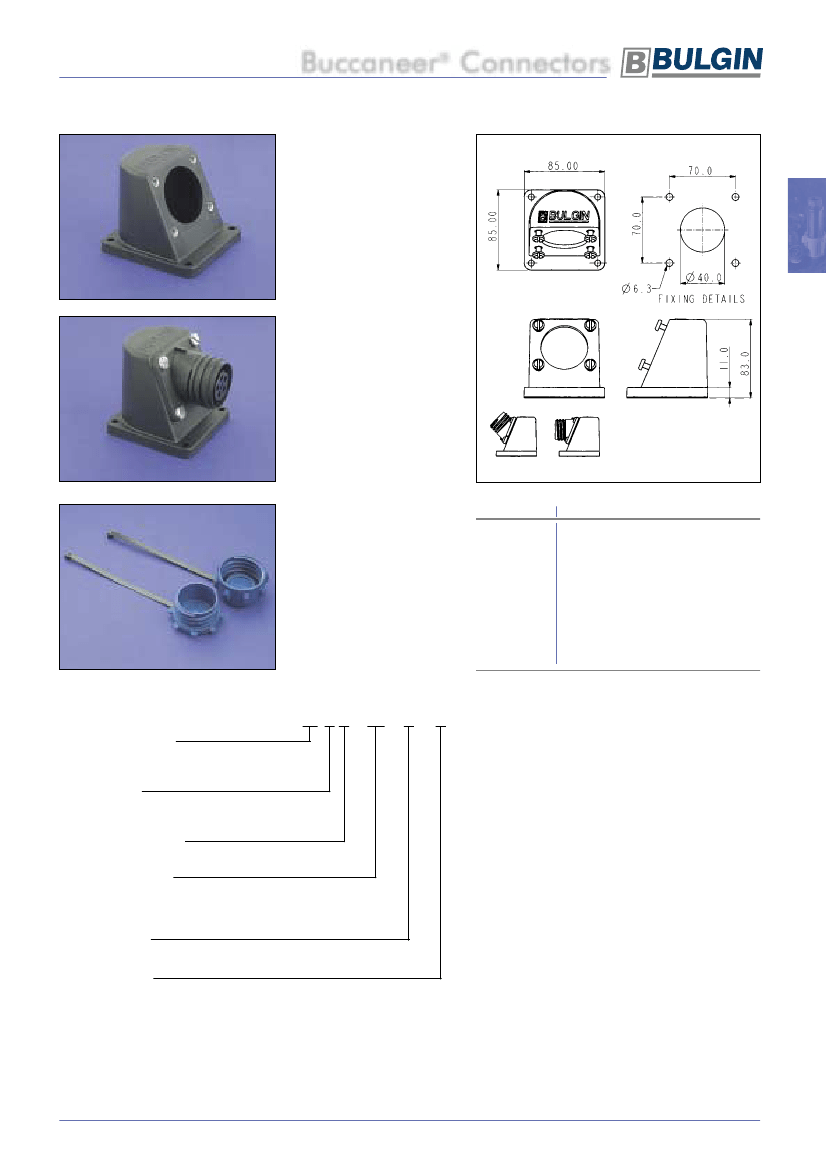

Buccaneer

®

Connectors

900 Series Buccaneer

®

Additional bulkhead

adaptor moulding

Buccaneer

®

Accessories

PX0960

PX0970

PX0980

Sealing cap for use with PX0911/xx/x and

PXA911/xx/x

Sealing cap for use with all other styles

Pack of 3 additional cable glands for

PX0911 and PX0921 to suit cable sizes;

11-13mm, 9-11 and 7-9mm dia.

Pack of 3 additional cable glands for

PXA911 and PXA921 to suit cable sizes;

18-20mm, 16-18 and 14-16mm dia.

PXA980

Connectors

For use with flange

mounting connector

PX0941, to give 45˚ or 90˚

angle

Supplied with high grade

sealing gasket

PX0950

Supplied with sealing

grommets for panel fixing

screws (M6 thread

recommended)

PX0950 & PX0941

Sealing caps to maintain

IP68 rating of unmated

connectors

PX0960, PX0970

Part No System

Series Designation

09 = Standard Cable Accommodation

A9 = Large Cable Accommodation

Body Styles

1 = Flex, 2 = Flex In-line,

3 = Chassis, 4 = Flange Chassis

Contact Termination

1 = Screw Terminal

Number Contacts

02 = 2 pole, 03 = 3 pole,

04 = 4 pole, 05 = 5 pole

07 = 7 pole

Contact Type

P = Plug, S = Socket

Cable Acceptance

PX0 version:

Blank = 13-15mm

03 = 11-13mm

02 = 9-11mm

01 = 7-9mm

PXx9 x x / xx / x / xx

Yellow cable gland (standard)

Black cable gland

White cable gland

Dark Grey cable gland

PXA version:

Blank = 20-22mm

09 = 18-20mm

08 = 16-18mm

07 = 14-16mm

Yellow cable gland (standard)

Black cable gland

White cable gland

Dark Grey cable gland

www.Bulgin.co.uk

Tel: +44 (0) 20 8594 5588

17
