PCR-96LFD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PCR-96LFD

PCR-96LFD: DescriptionTelecom and Datacom Connector, 96 Contact(s), Female, Right Angle, Solder Terminal, Plug,; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.

Download Datasheet Parametric Compare View All

PCR-96LFD Overview

Telecom and Datacom Connector, 96 Contact(s), Female, Right Angle, Solder Terminal, Plug,

PCR-96LFD Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
body width	0.287 inch
subject depth	0.453 inch
body length	2.795 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	8u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
Base Number Matches	1

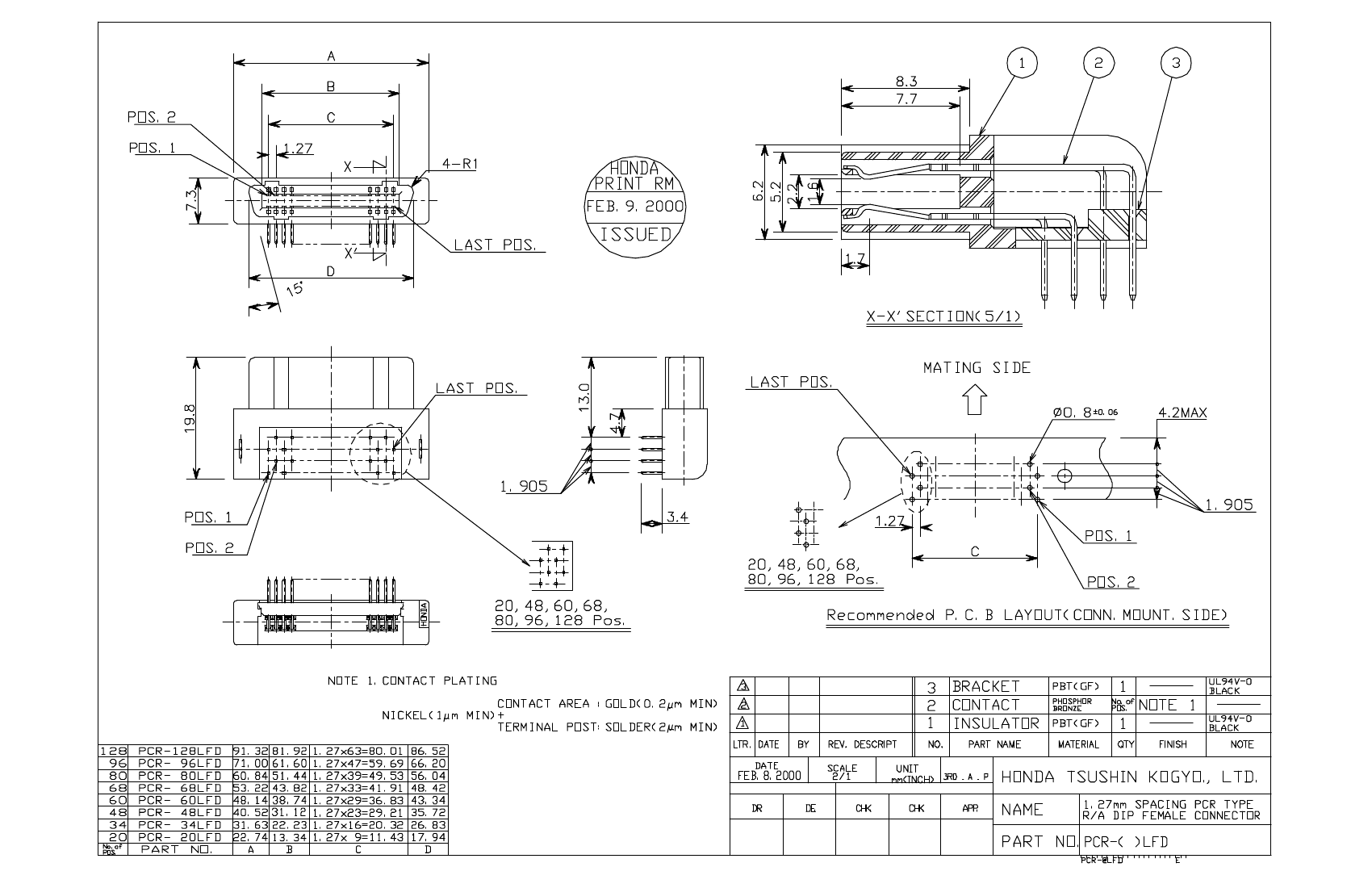

Preview

Download Datasheet

View All

PCR-96LFD Related Products

	PCR-96LFD	PCR-128LFD	PCR-20LFD	PCR-34LFD	PCR-48LFD	PCR-68LFD	PCR-60LFD	PCR-80LFD
Description	Telecom and Datacom Connector, 96 Contact(s), Female, Right Angle, Solder Terminal, Plug,	Telecom and Datacom Connector, 128 Contact(s), Female, Right Angle, Solder Terminal, Plug,	Telecom and Datacom Connector, 20 Contact(s), Female, Right Angle, Solder Terminal, Plug,	Telecom and Datacom Connector, 34 Contact(s), Female, Right Angle, Solder Terminal, Plug,	Telecom and Datacom Connector, 48 Contact(s), Female, Right Angle, Solder Terminal, Plug,	Telecom and Datacom Connector, 68 Contact(s), Female, Right Angle, Solder Terminal, Plug,	Telecom and Datacom Connector, 60 Contact(s), Female, Right Angle, Solder Terminal, Plug,	Telecom and Datacom Connector, 80 Contact(s), Female, Right Angle, Solder Terminal, Plug,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	N	N	N	N	N
body width	0.287 inch	0.287 inch	0.287 inch	0.287 inch	0.287 inch	0.287 inch	0.287 inch	0.287 inch
subject depth	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch
body length	2.795 inch	3.595 inch	0.895 inch	1.245 inch	1.595 inch	2.095 inch	1.895 inch	2.395 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	4	4	4	4	4	4	4	4
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm
Plating thickness	8u inch	8u inch	8u inch	8u inch	8u inch	8u inch	8u inch	8u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	96	128	20	34	48	68	60	80
Base Number Matches	1	1	1	1	1	1	1	1
