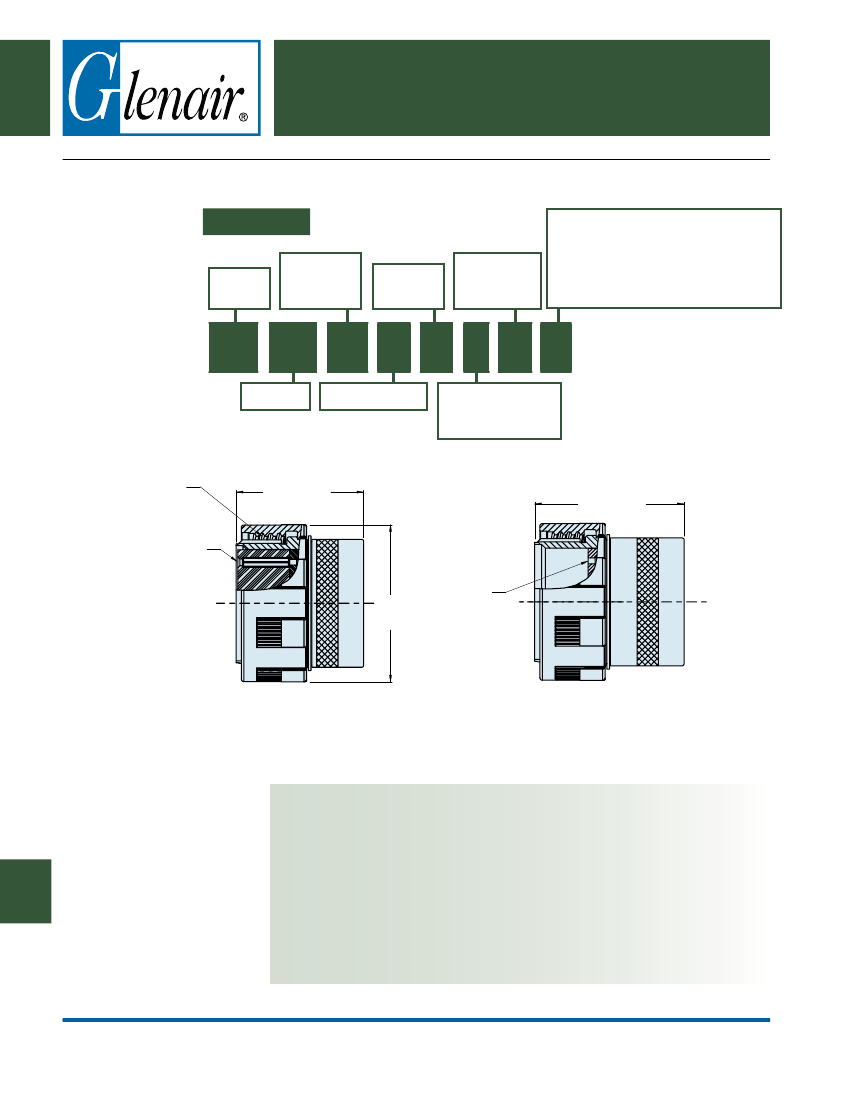

180-044 (06)

Fiber Optic Test Adapter, Plug

MIL-DTL-38999 Series III

Test Probes

and Kits

MIL-DTL-38999 test adapter (plug)

How To Order

Material/

Finish

(Table II)

Insert Type

P

= Pin

S

= Socket

Alternate keying Position

N, A, B, C, D

&

E

Per MIL-DTL-38999,

Series III

Omit to receive universal single

key (master) only. This option not

recommended for larger shell sizes (19-25)

Product

Series

Shell Size

(Table I)

180

-

044 NF 06

-

17

-

8

Basic No.

06

=

Plug Adapter

P

A

Insert Arrangement

Per MIL-STD-1560

(Table I)

A Thread

1.50 (38.1)

Max

1.75 (44.5)

Max

Socket Insert

Pin Insert

ØB

06 Plug Adapter

U.S. PATENT NO. 5,960,137

Material and Finish

L

Barrel: See Table II

Insert, Coupling Nut: Hi-Grade Engineering Thermoplastic

Alignment Sleeve: Zirconia Ceramic

Retaining Ring: Stainless Steel

Retaining Clips: Copper Alloy

Lock Cap, Lock Nut: Al Alloy/Anodize

Notes

For fiber optic test probe (standard) jumper, see Glenair drawing ABC54705

For fiber optic test probe (low profile, probe-to-probe) jumper, see Glenair drawing FO01757.

Suggested for 25-37 insert arrangement.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

L-16
