RPS-D68FB+: DescriptionBoard Connector, 68 Contact(s), 2 Row(s), Female, IDC Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size62KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

RPS-D68FB+ Overview

Board Connector, 68 Contact(s), 2 Row(s), Female, IDC Terminal, ROHS COMPLIANT

RPS-D68FB+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	68
Base Number Matches	1

Preview

Download Datasheet

View All

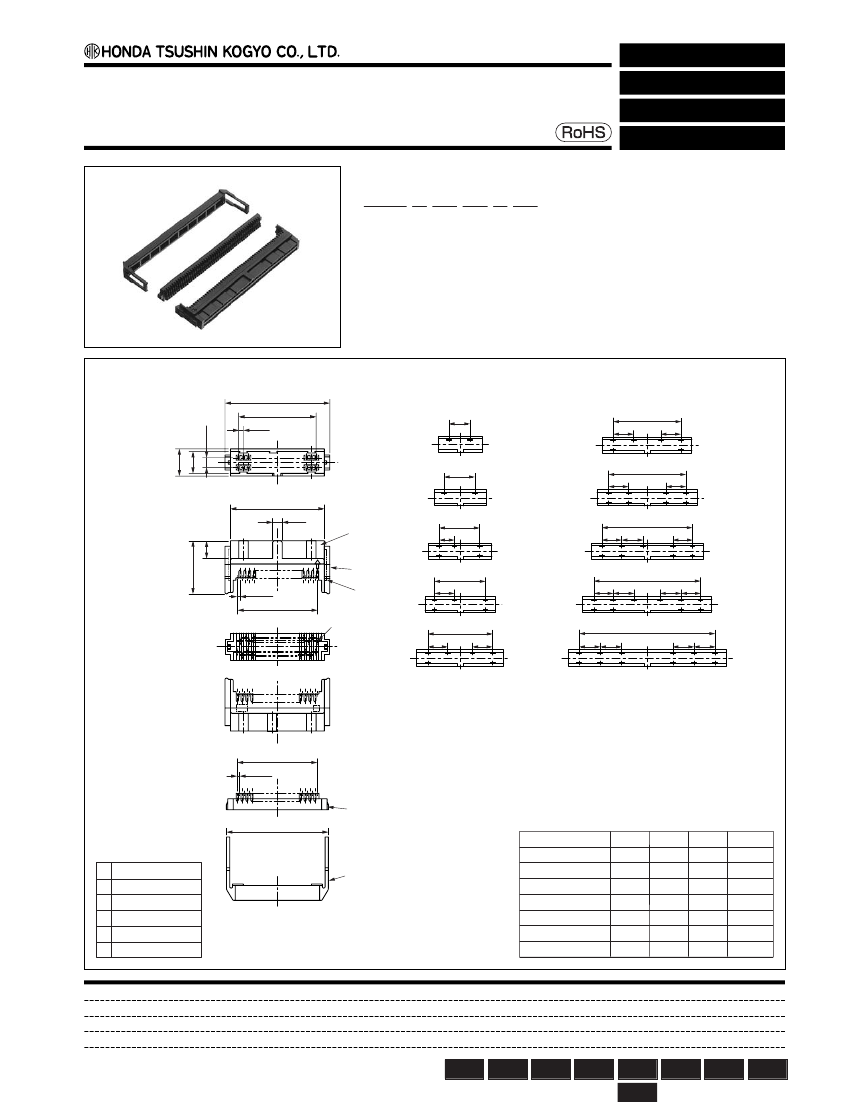

1.27 mm pitch connector

IDC type female connector for cable

RPS-D( )( )F( )+

●

Configuration of product Part No.

For cable

IDC (0.635 mm)

Daisy chain

RPS- D ( ) ( ) F ( )+

➀

➁

➂

∞

Compatible cable

➀

Series name

➁

For 0.635mm pitch flat cables (Daisy Chain) Blank: #32AWG (7/0.08)

(t=0.6mm)

➂

No. of contacts: 20, 40, 50, 60, 68, 80 or 100

#30AWG (1/0.254)

FK: Female

(t=0.6mm)

➃

Strain relief

: #30AWG (7/0.102)

Blank : None

(t=0.6mm)

: Relief appending

∞

Type of contact

F: Female

2.54

1.27

For 20-contact

connector

8.89

For 52-contact

connector

29.21

8.89

7.2

5.5

12.7

8.89

34.29

8.89

For 60-contact

connector

2.5

For 26-contact

connector

4.5

For 34-contact

connector

17.78

7.62

For 68-contact

connector

39.37

8.89 8.89

8.89

14.5

™

0.635

21.59

8.89

For 40-contact

connector

For 80-contact

connector

46.99

8.89 8.89

27.94

8.89

For 50-contact

connector

59.69

8.89

For 100-contact

connector

8.89 8.89

Key-location symbols and key-groove dimensions

0.635

∞

(Appending)

●

Dimensions

Part No.

RPS-D20( )F( )+

18.57

31.27

37.62

43.97

49.05

56.67

15.67

28.37

34.72

41.07

46.15

53.77

66.47

11.43

24.13

30.48

36.83

41.91

49.53

62.23

12.065

24.765

31.115

37.465

42.545

50.165

62.865

●

Components

➀

Insulator

➁

Cable housings A

➂

Ground plate

➃

Contacts

➄

Cable housings B

Strain relief

(Appending)

RPS-D40( )F( )+

RPS-D50( )F( )+

RPS-D60( )F( )+

RPS-D68( )F( )+

RPS-D80( )F( )+

RPS-D100( )F( )+

69.37

Mating connectors:

RPS-( )RM+, RPS-( )RLM+

RPS-D40MB+ (40-contact connector only)

Accessories:

RPS-PK

Tool:

IDC locator: FLPT-0001A, Hand presser: RPS-K4 (Refer to page Tool-13)

Others

Wire

wrapping Crimping Soldering

IDC

Press-in

SMT

Through

hole
