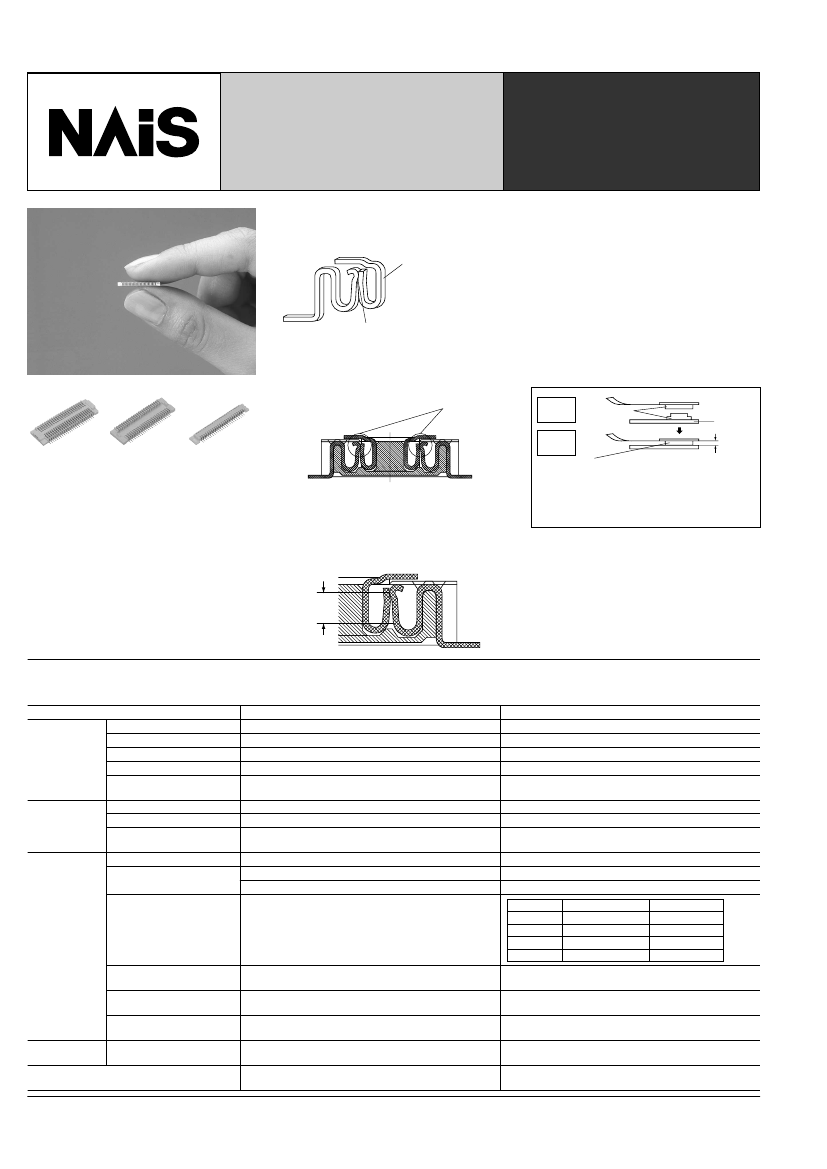

Measures the maximum load in the post axial direction
until removal
No freezing at low temperatures
Infrared reflow soldering
Soldering iron
Sequence
1
2
3
4
Temperature (°C)
–55
+0
−3
25
+10
−5
85
+3
−0
25
+10
−5
Time (minutes)
30
Max. 5
30
Max. 5
Conditions
Electrical
characteristics
Detection current: 1mA
Using 500V DC megger
Measured based on the HP4338B measurement method
of JIS C 5402
Mechanical
characteristics
Environmental
characteristics
Thermal shock resistance
(header and socket mated)
5 cycles,
insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
Humidity resistance
(header and socket mated)
Saltwater spray resistance
(header and socket mated)
H
2
S resistance
(header and socket mated)
Lifetime
characteristics
Unit weight
Insertion and removal life
120 hours,
24 hours,
48 hours,
50 times
insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
contact resistance max. 90mΩ
Bath temperature 40±2°C, humidity 90 to 95% R.H.
Bath temperature 35±2°C, saltwarter concentration 5±1%
Bath temperature 40±2°C, gas concentration 3±1 ppm,
humidity 75 to 80% R.H.
Repeated insertion and removal speed of max. 200 times/
hours
Mated height 1.5mm, 20 contacts; Socket: 0.06g
Header: 0.04g
24
AXK(5/6)F
2. Material and surface treatment
Part name
Molded portion
Contact/Post
Material
Heat-resistant resin (UL94V-0)
Copper alloy
Surface treatment
—
Contact portion: Au plating over Ni
Terminal portion: Au plating over Ni (Except for thick of terminal)
PRODUCT TYPES
Mated height
No. of contacts
10
12
14
16
20
22
24
26
30
32
34
40
50
60
70
80
10
12
14
16
18
20
22
24
30
34
40
50
60
70
80
100
10
12
14
16
20
22
24
30
34
40
50
60
70
80
100
Part No.
Socket
AXK5F10345YJ
AXK5F12345YJ
AXK5F14345YJ
AXK5F16345YJ
AXK5F20345YJ
AXK5F22345YJ
AXK5F24345YJ
AXK5F26345YJ
AXK5F30345YJ
AXK5F32345YJ
AXK5F34345YJ
AXK5F40345YJ
AXK5F50345YJ
AXK5F60345YJ
AXK5F70345YJ
AXK5F80345YJ
AXK5F10545YJ
AXK5F12545YJ
AXK5F14545YJ
AXK5F16545YJ
AXK5F18545YJ
AXK5F20545YJ
AXK5F22545YJ
AXK5F24545YJ
AXK5F30545YJ
AXK5F34545YJ
AXK5F40545YJ
AXK5F50545YJ
AXK5F60545YJ
AXK5F70545YJ
AXK5F80545YJ
AXK5F00545YJ
AXK5F10545YJ
AXK5F12545YJ
AXK5F14545YJ
AXK5F16545YJ
AXK5F20545YJ
AXK5F22545YJ
AXK5F24545YJ
AXK5F30545YJ
AXK5F34545YJ
AXK5F40545YJ
AXK5F50545YJ
AXK5F60545YJ
AXK5F70545YJ
AXK5F80545YJ
AXK5F00545YJ
Header
AXK6F10345YJ
AXK6F12345YJ
AXK6F14345YJ
AXK6F16345YJ
AXK6F20345YJ
AXK6F22345YJ
AXK6F24345YJ
AXK6F26345YJ
AXK6F30345YJ
AXK6F32345YJ
AXK6F34345YJ
AXK6F40345YJ
AXK6F50345YJ
AXK6F60345YJ
AXK6F70345YJ
AXK6F80345YJ
AXK6F10345YJ
AXK6F12345YJ
AXK6F14345YJ
AXK6F16345YJ
AXK6F18345YJ
AXK6F20345YJ
AXK6F22345YJ
AXK6F24345YJ
AXK6F30345YJ
AXK6F34345YJ
AXK6F40345YJ
AXK6F50345YJ
AXK6F60345YJ
AXK6F70345YJ
AXK6F80345YJ
AXK6F00345YJ
AXK6F10545YJ
AXK6F12545YJ
AXK6F14545YJ
AXK6F16545YJ
AXK6F20545YJ
AXK6F22545YJ
AXK6F24545YJ
AXK6F30545YJ
AXK6F34545YJ
AXK6F40545YJ
AXK6F50545YJ
AXK6F60545YJ
AXK6F70545YJ
AXK6F80545YJ
AXK6F00545YJ
Inner carton (1-reel)
Packing
Outer carton
1.5 mm
2.0 mm
Note)
“Asterisk” mark on end of part No.;
J: 2,000 pieces (recommendation)
Note)
“Asterisk” mark on end of part No.;
J: 4,000 pieces (recommendation)
2.5 mm
Notes) 1. In order to reduce the amount of packaging materials used to help protect the global environment, it is recommended that each packaging box contain 2,000 units
with the “J” product number suffix. Embossed tape packages containing 1,000 units in the inner carton (1-reel) are also available. The latter have the “P” product
number suffix. When placing orders, change the “J” suffix to the “suffix P.”
2. Regarding ordering units, During production: Please make orders in 1-reel units.
Samples for mounting confirmation: Please consult us. (See “Regarding sample orders to confirm proper mounting” on page 9.)
Samples: Small lot orders are possible. Change the suffix “J” to the suffix “P.”
3. The standard type comes with no positioning bosses. Connectors with positioning bosses are available for on-demand production. For this type of connector, 9th
digit of the part no. changes from 4 to 3. e.g.
Mated height 1.5mm, 10 contacts for sockets: AXK5F10335YJ
4. The 11th digit “Y” in the socket/header part number indicates the connector has a V-notch. (For details, please consult one of our sales offices.)
25
AXK(5/6)F

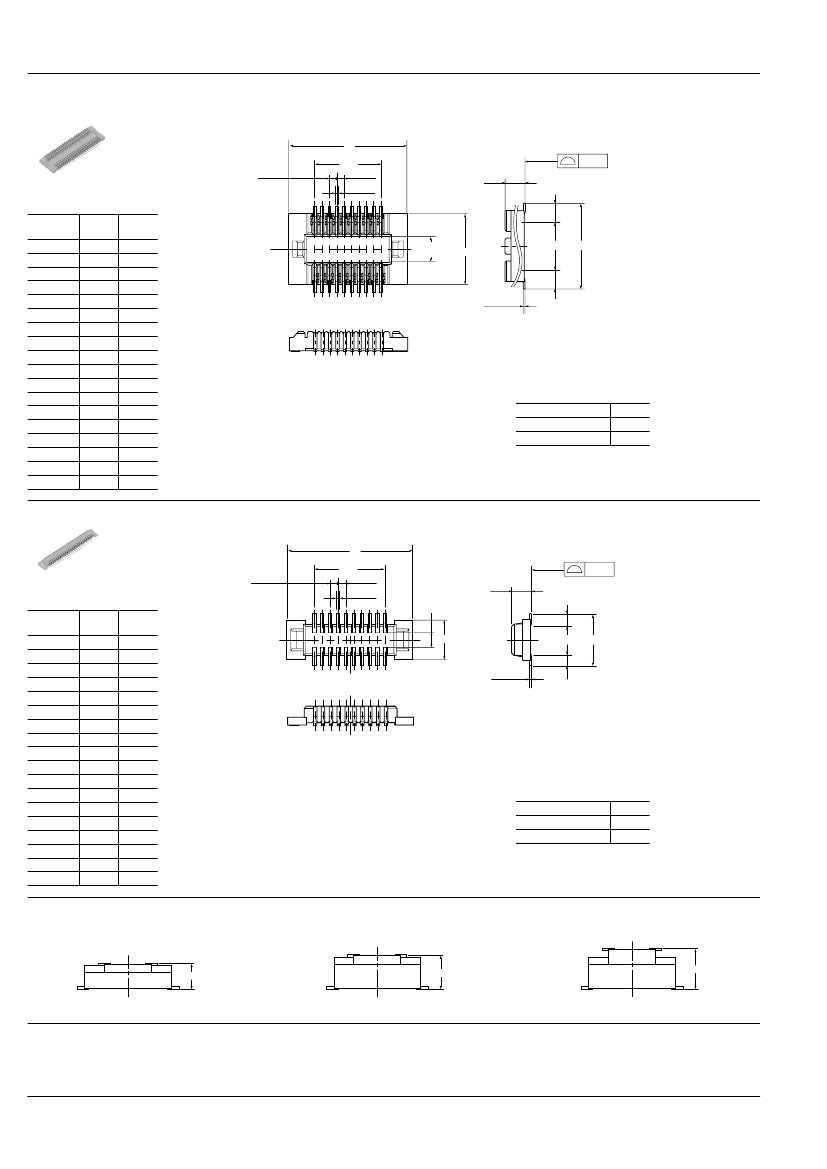

DIMENSIONS
• Socket (Mated height: 1.5mm, 2.0mm, 2.5mm)
A
B
0.50
0.05
0.1
mm General tolerance ±0.2
0.10
0.05
0.50
0.20
C
0.03
(0.80)
Dimension table (mm)
No. of
contacts
10
12
14
16
18
20
22
24
26
30
32
34
40
50
60
70
80
100
A
5.50
6.00
6.50
7.00
7.50
8.00
8.50
9.00
9.50
10.50
11.00
11.50
13.00
15.50
18.00
20.50
23.00
28.00
B
2.00
2.50
3.00
3.50
4.00
4.50
5.00
5.50
6.00
7.00
7.50
8.00
9.50
12.00
14.50
17.00
19.50
24.50
1.70
(Suction face) 4.80
4.20
5.80
0.12
0.03
(0.80)
Mated height
1.5 mm
2.0 mm, 2.5 mm
C
1.35
1.85
Note) P5K series (mated heights: 3 mm and 3.5 mm) and the P5KS series (mated
heights: 4.0 mm, 4.5 mm, 5.0 mm, 5.5 mm, 6.0 mm, 6.5 mm, 7 mm, 8 mm,
and 9 mm) cannot be mated to this type.
• Header (Mated height: 1.5mm, 2.0mm, 2.5mm)
A
B
0.50
0.05
0.1
0.10
0.05
0.03
0.50
0.20
C
0.96
(Suction face)
(0.75)
Dimension table (mm)
No. of
contacts
10
12
14
16
18
20
22
24
26
30
32
34
40
50
60
70
80
100
A
5.50
6.00
6.50
7.00
7.50
8.00
8.50
9.00
9.50
10.50
11.00
11.50
13.00
15.50
18.00
20.50
23.00
28.00
B
2.00
2.50
3.00
3.50
4.00
4.50
5.00
5.50
6.00
7.00
7.50
8.00
9.50
12.00
14.50
17.00
19.50
24.50
2.50
1.80
3.30
0.12
0.03
(0.75)
Mated height
1.5 mm, 2.0 mm
2.5 mm
C
1.25
1.75
Note) P5K series (mated heights: 3 mm and 3.5 mm) and the P5KS series (mated
heights: 4.0 mm, 4.5 mm, 5.0 mm, 5.5 mm, 6.0 mm, 6.5 mm, 7 mm, 8 mm,
and 9 mm) cannot be mated to this type.
• Socket and header are mated
Mated height: 1.5 mm
Mated height: 2.0 mm
Mated height: 2.5 mm
1.50
0.15
2.00
0.15
2.50
0.15
EMBOSSED TAPE DIMENSIONS
Please refer to page 64.
26
AXK(5/6)F
NOTES
1. As shown below, excess force
during insertion may result in damage
to the connector or removal of the
solder. Please be careful. Also, to
prevent connector damage plese
confirm the correct position before
mating connectors.
• Socket
Recommended PC board pattern
(TOP VIEW)
0.50
±0.05
B
±0.05
0.50
±0.05
0.25
±0.05
• Header
Recommended PC board pattern
(TOP VIEW)
B
±0.05
0.50
±0.05
0.25
±0.05
0.50
±0.05
1.60
±0.05
(0.85)
2.60
±0.01
2.20
4.30
±0.01
±0.01
4.00
±0.05
6.80
±0.05
2. Keep the PC board warp no more
than 0.03 mm in relation to the overall
length of the connector.
0.125
±0.05
0.30
±0.05
0.125
±0.05
0.30
±0.05
Recommended metal mask pattern
Metal mask thickness: Here, 150 µm
(Opening area ratio: 56%)
Max. 0.03mm
Max. 0.03mm
Recommended metal mask pattern
Metal mask thickness: Here, 150 µm
(Opening area ratio: 58%)
0.50
±0.01
0.23
±0.01
B
±0.01
0.50
±0.01
B
±0.01
(0.85)
0.50
±0.01
0.23
±0.01
0.50
±0.01
3. PC Boards and Recommended
Metal Mask Patterns
Connectors are mounted with high
density, with a pitch interval of 0.4 to 0.5
mm. It is therefore necessary to make
sure that the right levels of solder are
used, in order to reduce solder bridge
and other issues. The figures to the right
are recommended metal mask patterns.
Please use them as a reference.
5.10
6.80
±0.01
±0.01
Recommended metal mask pattern
Metal mask thickness: Here, 120 µm
(Opening area ratio: 69%)
B
±0.01
(1.05)
0.50
0.23
±0.01
±0.01
(0.85)
Recommended metal mask pattern
Metal mask thickness: Here, 120 µm
(Opening area ratio: 72%)
0.50
±0.01
0.23
±0.01
B
±0.01
0.50
±0.01
(1.05)
0.50
±0.01
4.70
6.80
±0.01
±0.01
* See the dimension table on page 18 for more information on the B dimension of the socket and header.
