AXK812125YG

Description
Board Stacking Connector, 12 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT
CategoryThe connector    The connector
File Size788KB,13 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Environmental Compliance
Download Datasheet Parametric View All

AXK812125YG Overview

Board Stacking Connector, 12 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

AXK812125YG Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Is SamacsysN
Other featuresLOW PROFILE
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberAXK
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch0.4 mm
Termination typeSURFACE MOUNT
Total number of contacts12
UL Flammability Code94V-0
Base Number Matches1

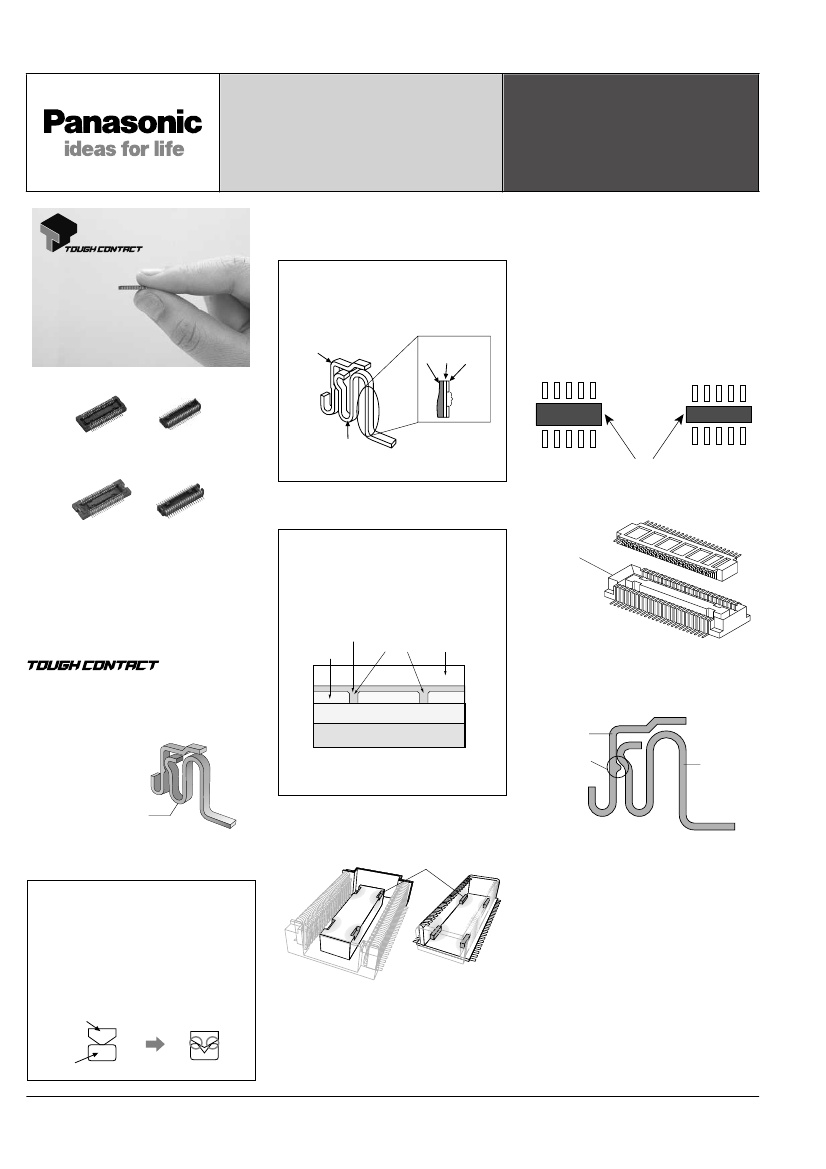

AXK7, 8
NARROW-PITCH
CONNECTORS FOR
BOARD-TO-BOARD
AND BOARD-TO-FPC
CONNECTION
3) Use of Ni barrier construction is
standard. Highly effective against solder
creeping.
G
What is Ni barrier construction?
By providing an exposed nickel part on the
gold (Au) plated contact, solder creeping is
prevented despite the ultra low profile.
[Contact]
Header side contact
Ni barrier
Cu
Ni
Au
NARROW PITCH
(0.4mm) CONNECTORS
P4 SERIES
• Without retention fitting: 18 contacts or
less
• With retention fitting: 22 contacts or less
4. Construction makes designing
devices easier.
1) The lower connector bottom surface
construction prevents contact and shorts
between the PCB and metal terminals.
This enables freedom in pattern wiring,
helping to make PCB’s smaller.
<Socket>
<Header>
• Without retention fitting
Exposed
Ni part
Cross section of
socket side contact
Socket
Header
Socket side contact
• With retention fitting
Note: Construction makes solder creeping difficult
because header side is formed at the same time.
Connector bottom: Create any thru-hole and pattern wiring.
4) Porosity treatment applied for
improved resistance against corrosion.
Socket
Header
2) Guides are provided to take up any
position shift and facilitate insertion.
What is porosity treatment?
FEATURES
1. 0.4 mm pitch and support for mated
heights of up to 1.5 mm, 2.0 mm, 2.5
mm, 3.0 mm, 3.5 mm, and 4.0 mm.
2. Strong resistance to adverse
environments! Utilizes
construction
for high contact reliability.
1) Contacts are highly resistant to shock
caused by dropping and employ our
original bellows contact construction.
Contacts are formed by
bending a thin metal sheet,
which provides the contact
parts with adequate spring
characteristics ensuring
greater resistance to prying
forces and drop impacts.
This treatment consists of coating the
surface with a very thin film to seal pinholes
in the gold plating. This porosity treatment
technology ensures the same contact
reliability for thin gold plating as that of thick
gold plating.
Porosity treatment film
Au plating
Pinholes
Surrounding gas
Insertion guide
3) The connector has a simple lock
mechanism.
Superior mated operation with click feel
to indicate that mated is complete.
Header side
contact
Simple lock
mechanism
Socket side
contact
Ni plating
Base material
G
Improvement in insertion/removal durability
G
Improvement in resistance to corrosion
G
Improvement in contact reliability for digital signals
2) V notch construction used for excellent
resistance against foreign matters.
G
What is V notch construction?
By using the edge for the contacting part
and increasing contact pressure per unit
area, the effectiveness in removing flux
and contaminants is increased compared
to its predecessor. This is also effective in
preventing the trapping of contaminants.
[Cross section of contacting part]
Without notch
Socket side contact cross section
With V notch
3. It is constructed with impact
dispersion keys inside the body to
disperse shocks when dropped.
Impact dispersion key
Socket
Header
A high level of shock resistance is
ensured by dispersing impact over the
four locations where the socket
indentations and header protrusions are
mated together.
Note: The following numbers of contacts are not
supported due to suction surface factors.
5. Design makes efficient mounting.
Features a terminal flatness of 0.08 mm,
construction resistant to creeping flux,
and design that facilitates visual
inspection of the soldered part.
6. Compliance with RoHS Directive
Environmentally friendly, the connectors
comply with Europe’s RoHS Directive.
Cadmium, lead, mercury, hexavalent
chromium, PBB and PBDE are not used.
7. Connectors for inspection available
Connectors for inspection are available
that are ideal for modular unit inspection
and inspection in device assembly
processes.
Header side contact cross section
