2SB808 datasheet, PDF - EEWORLD Datasheet

2SB808: DescriptionLow-Voltage Large-Current Amp Applications; CategoryDiscrete semiconductor The transistor; File Size117KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

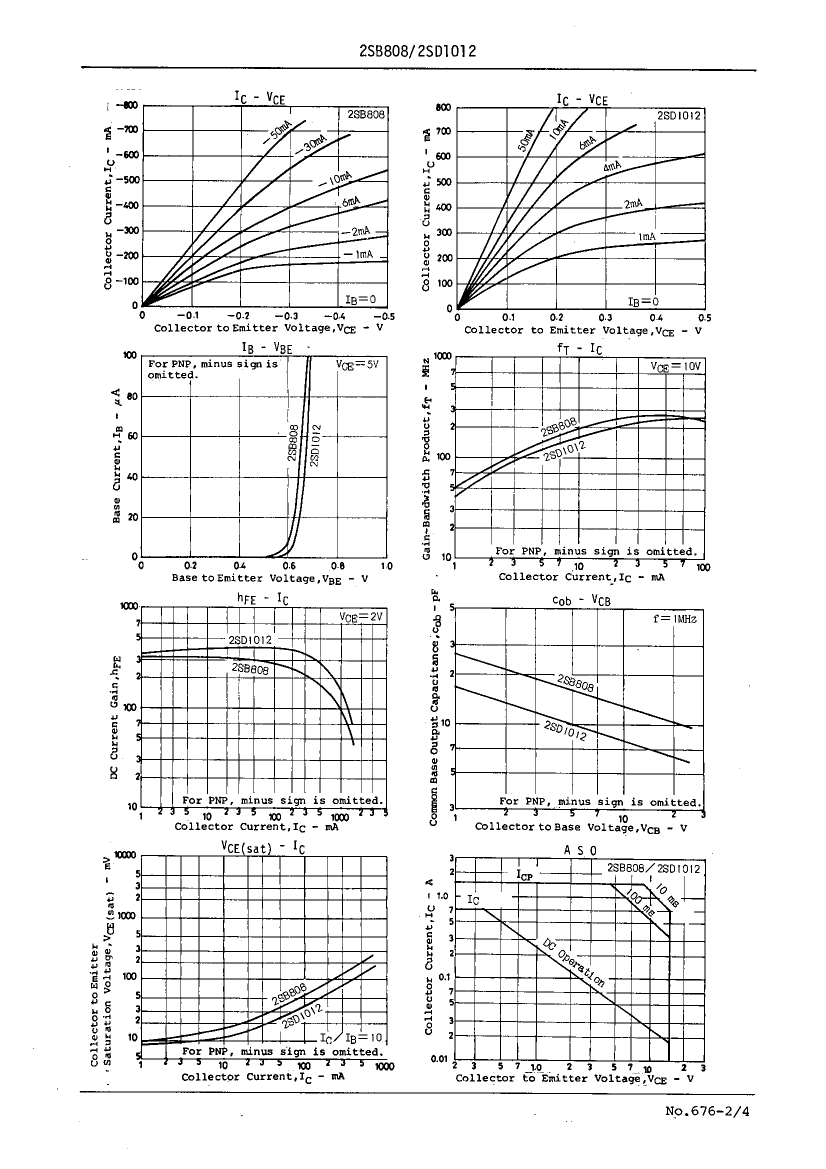

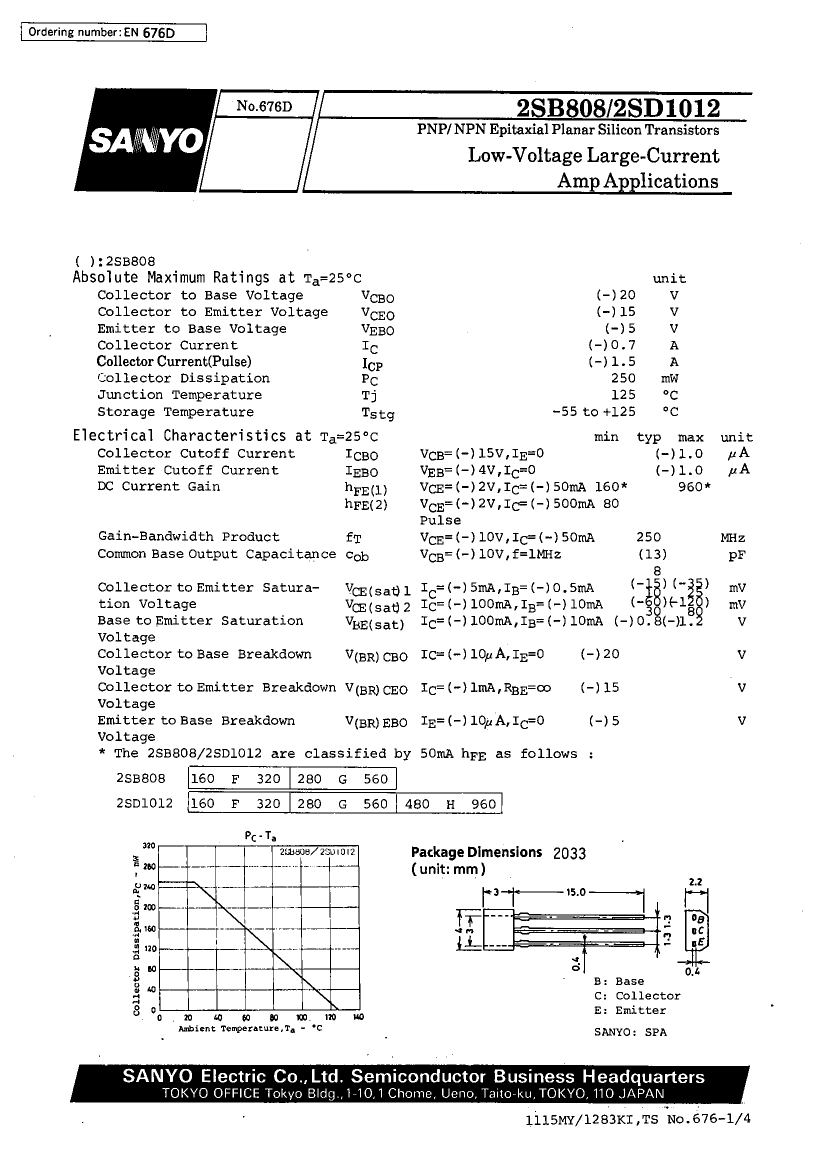

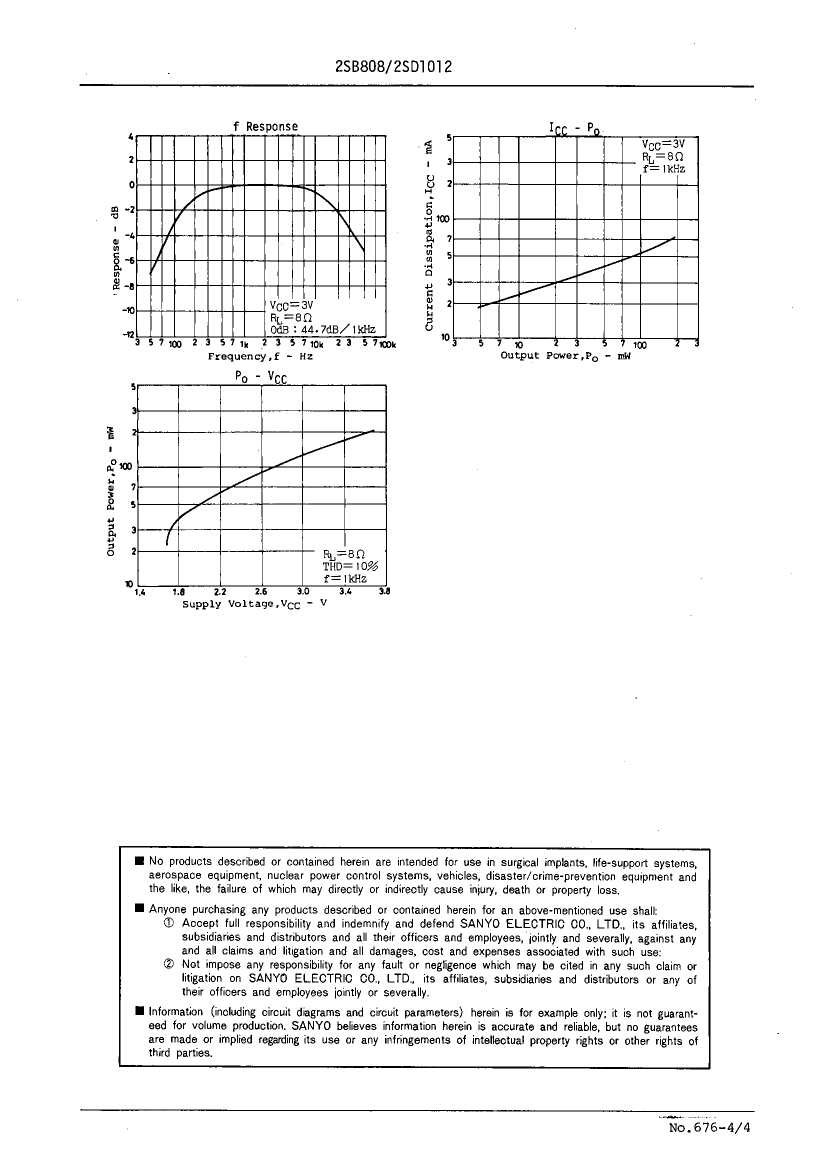

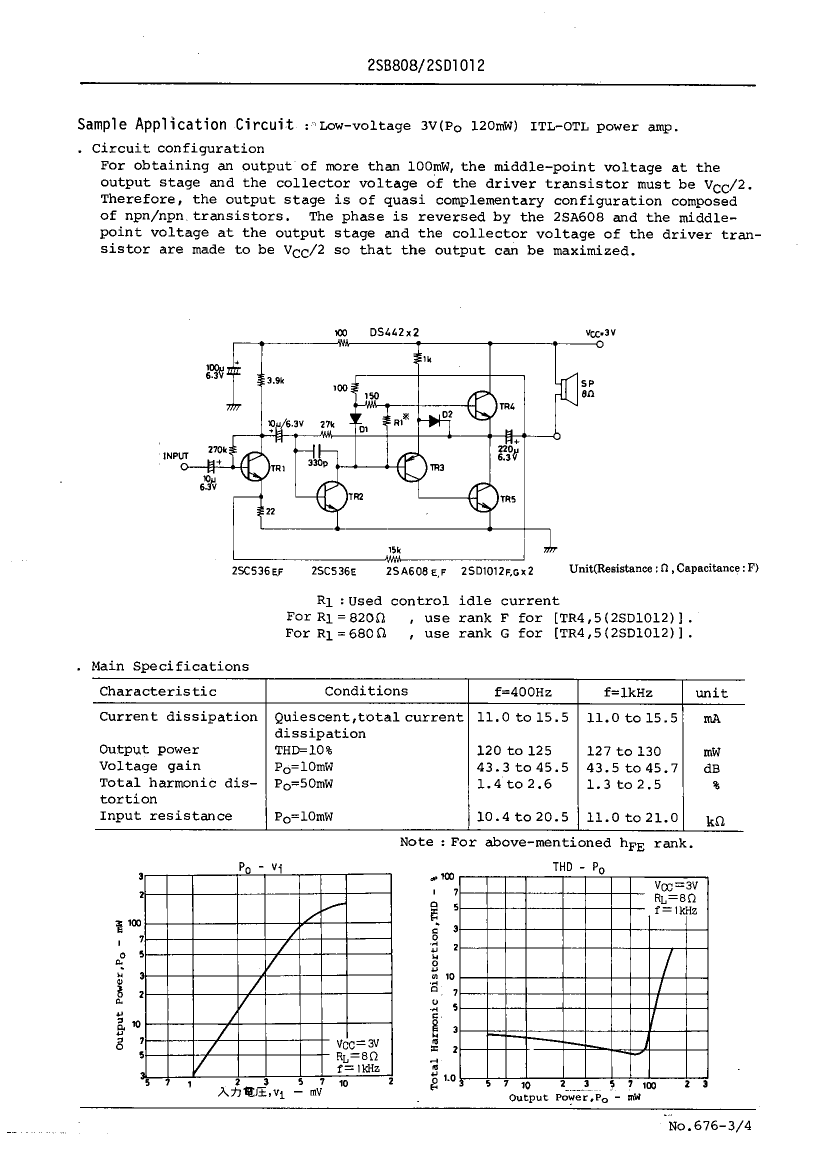

2SB808 Overview

Low-Voltage Large-Current Amp Applications

Parameter Name	Attribute value
package instruction	IN-LINE, R-PSIP-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW NOISE
Maximum collector current (IC)	0.7 A
Collector-emitter maximum voltage	15 V
Configuration	SINGLE
Minimum DC current gain (hFE)	160
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.25 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
VCEsat-Max	0.035 V
Base Number Matches	1

	2SB808	2SD1012
Description	Low-Voltage Large-Current Amp Applications	Small Signal Bipolar Transistor, 0.7A I(C), 15V V(BR)CEO, 1-Element, NPN, Silicon, SPA, 3 PIN
package instruction	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3
Contacts	3	3
Reach Compliance Code	unknow	unknown
ECCN code	EAR99	EAR99
Other features	LOW NOISE	LOW NOISE
Maximum collector current (IC)	0.7 A	0.7 A
Collector-emitter maximum voltage	15 V	15 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	160	160
JESD-30 code	R-PSIP-T3	R-PSIP-T3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Polarity/channel type	PNP	NPN
Maximum power dissipation(Abs)	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	250 MHz	250 MHz
VCEsat-Max	0.035 V	0.025 V
