2SB824 datasheet, PDF - EEWORLD Datasheet

2SB824: Description50V/5A Switching Applications; CategoryDiscrete semiconductor The transistor; File Size115KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

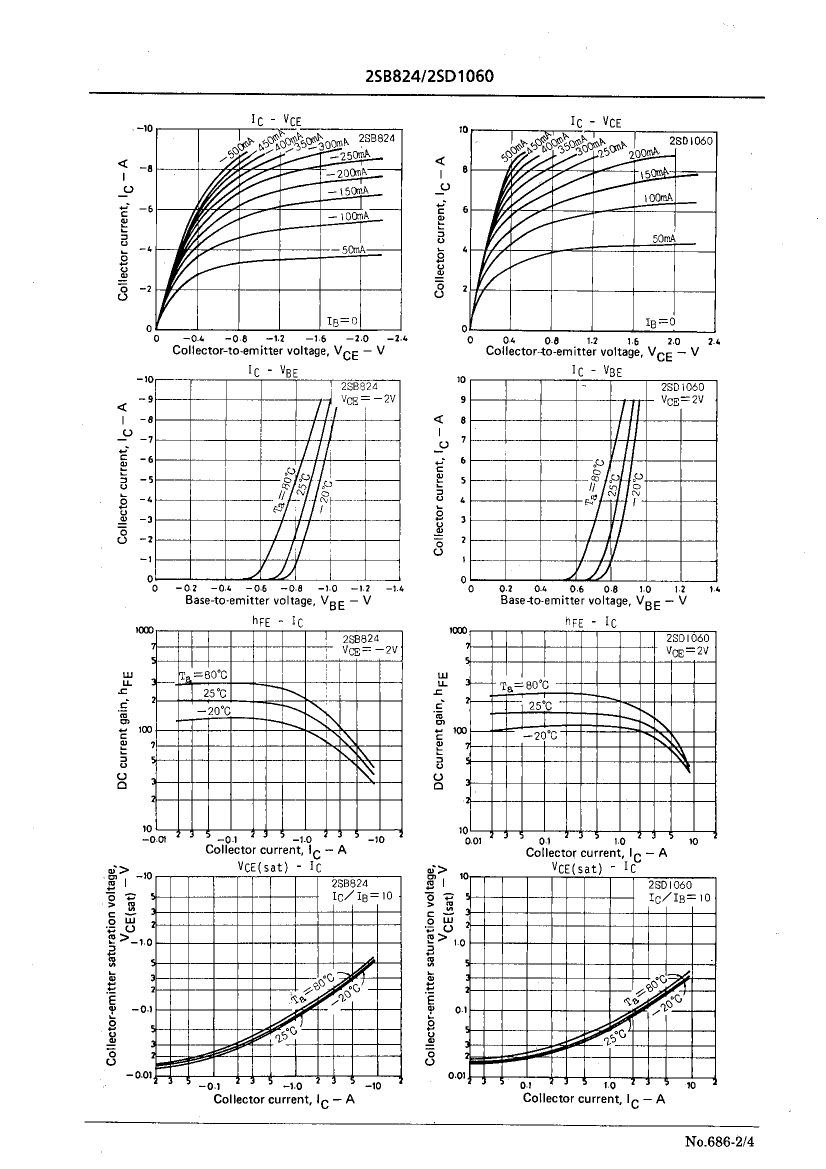

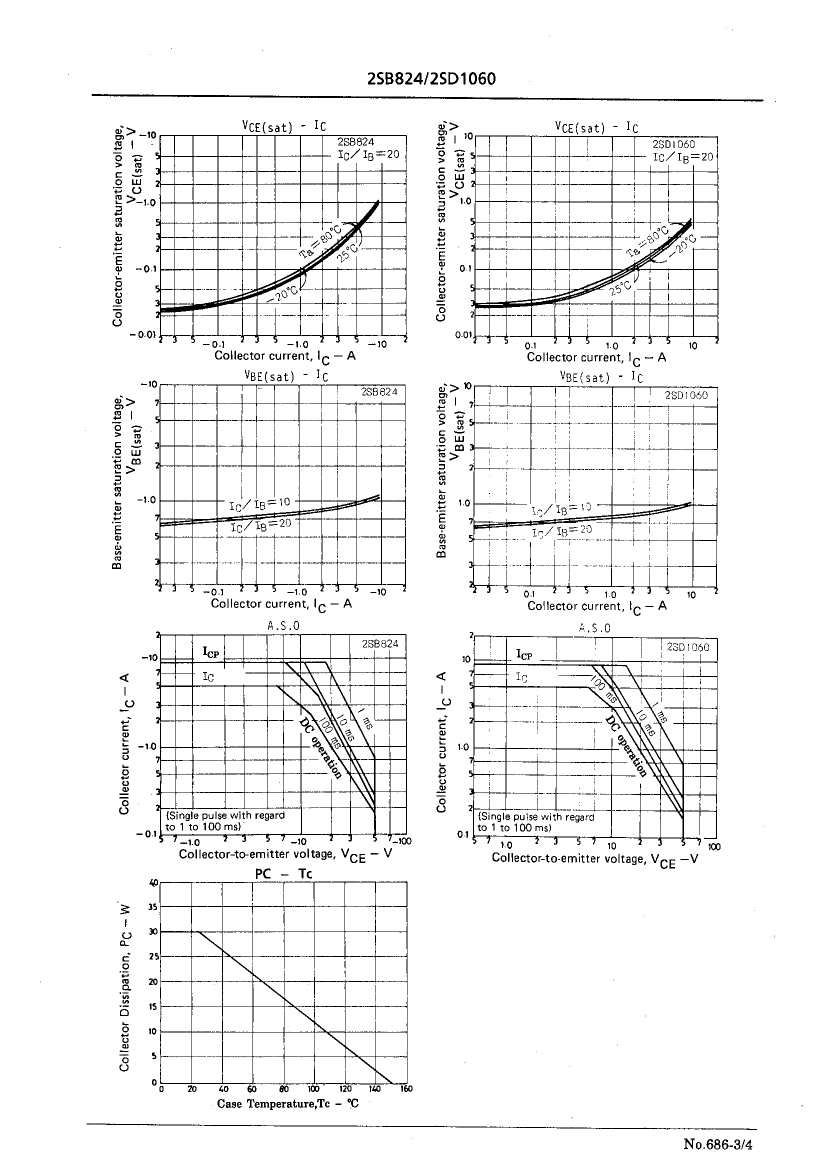

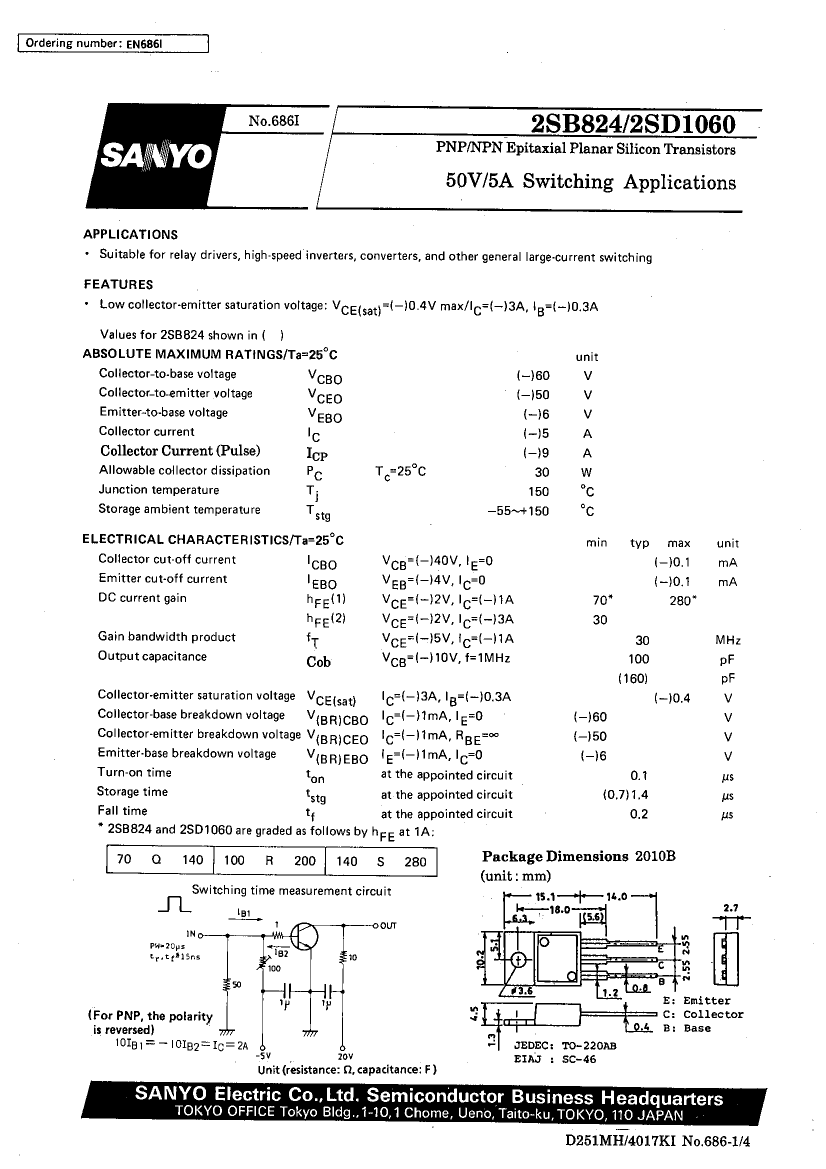

2SB824 Overview

50V/5A Switching Applications

Parameter Name	Attribute value
Parts packaging code	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	30
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Maximum power consumption environment	30 W
Maximum power dissipation(Abs)	30 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	30 MHz
VCEsat-Max	0.4 V
Base Number Matches	1

	2SB824	2SD1060
Description	50V/5A Switching Applications	Power Bipolar Transistor, 5A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220AB, 3 PIN
Parts packaging code	TO-220AB	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3	TO-220AB, 3 PIN
Contacts	3	3
Reach Compliance Code	unknow	unknown
ECCN code	EAR99	EAR99
Maximum collector current (IC)	5 A	5 A
Collector-emitter maximum voltage	50 V	50 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	30	30
JEDEC-95 code	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	PNP	NPN
Maximum power consumption environment	30 W	30 W
Maximum power dissipation(Abs)	30 W	30 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	30 MHz	30 MHz
VCEsat-Max	0.4 V	0.4 V
