PEEL18CV8ZTI-25 datasheet, PDF

Datasheet> All Categories > Programmable logic devices> Programmable logic> PEEL18CV8ZTI-25

PEEL18CV8ZTI-25: DescriptionEE PLD, 25ns, PAL-Type, CMOS, PDSO20, 0.170 INCH, TSSOP-20; CategoryProgrammable logic devices Programmable logic; File Size181KB，10 Pages; ManufacturerIntegrated Circuit Systems（IDT ）

Download Datasheet Parametric Compare View All

PEEL18CV8ZTI-25 Overview

EE PLD, 25ns, PAL-Type, CMOS, PDSO20, 0.170 INCH, TSSOP-20

PEEL18CV8ZTI-25 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP20,.25
Contacts	20
Reach Compliance Code	unknown
Is Samacsys	N
Architecture	PAL-TYPE
maximum clock frequency	33.3 MHz
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	6.5 mm
Dedicated input times	9
Number of I/O lines	8
Number of entries	18
Output times	8
Number of product terms	113
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	9 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	5 V
Programmable logic type	EE PLD
propagation delay	25 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Commercial

PEEL™ 18CV8Z-25

CMOS Programmable Electrically Erasable Logic Device

Features

Ultra Low Power Operation

- Vcc = 5 Volts ±10%

- Icc = 10 µA (typical) at standby

- Icc = 2 mA (typical) at 1 MHz

CMOS Electrically Erasable Technology

- Superior factory testing

Reprogrammable in plastic package

Reduces retrofit and development costs

Application Versatility

Replaces random logic

Super set of standard PLDs

Pin-to-pin compatible with 16V8

Ideal for use in power-sensitive systems

Architectural Flexibility

Enhanced architecture fits in more logic

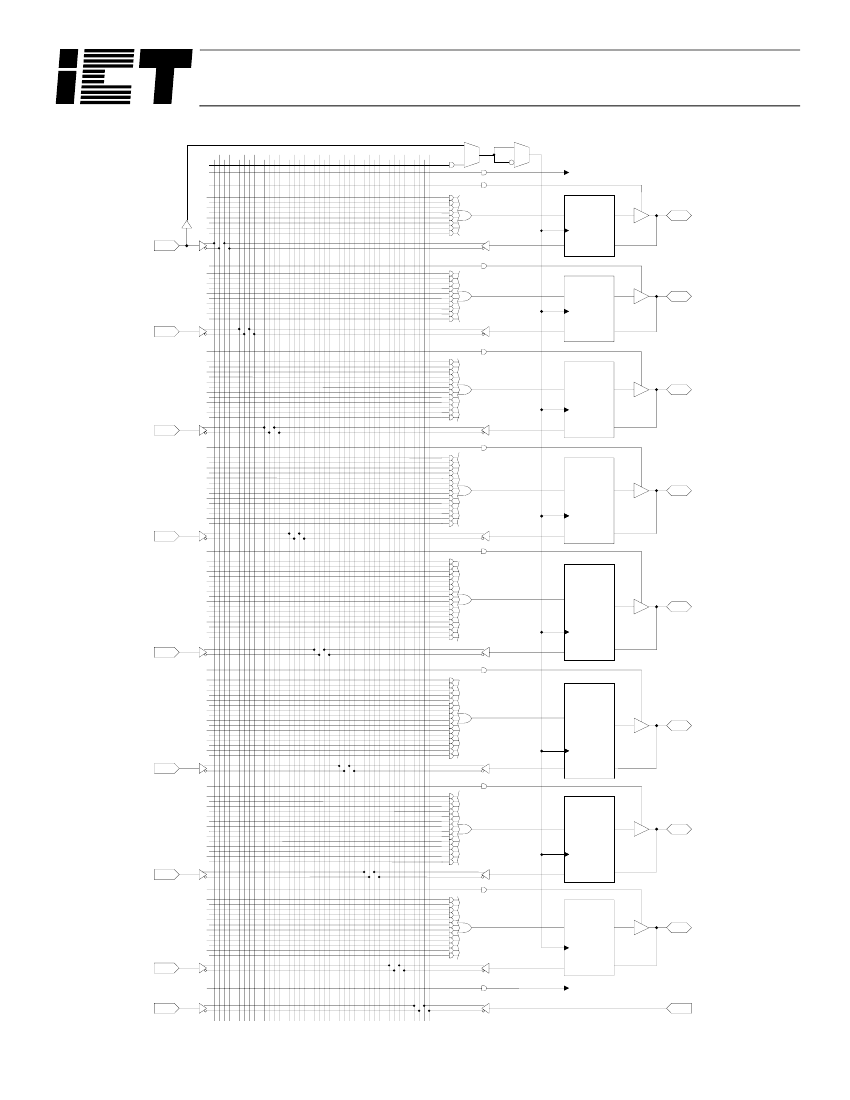

113 product terms x 36 input AND array

10 inputs and 8 I/O pins

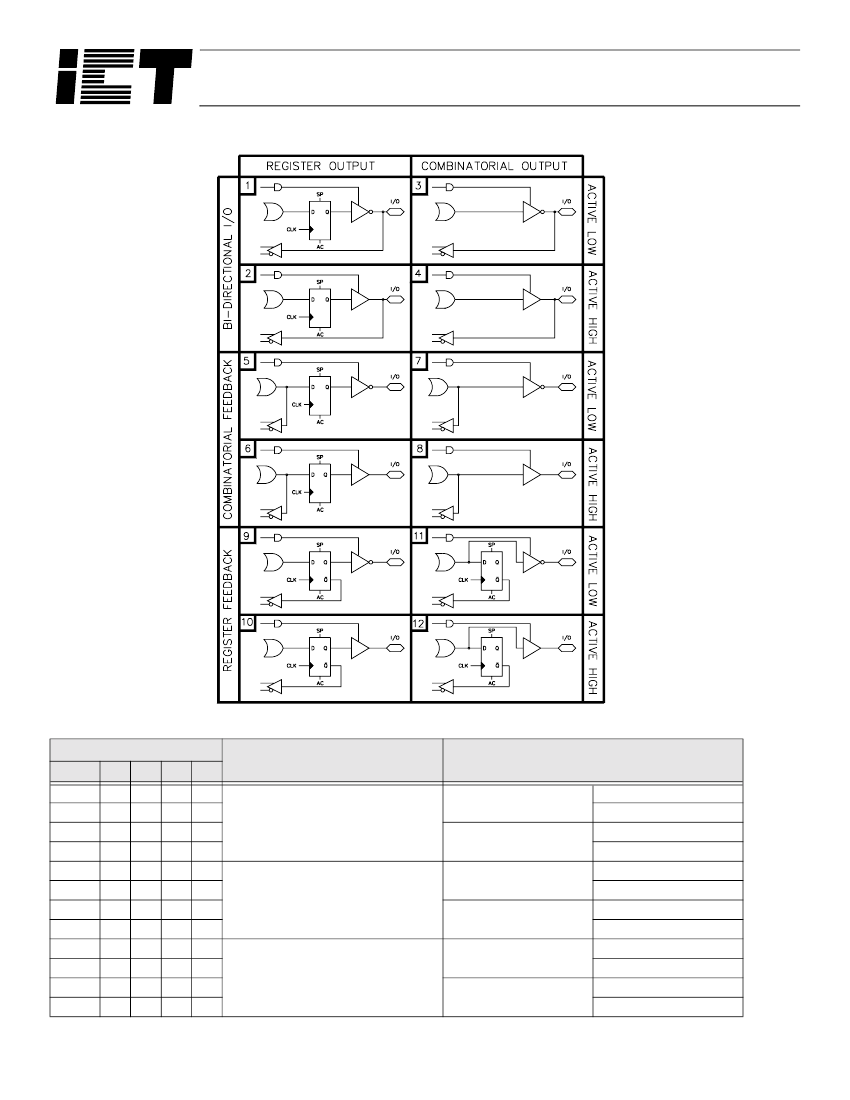

12 possible macrocell configurations

Asynchronous clear, Synchronous preset

Independent output enables

Programmable clock; pin 1 or p-term

Programmable clock polarity

20 Pin DIP/SOIC/TSSOP and PLCC

General Description

The PEEL™18CV8Z is a Programmable Electrically Erasable

Logic (PEEL™) SPLD (Simple Programmable Logic Device)

that features ultra-low, automatic “zero” power-down operation.

The “zero power” (100 µA max. Icc) power-down mode makes

the PEEL™18CV8Z ideal for a broad range of battery-powered

portable equipment applications, from hand-held meters to PCM-

CIA modems. EE-reprogrammability provides both the conve-

nience of fast reprogramming for product development and quick

product personalization in manufacturing, including Engineering

Change Orders.

The PEEL™18CV8Z is logically and functionally similar to

ICT’s 5 Volt PEEL™18CV8 and 3 Volt PEEL™18LV8Z. The

differences between the PEEL™18CV8Z and PEEL™18CV8

include the addition of programmable clock polarity, a product

term clock, and variable width product terms in the AND/OR

Logic Array.

Like the PEEL™18CV8, the PEEL™18CV8Z is logical superset

of the industry standard PAL16V8 SPLD. The PEEL™18CV8Z

provides additional architectural features that allow more logic to

be incorporated into the design. ICT’s JEDEC file translator

allows easy conversion of existing 20 pin PLD designs to the

PEEL™18CV8Z architecture without the need for redesign. The

PEEL™18CV8Z architecture allows it to replace over twenty

standard 20-pin DIP, SOIC, TSSOP and PLCC packages.

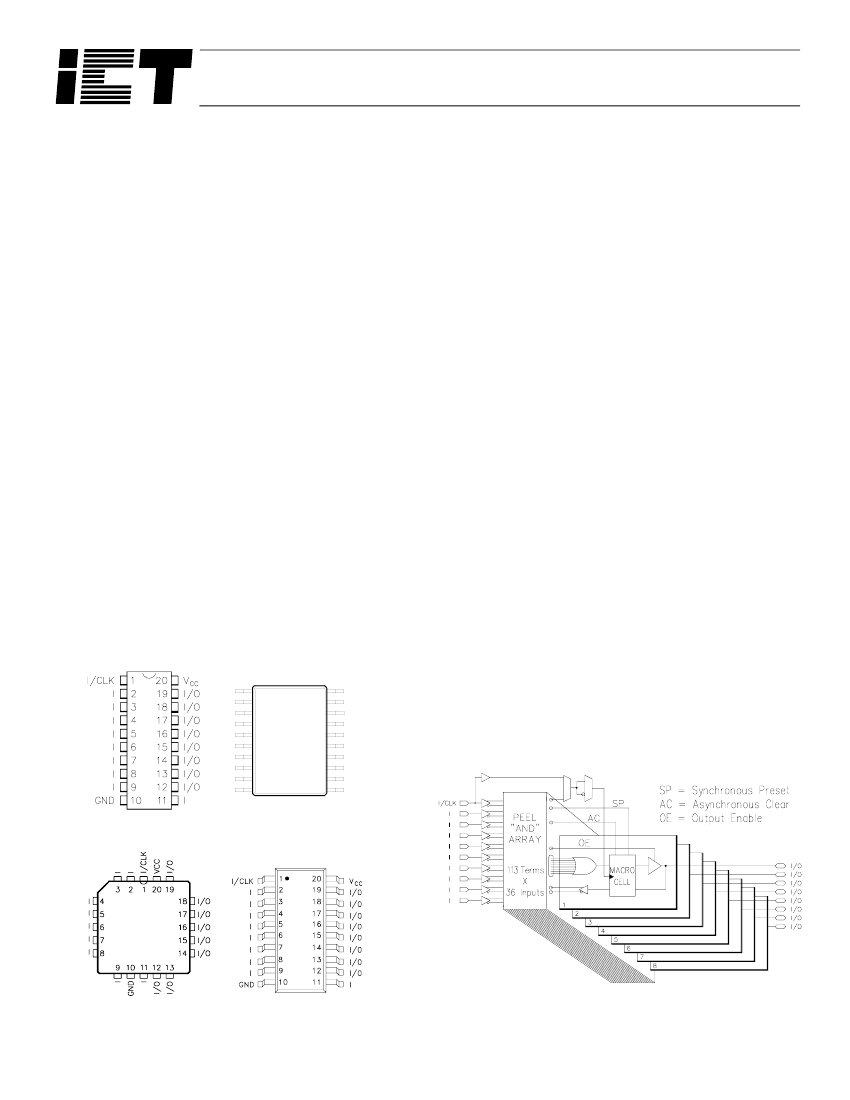

Figure 7 Pin Configuration

I/CLK

GND

VCC

I/O

Figure 8 Block Diagram

CLK MUX (Optional)

DIP

TSSOP

™

PLCC

SOIC

1 of 10

PEEL18CV8ZTI-25 Related Products

	PEEL18CV8ZTI-25	PEEL18CV8ZPI-25	PEEL18CV8ZSI-25	PEEL18CV8ZP-25	0805G821K250ST-030	PEEL18CV8ZT-25	PEEL18CV8ZJ-25	PEEL18CV8ZJI-25
Description	EE PLD, 25ns, PAL-Type, CMOS, PDSO20, 0.170 INCH, TSSOP-20	EE PLD, 25ns, PAL-Type, CMOS, PDIP20, 0.300 INCH, PLASTIC, DIP-20	EE PLD, 25ns, PAL-Type, CMOS, PDSO20, 0.300 INCH, SOIC-20	EE PLD, 25ns, PAL-Type, CMOS, PDIP20, 0.300 INCH, PLASTIC, DIP-20	Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, NP0, -/+30ppm/Cel TC, 0.00082uF, 0805,	EE PLD, 25ns, PAL-Type, CMOS, PDSO20, 0.170 INCH, TSSOP-20	EE PLD, 25ns, PAL-Type, CMOS, PQCC20, PLASTIC, LCC-20	EE PLD, 25ns, PAL-Type, CMOS, PQCC20, PLASTIC, LCC-20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	TSSOP, TSSOP20,.25	DIP, DIP20,.3	SOP, SOP20,.4	DIP, DIP20,.3	, 0805	TSSOP, TSSOP20,.25	QCCJ, LDCC20,.4SQ	QCCJ, LDCC20,.4SQ
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	unknown	unknown	unknown
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	6.5 mm	26.162 mm	12.8 mm	26.162 mm	2.032 mm	6.5 mm	8.9662 mm	8.9662 mm
Number of terminals	20	20	20	20	2	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	70 °C	125 °C	70 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-55 °C	-	-	-40 °C
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	IN-LINE	SMALL OUTLINE	IN-LINE	SMT	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	CHIP CARRIER	CHIP CARRIER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
width	4.4 mm	7.62 mm	7.5 mm	7.62 mm	1.27 mm	4.4 mm	8.9662 mm	8.9662 mm
Parts packaging code	TSSOP	DIP	SOIC	DIP	-	TSSOP	QLCC	QLCC
Contacts	20	20	20	20	-	20	20	20
Is Samacsys	N	N	N	N	-	N	N	-
Architecture	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	-	PAL-TYPE	PAL-TYPE	PAL-TYPE
maximum clock frequency	33.3 MHz	33.3 MHz	33.3 MHz	33.3 MHz	-	33.3 MHz	33.3 MHz	33.3 MHz
JESD-30 code	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20	R-PDIP-T20	-	R-PDSO-G20	S-PQCC-J20	S-PQCC-J20
Dedicated input times	9	9	9	9	-	9	9	9
Number of I/O lines	8	8	8	8	-	8	8	8
Number of entries	18	18	18	18	-	18	18	18
Output times	8	8	8	8	-	8	8	8
Number of product terms	113	113	113	113	-	113	113	113
organize	9 DEDICATED INPUTS, 8 I/O	9 DEDICATED INPUTS, 8 I/O	9 DEDICATED INPUTS, 8 I/O	9 DEDICATED INPUTS, 8 I/O	-	9 DEDICATED INPUTS, 8 I/O	9 DEDICATED INPUTS, 8 I/O	9 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	-	MACROCELL	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	DIP	SOP	DIP	-	TSSOP	QCCJ	QCCJ
Encapsulate equivalent code	TSSOP20,.25	DIP20,.3	SOP20,.4	DIP20,.3	-	TSSOP20,.25	LDCC20,.4SQ	LDCC20,.4SQ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	SQUARE	SQUARE
power supply	5 V	5 V	5 V	5 V	-	5 V	5 V	5 V
Programmable logic type	EE PLD	EE PLD	EE PLD	EE PLD	-	EE PLD	EE PLD	EE PLD
propagation delay	25 ns	25 ns	25 ns	25 ns	-	25 ns	25 ns	25 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	-	2.64 mm	-	-	1.1 mm	4.369 mm	4.369 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.25 V	-	5.25 V	5.25 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.75 V	-	4.75 V	4.75 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	-	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	-	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	-	GULL WING	J BEND	J BEND
Terminal pitch	0.65 mm	2.54 mm	1.27 mm	2.54 mm	-	0.65 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL	QUAD	QUAD
Base Number Matches	1	1	1	1	-	1	1	-
