180-044M07-21-16PA: DescriptionFiber Optic Connector Adapter, Simplex, Receptacle; CategoryThe connector The connector; File Size172KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

180-044M07-21-16PA Overview

Fiber Optic Connector Adapter, Simplex, Receptacle

180-044M07-21-16PA Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	STANDARD: MIL-DTL-38999, POLARIZED
Body/casing type	RECEPTACLE
Connection Type	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	180-044
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

Test Probes

and Adapters

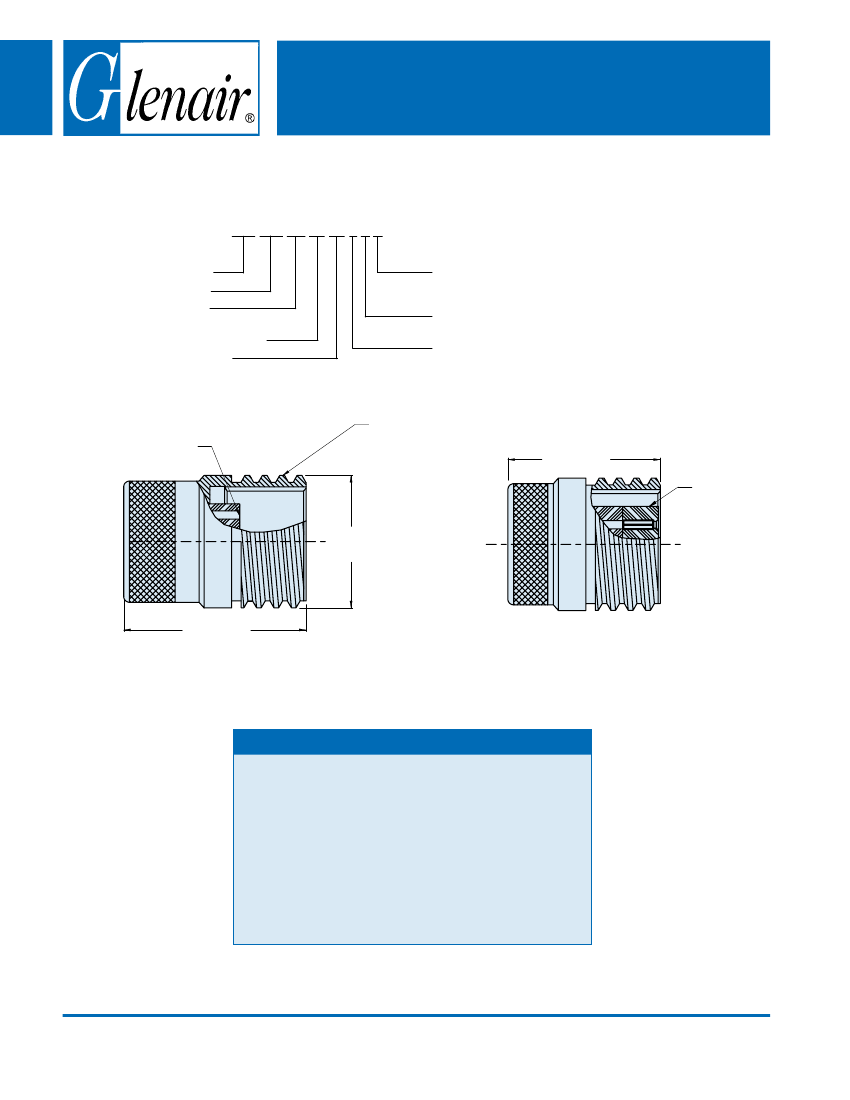

180-044 NF 07-17-8 P A

Product Series

Basic Number

Finish Symbol

(See Table II)

07 = Receptacle Adapter

Shell Size (Table I)

Pin Insert

C

Dia.

Typ.

1.750 (44.5)

Max.

180-044 (07 Receptacle)

Fiber Optic Test Adapter

MIL-DTL-38999 Series III

Alternate Keying Position A,B,C,D & E

Per MIL-DTL-38999, Series III (Omit for Normal)

Plug Adapter (Omit, Universal)

P = Pin Insert

S = Socket Insert (With Alignment Sleeves)

Insert Arrangement

Per MIL-STD-1560, Table I

A Thread

Table I

1.500 (38.1)

Max.

Socket Insert

07

RECEPTACLE ASSEMBLY

U.S. PATENT NO. 5,960,137

APPLICATION NOTES

1. Assembly identified with manufacturer’s name and P/N,

Space Permitting.

2. For Fiber Optic Test Probe Terminus

See Glenair Drawing 181-006

3. Material/ Finish:

- Barrel/ Shell- Al Alloy/ See Table II

- Insert, Coupling Nut- Hi- Grade Engineering Thermoplastic/ N.A.

- Alignment Sleeve- Zirconia Ceramic/ N.A.

- Retaining Ring- Stainless Steel/ N.A.

- Retaining Clips- Beryllium Copper/ N.A.

- Lock Cap, Lock Nut- Al Alloy/ Black Anodize.

4. Metric dimensions (mm) are indicated in parentheses.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

L-10
