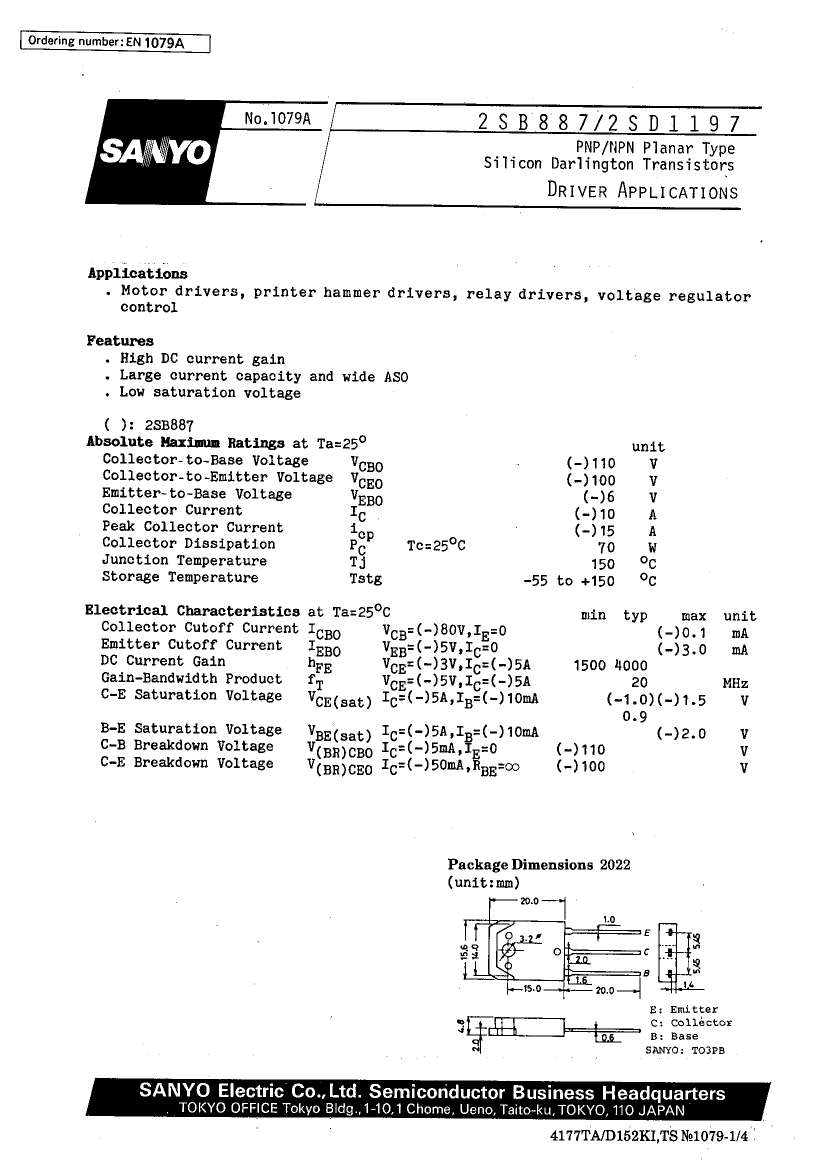

2SB887 datasheet, PDF - EEWORLD Datasheet

2SB887: DescriptionPower Bipolar Transistor, 10A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-218, Plastic/Epoxy, 3 Pin, TO-3PB, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size112KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

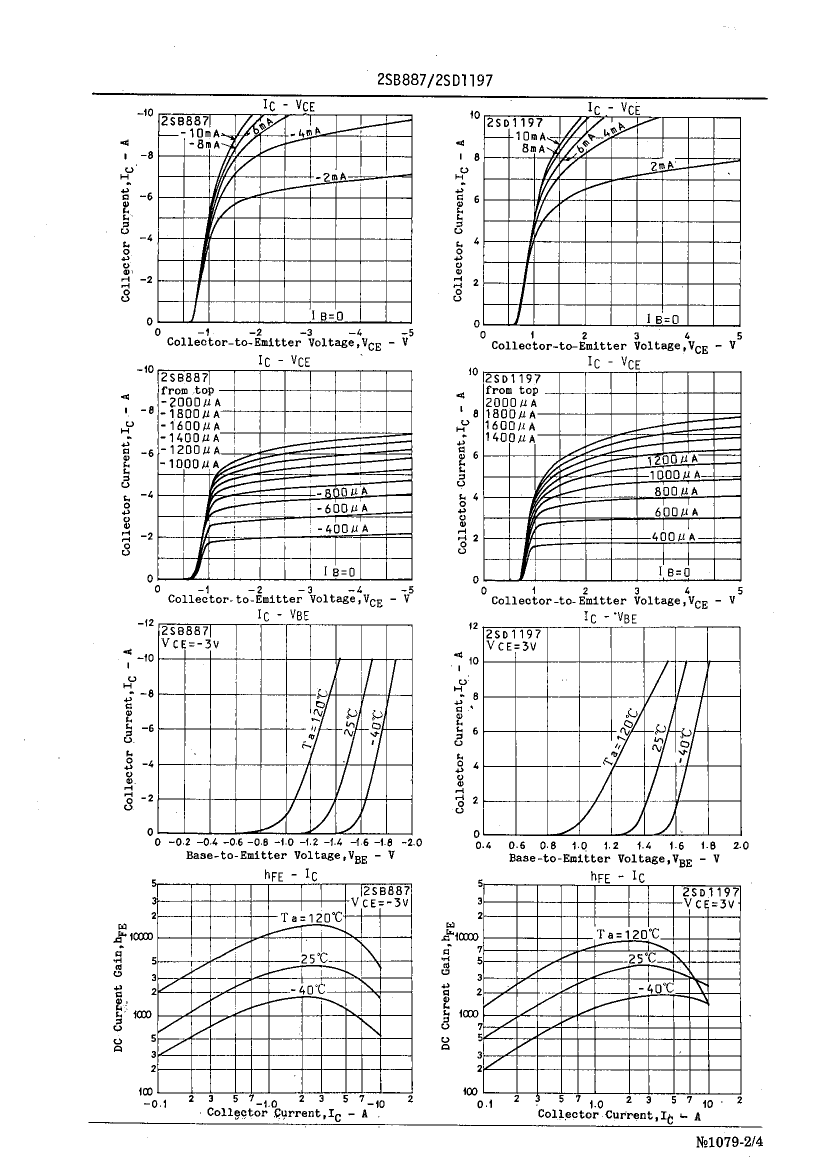

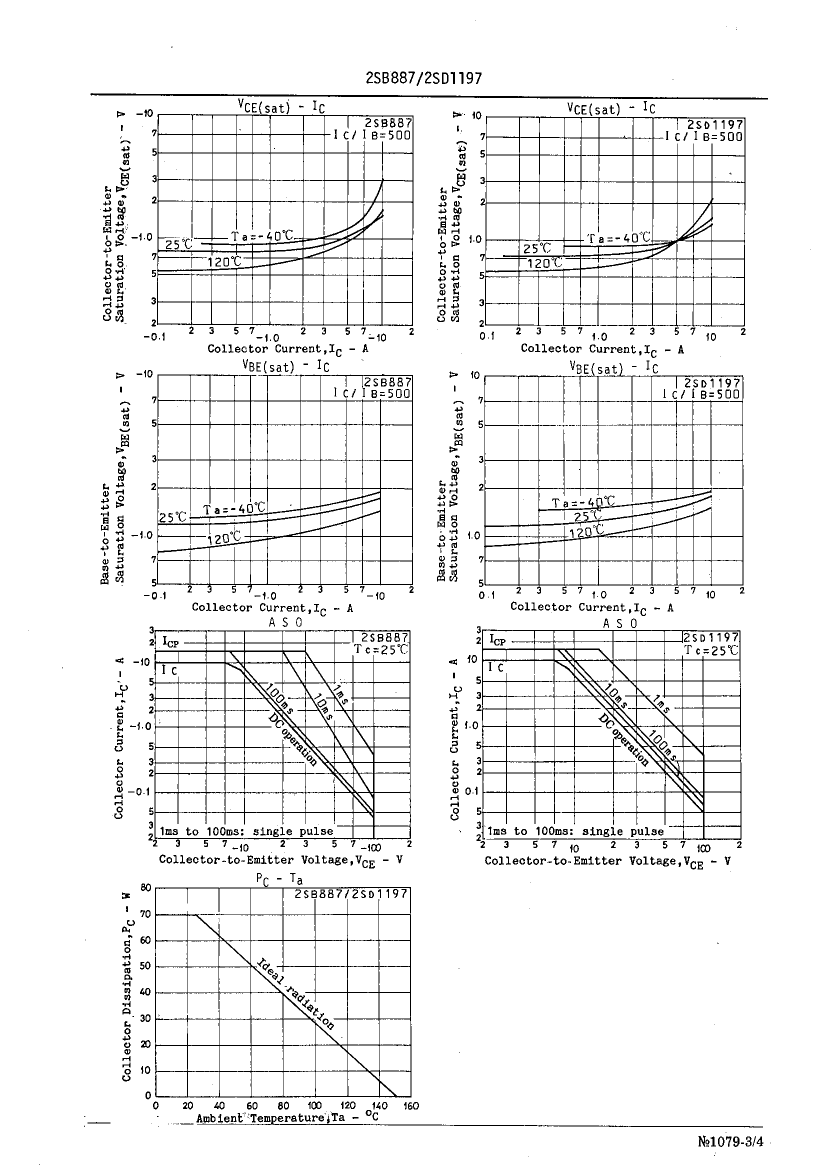

2SB887 Overview

Power Bipolar Transistor, 10A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-218, Plastic/Epoxy, 3 Pin, TO-3PB, 3 PIN

Parameter Name	Attribute value
Objectid	1481977035
Parts packaging code	TO-218
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT IN BIAS RESISTOR RATIO IS 0.03
Maximum collector current (IC)	10 A
Collector-emitter maximum voltage	100 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	1500
JEDEC-95 code	TO-218
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Maximum power consumption environment	70 W
Maximum power dissipation(Abs)	70 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	20 MHz
VCEsat-Max	1.5 V

	2SB887	2SD1197
Description	Power Bipolar Transistor, 10A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-218, Plastic/Epoxy, 3 Pin, TO-3PB, 3 PIN	Power Bipolar Transistor, 10A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, TO-218, Plastic/Epoxy, 3 Pin, TO-3PB, 3 PIN
Objectid	1481977035	1481977102
Parts packaging code	TO-218	TO-218
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	2	2
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	BUILT IN BIAS RESISTOR RATIO IS 0.03	BUILT IN BIAS RESISTOR RATIO IS 0.03
Maximum collector current (IC)	10 A	10 A
Collector-emitter maximum voltage	100 V	100 V
Configuration	DARLINGTON	DARLINGTON
Minimum DC current gain (hFE)	1500	1500
JEDEC-95 code	TO-218	TO-218
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	PNP	NPN
Maximum power consumption environment	70 W	70 W
Maximum power dissipation(Abs)	70 W	70 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	20 MHz	20 MHz
VCEsat-Max	1.5 V	1.5 V
