BAT42W / BAT43W
Vishay Semiconductors
Small Signal Schottky Diodes
Features
• These diodes feature very low turn-on volt-
age and fast switching. These devices are
e3
protected by a PN junction guard ring
against excessive voltage, such as elec-
trostatic discharges
• These diodes are also available in the SOD123
case with the type designations BAT42W to
BAT43W and in designations LL42 to LL43
• For general purpose applications
• Lead (Pb)-free component
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
17431
Mechanical Data
Case:
SOD123 Plastic case
Weight:
approx. 9.3 mg
Packaging Codes/Options:
GS18 / 10 k per 13" reel (8 mm tape), 10 k/box
GS08 / 3 k per 7" reel (8 mm tape), 15 k/box
Parts Table
Part
BAT42W
BAT43W
Ordering code
BAT42W-GS18 or BAT42W-GS08
BAT43W-GS18 or BAT43W-GS08
L2
L3
Type Marking
Remarks
Tape and Reel
Tape and Reel
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Repetitive peak reverse voltage
Forward continuous current
Repetitive peak forward current
Surge forward current
Power dissipation
1)
1)
Test condition
T
amb
= 25 °C
t
p
< 1 s,
δ
< 0.5, T
amb
= 25 °C
t
p
< 10 ms, T
amb
= 25 °C
T
amb
= 65 °C
Symbol
V
RRM
I
F
I
FRM
I
FSM
P
tot
Value
30
200
1)
500
1)
4
1)
200
1)
Unit
V
mA
mA
A
mW
Valid provided that electrodes are kept at ambient temperature
Document Number 85661
Rev. 1.3, 30-Mar-06
www.vishay.com
1
BAT42W / BAT43W
Vishay Semiconductors
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Thermal resistance junction to ambient air
Junction temperature
Ambient operating temperature range
Storage temperature range
1)
Test condition
Symbol
R
thJA
T
j
T
amb
T
stg
Value
300
1)
125
- 55 to + 125
- 55 to + 150
Unit
K/W
°C
°C
°C
Valid provided that electrodes are kept at ambient temperature
Electrical Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Reverse breakdown voltage
Leakage current
1)
Forward voltage
1)
Test condition
I
R
= 100 µA (pulsed)
V
R
= 25 V
V
R
= 25 V, T
j
= 100 °C
I
F
= 200 mA
I
F
= 10 mA
I
F
= 50 mA
I
F
= 2 mA
I
F
= 15 mA
Diode capacitance
Reverse recovery time
Detection efficieny
1)
Part
Symbol
V
(BR)R
I
R
I
R
V
F
Min
30
Typ.
Max
0.5
100
1000
400
650
Unit
V
µA
µA
mV
mV
mV
mV
mV
pF
ns
%
BAT42W
BAT42W
BAT43W
BAT43W
V
F
V
F
V
F
V
F
C
D
t
rr
η
v
80
7
260
330
450
5
V
R
= 1 V, f = 1 MHz
I
F
= 10 mA, I
R
= 10 mA,
I
rr
= 1 mA, R
L
= 100
Ω
R
L
= 15 kΩ, C
L
= 300 pF,
f = 45 MHz, V
RF
= 2 V
Pulse test t
p
< 300 µs
θ
< 2 %
www.vishay.com
2
Document Number 85661
Rev. 1.3, 30-Mar-06
BAT42W / BAT43W
Vishay Semiconductors
Typical Characteristics
T
amb
= 25 °C unless otherwise specified
250
P
tot
- Power Dissipation (mW)
C
D
- Diode Capacitance (pF)
18
16
200
150
100
50
0
0
50
100
150
200
14
12
10
8
6
4
2
0
0
10
20
30
40
50
60
18442
T
A
- Ambient Temperature (°C)
18445
V
R
- Reverse
Voltage
(V)
Figure 1. Admissible Power Dissipation vs. Ambient Temperature
Figure 4. Typical Capacitance vs. Reverse Applied Voltage
1000
100
125
°C
- 40
°C
25
°C
I
F
- Forward Current (mA)
10
1
0.1
0.01
0
18443
200
400
600
800
1000 1200
V
F
- Instantaneous Forward
Voltage
(mV)
Figure 2. Typical Reverse Characteristics
1000
I
R
- Reverse Leakage Current (µA)
125
°C
100
100
°C
75
°C
50
°C
25
°C
0.1
0.01
0
10
20
30
40
V
R
- Reverse
Voltage
(V)
50
10
1
18444
Figure 3. Typical Reverse Characteristics
Document Number 85661
Rev. 1.3, 30-Mar-06
www.vishay.com
3
BAT42W / BAT43W
Vishay Semiconductors

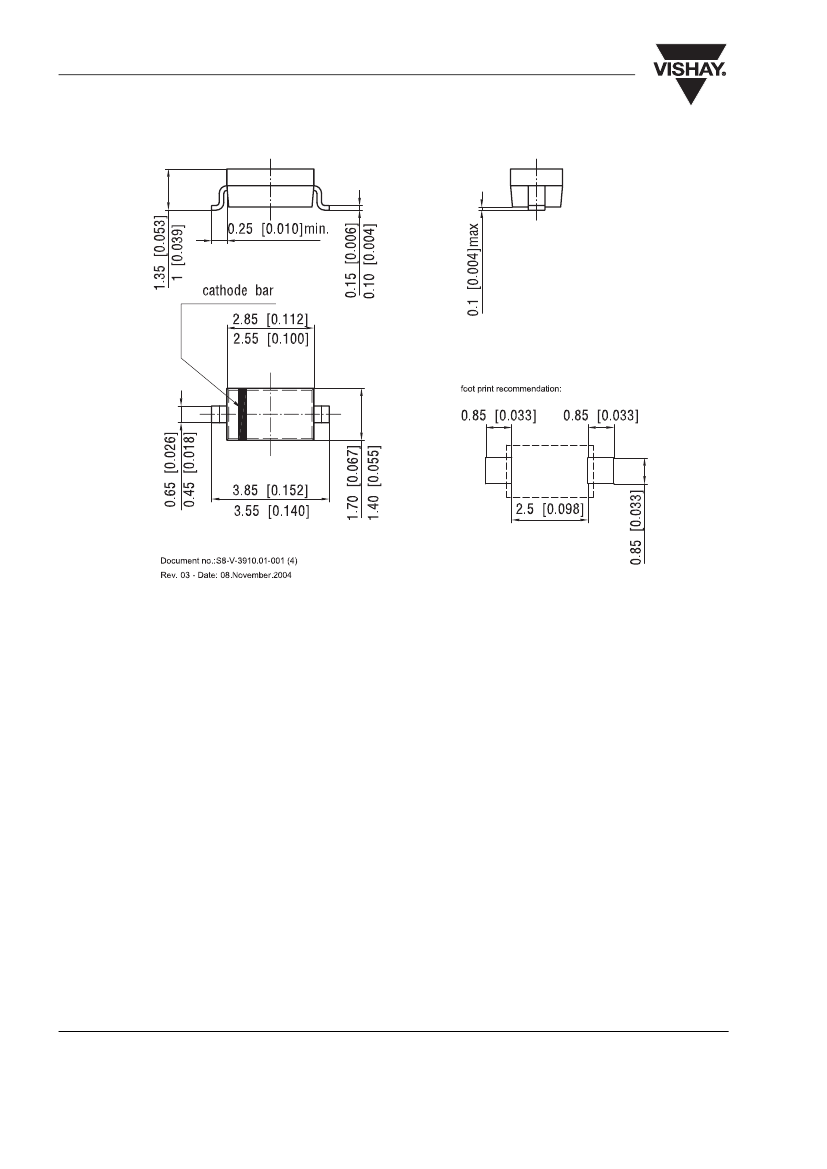

Package Dimensions in mm (Inches)
17432
www.vishay.com
4
Document Number 85661
Rev. 1.3, 30-Mar-06
BAT42W / BAT43W
Vishay Semiconductors
