1824591000: DescriptionCircular Connector, 3 Contact(s), PUR/Polyvinylchloride, Male; CategoryThe connector The connector; File Size47KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

1824591000 Overview

Circular Connector, 3 Contact(s), PUR/Polyvinylchloride, Male

1824591000 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Factory Lead Time	10 weeks
Back shell type	SOLID
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	1824591000
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	PUR/PVC
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

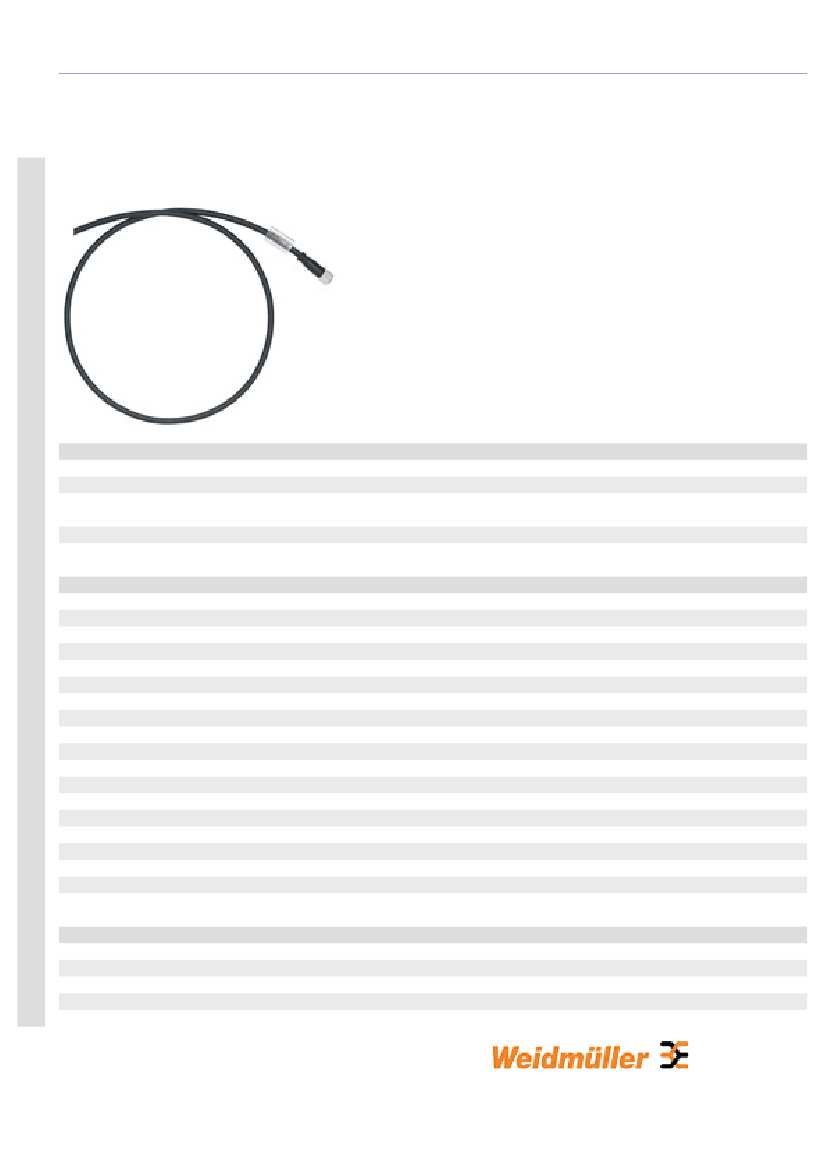

3 poles U | SAIL-M8G-3

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Technical data

Ambient temperature, max.

Ambient temperature, min.

Cable diameter, max.

Cable diameter, min

Connection cross-section

Contact material

Contact surface

Contact tube diameter

Core cross-section

Material

Protection class

Rated current

Rated voltage

Sheathing colour

Suitable for cable carriers

Wiring diagram

No. of poles

Version

Cable length

Classifications

ETIM 2.0

ETIM 3.0

eClass 4.1

eClass 5.0

eClass 5.1

1824591000

SAIL-M8G-3-10U

Sensor/Actuator line, One end without connector,

LED: No, 10.00 m, PUR/PVC

4032248481279

1 pc(s).

80 °C

-30 °C

5 mm

4.6 mm

0,25

Ni/Au

gold-plated

0.25 mm²

PUR/PVC

IP 67

60 V DC

black

Yes

pin, straight

10 m

EC000304

EC001855

27-06-00-00

27-06-91-90

-1-
