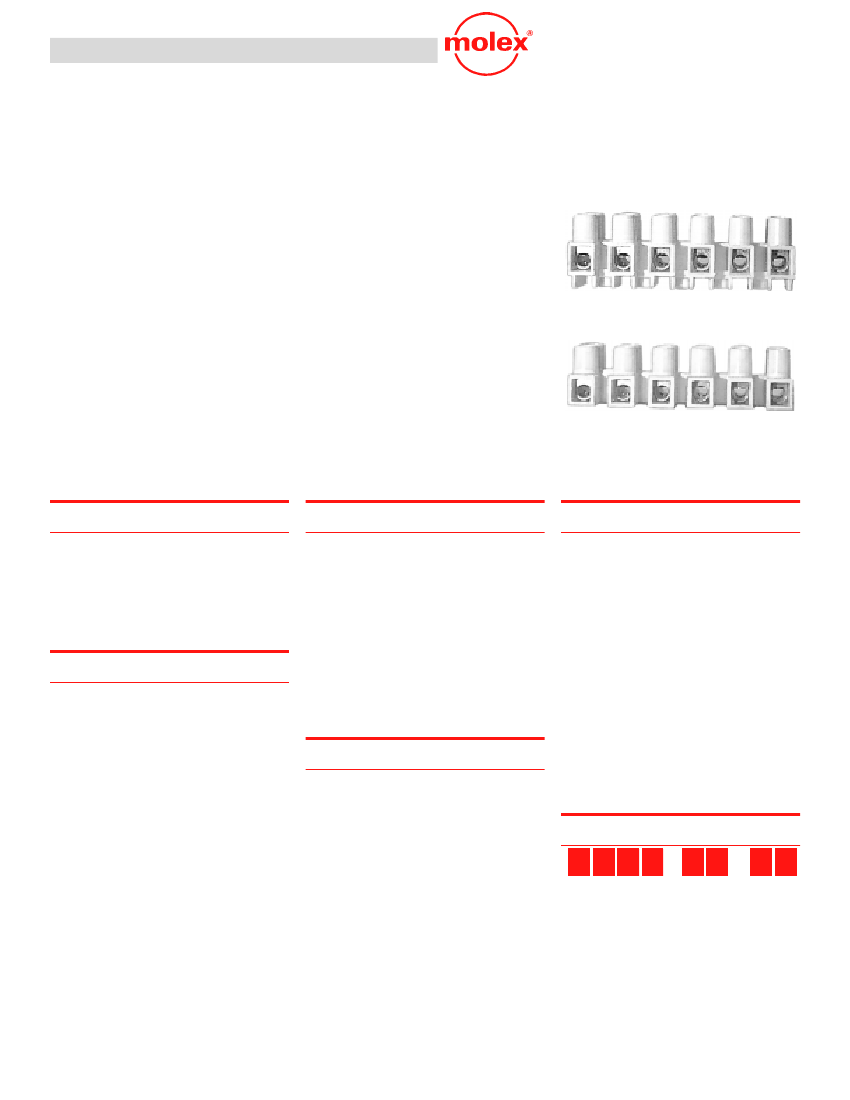

SERIES C100
BEAU Terminal Blocks

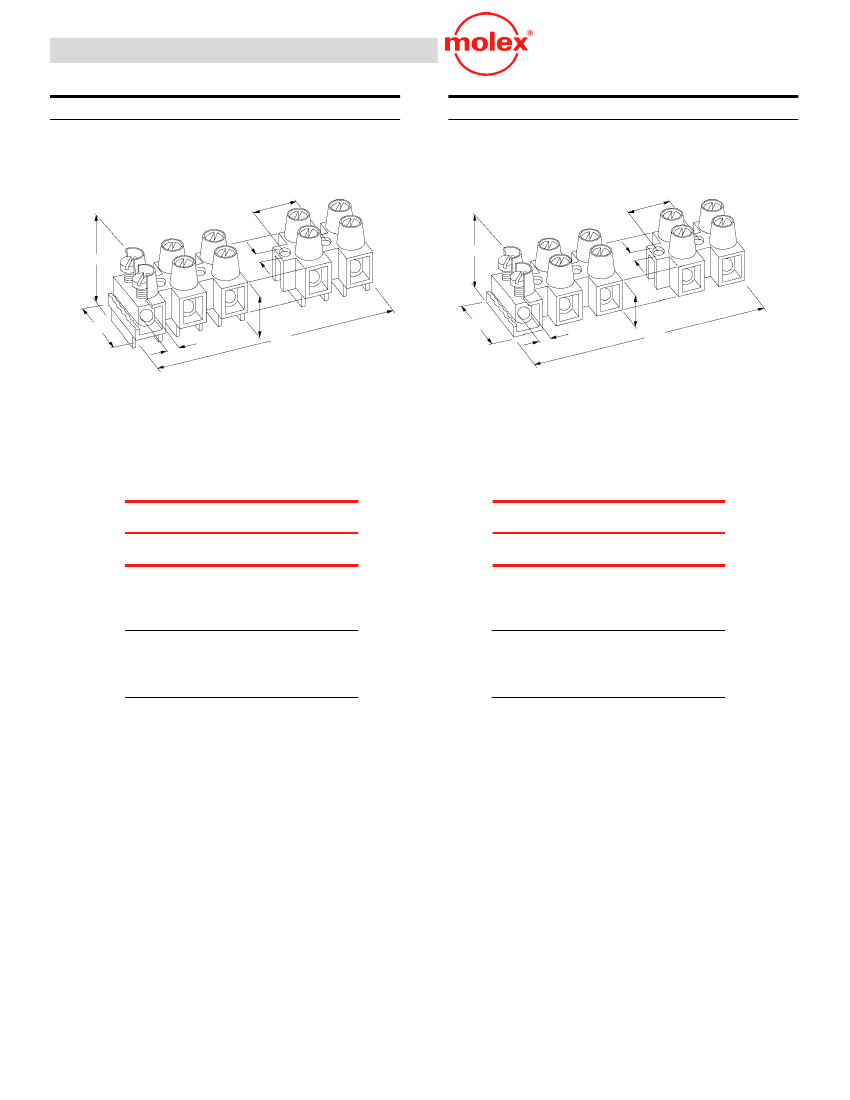

15,0mm Two-Screw Terminal Strip
Description
These Eurostyle
®
two-screw terminal strips
provide safe, efficient and reliable wiring
connections. The recessed screws and the
fully enclosed design of the molding
greatly reduces the danger of accidental
contact with current-carrying parts and
meets the requirements of the IEC Low
Voltage Directive.
The most popular configuration in-
cludes standoffs on the base of the mold-
ing, raising the terminal block to facilitate
wiring. The -L feature removes the stand-
offs to meet the requirements of height
constrained applications.
The optional stainless steel wire protec-
tor is recommended for use with standard
wire and smaller AWG solid wires. The
strips are offered in 2 to 12 circuits.
Features
•
Modular design.
Can be cut into
smaller sections with an utility knife.
Maintains center-to-center spacing
when installed end to end. Mounting
holes are provided between every
circuit.
Dead front construction.
Both
screws and terminals are recessed to
avoid shock hazard. Allows closer
mounting to components. Also
allows installation of connector where
space is limited.
Captive wire protectors
(option)
hold wire firmly in place. They
maintain the integrity of the wire and
the electrical connection while
increasing pull-out strength.
•
•
PRODUCT RATINGS
UL
Class B
Class C
Class B
Class C
40 Amps @ 600 V 8 AWG
40 Amps @ 600 V 8 AWG
40 Amps @ 600 V 8 AWG
40 Amps @ 600 V 8 AWG
TECHNICAL SPECIFICATIONS
ELECTRICAL
DWV
IR
MECHANICAL
Tightening torque
Wire Range
ENVIRONMENTAL
OPTIONS
-L
-10A
-1001
Low profile
Imprinting
Wire protector
>5000 VDC
> 3 x 10
12
Megohms
CSA
10 in-lbs.
8 to 24 AWG
AGENCY LISTINGS
UL
CSA
File No. E82573
Guide No. XCFR2
File No. 25562
Operating temp
110
O
C
MATERIALS
Insulator
Inserts
Wire protector
Screws
Terminals
Nylon 6.6, UL94V-2
Brass, chemically tinned
18/18 stainless band steel
Zinc-plated steel
Nickel-plate brass
HOW TO ORDER
C 1
0 0
X X
NO. OF
POLES
2 to 12
(Dash#'s
above)
X X
OPTIONS
SERIES
Molex Industrial Division
New England Operations
Gilford, NH 03246-6600
Phone
(603) 524-5101
Fax
(603) 524-1627
Internet www.beauint.com
