General Description of Light Emitting Diodes
General Description
General LED Characteristics
(1) Absolute maximum ratings
Conditions which should never be exceeded to prevent
destruction of the LED and which correlate with the
operating temperature.
(2) Continuous forward current (I
F
), peak forward
current (I
FM
)
Current which causes the LED to emit light. Since the LED
generates a certain amount of heat as current flows which
affects the operating life, the current is limitted by a forward
current derating curve.
(3) Reverse voltage (V
R
)
An LED is a diode designed for its light emitting
characteristics. Unlike ordinary diodes, the reverse voltage
cannot be controlled by changing the concentration of the
PN junction. Therefore, if a 3 V or higher reverse bias is
applied, the addition of a protective circuit is recommended.
(4) Power dissipation (P)
The internal power dissipation of the LED. The life of the
LED lengthens if it is used at a dissipation (junction
temperature) below a certain level (temperature) .
(5) Operating temperature (T
opr
)
Refers to the temperature range including the heat generated
by the device during operation of the LED. Operation under
conditions where damage to the package material does not
occur is recommended.
(6) Storage temperature (T
stg
)
Refers to the temperature range during non-operation of the
LED. Since it is important for the LED package to pass
light, it is not possible to change the content of the filler
material to improve the temperature characteristics like for
IC packages.
(7) Forward voltage (V
F
)
The voltage between electrodes when forward current is
applied to the LED. It differs according to the added
impurities in the crystal material.
(8) Reverse current (I
R
)
The current when reverse voltage is applied. It is
sufficiently small compared to the forward current. It is
recommended that a circuit which applies a reverse bias
should be avoided.
(9) Luminous intensity (I
V
)
Refers to the brightness measured at a distance of one feet
from the light source. Common units are the µcd and mcd.
The magnitude of the numeric value and the apparent
brightness do not necessary correspond. In actuality, it is
necessary to take into account the contrast, luminance and
These characteristics differ according to the crystal material
and added impurities.
(11)Directive characteristics, Half value of viewing
angle
Represents the directivity dependency of the LED luminous
intensity as a relative luminous intensity value. Generally,
the luminous intensity is highest along the normal optical
axis and decreases as the angle with respect to the optical
axis increases. The angle at which the luminous intensity
drops to 50% of the peak value is called the halfpower
angle. It can be used as a guide showing the sharpness of the
directivity.
Notice
Internet
In the absence of confirmation by device specification sheets,SHARP takes no responsibility for any defects that may occur in equipment using any SHARP devices shown in
catalogs,data books,etc.Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
Internet address for Electronic Components Group http://sharp-world.com/ecg/
3
Numbering System
New numbering system
GL
Serial No.
wRadiation
color
qRadiation
shape
LED Large Lamp
GL
Rank
Radiation
Radiation
shape Radiation characteristics Lead type
Lens type
Taping type
color
LT95
Serial No.
wRadiation
color
qRadiation
shape
2 ----- ø2
3 ----- ø3
4 ----- ø4
5/6 --- ø5
7 ----- ø7.5
8 ----- Specific appearance
(Arch, Rectangle,
Square, Triangle)
0 ----- ø10
wRadiation
color
ISingle
color type
Series
B
KG, K
EG, E, C
*
HY, H
HS, S
HD, D
TR, T
UR, U
PR, P
ZG
ZE
ZV
ZS
XS
ZJ
ZR
JV
JS
JJ
JR
GT, GC
BT, BC
Emitting color
Blue
Green
Yellow-green
Yellow
Sunset orange
Red
Red(High-luminosity)
Red(Super-luminosity)
Red
Green(Super-luminosity)
Yellow-green(Super-luminosity)
Amber(Super-luminosity)
Sunset orange(Super-luminosity)
Sunset orange(Super-luminosity)
Orange(Super-luminosity)
Red(Super-luminosity)
Amber(High-luminosity)
Sunset orange(High-luminosity)
Orange(High-luminosity)
Red(High-luminosity)
Green(Super-luminosity)
Blue(Super-luminosity)
IDichromatic
type
Series
KS
EH
ED
ET
CU
*1
EP
HP
Emitting color
GreenK+Sunset orangeS
Yellow-greenE+YellowH
Yellow-greenE+RedD
Yellow-greenE+Red(High-luminosity)T
Yellow-greenC+Red(Super-luminosity)U
Yellow-greenE+RedP
YellowH+RedP
*1 CU series : Anode common
*1 It is able to simplify the operation circuit due to Anode common
connection.
(Circuit example)
V
2
V
1
+5V
Yellow-green
Red
V
1
5V
V
1
5V
Yellow-green
Red
Dotted line portion
becomes useless.
LED driver
5V
0V
LED driver
5V
0V
*C: Inversion type of EG
Note)Sharp can supply LED lamps with tie-bar. If necessary, please
make contact to Sharp.
Ratings, electro-optical characteristics are shown on the page 96 to 104.
* LED is represented by the symbol below(JISC0301).
4
Notice
Internet
In the absence of confirmation by device specification sheets,SHARP takes no responsibility for any defects that may occur in equipment using any SHARP devices shown in
catalogs,data books,etc.Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
Internet address for Electronic Components Group http://sharp-world.com/ecg/

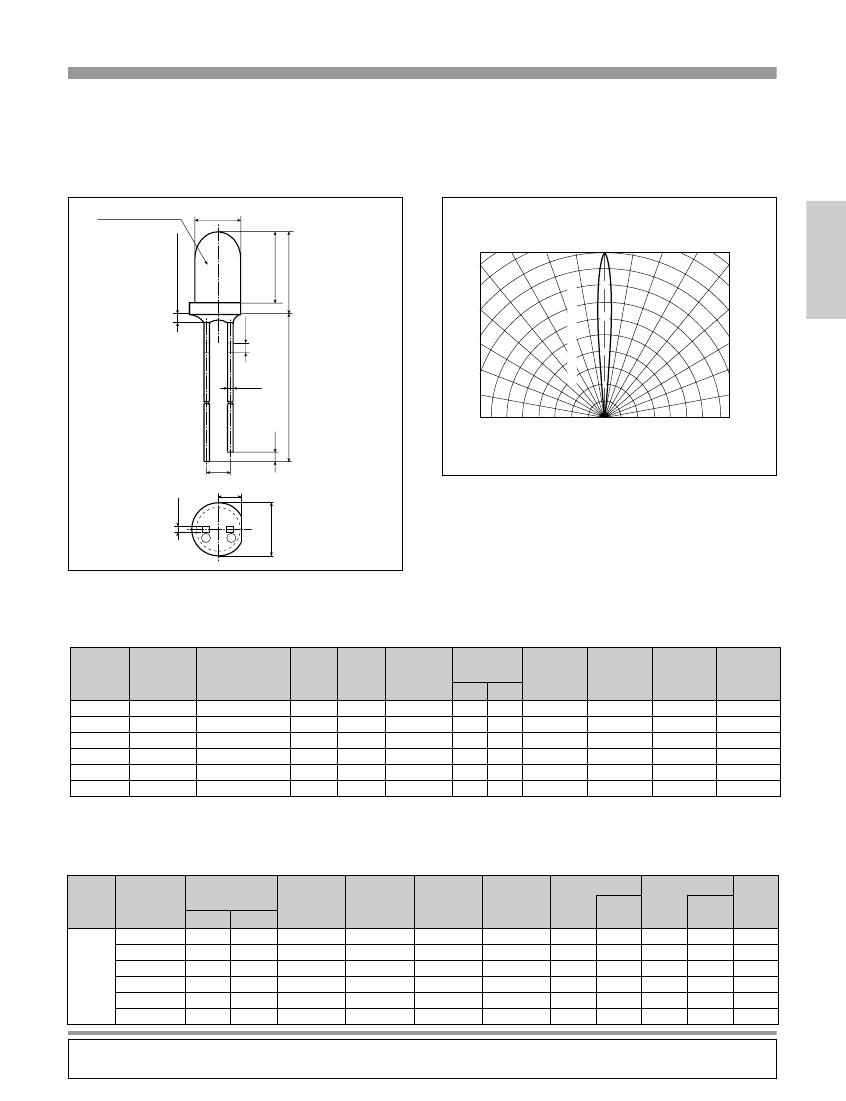

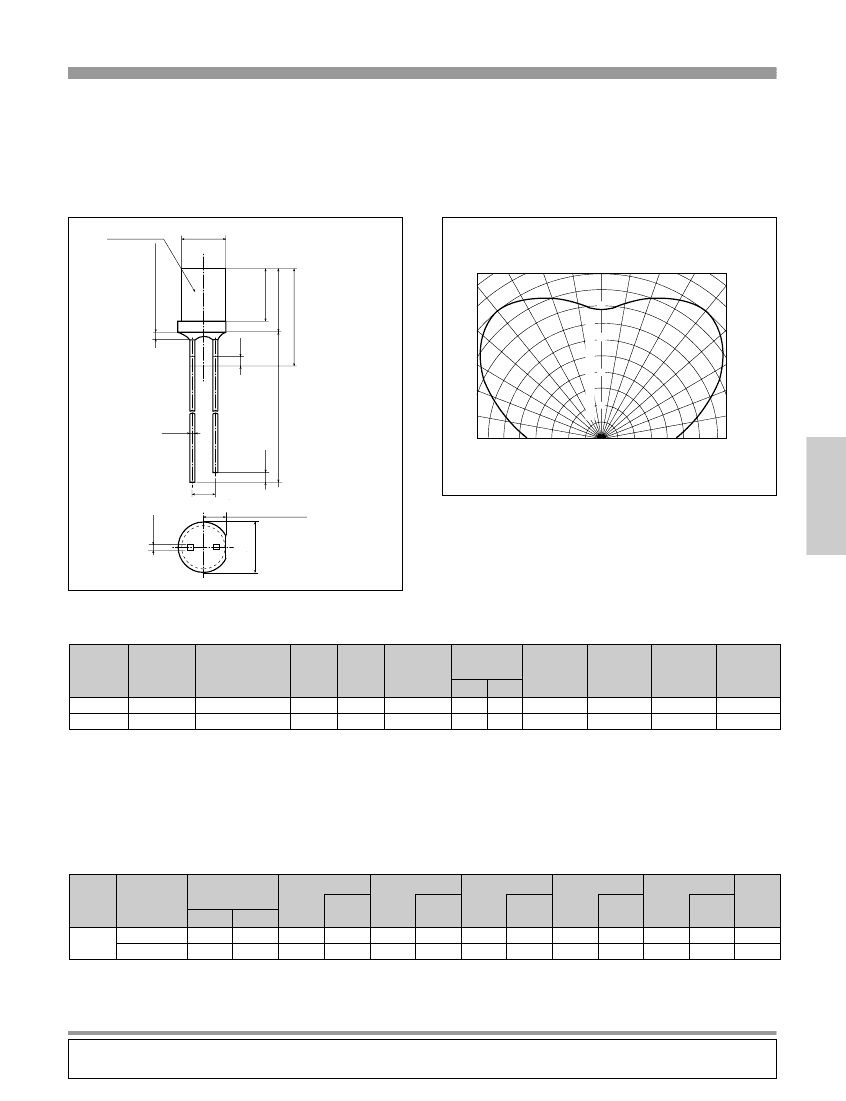

Super-luminosity(AlGaInP)LED Lamp
GL5Z❏43 series
GL5Z❏43 series
I
Outline Dimensions
Colorless transparency
Protruded resin 1.5MAX
±
0.15
ø4.8
Viewing Angle: 8˚ (2θ1/2) ø5mm,
Cylinder Type, Colorless
Transparency Super-luminosity
LED Lamps for Outdoor Use
(Unit :
mm
)
I
Directive Characteristics
(T
a
=25˚C)
-30˚
-20˚
-10˚
0˚
100 +10˚
+20˚
+30˚
+40˚
9.0
-40˚
Relative luminous intensity(%)
80
+50˚
60
-50˚
1.0
(Tie-bar cut)
-60˚
+60˚
40
+70˚
20
+80˚
23.0MIN
-70˚
0.5
±
0.1
-80˚
-90˚
0
+90˚
2.54NOM
2.4
±
0.2
0.5
±
0.1
Pin connections
1
Anode
2
Cathode
Unspecified tolerance:±0.2
ø5.75
1
2
I
Absolute Maximum Ratings
Model No.
Emitting color
Material
(1.0)
(T
a
=25˚C)
Power dissipation Forward current Peak forward current Derating factor Reverse voltage Operating temperature Storage temperature Soldering temperature
(mA/˚C)
P
I
F
I
FM*1
V
R
T
opr
T
stg
T
sol*2
(mW)
(mA)
(mA)
(V)
(˚C)
(˚C)
(˚C)
DC Pulse
1.33
1.33
1.33
1.33
1.33
1.33
5
5
5
5
5
5
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +100
-40 to +100
-40 to +100
-40 to +100
-40 to +100
-40 to +100
260
260
260
260
260
260
AlGaInP on GaAs
130
50
100
0.67
GL5ZR43
Red
AlGaInP on GaAs
130
50
100
0.67
GL5ZJ43
Orange
130
50
100
0.67
GL5ZS43
Sunset orange AlGaInP on GaAs
AlGaInP on GaAs
130
50
100
0.67
GL5ZV43
Amber
130
50
100
0.67
GL5ZE43
Yellow-green AlGaInP on GaAs
AlGaInP on GaAs
130
50
100
0.67
GL5ZG43
Green
*1 Duty ratio=1/10, Pulse width=0.1ms
*2 5s or less(At the position of 1.6mm or more from the bottom face of resin package)
I
Electro-optical Characteristics
Lens type
Model No.
Forward voltage
V
F
(V)
TYP
GL5ZR43
GL5ZJ43
Colorless
GL5ZS43
transparency
GL5ZV43
GL5ZE43
GL5ZG43
Notice
Internet
(I
F
=20mA,T
a
=25˚C)
Peak emission
wavelength
λ
p
(nm)
TYP
647
627
609
591
570
560
Dominant
wavelength
λ
d
(nm)
TYP
635
618
605
588
570
560
Luminous
intensity
I
V
(mcd)
TYP
6 000
8 000
10 000
8 000
2 500
1 000
Spectrum radiation
bandwidth
∆λ(nm)
TYP
20
15
15
15
15
15
Reverse current
I
R
(µA)
MAX
100
100
100
100
100
100
V
R
(V)
4
4
4
4
4
4
Terminal capacitance
C
t
(pF)
TYP
60
60
60
60
60
60
Page for
characteristics
(MH
Z
)
diagrams
1
1
1
1
1
1
96
96
97
98
98
99
MAX
2.6
2.6
2.6
2.6
2.6
2.6
2.1
2.1
2.1
2.1
2.1
2.1
In the absence of confirmation by device specification sheets,SHARP takes no responsibility for any defects that may occur in equipment using any SHARP devices shown in
catalogs,data books,etc.Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
Internet address for Electronic Components Group http://sharp-world.com/ecg/
17
Super/High-luminosity
(AlGaInP)
7.8
Characteristics Diagrams
ZR series
Forward Current Derating Curve
60
Forward Current vs. Forward Voltage(Note)
100
50
(T
a=
25˚C)
Luminous Intensity vs. Ambient Temperature(Note)
1000
500
(1
F
=20mA)
50
Relative luminous intensity(%)
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
Forward current I
F
(mA)
40
Forward current I
F
(mA)
10
5.0
100
50
30
20
1.0
0.5
10
5.0
10
0
-40
0
25
50
75 85
100
125
0.1
1.0
1.0
-40
-20
0
20
40
60
80
100
Forward voltage V
F
(V)
Ambient temperature T
a(
˚C)
Ambient temperature T
a
(˚C)
Peak Forward Current Derating Curve
120
Luminous Intensity vs. Forward Current(Note)
1000
500
(T
a=
25˚C)
Duty Ratio vs. Peak Forward Current
(T
a=
25˚C)
500
200
Peak forward current I
FM
(mA)
100
50
100
Relative luminous intensity(%)
200
100
50
Peak forward current I
FM
(mA)
80
60
20
10
5.0
2.0
20
10
5.0
2.0
1.0
40
20
0
-40
0
25
50
75 85
100
125
1.0
0.1
0.2
0.5
1
2
5
10
20
50
1/50
1/20
1/10
1/5
1/2
1
Ambient temperature T
a
(˚C)
Forward current I
F
(mA)
Duty ratio D
R
ZJ series
Forward Current Derating Curve
60
Forward Current vs. Forward Voltage(Note)
100
50
(T
a=
25˚C)
Luminous Intensity vs. Ambient Temperature(Note)
1000
500
(1
F
=20mA)
50
Relative luminous intensity(%)
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
Forward current I
F
(mA)
Forward current I
F
(mA)
40
10
5.0
100
50
30
20
1.0
0.5
10
5.0
10
0
-40
0
25
50
75 85
00
125
0.1
1.0
1.0
-40
-20
0
20
40
60
80
100
Forward voltage V
F
(V)
Ambient temperature T
a
(˚C)
Ambient temperature T
a
(˚C)
Peak Forward Current Derating Curve
120
Luminous Intensity vs. Forward Current(Note)
1000
500
(T
a=
25˚C)
Duty Ratio vs. Peak Forward Current
(T
a=
25˚C)
500
200
Peak forward current I
FM
(mA)
100
50
100
Relative luminous intensity(%)
200
100
50
Peak forward current I
FM
(mA)
80
60
20
10
5.0
20
10
5.0
2.0
1.0
40
20
2.0
0
-40
0
25
50
75 85
100
125
1.0
0.1
0.2
0.5
1
2
5
10
20
50
1/50
1/20
1/10
1/5
1/2
1
Ambient temperature T
a
(˚C)
Forward current I
F
(mA)
Duty ratio D
R
Note)Characteristics shown in diagrams are typical values. (not assurance value)
96
Notice
Internet
In the absence of confirmation by device specification sheets,SHARP takes no responsibility for any defects that may occur in equipment using any SHARP devices shown in
catalogs,data books,etc.Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
Internet address for Electronic Components Group http://sharp-world.com/ecg/
With a single-chip microcomputer as the control device and a liquid crystal LCD as the display device, the device to be tested is selected through a menu, the test process is completed automatically, ...
Any trace on the PCB will cause delay to the signal when passing a high-frequency signal. The main function of serpentine trace design on the PCB is to compensate for the smaller delay parts in the "s...
Is it possible to achieve joint debugging between the MCU development board and the programming environment Keil2, preferably supporting breakpoint debugging? If so, how to set it up?...
I want to make a pressure sensor with a pressure range of 0~1Mpas? I don't know which chip is good to use? Can anyone recommend some chips for making pressure sensors! ! ! !...
1. Overview
Will passive devices
produce nonlinear intermodulation distortion? The answer is yes! Although there is no systematic theoretical analysis, it has been found in engineerin...[Details]
1. Introduction
This design was made for participating in an electronic design competition. It effectively solved the problem of the operation and control of an electric car on a seesaw. The s...[Details]
With the advent of increasingly powerful processors, image sensors, memory, and other semiconductor devices, as well as the algorithms that enable them, computer vision can be implemented in a wide...[Details]
Images in science fiction movies often break through the limits of reality, such as in the movie "Minority Report." Tom Cruise uses a multi-touch screen to browse information. Capacitive sensing te...[Details]
1. With the development of modern industry and the continuous improvement of automation, some medium and large control systems have been greatly facilitated, which not only makes control easier, bu...[Details]
Xiaomi, a well-known Internet phone in mainland China, won a million-unit order contract from China Unicom on November 20 last year, which made Xiaomi famous in mainland China. In April this year...[Details]
The automotive lighting and signal control system is responsible for controlling the vehicle's lighting, signal lights, electric horns, reversing and brake buzzers. Traditional automotive lighting...[Details]
The typical fault troubleshooting listed below is for reference of maintenance personnel.
When the computer is turned on, the indicator light is off and there is no screen display
Mainte...[Details]
The potentiometer is an adjustable electronic component. The main functions of the potentiometer in the circuit are as follows:
1. Used as a voltage divider
A potentiometer is a continuou...[Details]
As people's requirements for safety and comfort in the process of driving cars continue to increase, automotive radars are widely used in the car's adaptive cruise system, collision avoidance syste...[Details]
1 Embedded Systems
Embedded System refers to a collection of computer hardware and software with specific functions or purposes, which is divided into embedded software system and embe...[Details]
The 8051 microcontroller is the most common microcontroller we have. I have been using 8051 for a long time and have also taught microcontroller courses for a period of time. Here I would like to s...[Details]
In view of the price and performance differentiation of Chinese home video intercom and security products, this paper analyzes
the design of smart terminals based
on a Chinese original
...[Details]
Brain-computer interface (BCI) is a novel human-computer interface method. It is defined as a brain-computer (computer or other device) communication system that does not rely on the normal output ...[Details]
According to a survey by the International Energy Agency, Asia and Australia used 1.65 trillion liters of oil for energy in 2004. The survey also showed that since 1990, the demand for oil has been...[Details]
51mcu
京公网安备 11010802033920号
EEWORLD
