BR6265A-10SL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> BR6265A-10SL

BR6265A-10SL: DescriptionStandard SRAM, 8KX8, CMOS, PDIP28, DIP-28; Categorystorage storage; File Size46KB，1 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BR6265A-10SL Overview

Standard SRAM, 8KX8, CMOS, PDIP28, DIP-28

BR6265A-10SL Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
JESD-30 code	R-PDIP-T28
length	37.1 mm
memory density	65536 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
organize	8KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	4.25 mm
Minimum standby current	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

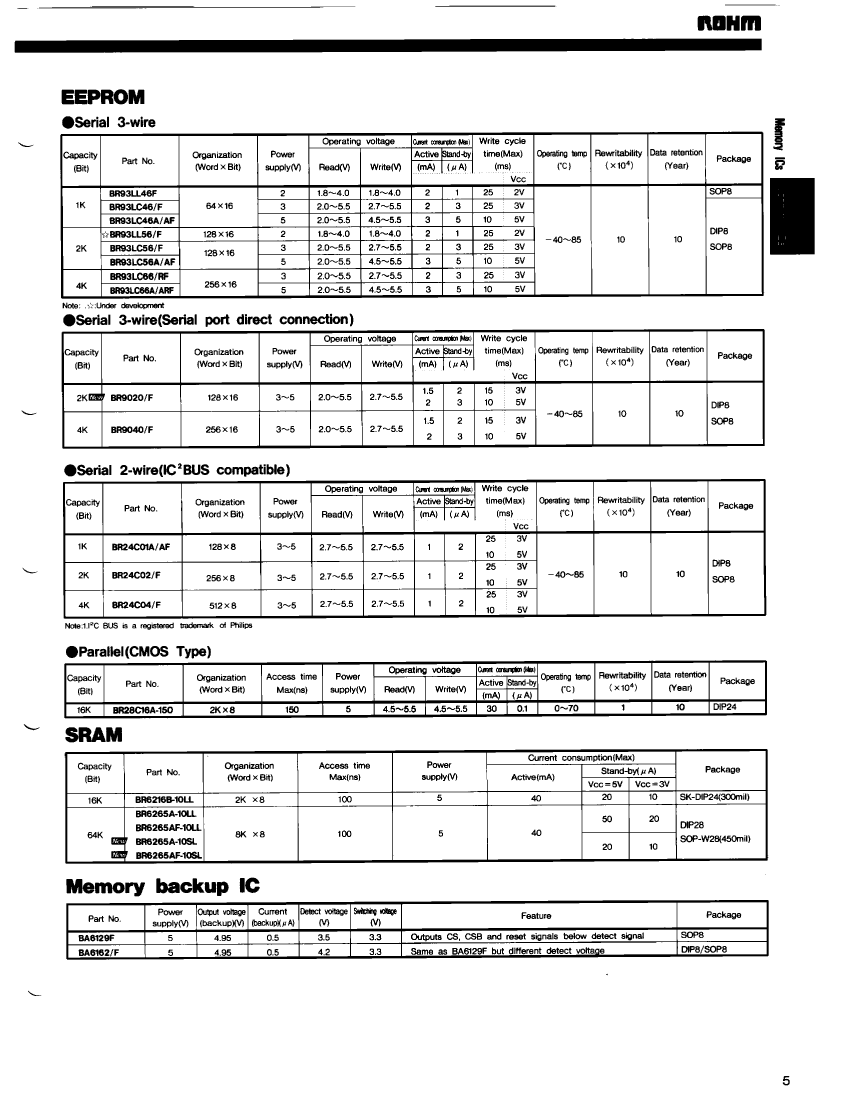

Preview

Download Datasheet

View All

BR6265A-10SL Related Products

	BR6265A-10SL	BR6265A-10LL	BR6265AF-10SL	BR6265AF-10LL	BR93LL56	BR93LL56F	BR6216B-10LL
Description	Standard SRAM, 8KX8, CMOS, PDIP28, DIP-28	Standard SRAM, 8KX8, 100ns, CMOS, PDIP28, DIP-28	Standard SRAM, 8KX8, 100ns, CMOS, PDSO28, SOP-28	Standard SRAM, 8KX8, 100ns, CMOS, PDSO28, SOP-28	EEPROM, 128X16, Serial, CMOS, PDIP8, DIP-8	EEPROM, 128X16, Serial, CMOS, PDSO8, SOP-8	Standard SRAM, 2KX8, 100ns, CMOS, PDIP24, 0.300 INCH, SKINNY, DIP-24
Parts packaging code	DIP	DIP	SOIC	SOIC	DIP	SOIC	DIP
package instruction	DIP,	DIP,	SOP,	SOP,	DIP,	LSOP,	0.300 INCH, SKINNY, DIP-24
Contacts	28	28	28	28	8	8	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-PDIP-T28	R-PDIP-T28	R-PDSO-G28	R-PDSO-G28	R-PDIP-T8	R-PDSO-G8	R-PDIP-T24
length	37.1 mm	37.1 mm	18.5 mm	18.5 mm	9.3 mm	5 mm	29.6 mm
memory density	65536 bit	65536 bit	65536 bit	65536 bit	2048 bit	2048 bit	16384 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	EEPROM	EEPROM	STANDARD SRAM
memory width	8	8	8	8	16	16	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	8	8	24
word count	8192 words	8192 words	8192 words	8192 words	128 words	128 words	2048 words
character code	8000	8000	8000	8000	128	128	2000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	ASYNCHRONOUS
organize	8KX8	8KX8	8KX8	8KX8	128X16	128X16	2KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	SOP	DIP	LSOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE, LOW PROFILE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	SERIAL	SERIAL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.25 mm	4.25 mm	2.3 mm	2.3 mm	3.7 mm	1.6 mm	3.98 mm
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	3.3 V	3.3 V	5 V
surface mount	NO	NO	YES	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	7.5 mm	7.5 mm	7.62 mm	4.4 mm	7.62 mm
Number of ports	1	1	1	1	-	-	1
Exportable	YES	YES	YES	YES	-	-	YES
Minimum standby current	2 V	2 V	2 V	2 V	-	-	2 V
Base Number Matches	1	1	1	1	1	1	-
Maker	-	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	-	-	ROHM Semiconductor
Maximum access time	-	100 ns	100 ns	100 ns	-	-	100 ns
Maximum operating temperature	-	70 °C	-	70 °C	85 °C	85 °C	70 °C
Maximum supply voltage (Vsup)	-	5.5 V	-	5.5 V	4 V	4 V	5.5 V
Minimum supply voltage (Vsup)	-	4.5 V	-	4.5 V	1.8 V	1.8 V	4.5 V
Temperature level	-	COMMERCIAL	-	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
