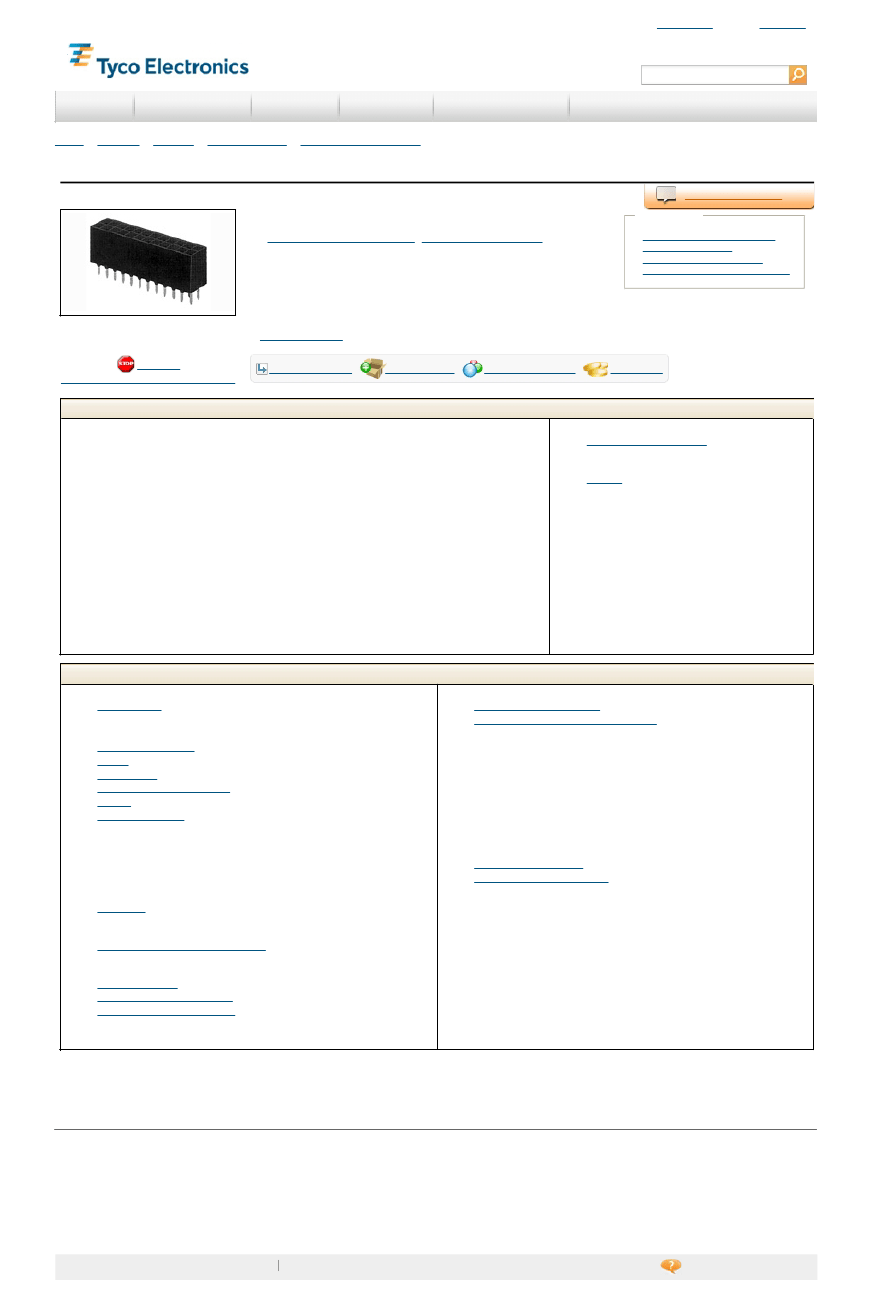

1-829190-7 Product Details
Live Product Chat
.100 inch AMPMODU Receptacles
Always EU R oHS/ELV C om pliant
(
Sta te m e nt of C om pliance
)
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
1-829190-7
T E I nternal N umber: 1 - 8 2 9 1 9 0 - 7
Product Highlights:
l
C onnector
l
C onnector Type = C onnector - Receptacle
l
HV-100
l
17 Positions
l
Number of Rows = Dual
View all Features
Obsolete
C ontact Product Information C enter
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Product Type
= C onnector
l
C onnector Type = C onnector - Receptacle
l
C onnector Series = HV-100
l
Number of Positions
= 17
l
Profile
= Standard
l
Mount Angle
= Vertical
l
Mounting Pattern (mm [in])
= 2.54 x 2.54 [.100 x .100]
l
Sealed
= No
l
Holddown Feature
= Without
l
PC B Retention Feature = No
l
C losed Entry = With
l
Board Standoff = Without
l
C omment = C onnector with solder stop area.
Mechanical Attachment:
l
Stackable
= Yes
Termination Related Features:
l
Termination Post Length (mm [in])
= 3.10 [0.122]
Body Related Features:
l
Number of Rows
= Dual
l
C onnector Height (mm [in])
= 6.20 [0.244]
l
C enterline, Matrix (mm [in])
= 2.54 x 2.54 [.100 x .100]
l
C losed Bottom = With
Contact Related Features:
l
C ontact Termination Type
= Through Hole
l
C ontact Plating, Mating Area, Material
= Tin
l
C ontact Base Material = Phosphor Bronze
Housing Related Features:
l
Housing Entry Style = Bottom or Top
l
Housing Material = Polyester GF
l
Housing Flammability Rating = UL 94V-0
l
Housing C olor = Green
Industry Standards:
l
Government/Industry Qualification = No
l
RoHS/ELV C ompliance
= RoHS compliant, ELV compliant
l
Lead Free Solder Processes
= Wave solder capable to 240?C
l
RoHS/ELV C ompliance History = Always was RoHS compliant
Other:
l
Brand = AMP
