LTC1348IS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> LTC1348IS

LTC1348IS: DescriptionIC LINE TRANSCEIVER, PDSO28, PLASTIC, SOL-28, Line Driver or Receiver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size153KB，4 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LTC1348IS Overview

IC LINE TRANSCEIVER, PDSO28, PLASTIC, SOL-28, Line Driver or Receiver

LTC1348IS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP28,.4
Contacts	28
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	5 RECEIVERS ACTIVE UNDER SHUTDOWN; EXTERNAL CHARGE PUMP
Differential output	NO
Number of drives	3
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	17.9 mm
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum output swing	5 V
Output characteristics	3-STATE
Maximum output low current	0.0016 A
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	245
power supply	3.3/5 V
Certification status	Not Qualified
Maximum receive delay	800 ns
Number of receiver bits	5
Maximum seat height	2.65 mm
Maximum slew rate	1.5 mA
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
maximum transmission delay	3500 ns
width	7.5 mm
Base Number Matches	1

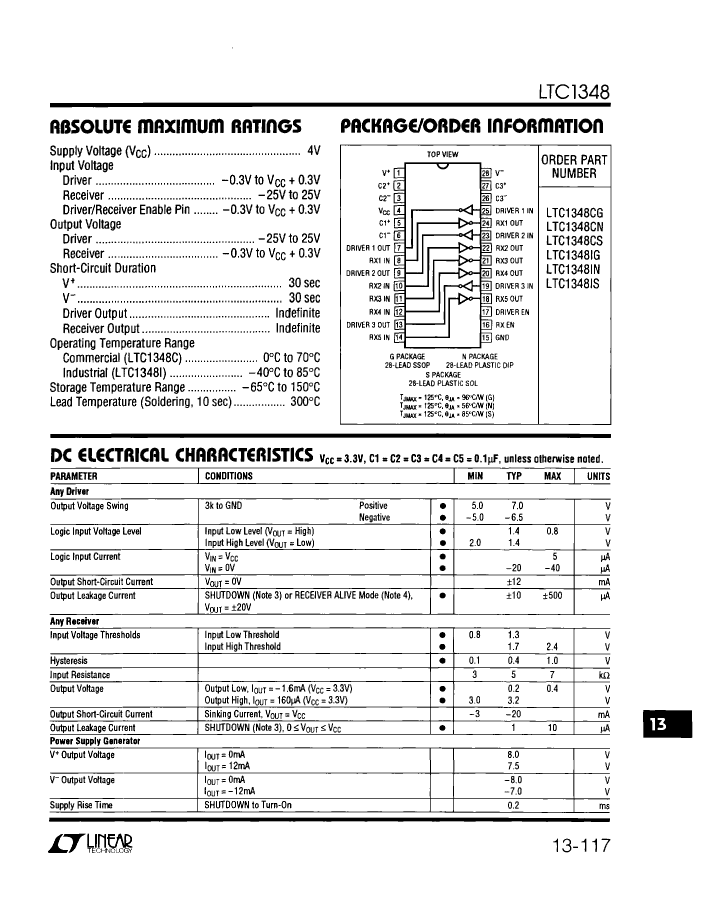

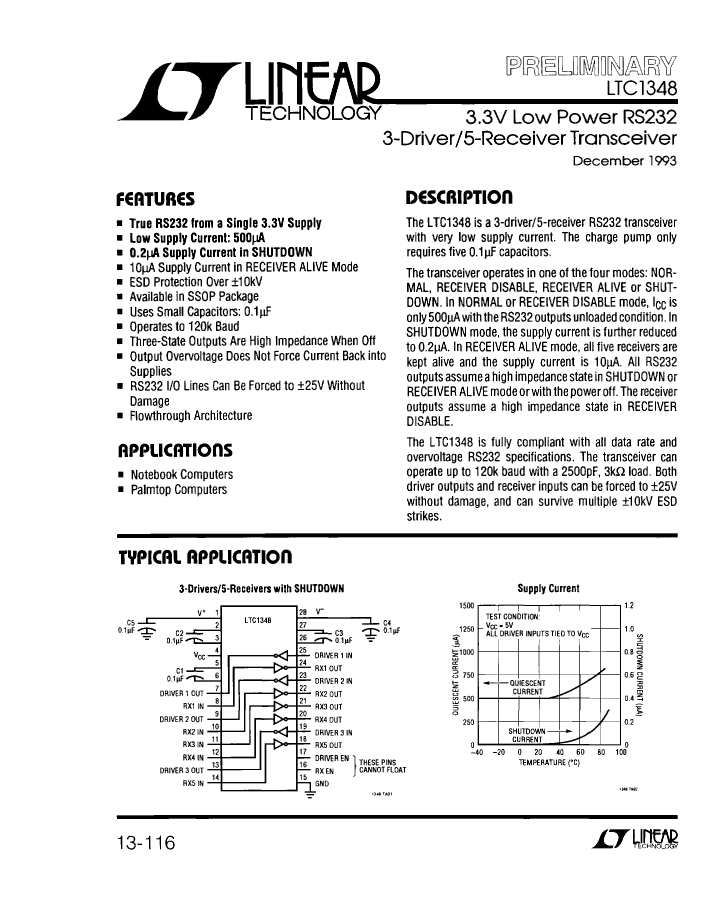

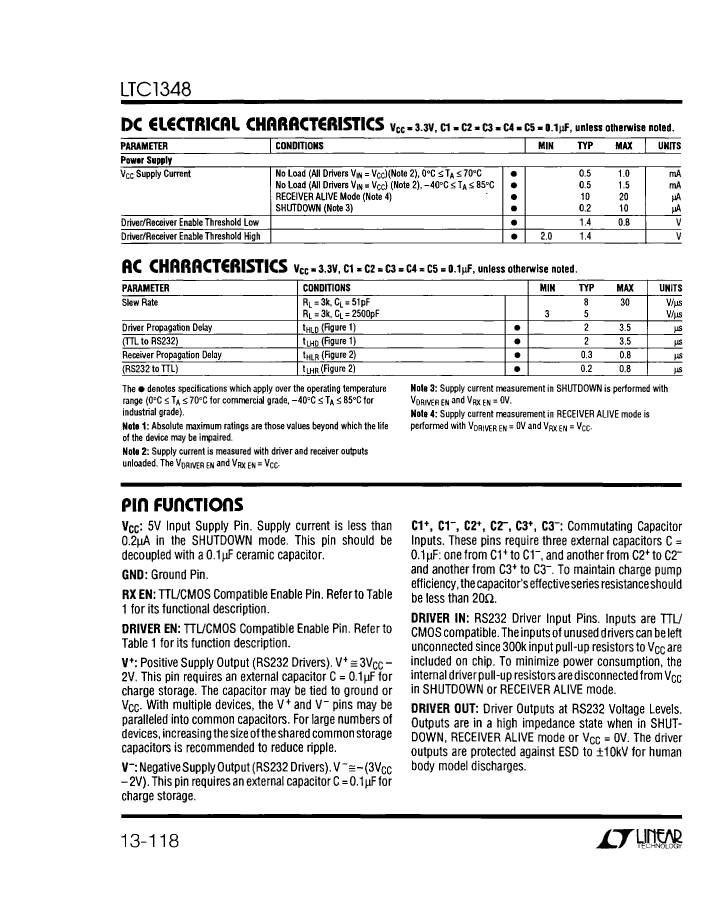

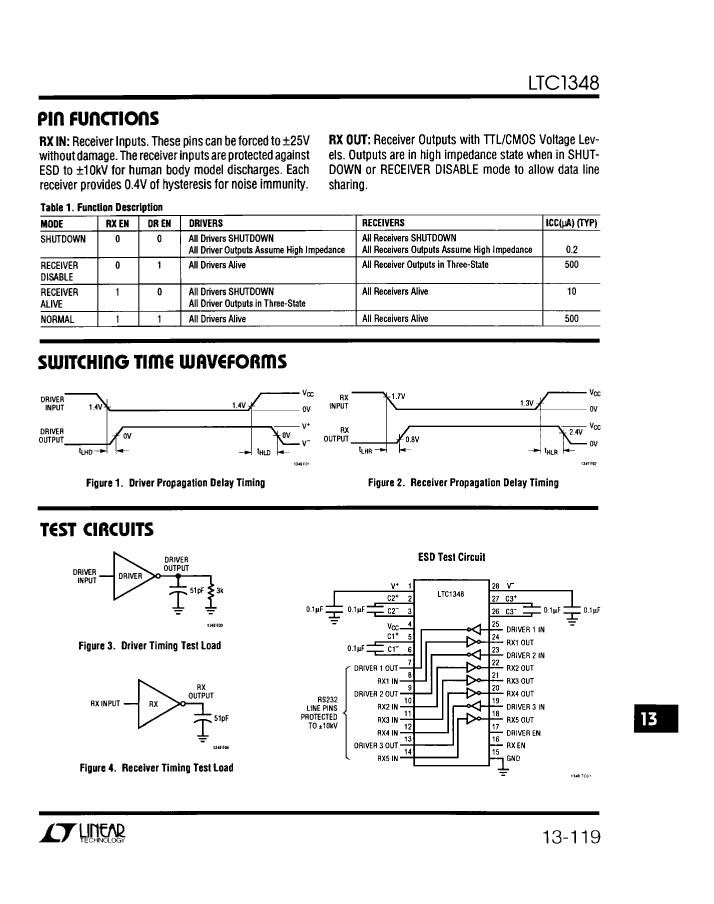

Preview

Download Datasheet

View All

LTC1348IS Related Products

	LTC1348IS	LTC1348IN
Description	IC LINE TRANSCEIVER, PDSO28, PLASTIC, SOL-28, Line Driver or Receiver	IC LINE TRANSCEIVER, PDIP28, PLASTIC, DIP-28, Line Driver or Receiver
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	SOIC	DIP
package instruction	SOP, SOP28,.4	DIP, DIP28,.3
Contacts	28	28
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Is Samacsys	N	N
Other features	5 RECEIVERS ACTIVE UNDER SHUTDOWN; EXTERNAL CHARGE PUMP	5 RECEIVERS ACTIVE UNDER SHUTDOWN; EXTERNAL CHARGE PUMP
Differential output	NO	NO
Number of drives	3	3
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER	LINE TRANSCEIVER
Interface standards	EIA-232	EIA-232
JESD-30 code	R-PDSO-G28	R-PDIP-T28
JESD-609 code	e0	e0
Number of functions	1	1
Number of terminals	28	28
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Minimum output swing	5 V	5 V
Output characteristics	3-STATE	3-STATE
Maximum output low current	0.0016 A	0.0016 A
Output polarity	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP28,.4	DIP28,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	245	NOT SPECIFIED
power supply	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified
Maximum receive delay	800 ns	800 ns
Number of receiver bits	5	5
Maximum seat height	2.65 mm	4.318 mm
Maximum slew rate	1.5 mA	1.5 mA
Nominal supply voltage	3.3 V	3.3 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
maximum transmission delay	3500 ns	3500 ns
width	7.5 mm	15.24 mm
Base Number Matches	1	1
