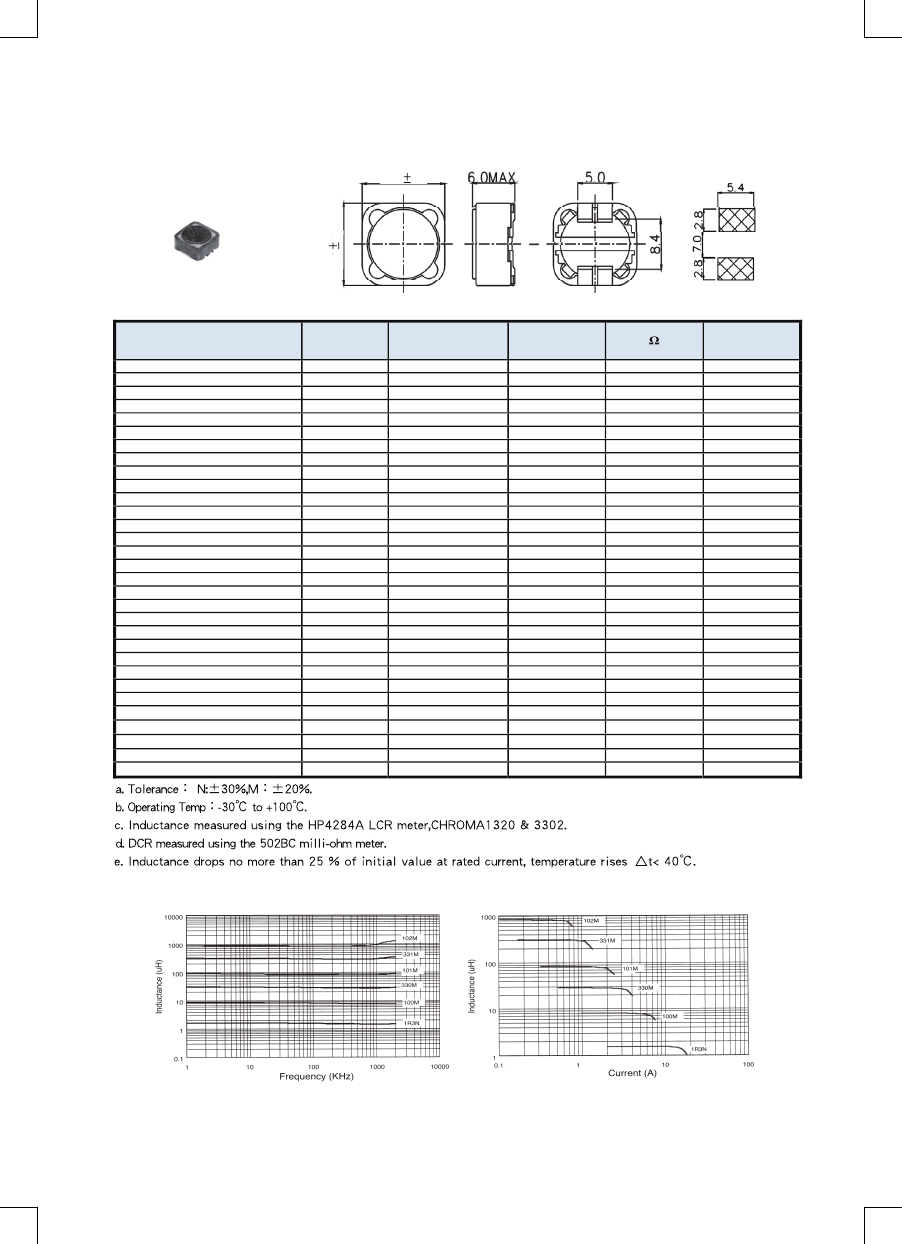

SMD POWER CHOKE CSS125P

MECHANICAL DIMENSIONS(Unit:mm)

12.0 0.3

XXX

ELECTRICAL SPECIFICATIONS

PART

Number.

MARKING

1R3

2R1

3R1

4R4

5R8

7R5

100

120

150

180

220

270

330

390

470

560

680

820

101

121

151

181

221

271

331

391

471

561

681

821

102

Inductance

(uH)

1.3+30%,-20%

2.1+30%,-20%

3.1+30%,-20%

4.4+30%,-20%

5.8+30%,-20%

7.5+30%,-20%

10±20%

12±20%

15±20%

18±20%

22±20%

27±20%

33±20%

39±20%

47±20%

56±20%

68±20%

82±20%

100±20%

120±20%

150±20%

180±20%

220±20%

270±20%

330±20%

390±20%

470±20%

560±20%

680±20%

820±20%

1000±20%

TEST FREQ.

(KHz)

100

CSS125P-1R3N-LFR

CSS125P-2R1N-LFR

CSS125P-3R1N-LFR

CSS125P-4R4N-LFR

CSS125P-5R8N-LFR

CSS125P-7R5N-LFR

CSS125P-100M-LFR

CSS125P-120M-LFR

CSS125P-150M-LFR

CSS125P-180M-LFR

CSS125P-220M-LFR

CSS125P-270M-LFR

CSS125P-330M-LFR

CSS125P-390M-LFR

CSS125P-470M-LFR

CSS125P-560M-LFR

CSS125P-680M-LFR

CSS125P-820M-LFR

CSS125P-101M-LFR

CSS125P-121M-LFR

CSS125P-151M-LFR

CSS125P-181M-LFR

CSS125P-221M-LFR

CSS125P-271M-LFR

CSS125P-331M-LFR

CSS125P-391M-LFR

CSS125P-471M-LFR

CSS125P-561M-LFR

CSS125P-681M-LFR

CSS125P-821M-LFR

CSS125P-102M-LFR

DCR

( )

Max.

0.012

0.014

0.017

0.020

0.021

0.024

0.025

0.027

0.030

0.034

0.036

0.051

0.057

0.068

0.075

0.110

0.120

0.140

0.160

0.170

0.230

0.290

0.400

0.460

0.510

0.690

0.770

0.860

1.200

1.340

1.530

Recommended Patterns

Rated

Current

(A)

8.00

7.00

6.00

5.00

4.40

4.20

4.00

3.50

3.30

3.00

2.80

2.30

2.10

2.00

1.80

1.70

1.50

1.40

1.30

1.10

1.00

0.90

0.80

0.75

0.68

0.65

0.58

0.54

0.48

0.43

0.40

CHARACTERISTIC CURVE
