BTB12-700SW/F2 datasheet, PDF - EEWORLD Datasheet

BTB12-700SW/F2: Description700V, 12A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220, TO-220, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size112KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

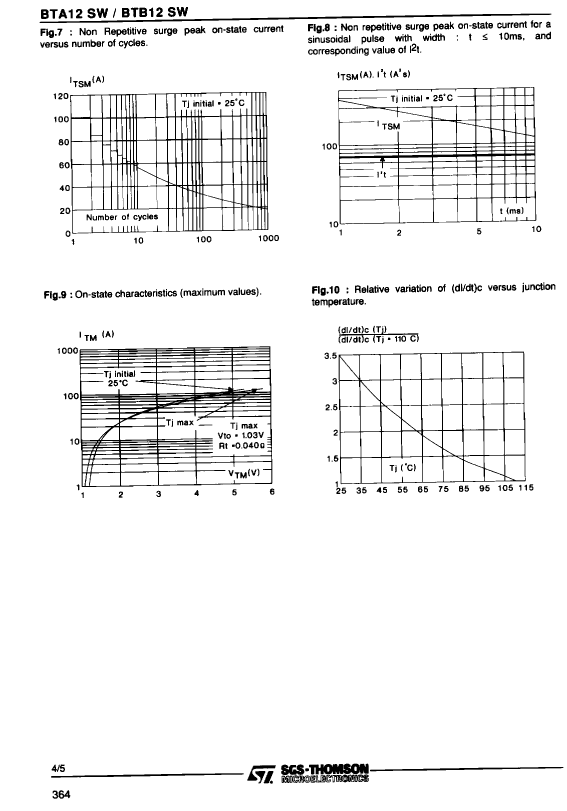

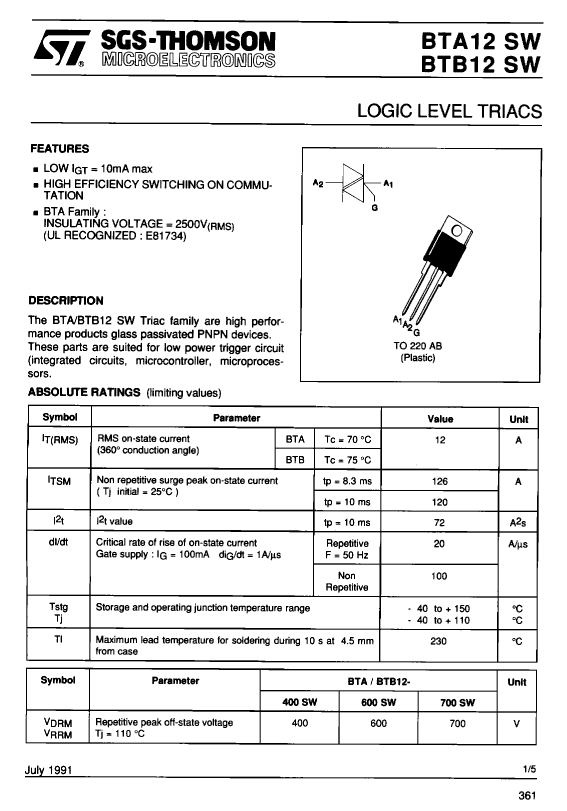

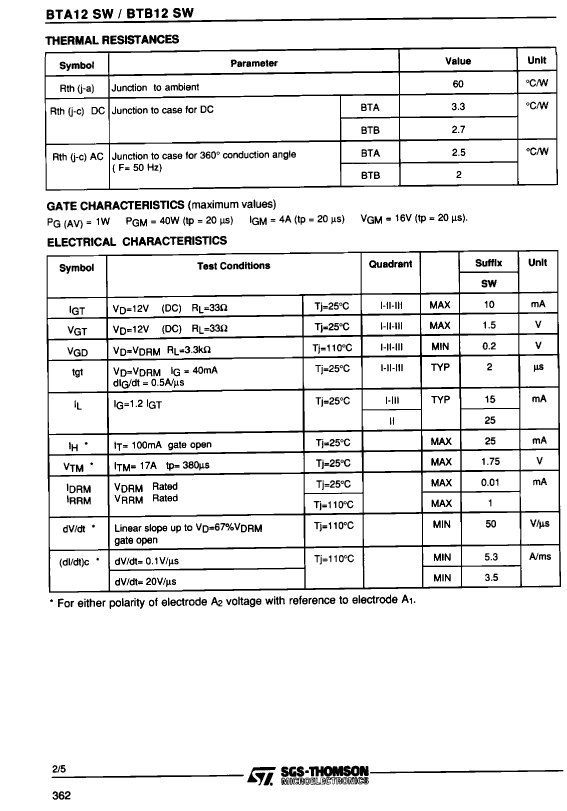

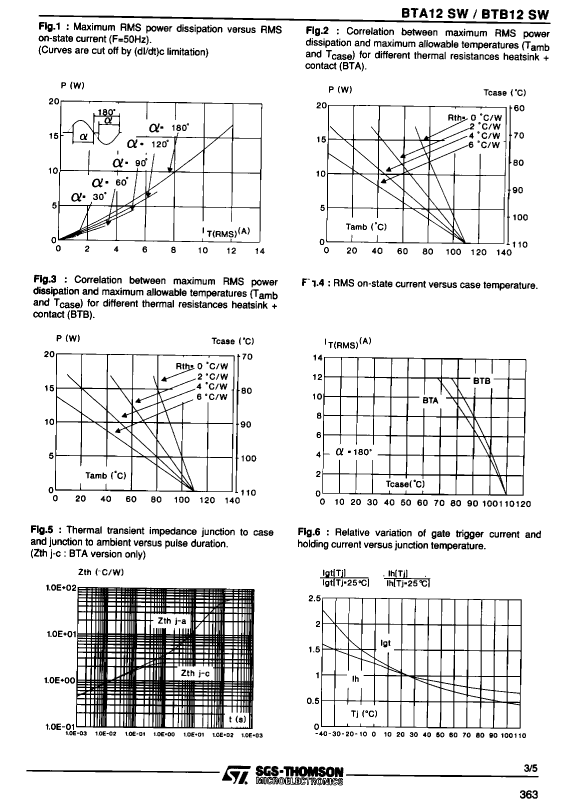

BTB12-700SW/F2 Overview

700V, 12A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220, TO-220, 3 PIN

Parameter Name	Attribute value
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-G3
Contacts	3
Reach Compliance Code	unknown
Is Samacsys	N
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	10 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	25 mA
JESD-30 code	R-PSFM-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	12 A
Maximum repetitive peak off-state leakage current	10 µA
Off-state repetitive peak voltage	700 V
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC
Base Number Matches	1
