BTB16-400CW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BTB16-400CW

BTB16-400CW: Description400V, 16A, SNUBBERLESS TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size181KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BTB16-400CW Overview

400V, 16A, SNUBBERLESS TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN

BTB16-400CW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	TO-220AB
package instruction	PLASTIC, TO-220AB, 3 PIN
Contacts	3
Reach Compliance Code	compliant
Is Samacsys	N
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	250 V/us
Maximum DC gate trigger current	35 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	35 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	16 A
Maximum repetitive peak off-state leakage current	10 µA
Off-state repetitive peak voltage	400 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SNUBBERLESS TRIAC
Base Number Matches	1

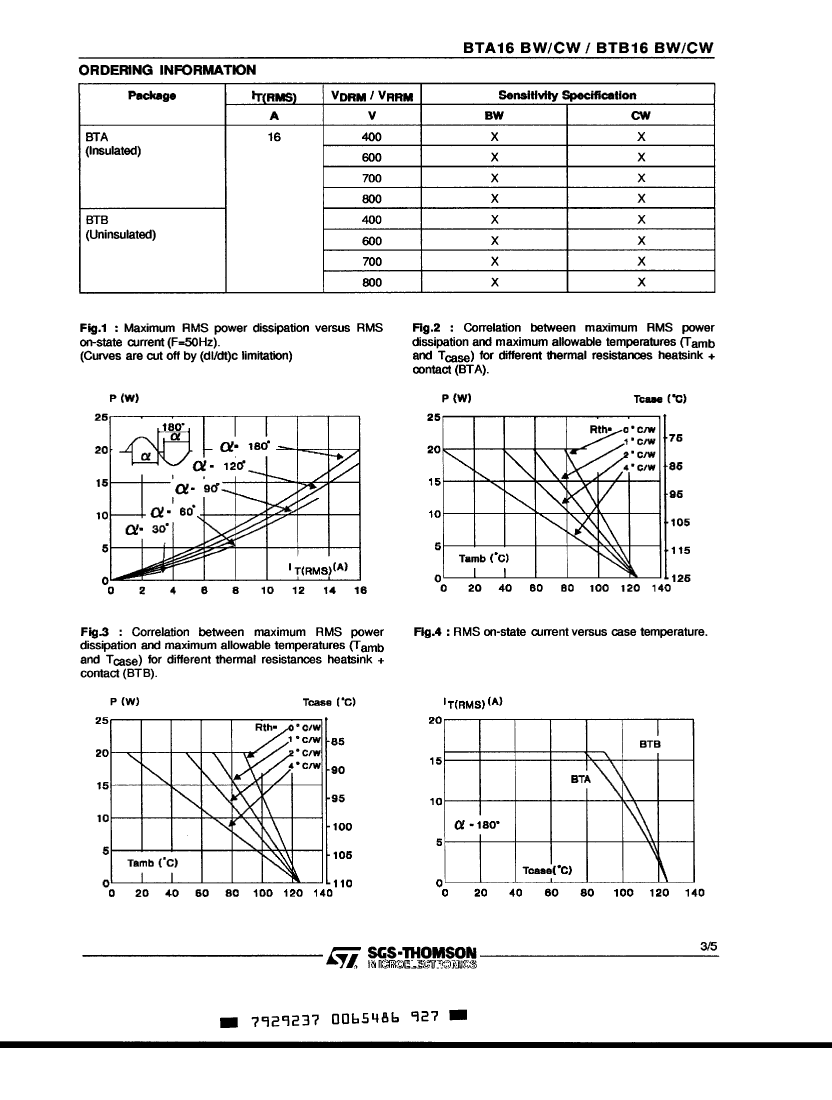

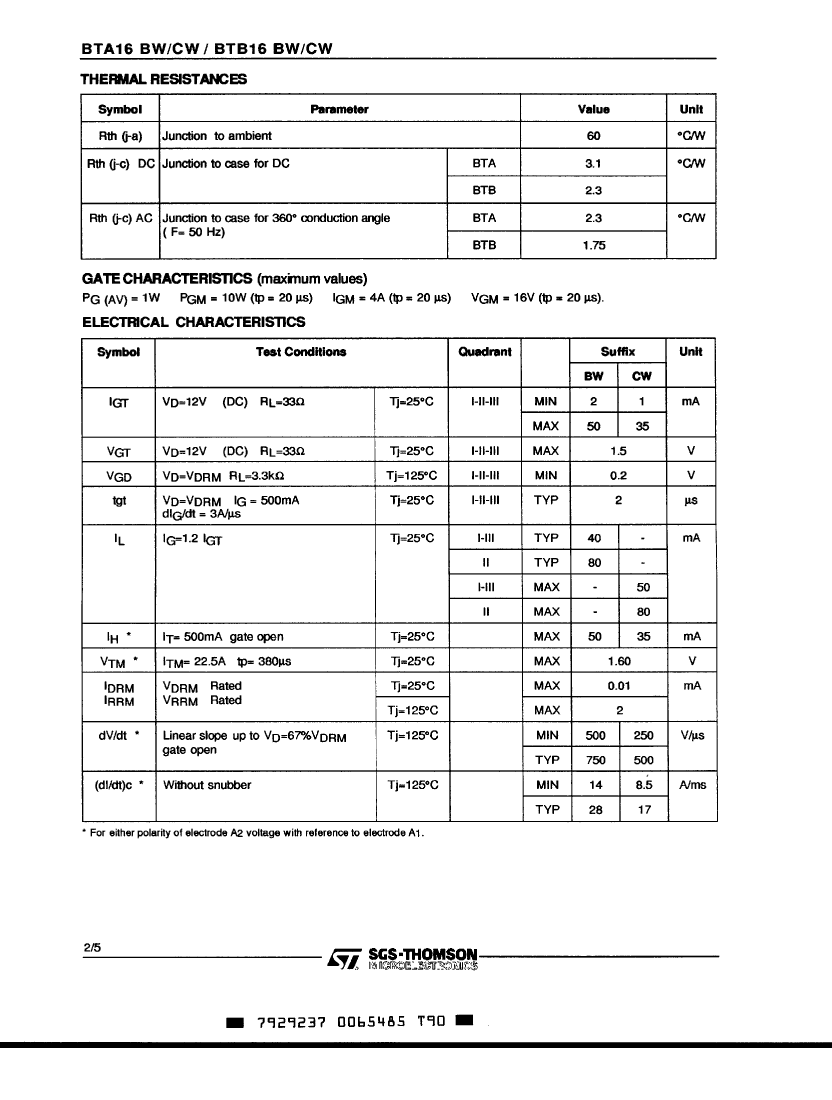

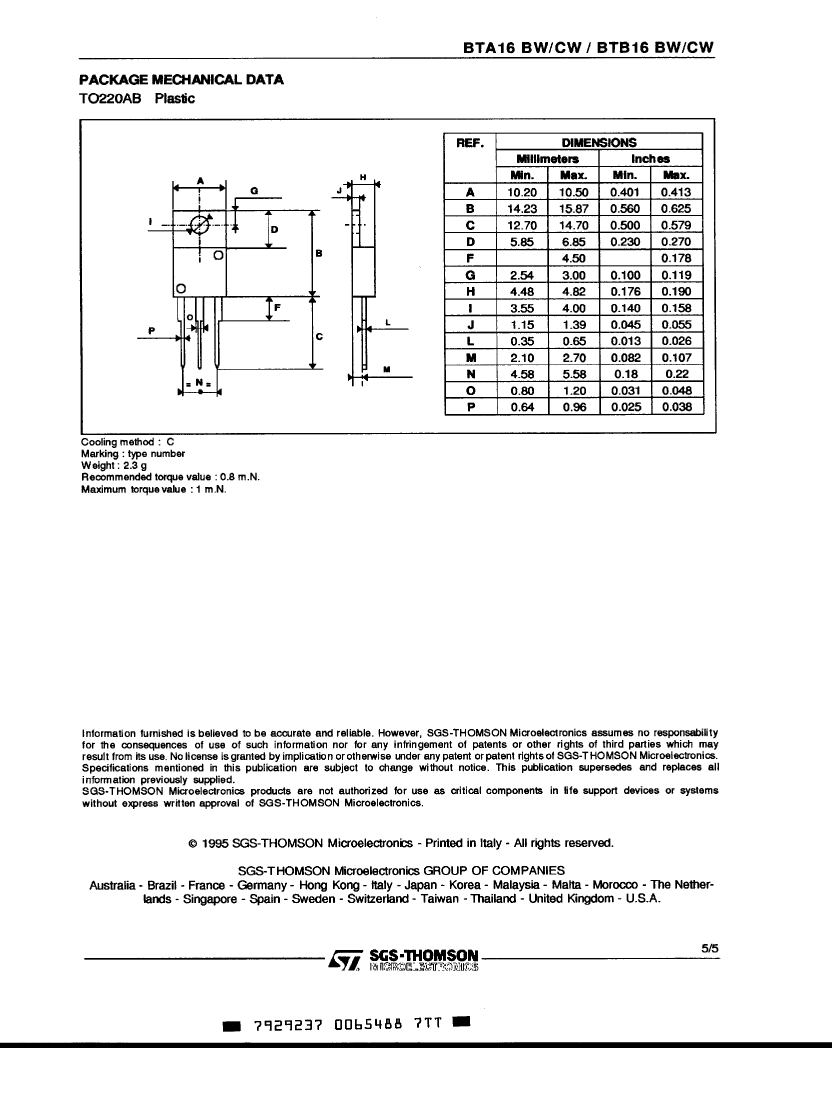

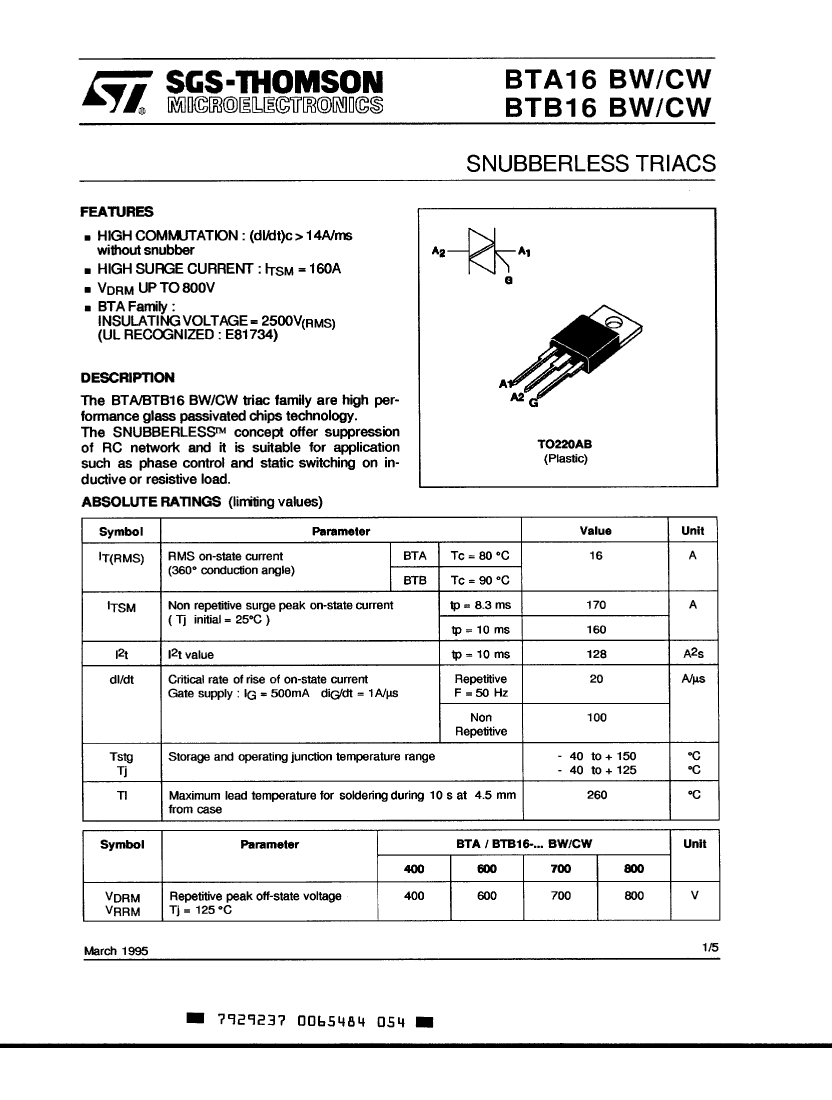

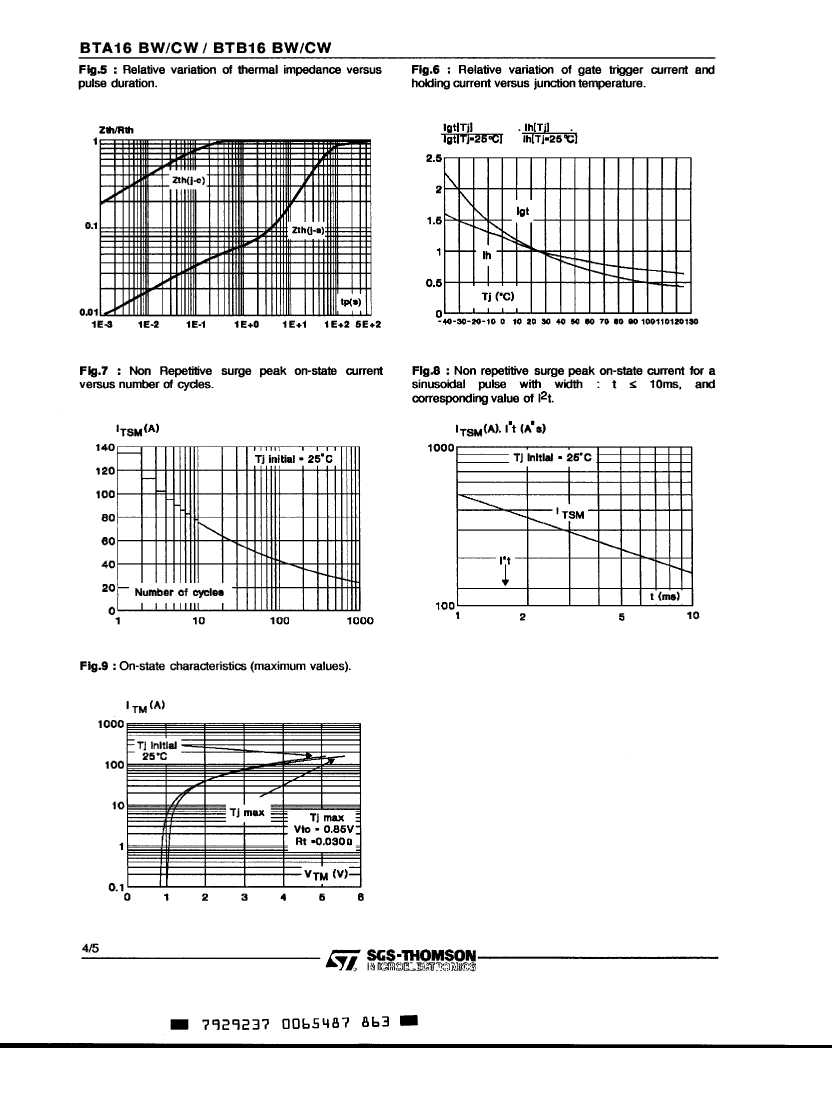

Preview

Download Datasheet

View All

BTB16-400CW Related Products

	BTB16-400CW	BTA16-400CW	BTA16-400BW	BTB16-400BW
Description	400V, 16A, SNUBBERLESS TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN	400V, 16A, SNUBBERLESS TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN	400V, 16A, SNUBBERLESS TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN	400V, 16A, SNUBBERLESS TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to
Parts packaging code	TO-220AB	TO-220AB	TO-220AB	TO-220AB
package instruction	PLASTIC, TO-220AB, 3 PIN	PLASTIC, TO-220AB, 3 PIN	PLASTIC, TO-220AB, 3 PIN	PLASTIC, TO-220AB, 3 PIN
Contacts	3	3	3	3
Reach Compliance Code	compliant	compliant	not_compliant	not_compliant
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	250 V/us	250 V/us	500 V/us	500 V/us
Maximum DC gate trigger current	35 mA	35 mA	50 mA	50 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	35 mA	35 mA	50 mA	50 mA
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e3	e3	e3	e3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	16 A	16 A	16 A	16 A
Maximum repetitive peak off-state leakage current	10 µA	10 µA	10 µA	10 µA
Off-state repetitive peak voltage	400 V	400 V	400 V	400 V
surface mount	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SNUBBERLESS TRIAC	SNUBBERLESS TRIAC	SNUBBERLESS TRIAC	SNUBBERLESS TRIAC
Maker	-	STMicroelectronics	STMicroelectronics	STMicroelectronics
