MSM65513-SS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MSM65513-SS

MSM65513-SS: DescriptionMicrocontroller, 8-Bit, MROM, 12MHz, CMOS, PDIP64, 0.750 INCH, SHRINK, PLASTIC, DIP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size565KB，21 Pages; ManufacturerOKI; Websitehttp://www.oki.com

Download Datasheet Parametric Compare View All

MSM65513-SS Overview

Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PDIP64, 0.750 INCH, SHRINK, PLASTIC, DIP-64

MSM65513-SS Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	SDIP,
Contacts	64
Reach Compliance Code	unknown
Is Samacsys	N
Has ADC	NO
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T64
length	57.6 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	3
Number of I/O lines	56
Number of serial I/Os	2
Number of terminals	64
Number of timers	3
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	8000
ROM programmability	MROM
Maximum seat height	5.1 mm
speed	12 MHz
Maximum slew rate	50 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

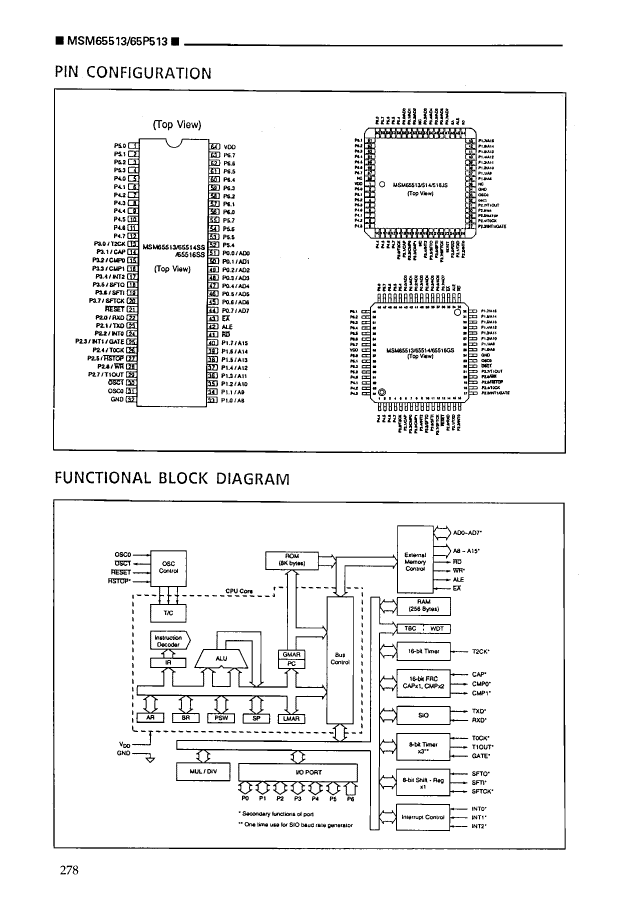

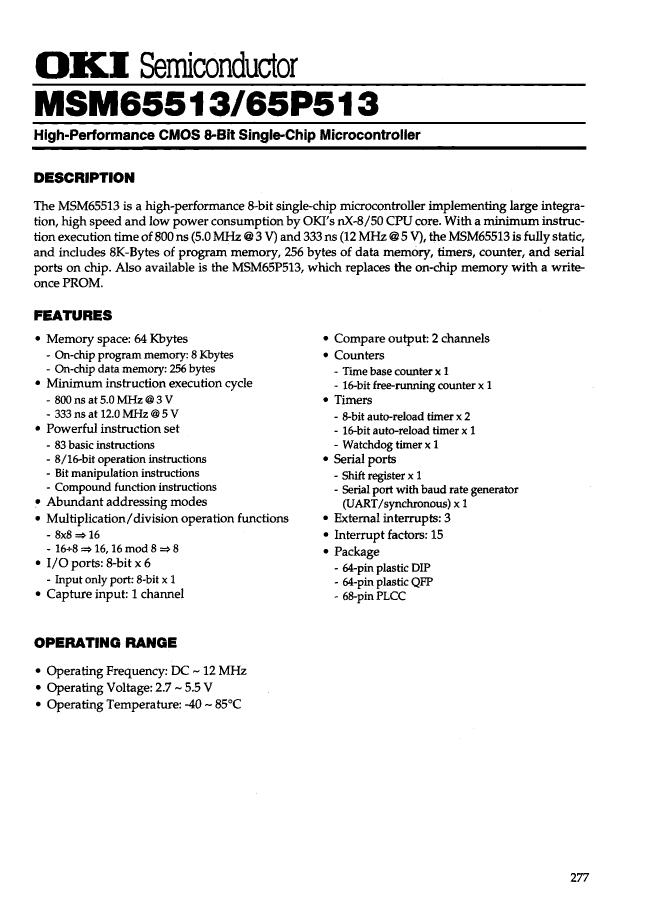

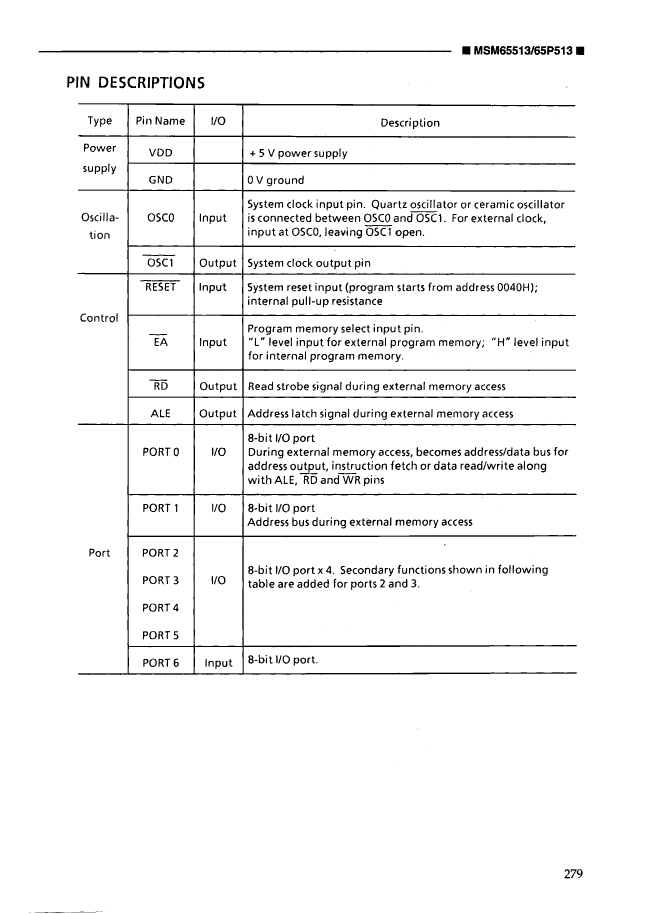

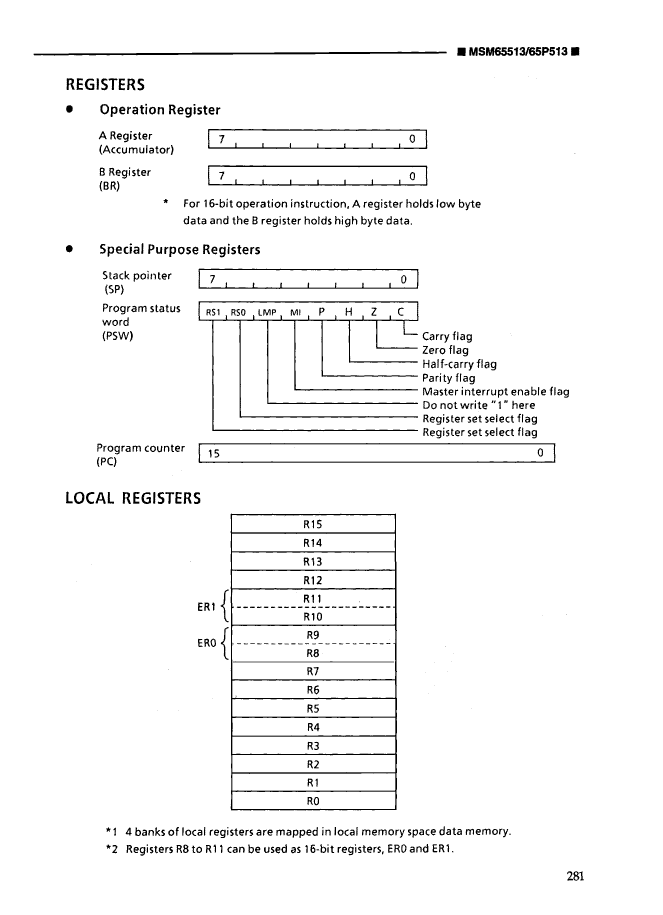

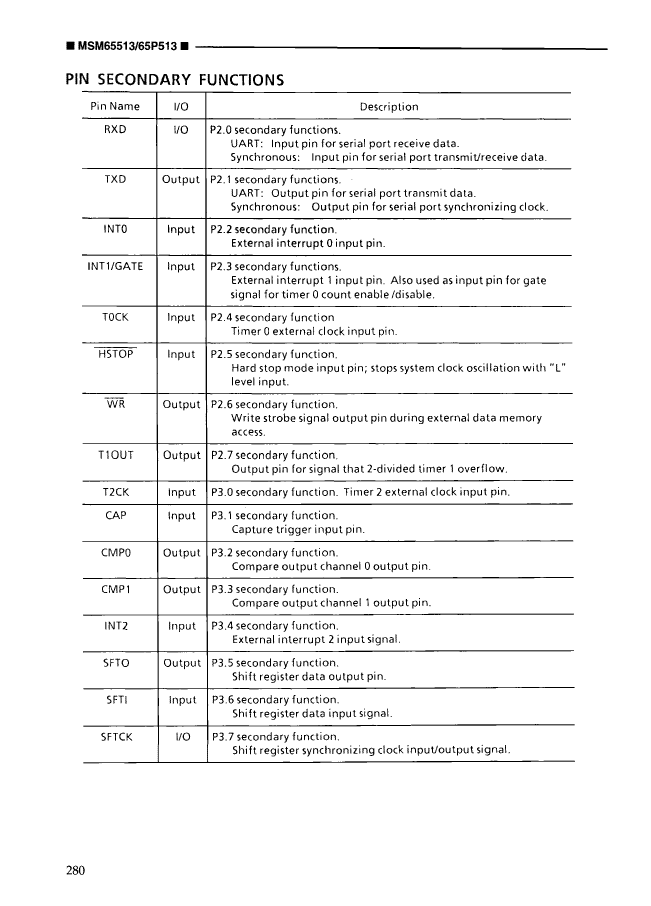

Preview

Download Datasheet

View All

MSM65513-SS Related Products

	MSM65513-SS	MSM65P513-GS-1K	MSM65513-GS-1K	MSM65513-JS	MSM65513-GS-VK	MSM65P513-JS	MSM65P513-GS-VK	MSM65P513-SS
Description	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PDIP64, 0.750 INCH, SHRINK, PLASTIC, DIP-64	Microcontroller, 8-Bit, OTPROM, 12MHz, CMOS, PQFP64, 14 X 14 INCH, PLASTIC, QFP-64	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PQFP64, 14 X 14 INCH, PLASTIC, QFP-64	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PQCC68, 0.950 INCH, PLASTIC, LCC-68	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PQFP64, 14 X 14 INCH, PLASTIC, QFP-64	Microcontroller, 8-Bit, OTPROM, 12MHz, CMOS, PQCC68, 0.950 INCH, PLASTIC, LCC-68	Microcontroller, 8-Bit, OTPROM, 12MHz, CMOS, PQFP64, 14 X 14 INCH, PLASTIC, QFP-64	Microcontroller, 8-Bit, OTPROM, 12MHz, CMOS, PDIP64, 0.750 INCH, SHRINK, PLASTIC, DIP-64
Parts packaging code	DIP	QFP	QFP	LCC	QFP	LCC	QFP	DIP
package instruction	SDIP,	14 X 14 INCH, PLASTIC, QFP-64	14 X 14 INCH, PLASTIC, QFP-64	QCCJ,	14 X 14 INCH, PLASTIC, QFP-64	QCCJ,	14 X 14 INCH, PLASTIC, QFP-64	SDIP,
Contacts	64	64	64	68	64	68	64	64
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO	NO	NO	NO	NO
Address bus width	16	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T64	S-PQFP-G64	S-PQFP-G64	S-PQCC-J68	S-PQFP-G64	S-PQCC-J68	S-PQFP-G64	R-PDIP-T64
length	57.6 mm	14 mm	14 mm	24.21 mm	14 mm	24.21 mm	14 mm	57.6 mm
low power mode	YES	YES	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	3	3	3	3	3	3	3	3
Number of I/O lines	56	56	56	56	56	56	56	56
Number of serial I/Os	2	2	2	2	2	2	2	2
Number of terminals	64	64	64	68	64	68	64	64
Number of timers	3	3	3	3	3	3	3	3
On-chip data RAM width	8	8	8	8	8	8	8	8
On-chip program ROM width	8	8	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	QFP	QFP	QCCJ	QFP	QCCJ	QFP	SDIP
Package shape	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH	FLATPACK	FLATPACK	CHIP CARRIER	FLATPACK	CHIP CARRIER	FLATPACK	IN-LINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	256	256	256	256	256	256	256	256
rom(word)	8000	8192	8192	8000	8192	8000	8192	8000
ROM programmability	MROM	OTPROM	MROM	MROM	MROM	OTPROM	OTPROM	OTPROM
Maximum seat height	5.1 mm	4 mm	4 mm	4.8 mm	2.4 mm	4.8 mm	2.4 mm	5.1 mm
speed	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz
Maximum slew rate	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	J BEND	GULL WING	J BEND	GULL WING	THROUGH-HOLE
Terminal pitch	1.778 mm	0.8 mm	0.8 mm	1.27 mm	0.8 mm	1.27 mm	0.8 mm	1.778 mm
Terminal location	DUAL	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	DUAL
width	19.05 mm	14 mm	14 mm	24.21 mm	14 mm	24.21 mm	14 mm	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	-	OKI	OKI	OKI	OKI	OKI	OKI	OKI
