M38114E8SS: DescriptionMicrocontroller, 8-Bit, UVPROM, MELPS740 CPU, 4.19MHz, CMOS, CDIP64, 0.750 INCH, WINDOWED, SHRINK, METAL SEALED, CERAMIC, DIP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size162KB，1 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric View All

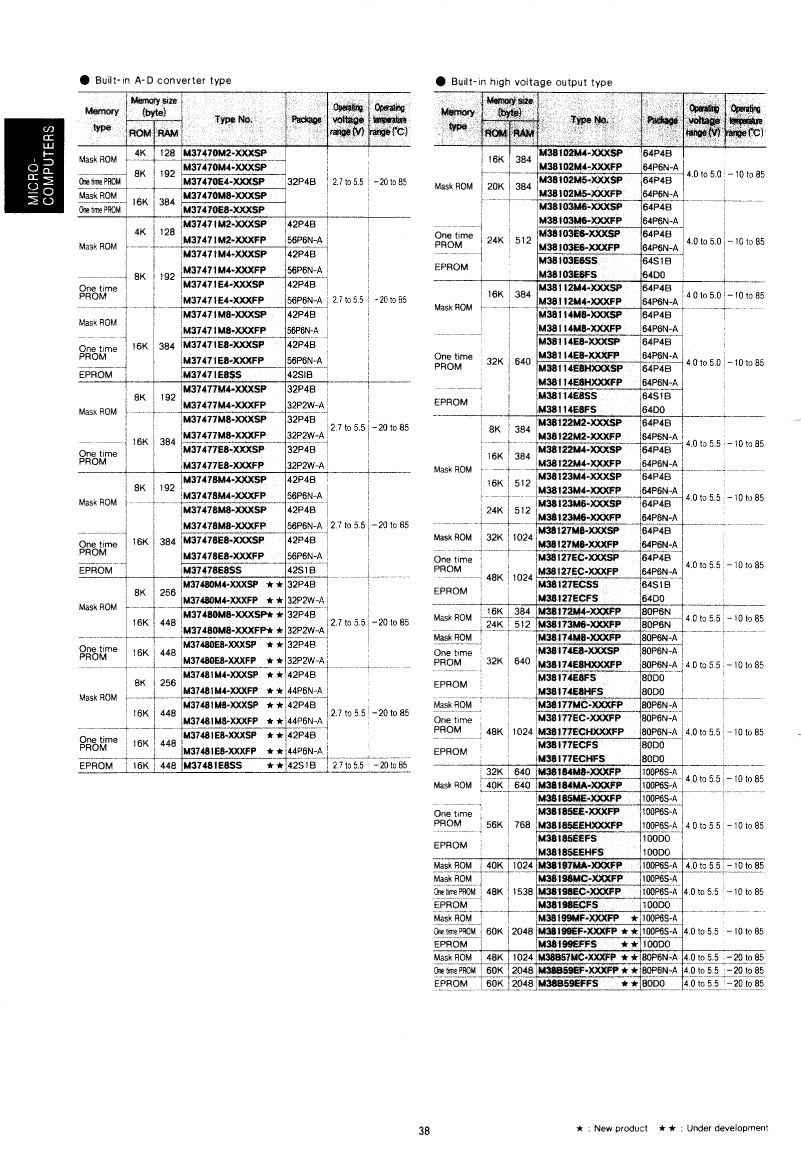

M38114E8SS Overview

Microcontroller, 8-Bit, UVPROM, MELPS740 CPU, 4.19MHz, CMOS, CDIP64, 0.750 INCH, WINDOWED, SHRINK, METAL SEALED, CERAMIC, DIP-64

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	WSDIP, SDIP64,.75
Contacts	64
Reach Compliance Code	unknown
Is Samacsys	N
Has ADC	NO
Other features	2V DATA RETENTION; 2.8 TO 5.5V @ 32KHZ IN LOW-SPEED MODE
Address bus width
bit size	8
boundary scan	NO
CPU series	MELPS740
maximum clock frequency	4.2 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-CDIP-T64
JESD-609 code	e0
low power mode	YES
Number of DMA channels
Number of external interrupt devices	4
Number of I/O lines	56
Number of serial I/Os	2
Number of terminals	64
Number of timers	4
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
PWM channel	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WSDIP
Encapsulate equivalent code	SDIP64,.75
Package shape	RECTANGULAR
Package form	IN-LINE, WINDOW, SHRINK PITCH
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	640
RAM (number of words)	640
rom(word)	32000
ROM programmability	UVPROM
Maximum seat height	5.35 mm
speed	4.19 MHz
Maximum slew rate	10 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
