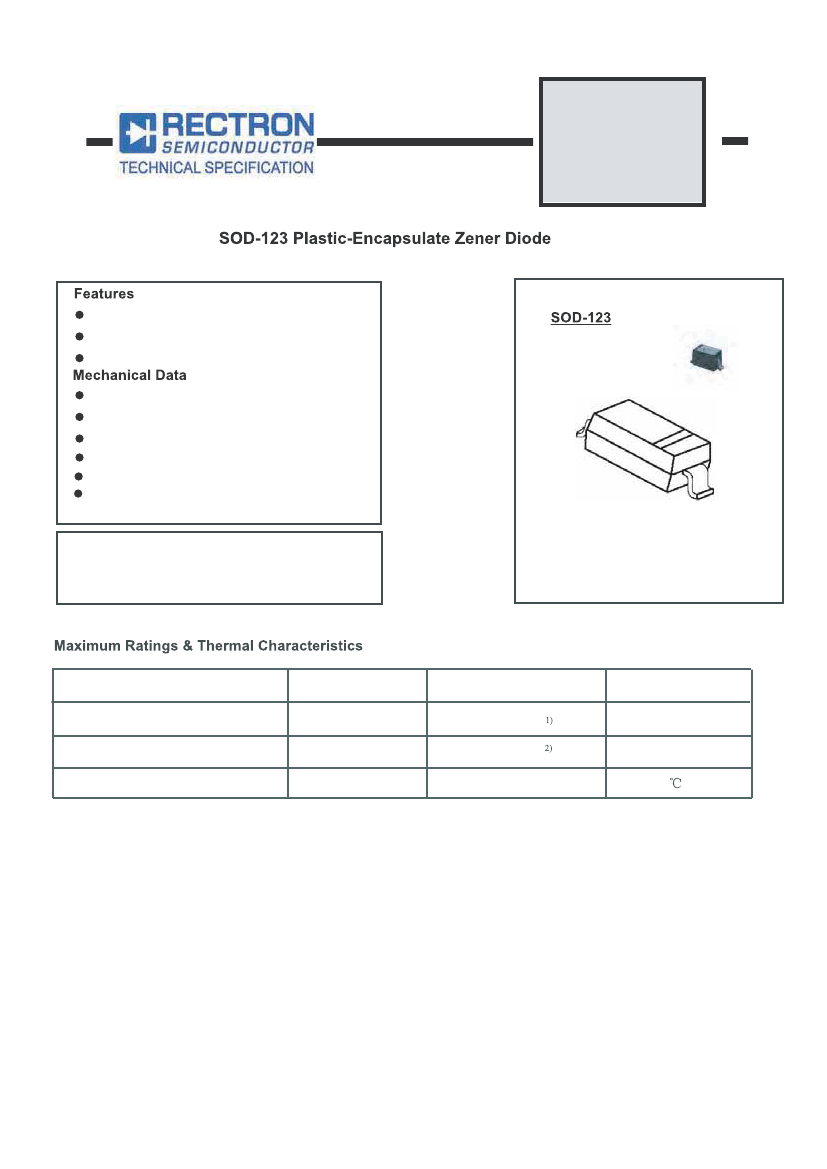

BZT52C2V4
THRU
BZT52C75
Low Zener Impedance
Power Dissipation of 500mW
High Stability and High Reliability

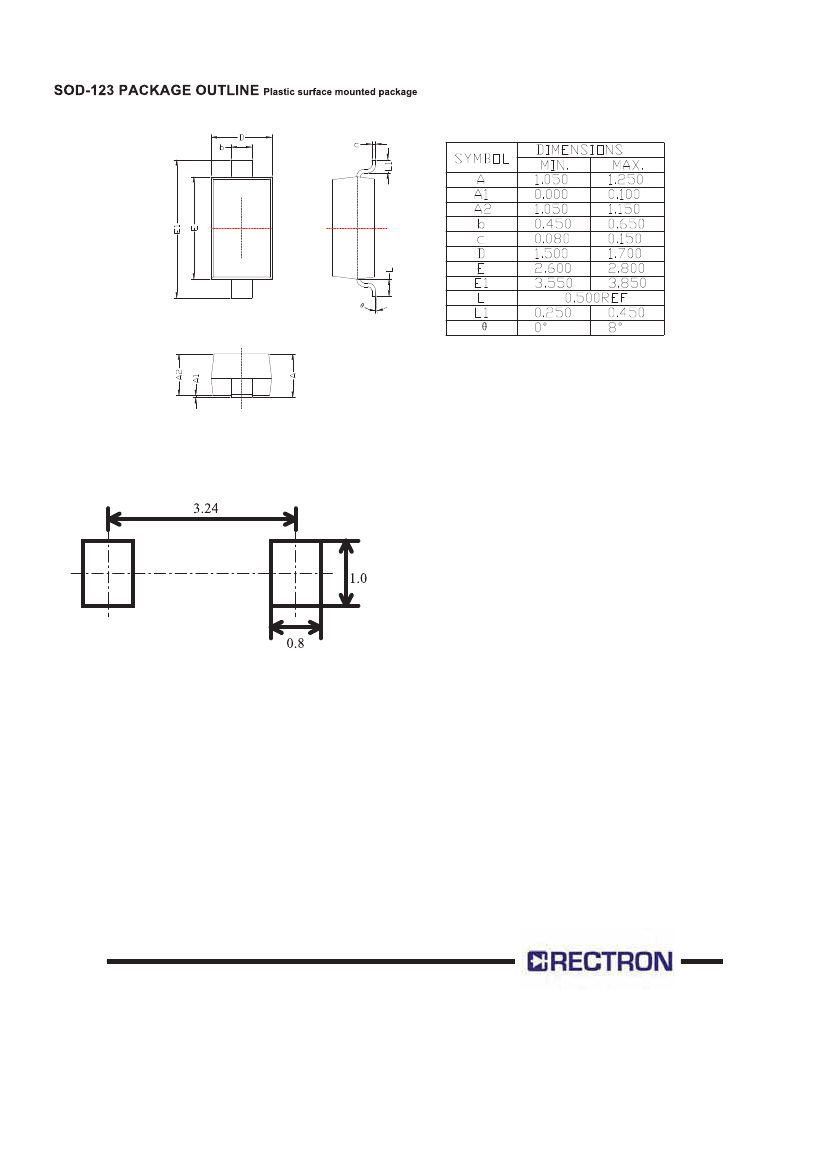

SOD-123 Small Outline Plastic Package
Polarity: Color band denotes cathode end
Epoxy UL: 94V-0
Mounting Position: Any
P/N suffix V means Halogen-free
P/N suffix V means AEC-Q101 qualified,
e.g:BZT52C2V4V
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, resistive or inductive load.
(
Ratings at 25 ambient temperature unless otherwise specified.)
Parameters
Power Dissipation
Forward Voltage @IF=10mA
Storage temperature range
1)
2)
3)
Symbol
Pd
Vf
Ts,Tj
Value
500
0.9
-65-+150
Unit
mW
V
Device mounted on ceramic PCB: 7.6mm x 9.4mm x 0.87mm with pad areas 25mm
Short duration test pulse used to minimize self-heating effect
f=1KHz

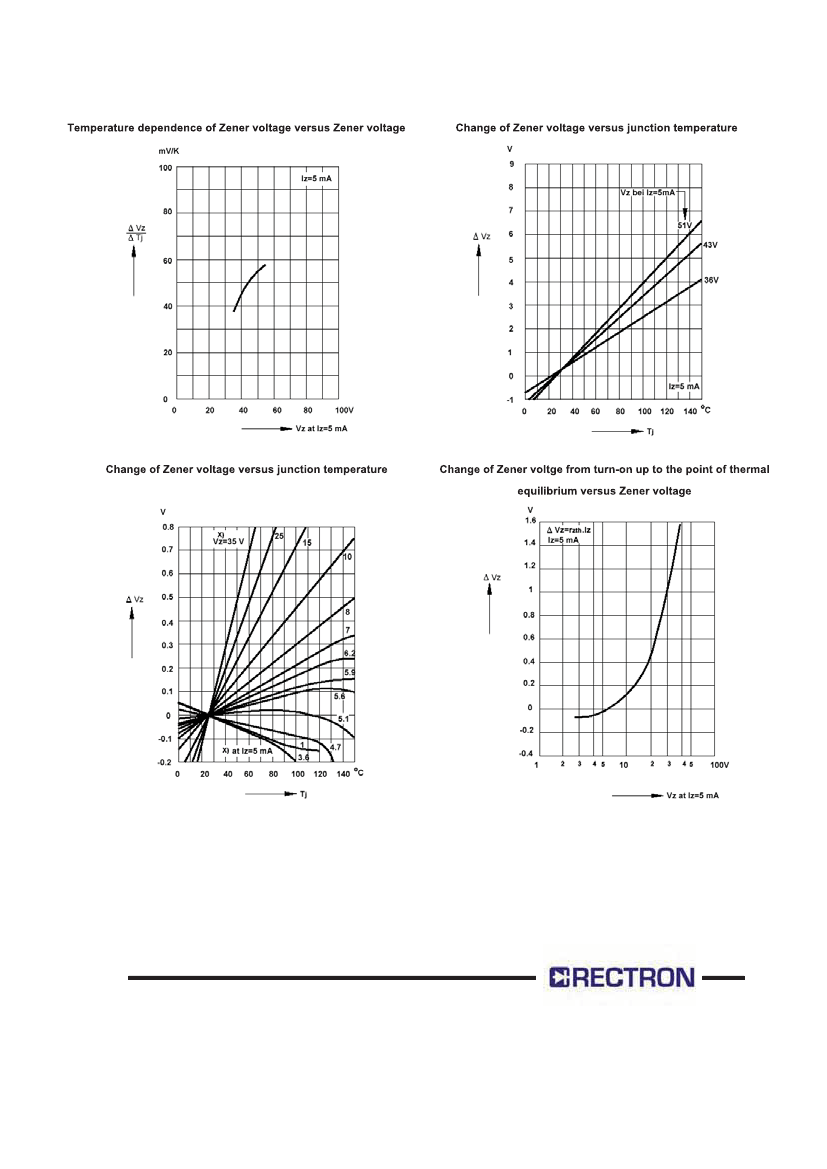

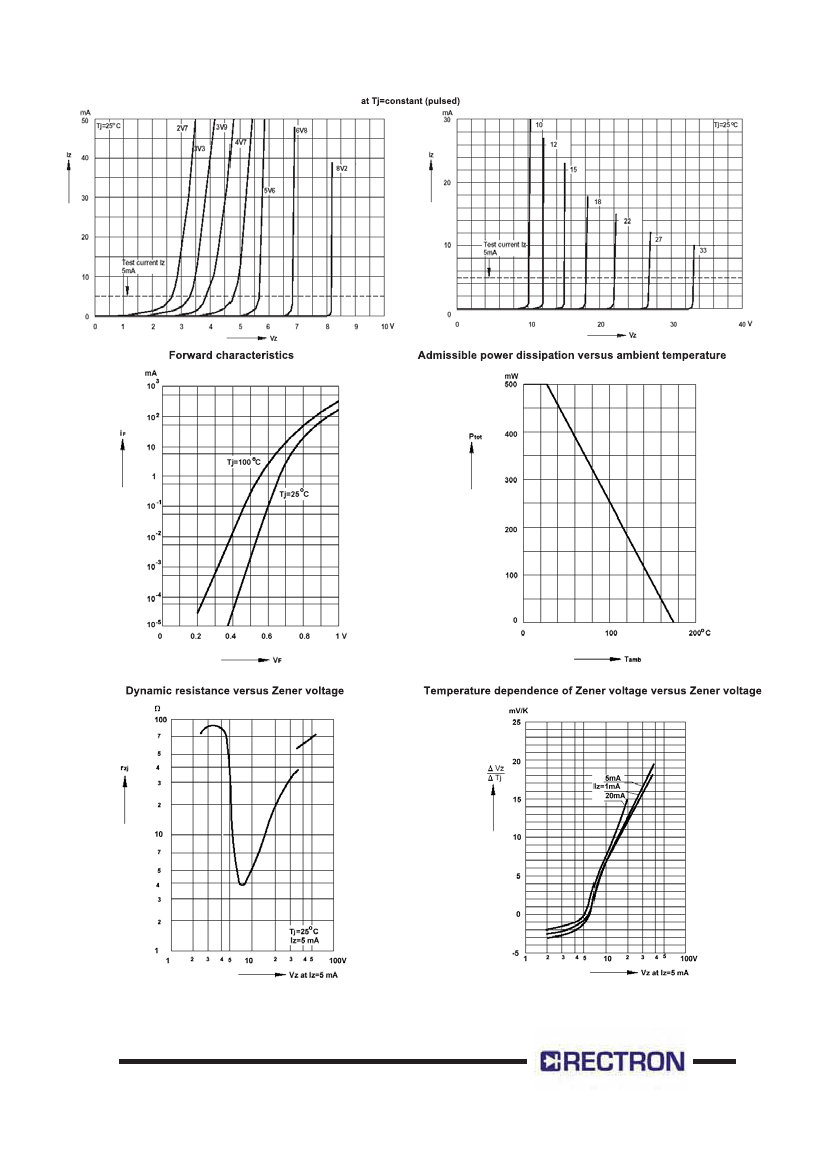

2019-07/ 08
REV:B
