S-8310BFE: DescriptionSWITCHING REGULATOR, 60kHz SWITCHING FREQ-MAX, PDSO8, SOP-8; CategoryPower/power management The power supply circuit; File Size391KB，20 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

S-8310BFE Overview

SWITCHING REGULATOR, 60kHz SWITCHING FREQ-MAX, PDSO8, SOP-8

S-8310BFE Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	8 V
Minimum input voltage	0.7 V
Nominal input voltage	1.5 V
JESD-30 code	R-PDSO-G8
length	5.2 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Maximum seat height	1.7 mm
surface mount	YES
Switch configuration	BOOST
Maximum switching frequency	60 kHz
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

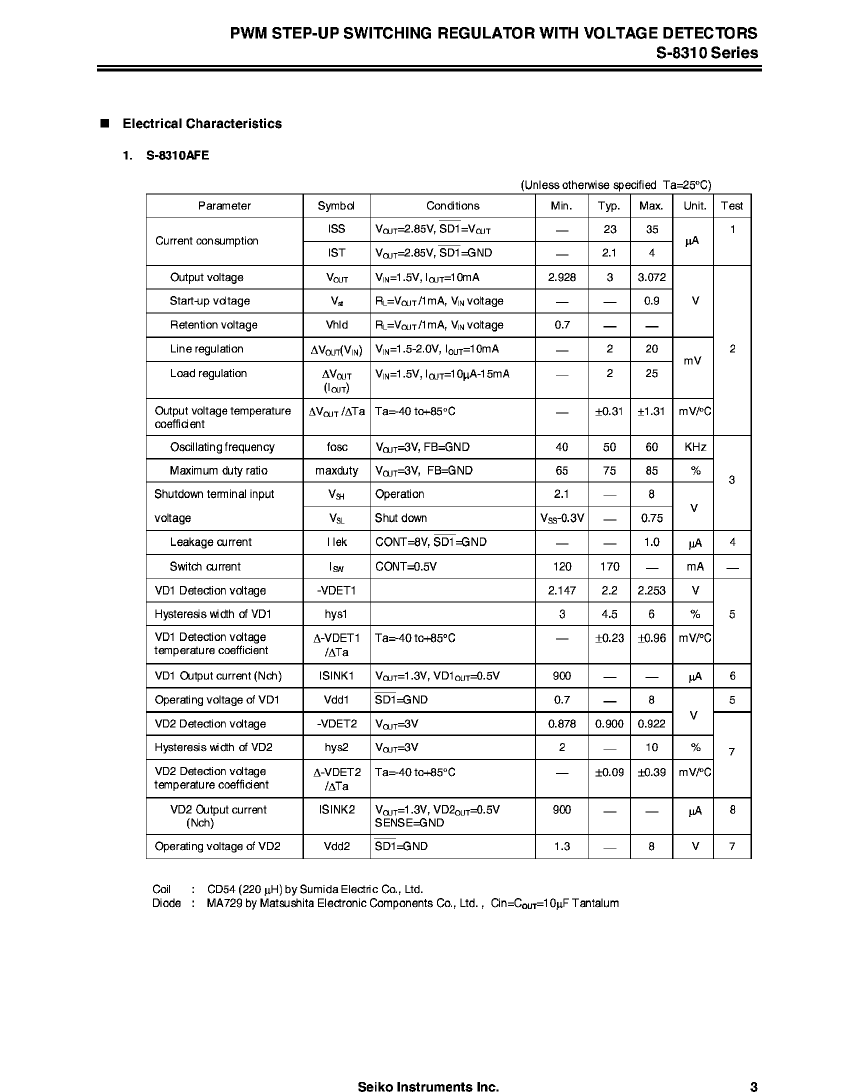

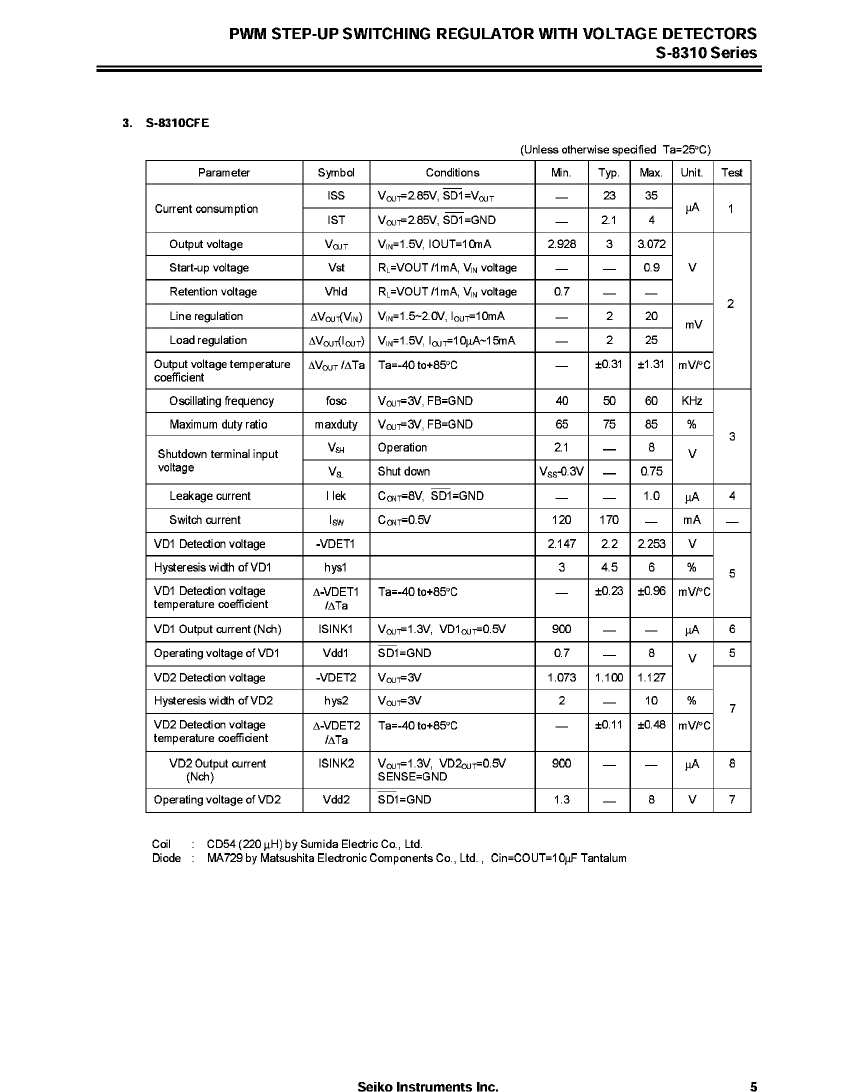

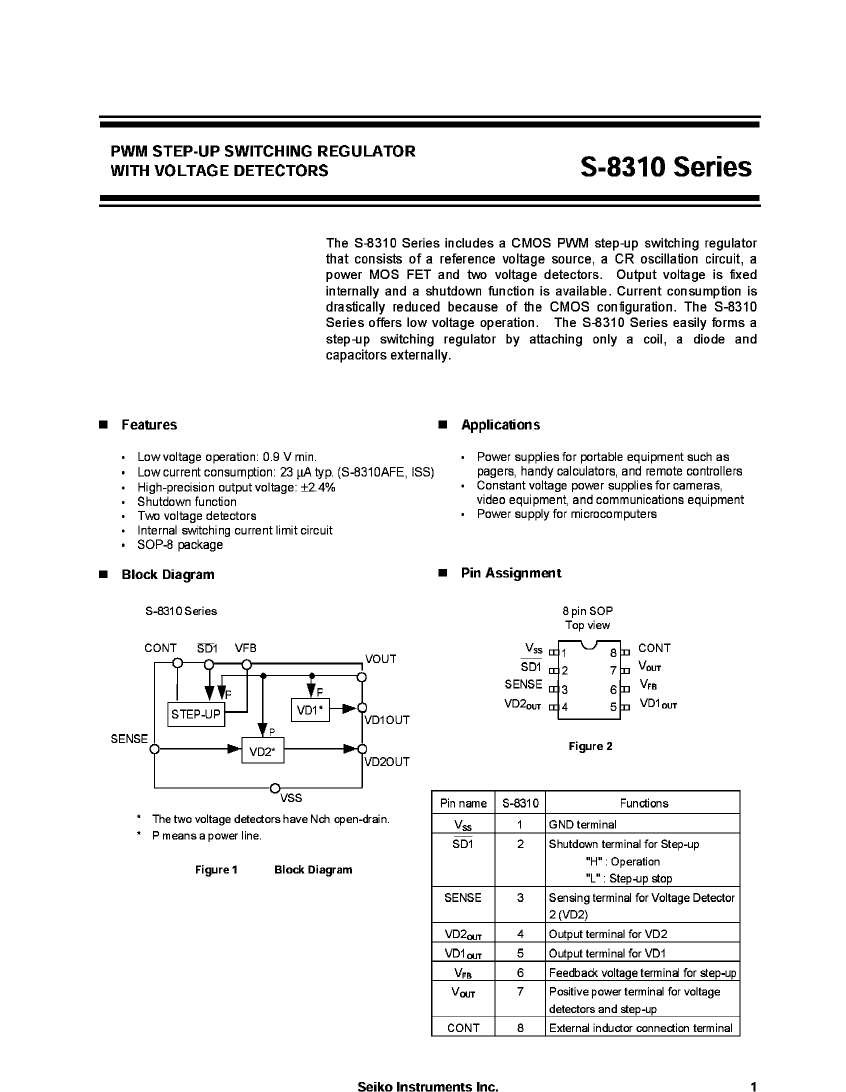

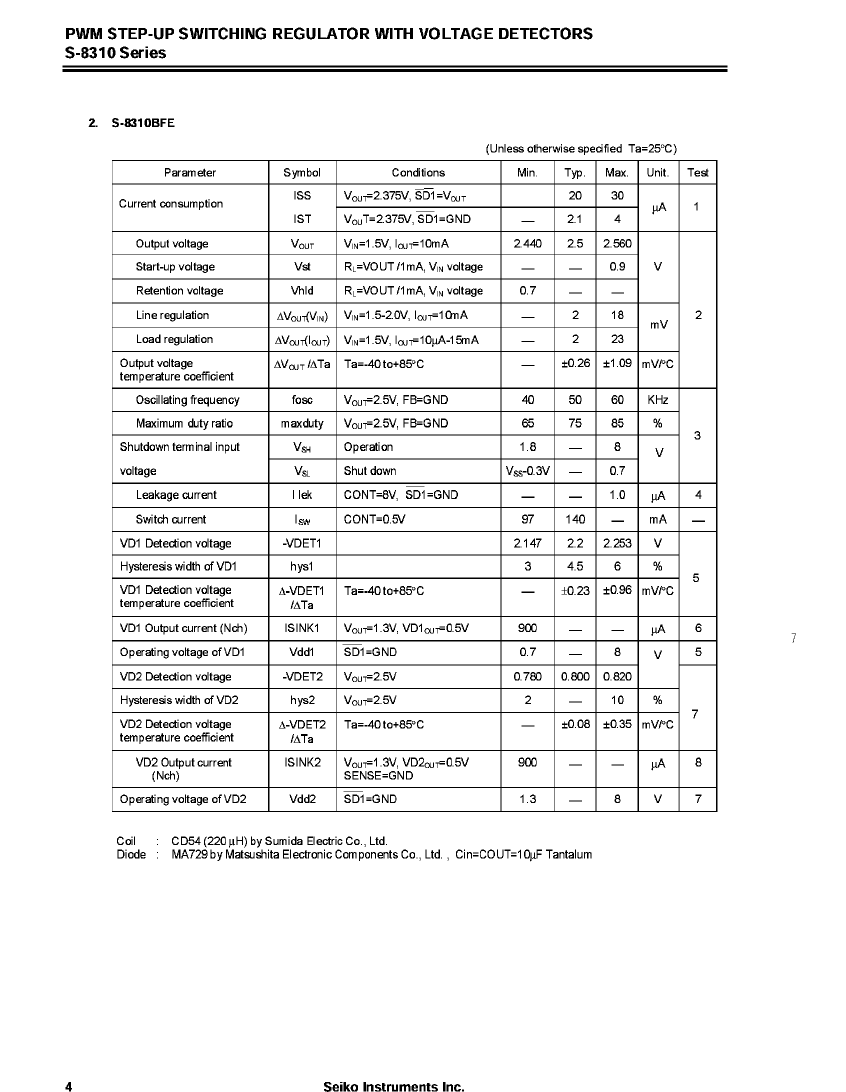

Preview

Download Datasheet

View All

S-8310BFE Related Products

	S-8310BFE	S-8310CFE	S-8310DFE	S-8310AFE
Description	SWITCHING REGULATOR, 60kHz SWITCHING FREQ-MAX, PDSO8, SOP-8	SWITCHING REGULATOR, 60kHz SWITCHING FREQ-MAX, PDSO8, SOP-8	SWITCHING REGULATOR, 60kHz SWITCHING FREQ-MAX, PDSO8, SOP-8	Switching Regulator, Voltage-mode, 60kHz Switching Freq-Max, CMOS, PDSO8, SOP-8
package instruction	LSOP,	LSOP,	LSOP,	LSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	8 V	8 V	8 V	8 V
Minimum input voltage	0.7 V	0.7 V	0.7 V	0.7 V
Nominal input voltage	1.5 V	1.5 V	1.5 V	1.5 V
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	5.2 mm	5.2 mm	5.2 mm	5.2 mm
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSOP	LSOP	LSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.7 mm	1.7 mm	1.7 mm
surface mount	YES	YES	YES	YES
Switch configuration	BOOST	BOOST	BOOST	BOOST
Maximum switching frequency	60 kHz	60 kHz	60 kHz	60 kHz
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	4.4 mm	4.4 mm	4.4 mm	4.4 mm
Parts packaging code	SOIC	SOIC	SOIC	-
Contacts	8	8	8	-
Is Samacsys	N	N	N	-
Base Number Matches	1	1	1	-
