S-8321AIMP-DNI-T2: DescriptionSwitching Regulator, Voltage-mode, 0.3A, 110kHz Switching Freq-Max, CMOS, PDSO5, SOT-23, 5 PIN; CategoryPower/power management The power supply circuit; File Size29KB，1 Pages; ManufacturerABLIC

Download Datasheet Parametric Compare View All

S-8321AIMP-DNI-T2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	S-8321AIMP-DNI-T2	-	-	View	Buy Now

S-8321AIMP-DNI-T2 Overview

Switching Regulator, Voltage-mode, 0.3A, 110kHz Switching Freq-Max, CMOS, PDSO5, SOT-23, 5 PIN

S-8321AIMP-DNI-T2 Parametric

Parameter Name	Attribute value
Parts packaging code	SOT-23
package instruction	LSSOP, TSOP5/6,.11,37
Contacts	5
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Control Technology	PULSE FREQUENCY MODULATION
Maximum input voltage	9 V
Minimum input voltage	1.2 V
Nominal input voltage	1.8 V
JESD-30 code	R-PDSO-G5
length	2.9 mm
Number of functions	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.3 A
Nominal output voltage	3 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	1.3 mm
Maximum supply current (Isup)	0.044 mA
surface mount	YES
Switch configuration	BOOST
Maximum switching frequency	110 kHz
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
width	1.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

L

CONT

SD

V

OUT

V

IN

+

_

C

IN

PROTECTION

CIRCUIT

DUTY SWITCH

PFM CONTROL

CIRCUIT

VREF

+

_

C

OUT

+

_

V

SS

ON / OFF

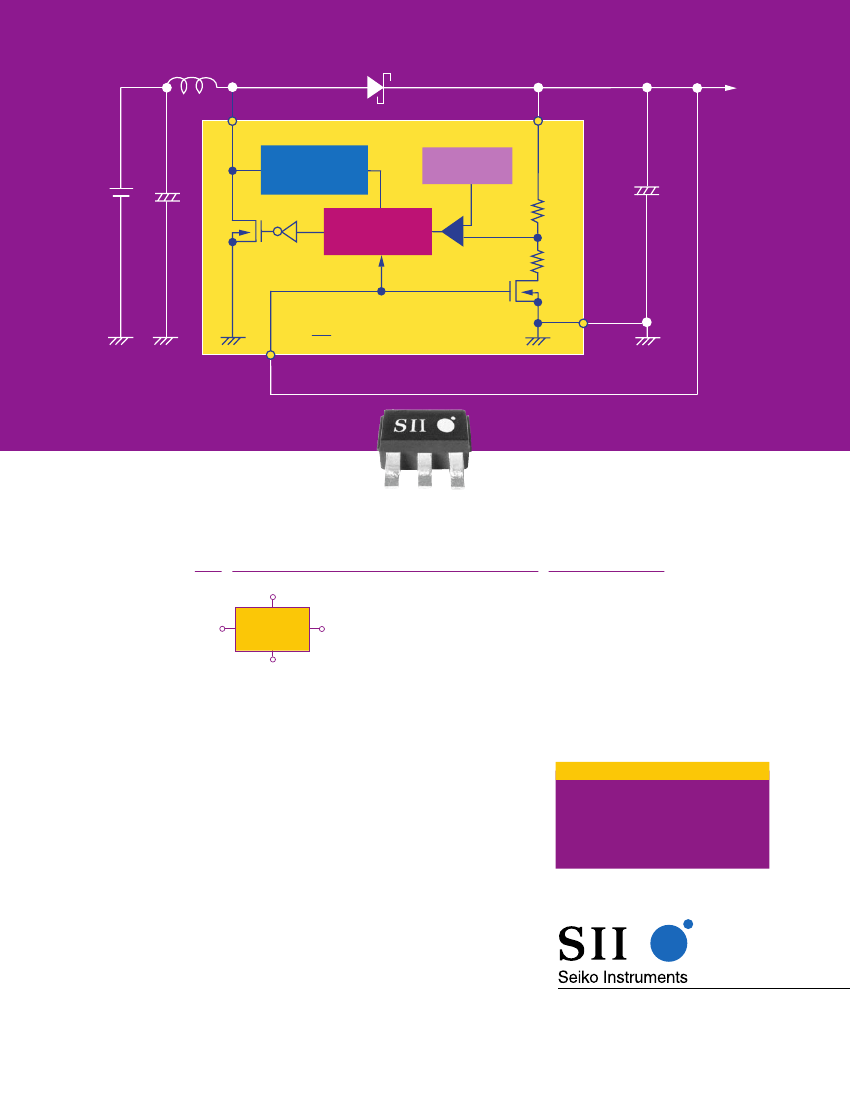

World’s Lowest Current DC-DC Converter

Features 85% Efficiency and 0.9V V

IN

!

(Only $0.59 @ 1K...Immediate Delivery from Stock!)

Control

s

V

IN

=

0.9V to 9V

S-8321

On/Off Shutdown

(see table)

V

OUT

= 3.3V ±2.4%

(50mA max)

s

World’s lowest current

consumption:

Operation = 6.8 microamps (no load)

Shutdown = 500 nanoamps

High efficiency: 85% typical!

Wide input voltage range: 0.9V

to 9.0V

Output voltage regulation ±2.4%

100kHz oscillation frequency

Auto switching PFM improves

efficiency

Auto switching duty ratio reduces

ripple

Shutdown function to extend

battery life

Toper = -40˚C to +85˚C

SOT-23-5 pkg = 2.9 x 1.6 x 1.3mm

Only $0.59 @ 1K!

Model

S-8321ALMP-DNL-T2

S-8321AIMP-DNI-T2

S-8321AGMP-DNG-T2

S-8321AAMP-DNA-T2

V

OUT

2.7V

3.0V

3.3V

5.0V

s

Power for portable equipment

IC voltage supply from

1.5V battery

H/PC = Handheld PC

Portable data terminal

DVM, GPS

For longer battery life in your design,

visit us at

www.seiko-usa-ecd.com

Immediate delivery from stock!

Order your S-8321 today:

ALL AMERICAN 800-573-ASAP

REPTRON

800-800-5441

SCHUSTER

800-877-6875

STERLING

800-745-5500

Our new auto switching PFM control

circuit automatically switches the duty

ratio according to the load. This

improves the efficiency and reduces

output voltage ripple over a wide

range of load impedances. In other

PFM DC-DC converters, pulses are

skipped at low output currents,

increasing ripple voltage. A built-in

protection circuit prevents damage to

the IC by turning off the MOS FET

when the voltage at the Control pin

exceeds the limit.

Seiko Instruments USA Inc.

Seiko Instruments Is #1 In Low Current Consumption.

Electronic Components Division

2990 West Lomita Blvd., Torrance, CA 90505

Phone: (310) 517-7771 FAX: (310) 517-7792

S-8321AIMP-DNI-T2 Related Products

	S-8321AIMP-DNI-T2	S-8321ALMP-DNL-T2	S-8321AGMP-DNG-T2
Description	Switching Regulator, Voltage-mode, 0.3A, 110kHz Switching Freq-Max, CMOS, PDSO5, SOT-23, 5 PIN	Switching Regulator, Voltage-mode, 0.3A, 110kHz Switching Freq-Max, CMOS, PDSO5, SOT-23, 5 PIN	Switching Regulator, Voltage-mode, 0.3A, 110kHz Switching Freq-Max, CMOS, PDSO5, SOT-23, 5 PIN
Parts packaging code	SOT-23	SOT-23	SOT-23
package instruction	LSSOP, TSOP5/6,.11,37	LSSOP, TSOP5/6,.11,37	LSSOP, TSOP5/6,.11,37
Contacts	5	5	5
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE
Control Technology	PULSE FREQUENCY MODULATION	PULSE FREQUENCY MODULATION	PULSE FREQUENCY MODULATION
Maximum input voltage	9 V	9 V	9 V
Minimum input voltage	1.2 V	1.08 V	1.32 V
Nominal input voltage	1.8 V	1.62 V	1.98 V
JESD-30 code	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5
length	2.9 mm	2.9 mm	2.9 mm
Number of functions	1	1	1
Number of terminals	5	5	5
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Maximum output current	0.3 A	0.3 A	0.3 A
Nominal output voltage	3 V	2.7 V	3.3 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP	LSSOP
Encapsulate equivalent code	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.3 mm	1.3 mm	1.3 mm
Maximum supply current (Isup)	0.044 mA	0.04 mA	0.0481 mA
surface mount	YES	YES	YES
Switch configuration	BOOST	BOOST	BOOST
Maximum switching frequency	110 kHz	110 kHz	110 kHz
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.95 mm	0.95 mm	0.95 mm
Terminal location	DUAL	DUAL	DUAL
width	1.6 mm	1.6 mm	1.6 mm
Is Samacsys	N	N	-
Base Number Matches	1	1	-
