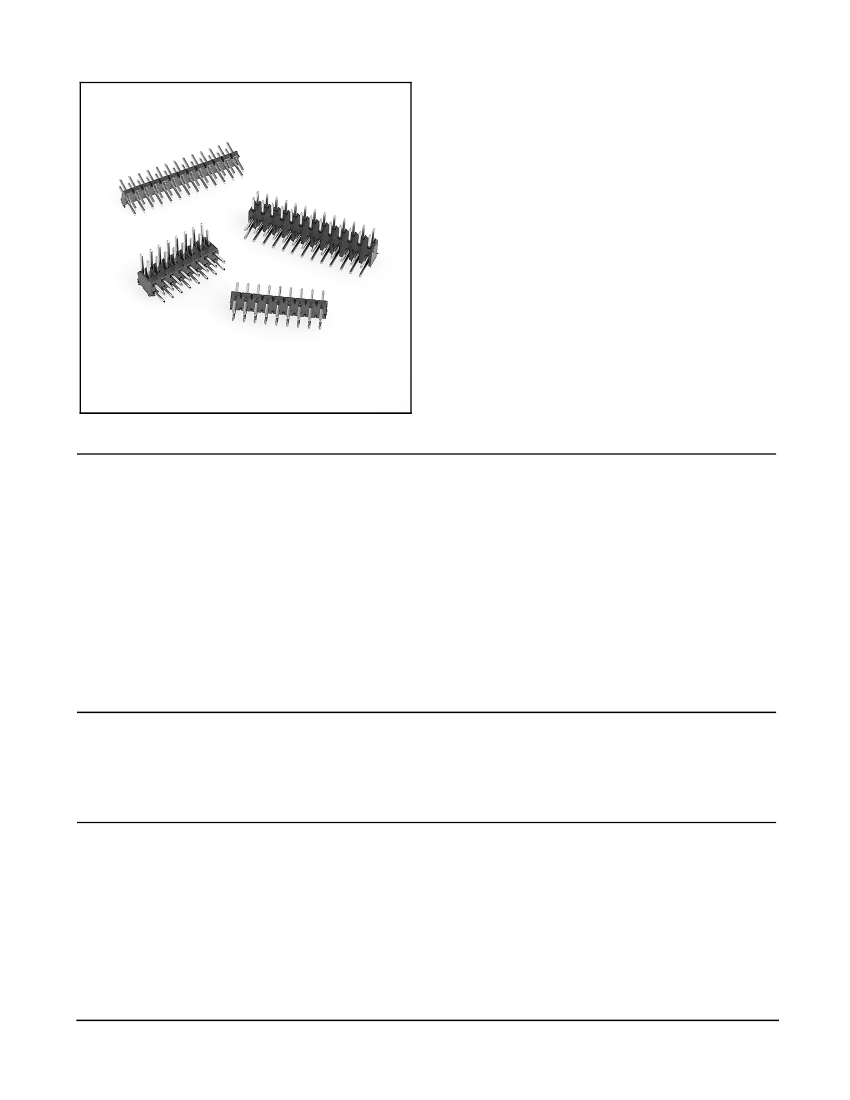

3M
™
Pin Strip Header
2 mm
×
2 mm Solder Tail Straight & Right Angle, Surfacemount Straight
1512 Series
• Industry standard compatible
• High temperature dielectric
• "No lead" wave and reflow solder
compatible
• Unique lengths available
• Maximizes use of PC board space
• Mates with boardmount and wiremount
products
• End stackable feature
• Side stackable feature
• Tape and reel packaging option available
• See Regulatory Information Appendix
for chemical compliance information
Date Modified: February 3, 2007
TS-0808-08
Sheet 1 of 4
Physical
Insulator
Material:
High Temperature Thermoplastic (PCT or LCP)
Flammability:
UL 94V-0
Color:
Black
Contact
Material:
Copper Alloy
Plating
Underplating:
100
µ″
[ 2.54
µm
] Nickel
Wiping Area:
30
µ″
[ 0.76
µm
] Gold
Solder Tails:
300
µ″
[ 7.6
µm
] Matte Tin or 200
µ″
Tin-Lead
Marking:
None
Electrical
Current Rating:
1.5 A
500 V
RMS
at Sea Level
Insulation Resistance:
> 1
×
10
9
Ω
at 250 V
DC
Withstanding Voltage:
Environmental
Temperature Rating:
-55°C to +105°C
Process Rating:
Maximum 260°C (per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pin Strip Header
2 mm
×
2 mm Solder Tail Straight & Right Angle, Surfacemount Straight
1512 Series
Contact
Dimension "C"
Quantity
04
06
08
10
12
C +.000
-.020
.155
[ 3.94 ]
.03
[ 0.8 ]
.0787 [ 2.00 ]
.0787
[ 2.00 ]
A
±
.008
.059
[ 1.50 ]
Tape & Reel
Suffix
n/a
WB
.139 [3.5]
.217 [5.5]
.295 [7.5]
.374 [9.5]
.453 [11.5]
.531 [13.5]
.611 [15.5]
.689 [17.5]
.768 [19.5]
.847 [21.5]
.925 [23.5]
1.005 [25.5]
1.083 [27.5]
1.162 [29.5]
1.240 [31.5]
1.320 [33.5]
1.398 [35.5]
1.477 [37.5]
1.556 [39.5]
1.634 [41.5]
1.714 [43.5]
1.792 [45.5]
1.870 [47.5]
1.970 [49.5]
2.028 [51.5]
2.107 [53.5]
2.185 [55.5]
2.264 [57.5]
2.344 [59.5]
14
16
18
20
22
24
26
28
30
32
34
36
.263
±
.02
[ 6.68 ]
WC
WD
38
40
42
.050
[ 1.27 ]
WE
.122 Typ
[ 3.10 ]
.030
[ 0.76 ]
44
46
48
50
WF
.310
[ 7.87 ]
R.040 [ 1.02 ]
4 Sides, Crown
R.0020
[ 0.05 ]
.0204
±
.0003
[ 0.518 ]
.0787
[ 2.00 ]
52
54
56
58
60
WG

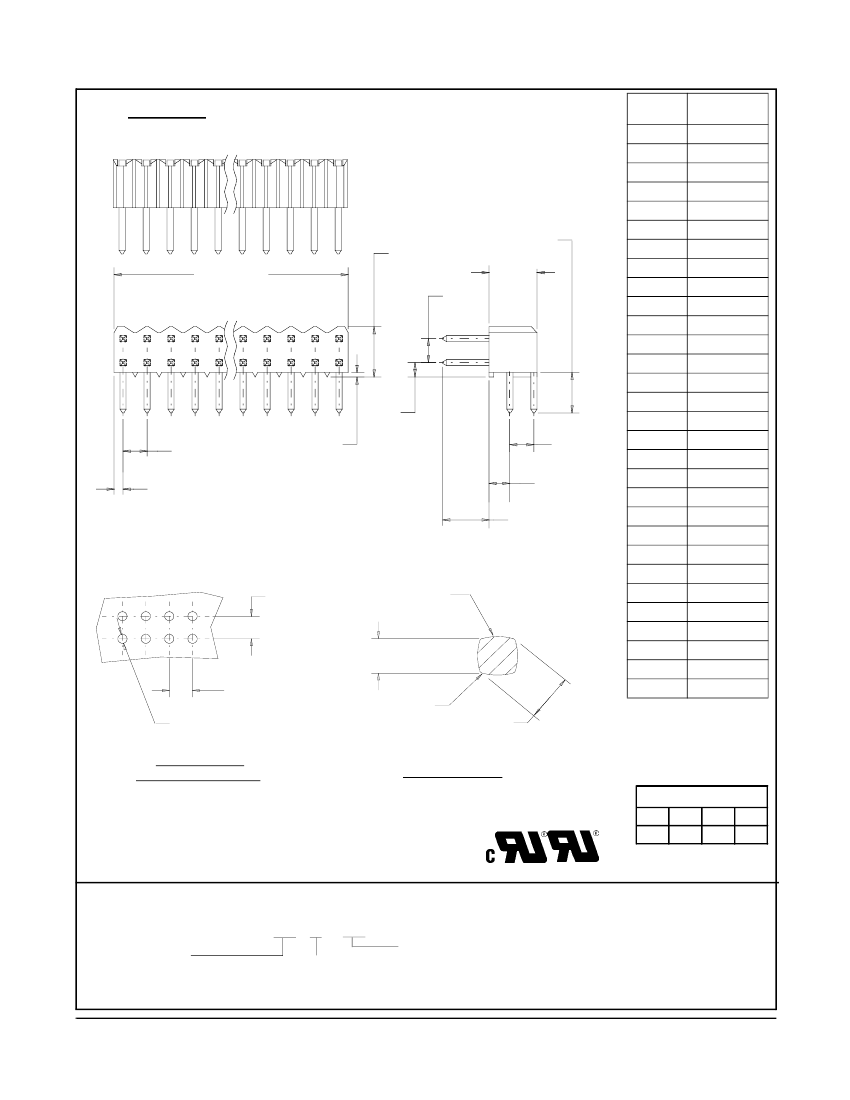

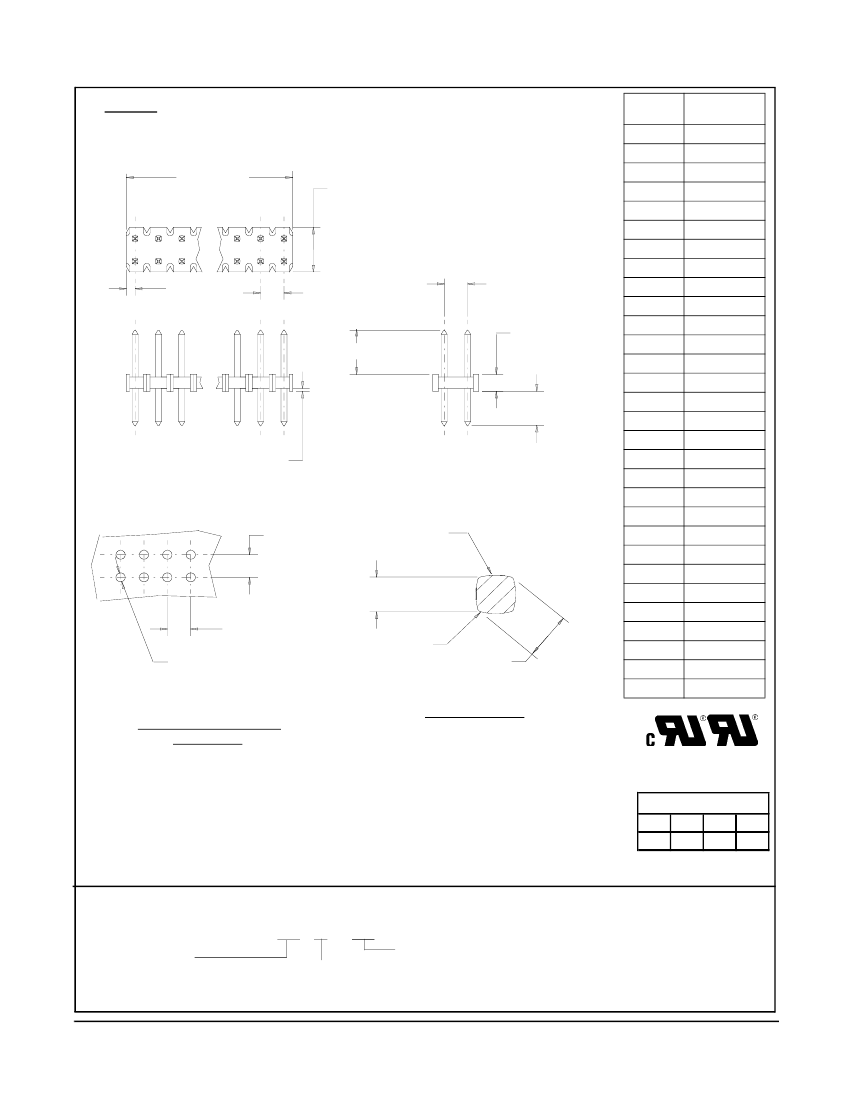

Recommended PCB Pad Layout
.0244
±
.0005
[ 0.620 ]
Pin Cross Section
.0
in c h
Note: Tape and Reel not available on all sizes, please call.
In c h
[m m ]
T o le ra n ce U n le s s N o ted
.0 0
.0 00
± .1
± .0 1 ± .00 5
[ ] D im e n sio n s fo r R e fe re nce
O n ly
Ordering Information
1512XX-2X20-XX-XX
Contact Quantity
(See Table 1)
Pin Length Dim A
3 = .130″
4 = .152″
Packaging suffix:
Blank = Tray Packaging
WX = Tape & Reel Packaging
(see table)
TH = 15
µ
" [.38
µ
m] Gold with Tin-lead solder tails (App. E2 & C2 Apply)
TB = 30
µ
" [.76
µ
m] Gold with Tin-lead solder tails (App. E3 & C2 Apply)
Plating suffix:
RB = 30
µ
" [.76
µ
m] Gold with Matte Tin solder tails (App. E1 & C1 Apply)
TS-0808-08
Sheet 4 of 4
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
