VM5204224PO datasheet, PDF - EEWORLD Datasheet

VM5204224PO: DescriptionRead/Write Amplifier Circuit, 2 Channel, PDSO24, SOIC-24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size195KB，6 Pages; ManufacturerVTC Inc.

Download Datasheet Parametric Compare View All

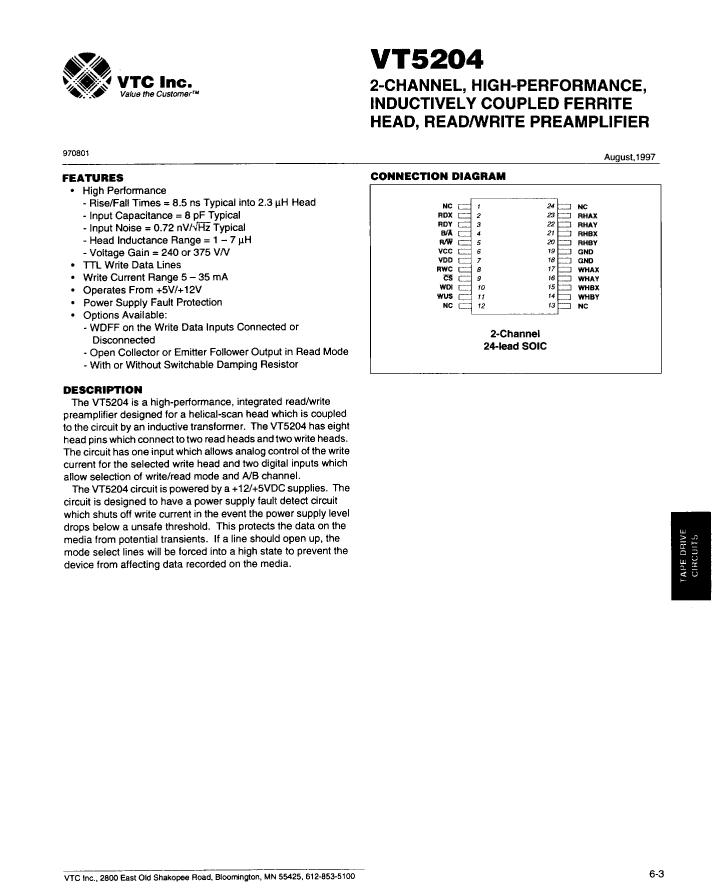

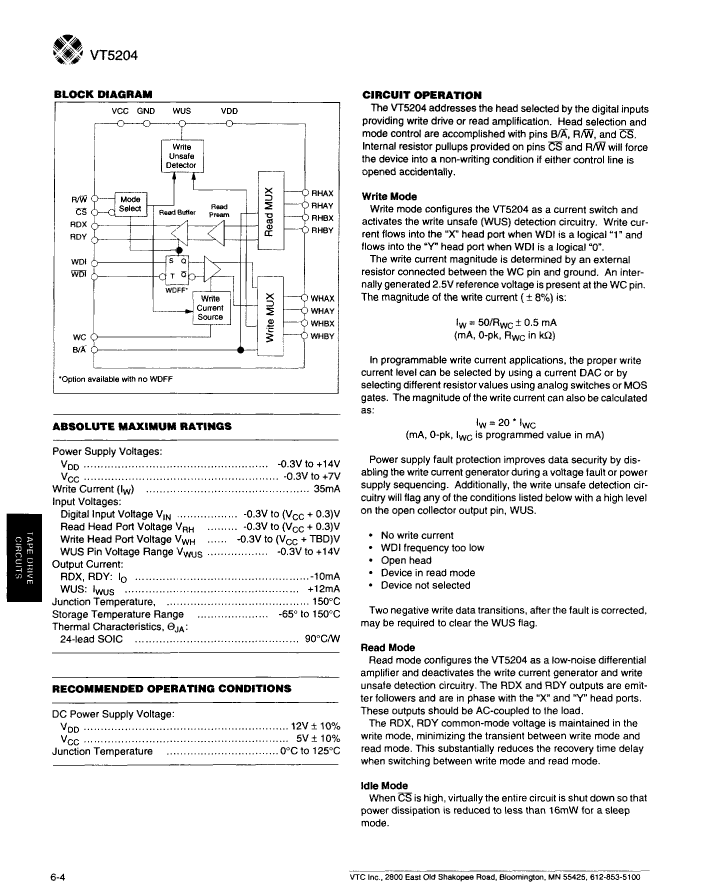

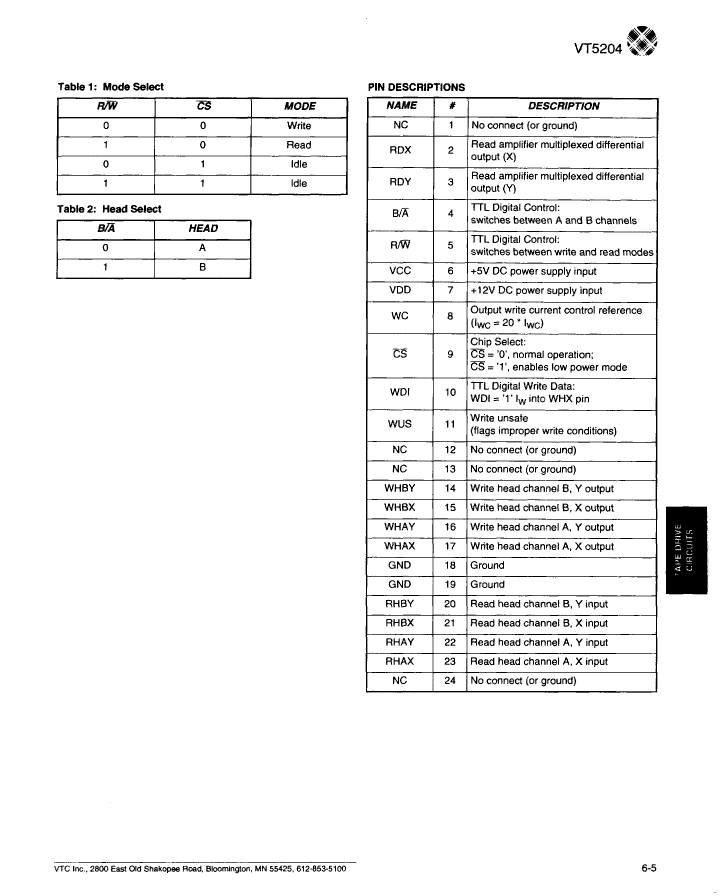

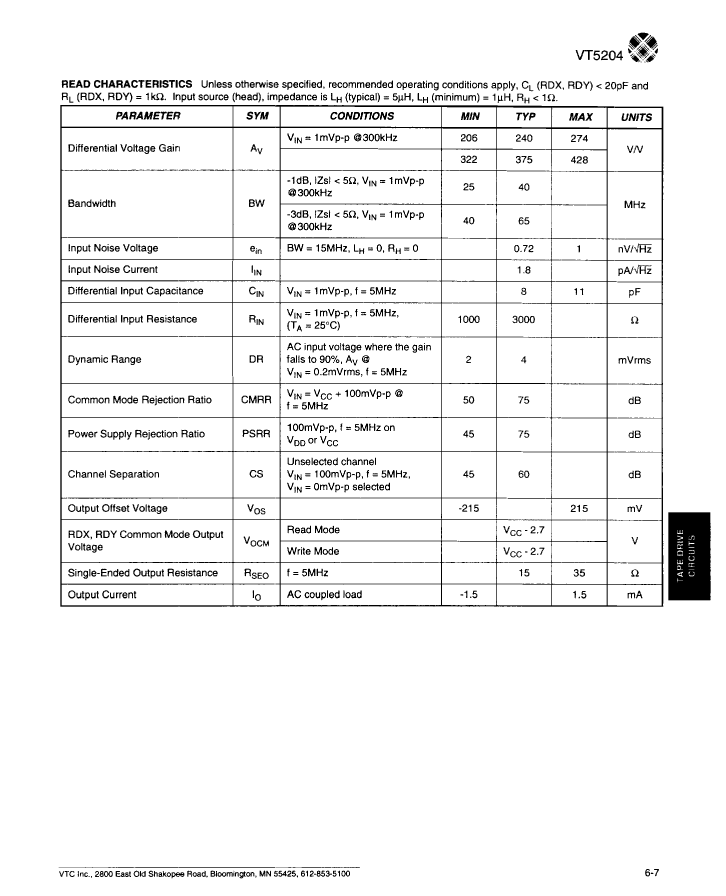

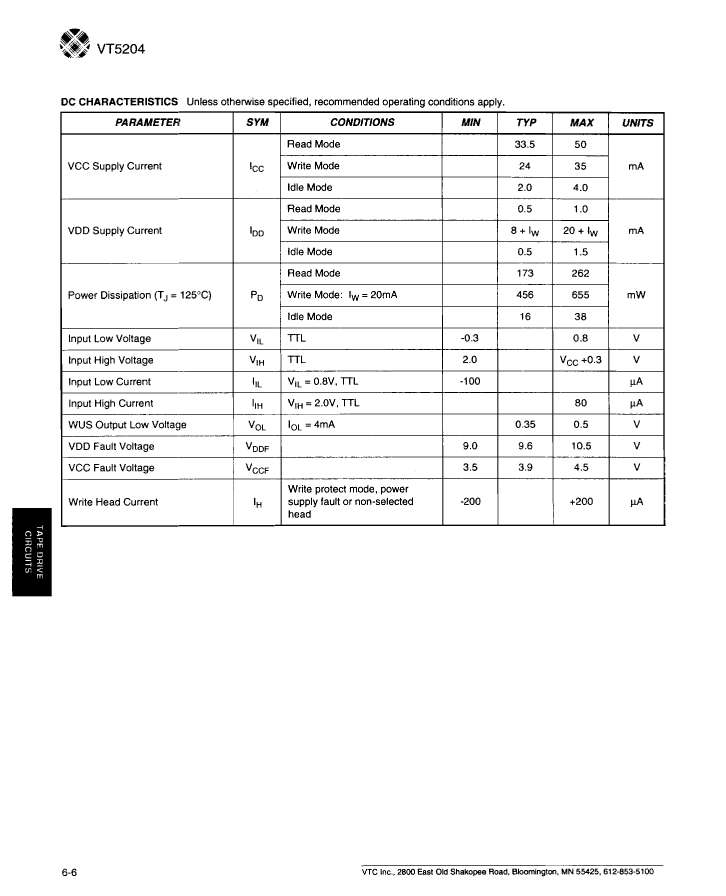

VM5204224PO Overview

Read/Write Amplifier Circuit, 2 Channel, PDSO24, SOIC-24

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	,
Contacts	24
Reach Compliance Code	unknown
Is Samacsys	N
Drive type	WINCHESTER
Interface integrated circuit type	READ WRITE AMPLIFIER CIRCUIT
JESD-30 code	R-PDSO-G24
Number of channels	2
Number of functions	1
Number of terminals	24
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	13.2 V
Mains voltage 1-minute	10.8 V
Supply voltage1-Nom	12 V
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

	VM5204224PO	VM5204237PO
Description	Read/Write Amplifier Circuit, 2 Channel, PDSO24, SOIC-24	Read/Write Amplifier Circuit, 2 Channel, PDSO24, SOIC-24
Parts packaging code	SOIC	SOIC
Contacts	24	24
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
Drive type	WINCHESTER	WINCHESTER
Interface integrated circuit type	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT
JESD-30 code	R-PDSO-G24	R-PDSO-G24
Number of channels	2	2
Number of functions	1	1
Number of terminals	24	24
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
Supply voltage 1-max	13.2 V	13.2 V
Mains voltage 1-minute	10.8 V	10.8 V
Supply voltage1-Nom	12 V	12 V
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Base Number Matches	1	1
