BH3540AFS-E1

Description
Audio Amplifier, 0.04W, 2 Channel(s), 1 Func, Bipolar, PDSO16, SSOP-16
CategoryAnalog mixed-signal IC    Consumption circuit
File Size102KB,6 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

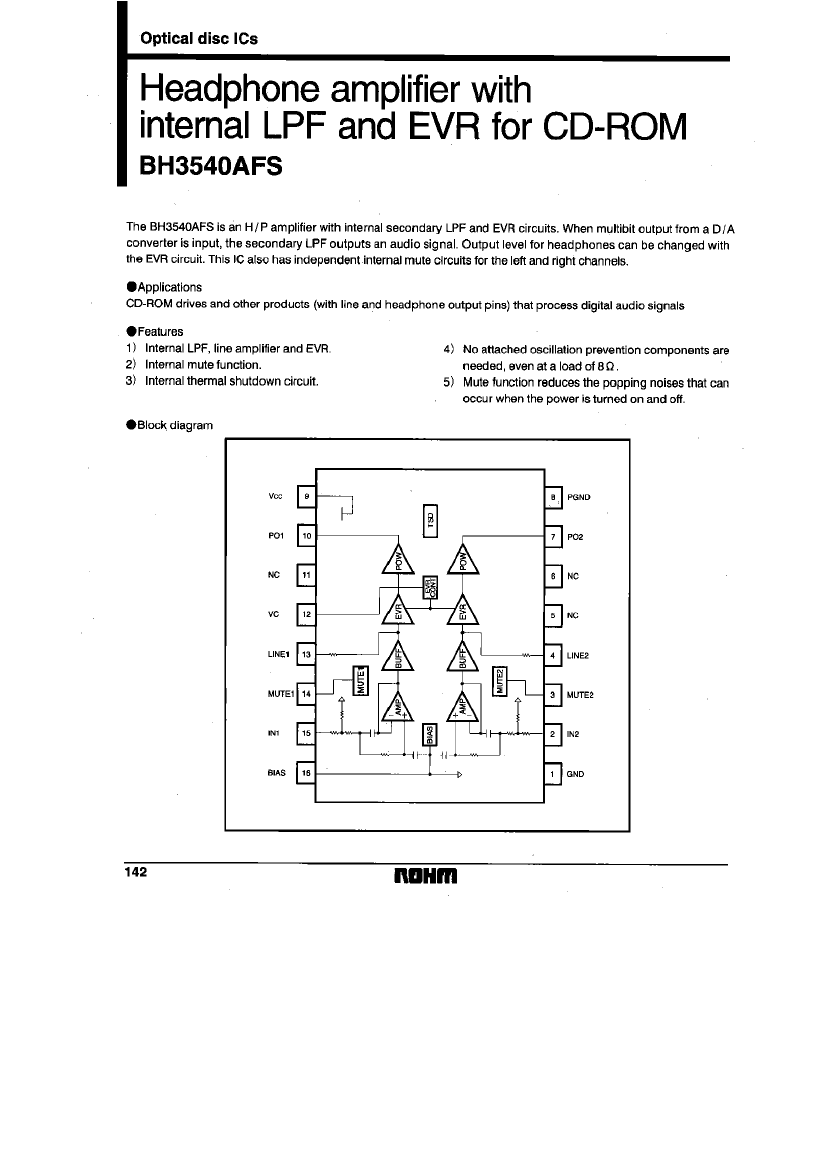

BH3540AFS-E1 Overview

Audio Amplifier, 0.04W, 2 Channel(s), 1 Func, Bipolar, PDSO16, SSOP-16

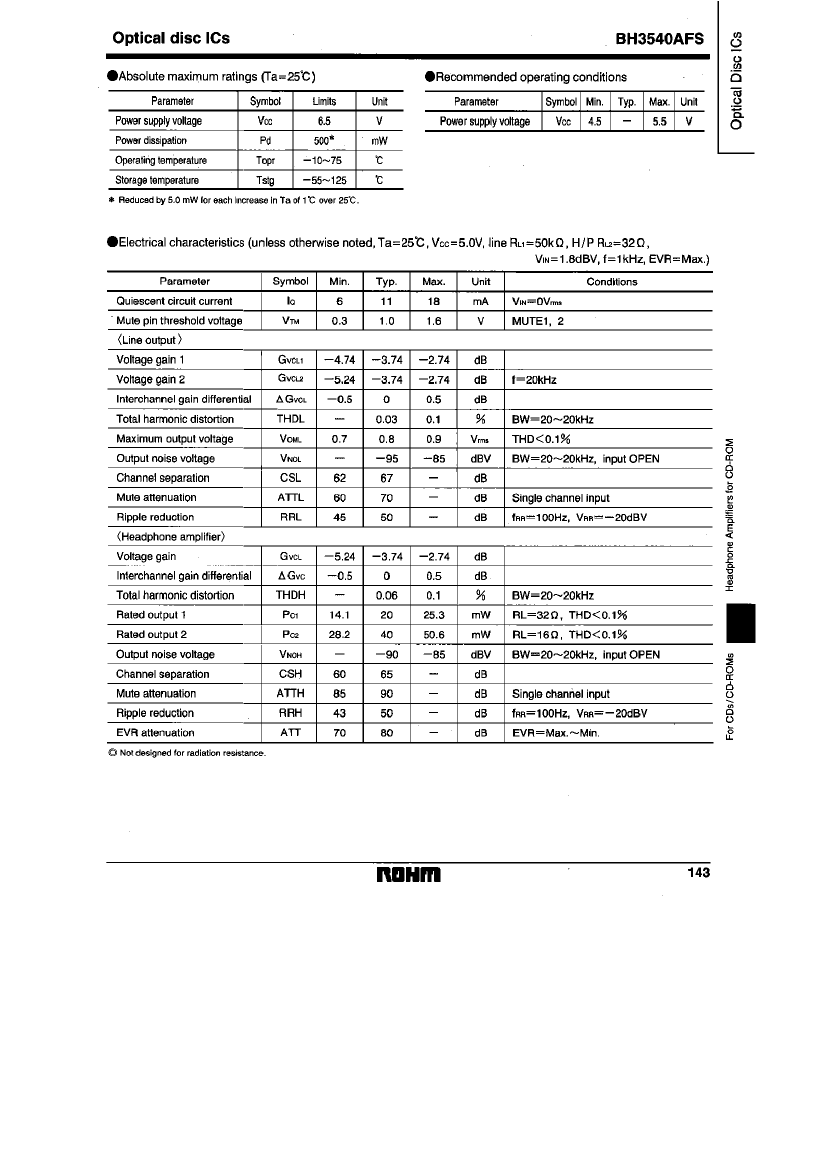

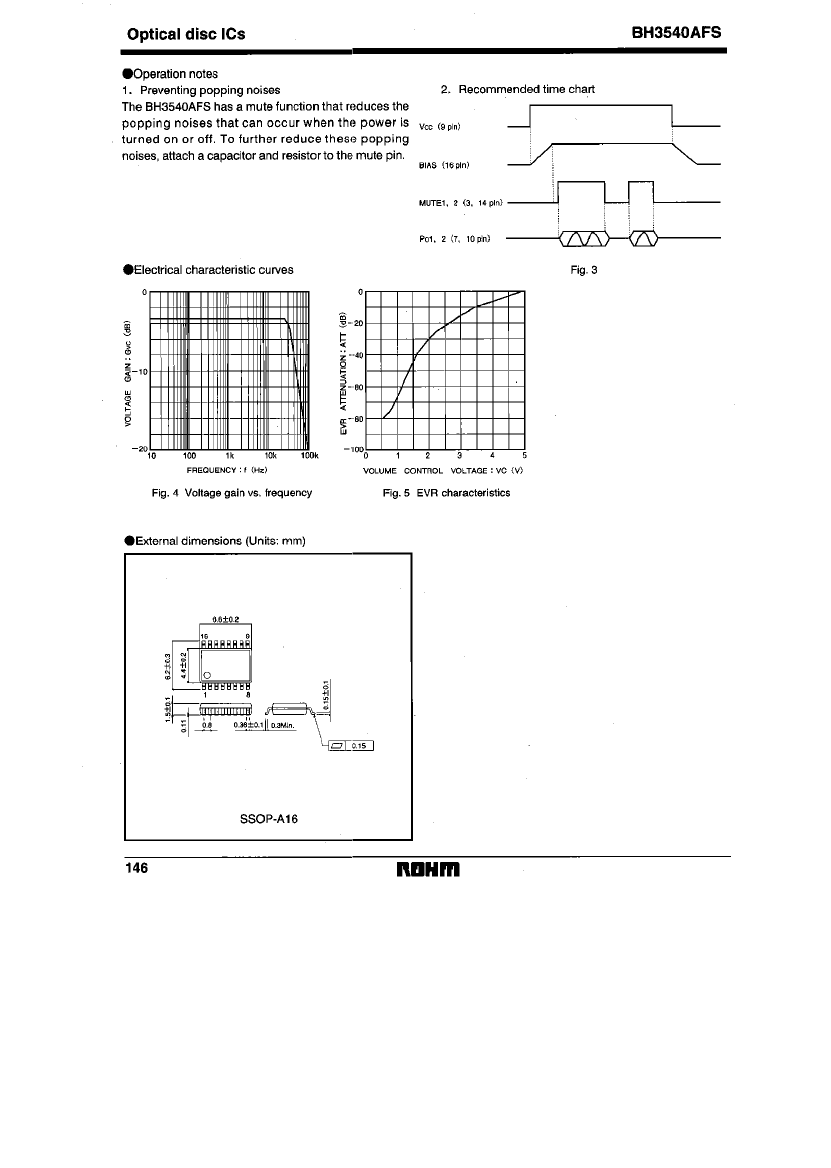

BH3540AFS-E1 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Parts packaging codeSOIC
package instructionSSOP-16
Contacts16
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Nominal bandwidth20 kHz
Commercial integrated circuit typesAUDIO AMPLIFIER
harmonic distortion0.06%
JESD-30 codeR-PDSO-G16
JESD-609 codee3/e2
length6.6 mm
Number of channels2
Number of functions1
Number of terminals16
Maximum operating temperature75 °C
Minimum operating temperature-10 °C
Nominal output power0.04 W
Package body materialPLASTIC/EPOXY
encapsulated codeLSSOP
Encapsulate equivalent codeSOP16,.25,32
Package shapeRECTANGULAR
Package formSMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)260
power supply5 V
Certification statusNot Qualified
Maximum seat height1.6 mm
Maximum slew rate18 mA
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
surface mountYES
technologyBIPOLAR
Temperature levelCOMMERCIAL EXTENDED
Terminal surfaceTIN/TIN COPPER
Terminal formGULL WING
Terminal pitch0.8 mm
Terminal locationDUAL
Maximum time at peak reflow temperature10
width4.4 mm
Base Number Matches1

BH3540AFS-E1 Related Products

BH3540AFS-E1 BH3540AFS-T1
Description Audio Amplifier, 0.04W, 2 Channel(s), 1 Func, Bipolar, PDSO16, SSOP-16 Audio Amplifier, 0.04W, 2 Channel(s), 1 Func, PDSO16, SSOP-16
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Parts packaging code SOIC SOIC
package instruction SSOP-16 SSOP-16
Contacts 16 16
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Is Samacsys N N
Nominal bandwidth 20 kHz 20 kHz
Commercial integrated circuit types AUDIO AMPLIFIER AUDIO AMPLIFIER
harmonic distortion 0.06% 0.06%
JESD-30 code R-PDSO-G16 R-PDSO-G16
JESD-609 code e3/e2 e3/e2
length 6.6 mm 6.6 mm
Number of channels 2 2
Number of functions 1 1
Number of terminals 16 16
Maximum operating temperature 75 °C 75 °C
Minimum operating temperature -10 °C -10 °C
Nominal output power 0.04 W 0.04 W
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code LSSOP LSSOP
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, LOW PROFILE, SHRINK PITCH SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius) 260 260
Certification status Not Qualified Not Qualified
Maximum seat height 1.6 mm 1.6 mm
Maximum slew rate 18 mA 18 mA
Maximum supply voltage (Vsup) 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V
surface mount YES YES
Temperature level COMMERCIAL EXTENDED COMMERCIAL EXTENDED
Terminal surface TIN/TIN COPPER TIN/TIN COPPER
Terminal form GULL WING GULL WING
Terminal pitch 0.8 mm 0.8 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature 10 10
width 4.4 mm 4.4 mm
Base Number Matches 1 1
