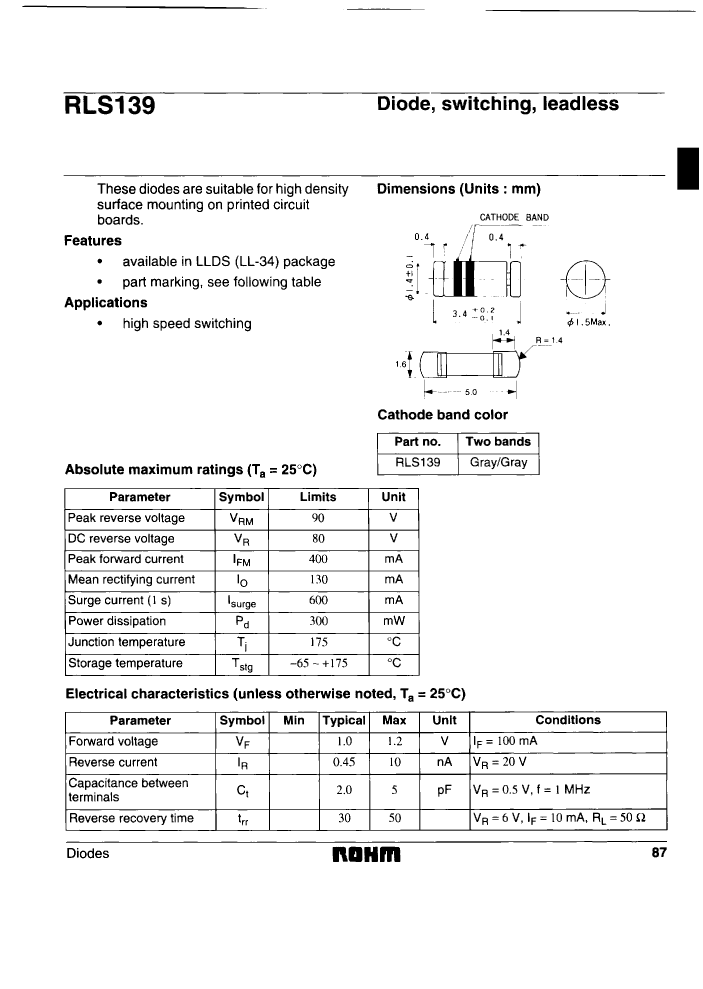

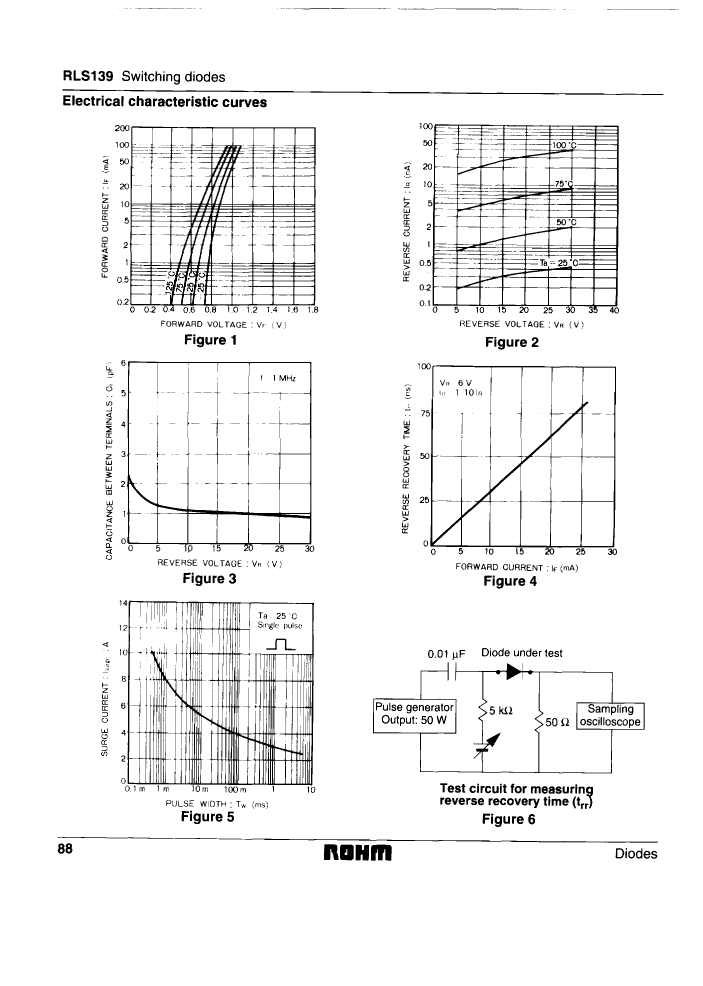

RLS139TE11A: DescriptionRectifier Diode, 1 Element, 0.13A, 40V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size57KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

RLS139TE11A Overview

Rectifier Diode, 1 Element, 0.13A, 40V V(RRM), Silicon

RLS139TE11A Parametric

Parameter Name	Attribute value
package instruction	O-MELF-R2
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JESD-30 code	O-MELF-R2
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	0.13 A
Package body material	METAL
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.3 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
Maximum reverse current	0.01 µA
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal form	WRAP AROUND
Terminal location	END
Base Number Matches	1
