SN74ALS747-1DW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SN74ALS747-1DW

SN74ALS747-1DW: DescriptionALS SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20; Categorylogic logic; File Size792KB，5 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

SN74ALS747-1DW Overview

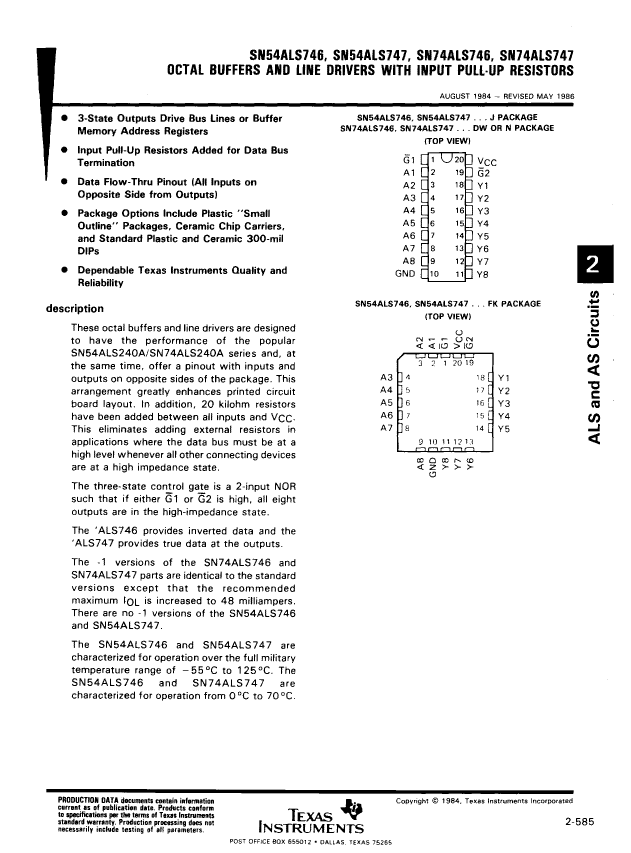

ALS SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20

SN74ALS747-1DW Parametric

Parameter Name	Attribute value
package instruction	SOP,
Reach Compliance Code	unknown
Is Samacsys	N
Other features	WITH DUAL OUTPUT ENABLE; WITH INPUT PULL-UP
series	ALS
JESD-30 code	R-PDSO-G20
length	12.8 mm

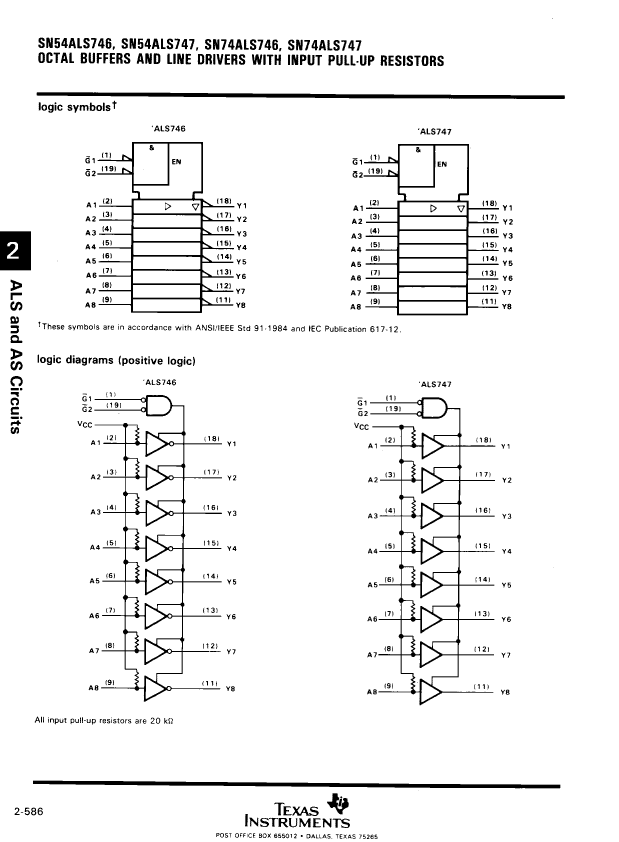

Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE

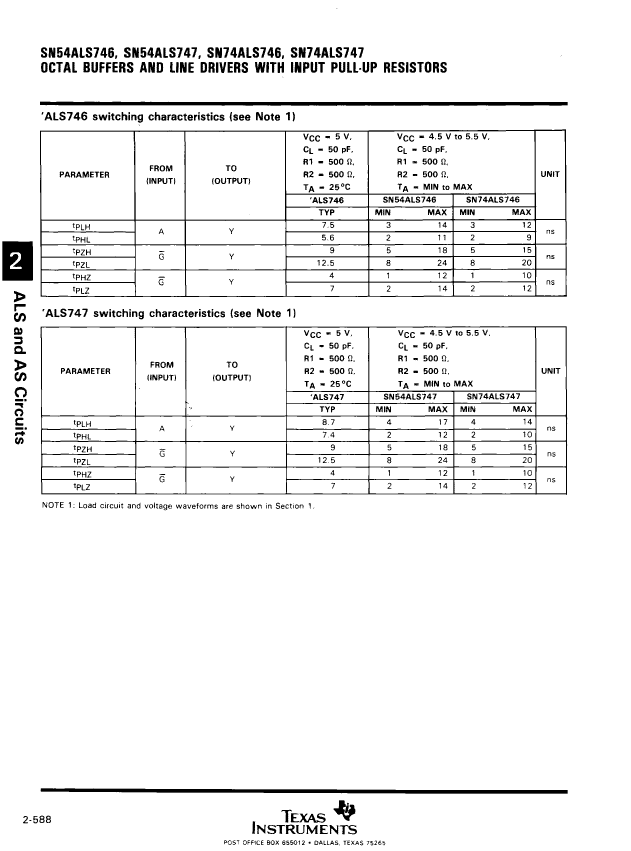

propagation delay (tpd)	10 ns
Certification status	COMMERCIAL
Maximum seat height	2.65 mm

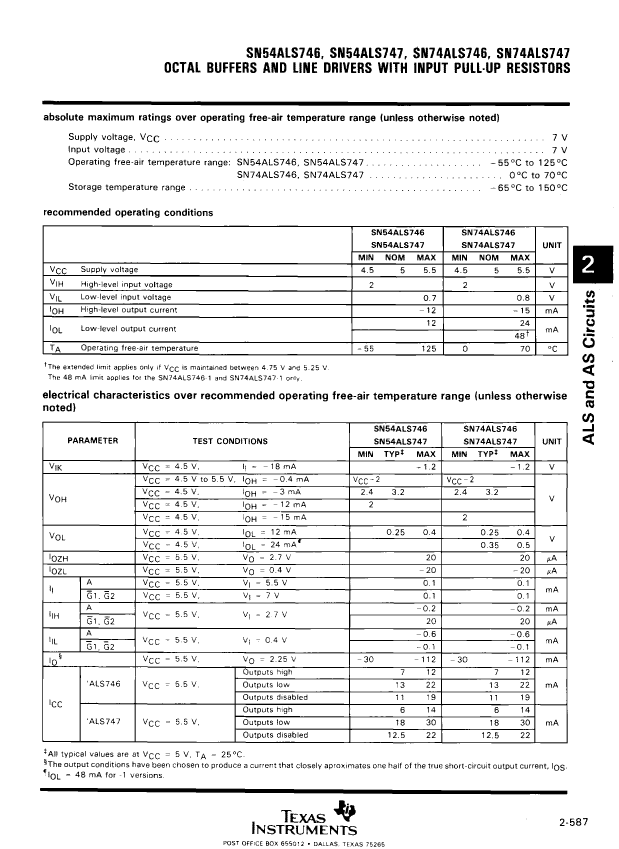

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1
