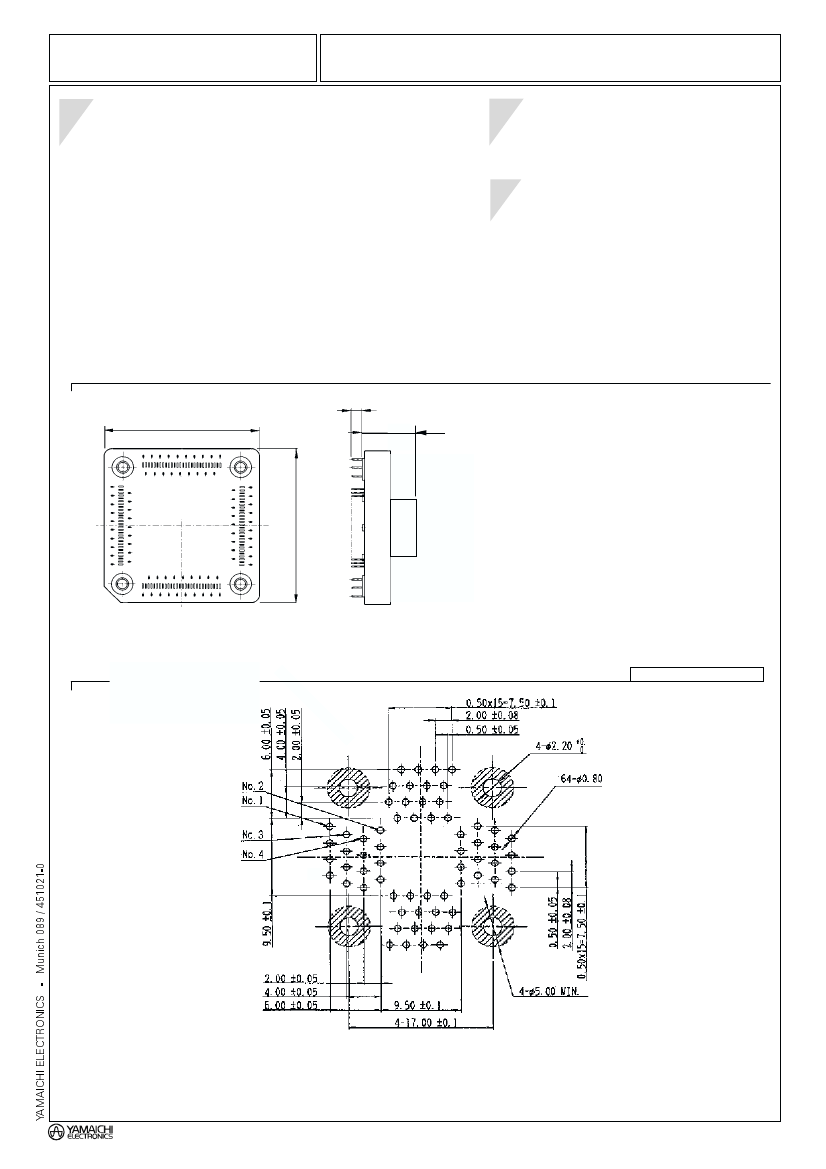

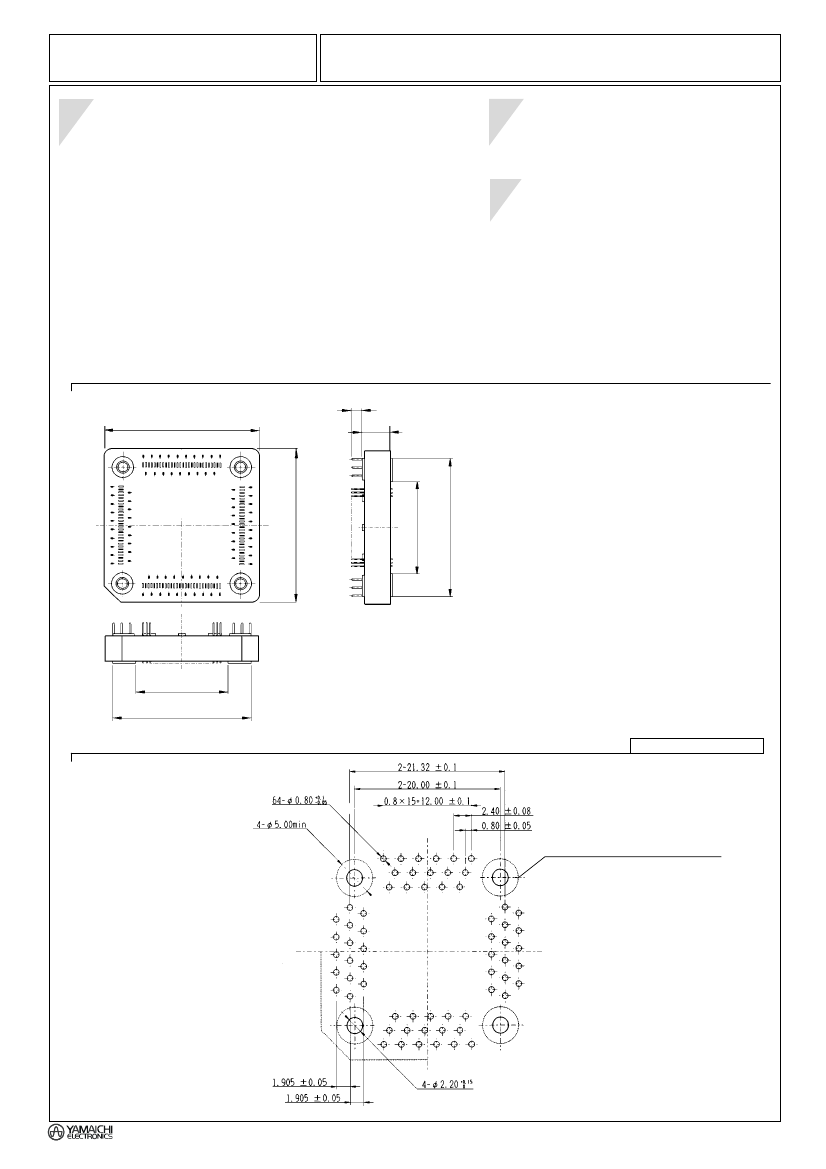

IC149 / ICP Series
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Operating Temp. Range:
Reflow-soldering Temp.:
Mating Cycles:
Allowable Torque (max.):
Emulation-Adapter (64 pins) 0.5mm Pitch
Adapter Part Number
ICP-064-6
Compatible Socket (Part No.)
IC149-64-075-B5
(w/o pos. pins)
IC149-64-175-B5
(with pos. pins)
500MΩ at 150V DC
700V AC for 1 minute
30mΩ max. at 10mA and 20mV
-25°C to +85°C
220°C for 60 seconds
20 insertions maximum
- for 1-time screw connection
= max 0.147 Nm
- for repetitive screw connection = min 0.078 Nm
max 0.098 Nm
Materials and Finish
Housing: PTES, glass filled UL94V-0
Contact: Phosphor Bronze
Plating: Au 0.3µm min. over 2.5 ~ 4.5µm Ni
Outline Adapter Dimensions
(Reference Only)
2.4
25.00
8.08
Remarks
1. Ensure a clean contact area. Fluxes, dust and other impurifications
may cause corrosion and contact problems.
25.00
2.
Careful attention must be taken when fixing the Adapter,
since it is made from thermoplastic material.
By exceeding the maximum torque a perfect performance can
no longer be guaranteed.
17.00
25.53
Adapter PCB-Layout (IC149-64-*08-B5)
17.00
25.53
Top View from Soldering Side
SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER
IC149 / ICP Series
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Operating Temp. Range:
Reflow-soldering Temp.:
Mating Cycles:
Allowable Torque (max.):
Emulation-Adapter (64 pins) 0.8mm Pitch
Adapter Part Number
500MΩ at 150V DC
700V AC for 1 minute
30mΩ max. at 10mA and 20mV
-25°C to +85°C
220°C for 60 seconds
20 insertions maximum
- for 1-time screw connection
= max 0.147 Nm
- for repetitive screw connection = min 0.078 Nm
max 0.098 Nm
ICP-064-2
Compatible Socket (Part No.)
IC149-64-008-*5
(w/o pos. pins)
IC149-64-108-*5
(with pos. pins)
Materials and Finish
Housing: PTES, glass filled UL94V-0
Contact: Phosphor Bronze
Plating: Au 0.3µm min. over 2.5 ~ 4.5µm Ni
Outline Adapter Dimensions
(Reference Only)
2.4
28.00
6.20
Remarks
1. Ensure a clean contact area. Fluxes, dust and other impurifications
may cause corrosion and contact problems.
28.00
2.
Careful attention must be taken when fixing the Adapter,
since it is made from thermoplastic material.
By exceeding the maximum torque a perfect performance can
no longer be guaranteed.
15.00
15.00
25.53
Adapter PCB-Layout (IC149-64-*08-B5)
25.53
Top View from Soldering Side
Note:
No conduits within this hatched area.
