DIAMOND
Fiber Optic Components

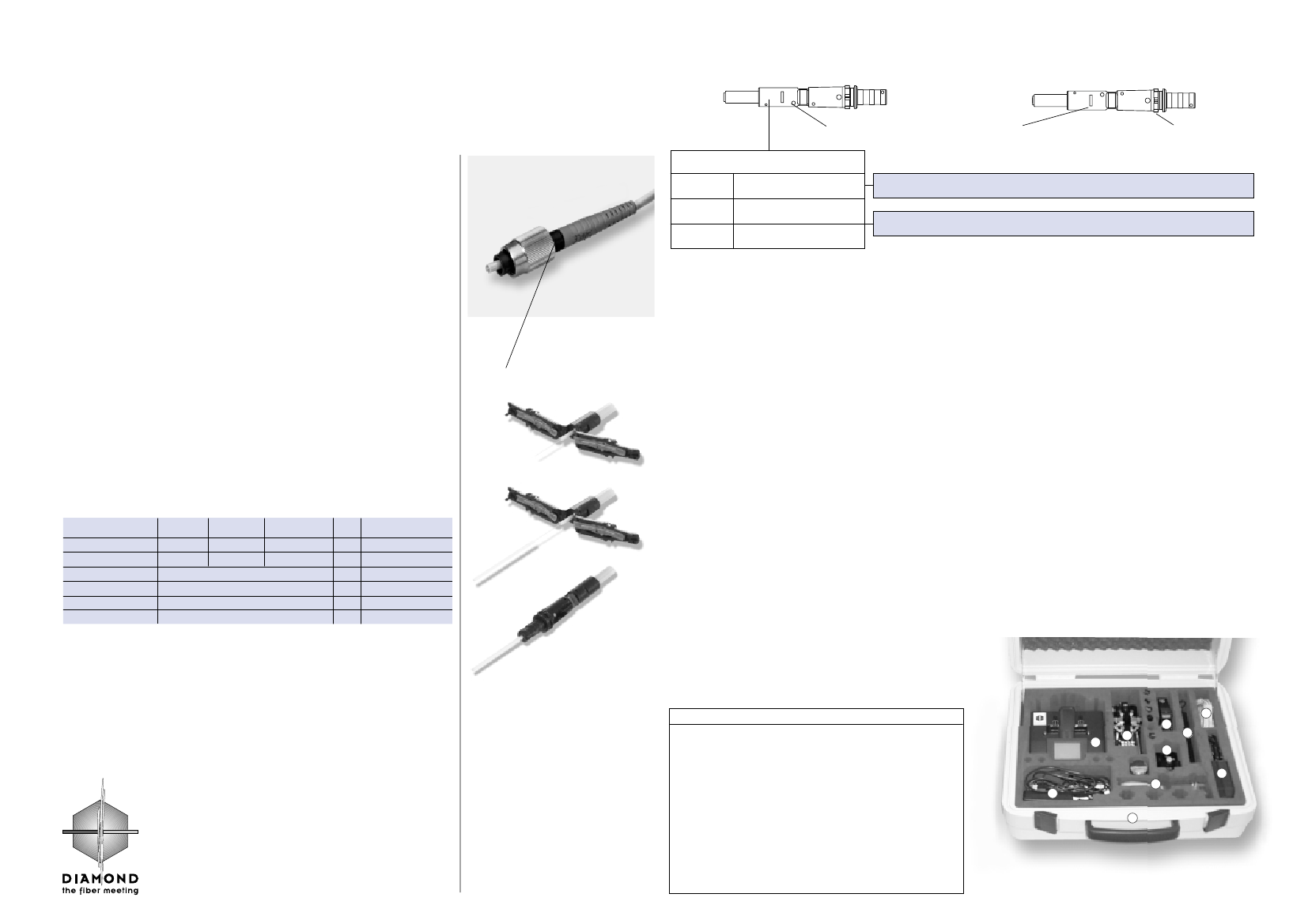

The FC FUSION allows you to quickly and easily make field terminations with
the performance you expect from Diamond-quality FC connectors.
The key to this system is DIAMOND's advanced "crocodile alberino" fusion
field ferrule assembly. The ferrule assembly consists of a factory-terminated
fiber endface, fiber stub, and integrated splice protection. The fiber endface
is core-centered via Diamond’s well-known Active Core Alignment process
and factory-polished to the company’s exacting specifications. The FC FU-
SION is then field terminated via a low loss fusion splice using the Diamond
Fusion Field Termination Kit. The FC FUSION is available for SM and MM fiber
(250 & 900
µm)
and cable (2.1-to 3.1 mm) in both 0° PC or 8° APC versions.
Other fiber types can also be accommodated upon request.
FEATURES AND BENEFITS
•
•
•
Simple, fast and reliable field termination
reduces operator error and cost per termination
Outstanding optical performance
consistent and repeatable low IL / high RL
No polishing
eliminates the need for costly consumables
operator independent performance
Fusion spliced pigtail performance and reliability without the cost and
space associated with splice enclosures, trays and protectors.
FC FUSION
SINGLE MODE/
MULTIMODE
DIAMOND FUSION MARKINGS
XXX XX
KW
JJ
Reference SM or MM
Production date
Orientation mark for 8° APC-type assembly
Codes for preterminated standard fiber stubs
100
210
201
SMF-28 9
µm
MM TB OM3 50
µm
MM TB GI 62.5
µm
Standard components are preterminated with Corning SMF - 28 fiber stubs.
Please contact your DIAMOND sales office if another fiber type is required.
Standard components are preterminated with 50/125
µm
OM3 type and GI 62.5/125
µm
fiber stubs.
Please contact your DIAMOND sales office if another fiber type is required.
Crocodile Alberino
•
Initial condition
SPECIFICATIONS
Multimode
Single mode
Single mode 8° APC
Units
Test conditions
Insertion loss (IL)
Reflectance (RL)
Repeatability of IL
Service life
Operating temperature
Storage temperature
typ 0.2 max 0.5
min 40
typ 0.25 max 0.5
min 50
max
±0.1
typ 0.25 max 0.5
min 70*
dB
dB
dB
°C
°C
IEC 61300-3-4; l= 1300/1550nm
IEC 61300-3-6; l= 1300/1550nm
Spliced
TERMINATION KIT
DIAMOND`s Fusion Field Termination Kit provides all the tools and instructions necessary for high performance
field terminations of DIAMOND`s FUSION connectors.
ORDER INFORMATION
Fusion Field Termination Kit:
241-100-050V001
1000 mate/demate cycles
-25 / +70**
-25 / +70**
* Measured with high precision reflectometer
** May be further limited by cable specifications
Closed before housing assembly
KIT CONTENTS
Description
10
4
2
6
5
9
7
8
1
3
1 Rugged carrying case
2 Diamond Fusion Splicer (DFS)
3 DFS battery
4
5
6
7
8
9
10
Fiber stripper
Precision cleaver
"Crocodile alberino" closing tool
E-2000, SC, FC ans ST connector assembly tools
Power supply 120/240 V
Battery charger 120/240 V
RJ-45 crossed interface cable
DIAMOND SA
Via dei Patrizi 5
CH-6616 LOSONE
Tel. ++41-91/785 45 45
Fax ++41-91/785 45 00
e-mail: info@diamond-fo.com
Specifications subject to change
without notice
002-037-202P004083
Space requirement: ca. 540 x 430 x 210 mm
Weight:
ca. 12.5 Kg

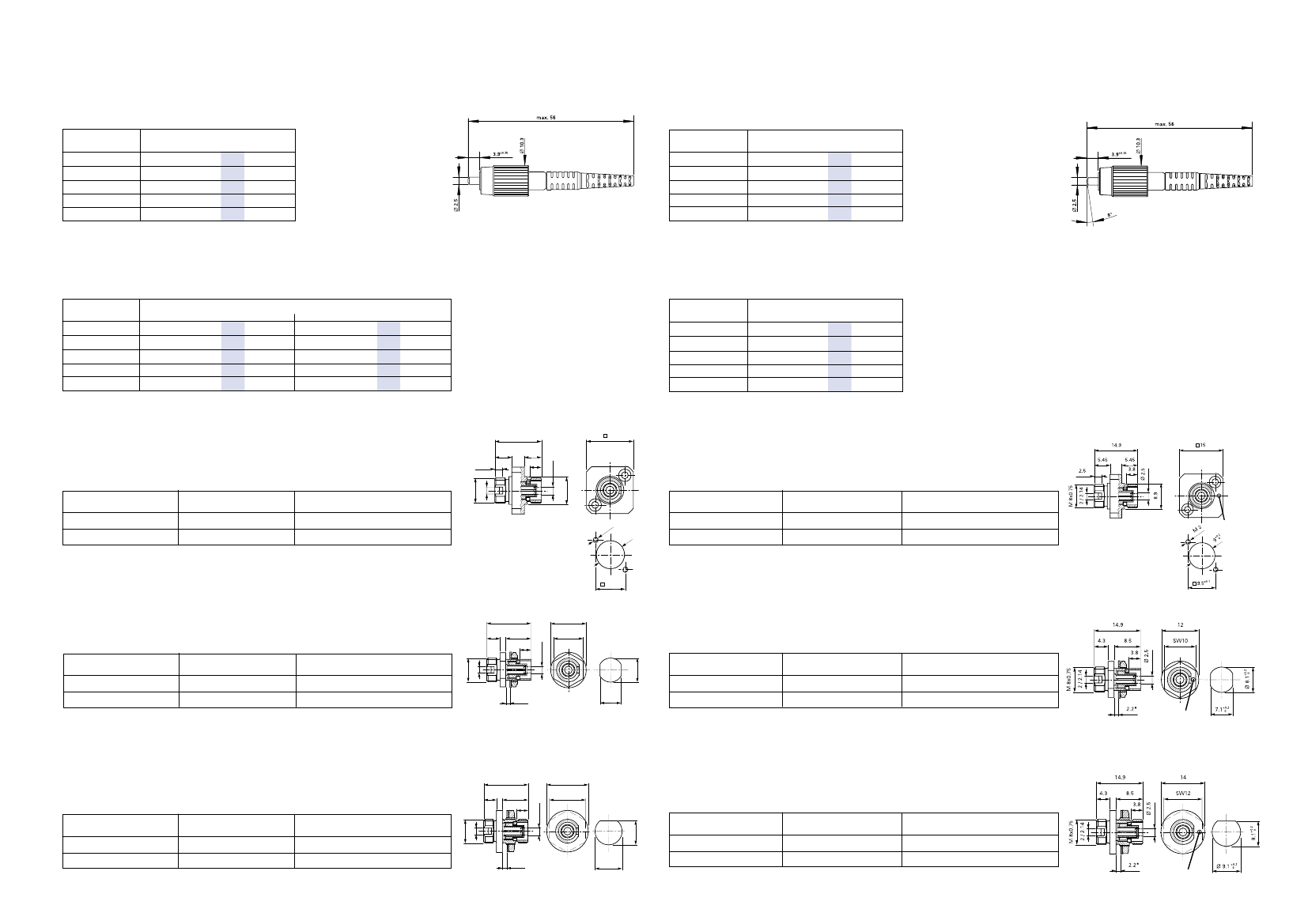

CONNECTORS
FUSION SINGLE MODE PC, Key
∅
2.14 mm
Type designation:
Ferrule material:
External parts:
Polish geometry:
Dimensions
Fiber/Cable
9/125/900
9/125/900/1800
9/125/900/2100
9/125/900/2500
9/125/900/3000
CONNECTORS
FUSION SINGLE MODE APC, Key
∅
2,14 mm
Type designation:
Ferrule material:
External parts:
Polish geometry:
Dimensions
Fiber/Cable
9/125/900
9/125/900/1800
DIAMOND
HPC-S0.86 Alb
Zirconia/copper-nickel alloy insert (Pilzferrule)
Ni-plated brass / Plastic black
Convex (PC)
Order Number
189 - 003 - 001 L 000
189 - 003 - 006 L 000
189 - 003 - 002 L 000
189 - 003 - 003 L 000
189 - 003 - 004 L 000
HPC-S8.86 Alb
Zirconia/copper-nickel alloy insert (Pilzferrule)
Ni-plated brass / Plastic black
8° angled convex (APC)
Order Number
191 - 003 - 001 L 000
191 - 003 - 006 L 000
DIAMOND
9/125/900/2100
9/125/900/2500
9/125/900/3000
191 - 003 - 002 L 000
191 - 003 - 003 L 000
191 - 003 - 004 L 000
Connectors for other fiber and cable dimensions available upon request
Connectors for other fiber and cable dimensions available upon request
FUSION MULTIMODE PC, Key
∅
2,14 mm
Type designation:
HPC-M0.86 Alb
Dimensions
Fiber/Cable
50-62.5/125/900
50-62.5/125/900/1800
50-62.5/125/900/2100
50-62.5/125/900/2500
50-62.5/125/900/3000
Order Number
Gl 50/125
190 - 003 - 001 L 000
190 - 003 - 006 L 000
190 - 003 - 002 L 000
190 - 003 - 003 L 000
190 - 003 - 004 L 000
Gl 62.5/125
190 - 003 - 011 L 000
190 - 003 - 016 L 000
190 - 003 - 012 L 000
190 - 003 - 013 L 000
190 - 003 - 014 L 000
FUSION SINGLE MODE APC, Key
∅
2 mm
Type designation:
Dimensions
Fiber/Cable
9/125/900
9/125/900/1800
9/125/900/2100
9/125/900/2500
9/125/900/3000
HPC-S8.86/X Alb
Order Number
192 - 003 - 001 L 000
192 - 003 - 006 L 000
192 - 003 - 002 L 000
192 - 003 - 003 L 000
192 - 003 - 004 L 000
Connectors for other fiber and cable dimensions available upon request
Connectors for other fiber and cable dimensions available upon request
14.9
15
5.45
ADAPTORS
M 8x0.75
5.45
ADAPTORS
Ø 2.5
Type designation:
Mating sleeve:
Type designation
MPC-S0.22
MPC-M0.22
MPC-*0.22
Zirconia
External parts
Ni-plated brass
Ni-plated brass
Order Number
110 - 301 - 907 V 001
110 - 301 - 919 V 001
2.5
3.8
Types:
Mating sleeve:
8.9
MPC-S8.22*
Zirconia
External parts / key ø
Ni-plated brass / 2.14 mm
Ni-plated brass / 2 mm
Order Number
110 - 301 - 904 V 001
110 - 301 - 904 V 002
Mountig
perforation
Sign of
recognition
for X version
2.2
Type designation
Mountig
perforation
M
2
9
.2
+0 0
MPC-S8.22
MPC-S8.22/X
9.5
±0.1
14.9
4.3
8.5
3.8
12
SW10
M 8x0.75
Ø 2.5
Type designation:
Type designation
MPC-S0.22/6 Kt.
MPC-M0.22/6 Kt.
MPC-*0.22/6 Kt.
2.2
Mountig
perforation
Ø 8.1
+0.2
0
Mountig
perforation
External parts
Ni-plated brass
Ni-plated brass
Order Number
110 - 301 - 903 V 001
110 - 301 - 920 V 001
Type designation
MPC-S8.22/6 Kt.
External parts / key ø
Ni-plated brass / 2.14 mm
Ni-plated brass / 2 mm
Order Number
110 - 301 - 903 V 002
110 - 301 - 911 V 002
* Max thickness
Sign of
recognition
for X version
2.2*
7.1
+0.2
0
MPC-S8.22/6 Kt. X
* Max thickness
14.9
4.3
8.5
3.8
M 8x0.75
Ø 2.5
14
SW12
Type designation:
Type designation
MPC-S0.22/Y
MPC-M0.22/Y
MPC-*0.22/Y
2.2
Mountig
perforation
Mountig
perforation
8.1
+0.2
0
External parts
Ni-plated brass
Ni-plated brass
Order Number
110 - 301 - 905 V 001
110 - 301 - 921 V 001
Type designation
MPC-S8.22/Y
MPC-S8.22/YX
External parts / key ø
Ni-plated brass / 2.14 mm
Ni-plated brass / 2 mm
Order Number
110 - 301 - 905 V 002
110 - 301 - 912 V 002
* Max thickness
Sign of
recognition
for X version
2.2*
Ø 9.1
+0.2
0
* Max thickness
