Micro Edgeboard - .050" Contact Spacing

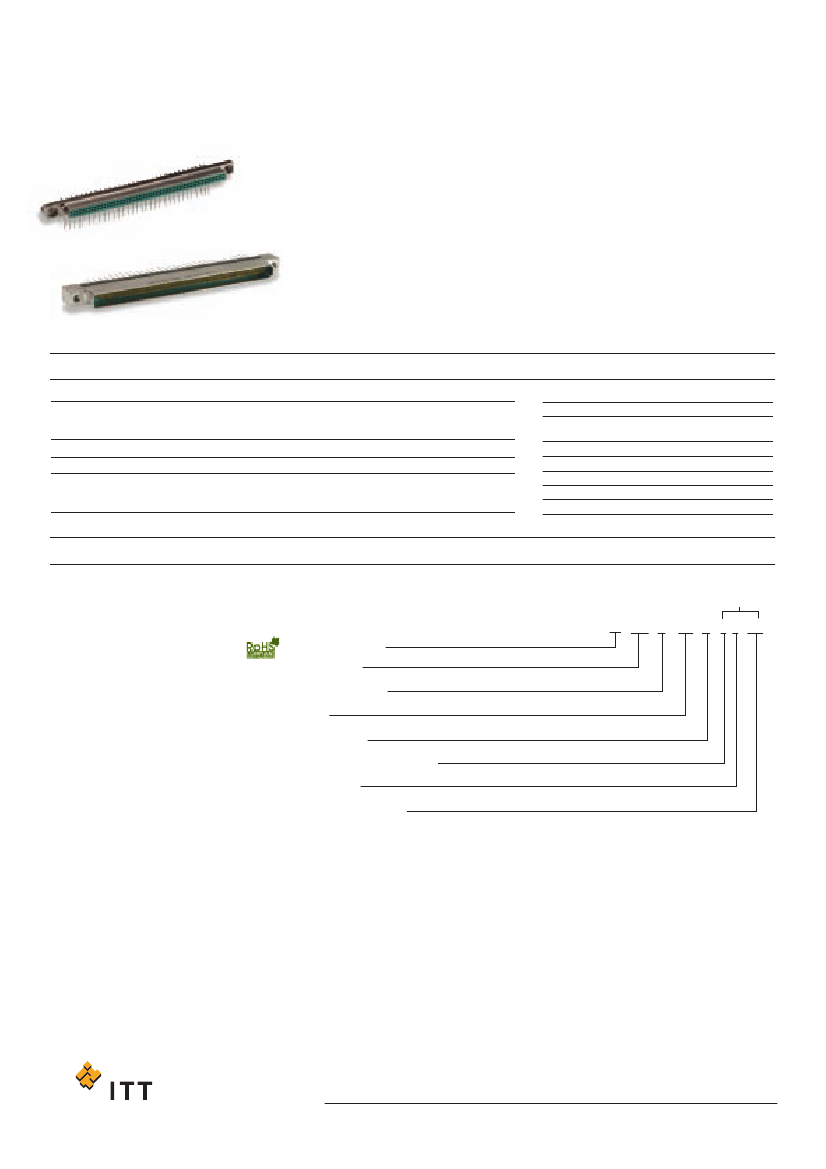

The Micro Edgeboard (MEB) connector series

provides a combination of high density and high

reliability for applications in airborne and space

systems, computers and peripherals, and

industrial /commercial control systems. This

series incorporates the proven

MICROPIN

TM

/MICROSOCKET

TM

contact. This

contact has an outstanding record of high

reliability and millions of contacts are in use in

various applications where electrical

interconnects are used.

The MEB has machined aluminum shells for

ruggedness, diallyl phthalate insulator for top

electrical performance and a 36-position

polarization key system to prevent cross plug-

MEB

ging. Contacts are on .050 (1.27) center

spacings. A variety of termination types are

available, including 90˚ or right angle pigtails

for multi-layered P.C. boards, "coke bottle”

termination for double-sided P.C. boards.

Harnessing capability is also available for both

pin and socket sides.

The MEB, including the SBR 90˚ or right angle

variation available for multi-layer boards, can

be mounted on the female (daughter) side of

double or single-sided P.C. boards. The mating

male (mother) board side can have the

terminations formed to meet the application

demands.

Conforms to MIL-C-55302/120 thru 123. (not

qualified)

Specifications

MATERIALS AND FINISHES

TERMINATION TYPES

Shell:

6061-T6 Aluminum Alloy per QQ-A-200/8 or QQ-A-225/8, electroless nickel per

Consult factory for stranded wie lead modifications codes.

SAE AMS-C-26074, Class 4, except .0010 to .0015 (0.03 to 0.04) thick or conversion

coating per MIL-C-5541, Class 3, color gold.

MECHANICAL FEATURES

Copper Alloy, 50 microinch gold per ASTM B488, Type II, Code C, Class 1.25

Contact, Pin and Socket:

Size or Length:

2 sizes

Coupling:

Friction/Jackscrew

303 stainless steel, passivated per QQ-P-35.

Jackscew/Jackpost:

r

Polarization:

Shells, polarizing keys (36 positions)

Insulator:

Glass-filled diallyl phthalate per MIL-M-14, Type SDG-F, color green Polyester

per MIL-M-24519, Type GPT-30F , color black available for MEB-128 upon

Contact Spacing Centers: .050 (1.27)

request.

Shell Styles:

Plug and receptacle

How to Order

Not applicable for printed

circuit board configurations

shown on pages 55 & 56

R

RoHS COMPLIANCE

SERIES PREFIX

CONTACT SPACING

LAYOUT

CONTACT TYPE

TERMINATION MODIFICATIONS

LEAD LENGTH

OTHER MODIFICATIONS

SERIES PREFIX

MEB -

Micro edgeboard, plug with twist pin

contacts or recept. with microsocket

contacts.

TERMINATION MODIFICATIONS

L-

Uninsulated solid wire

H-

Insulated stranded round harness

wire

S-

Solder pots

BR -

PC board right angle, socket side only

LEAD LENGTH

Consult factory for wire lead modification codes.

OTHER MODIFICATIONS

Consult factory

MEB 1 - 128 P

* * ***

CONTACT SPACING

1 - .050 (1.27) centers 128/184

2 - .100 (2.54) centers 64/92

(alternate contact holes)

LAYOUT

64, 92, 128, 184

CONTACT TYPE

P - Pin

S - Socket

* For other contact spacing acommodations consult customer service.

Dimensions shown in inch (mm)

Specifications and dimensions subject to change

www.ittcannon.com

54

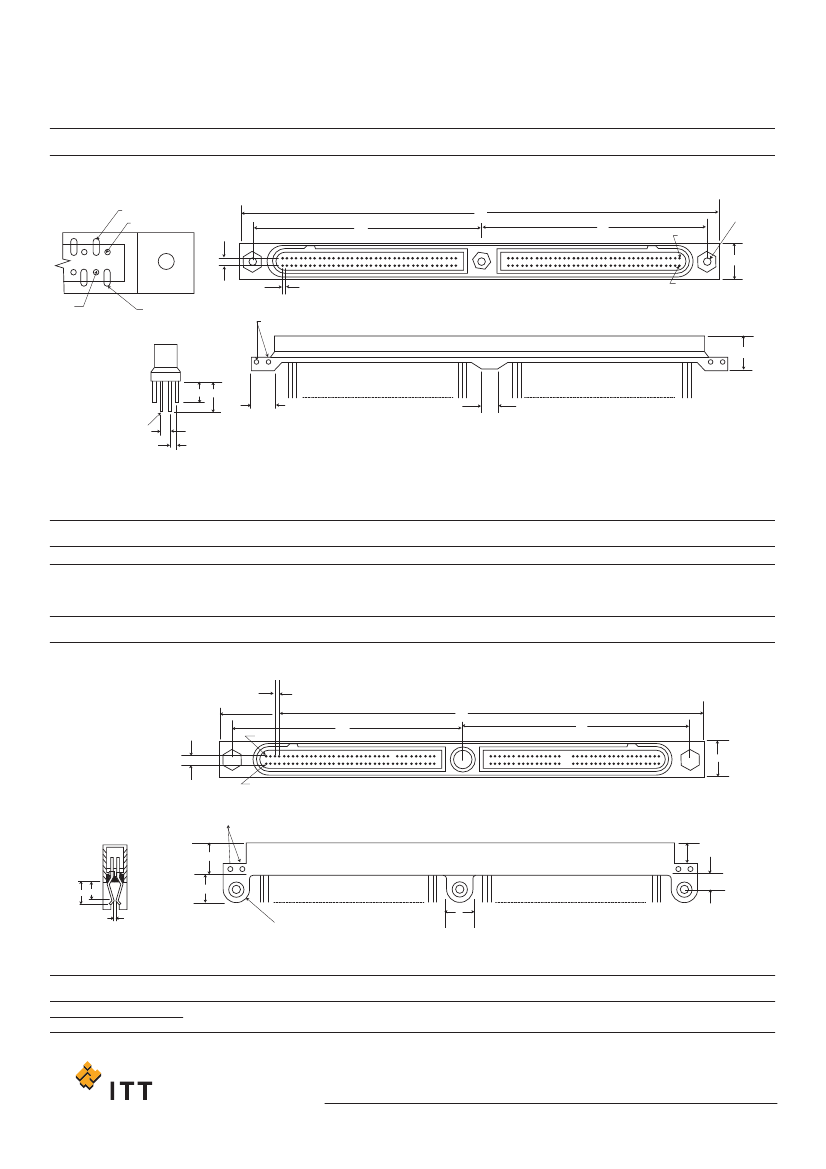

Micro Edgeboard - .050" Contact Spacing

Plug (Mother Board)

MEB1-12BS

MEB

A

.050 (1.27)

B1

B

.050

(1.27)

A1

RETAINING PIN HOLES

C

F H

#24 AWG

.250 (6.35)

E

.180 ± .005

(4.57 ± .13)

G

D

.0945 ± .0035 (2.40 ± .09) DIA.

THRU .187 (4.75) X .045 (1.14) DEEP "C" BORE 2 PLACES "A" SIDE ONLY

.187 (4.75) DIA. THRU "B"SIDE ONLY

Part No.

128S

128SBR

Weight

oz. (gm.) Max.

.5 (14.17)

A

±.015 (0.38)

3.950 (100.33)

B

±.010 (0.25)

.250 (6.35)

C

±.010 (0.25)

.400 (10.16)

D

±.010 (0.25)

3.700 (93.98)

E

±.010 (0.25)

.300 (7.62)

F

Max.

.280 (7.11)

G*

Max.

.030 (0.76)

H

±.020 (0.51)

.200 (5.08)

*Will accept up to .093 (2.36) thick P.C. Board with shell modifications.

Receptacle (Daughter Board)

MEB1-12BS

A

.050 (1.27)

B1

B

.050

(1.27)

A1

RETAINING PIN HOLES

C

F H

#24 AWG

.250 (6.35)

E

.180 ± .005

(4.57 ± .13)

G

D

.0945 ± .0035 (2.40 ± .09) DIA.

THRU .187 (4.75) X .045 (1.14) DEEP "C" BORE 2 PLACES "A" SIDE ONLY

.187 (4.75) DIA. THRU "B"SIDE ONLY

Part No.

128S

128SBR

Weight

A

oz. (gm.) Max. ±.015 (0.38)

.5 (14.17)

3.950 (100.33)

.5 (14.17)

B

±.010 (0.25)

.250 (6.35)

C

±.010 (0.25)

.400 (10.16)

D

±.010 (0.25)

3.700 (93.98)

E

±.010 (0.25)

.300 (7.62)

F

Max.

.280 (7.11)

G*

Max.

.030 (0.76)

H

±.020 (0.51)

.200 (5.08)

*Will accept up to .093 (2.36) thick P.C. Board with shell modifications.

Dimensions shown in inch (mm)

Specifications and dimensions subject to change

www.ittcannon.com

55

Micro Edgeboard - .050" Contact Spacing

Plug (Mother Board)

MEB1-184P

B2

B1

C

MEB

A

C

A1

.0945 + .0035

_

(2.40 + 0.09)

_

3 PLACES

B

.075

(1.91)

A2

A1

RETAINING PIN HOLES

.050 (1.27) TYP

B1

D

H

#25 AWG

(MEB1-184P)

or

G

F

TYP

E

.075 (1.91)

.075 (1.91) TYP.

Part No.

184P

Weight

oz. (gm.) Max.

1.0 (28.35)

A

+.015 (0.38)

_

5.800 (147.32)

B

+.010 (0.25)

_

.343 (8.71)

C

+.005 (0.13)

_

2.775 (70.49)

D

+.010 (0.25)

_

.400 (10.16)

E

+.010 (0.25)

_

.250 (6.35)

F

+.010 (0.25)

_

.280 (7.11)

G

+.025 (0.64)

_

.350 (8.89)

H

+.025 (0.64)

_

.275 (6.99)

Receptacle (Daughter Board)

MEB1-184S

.050 (1.27) TYP.

A

A1

C

B

.075

(1.91)

B1

RETAINING PIN HOLES

.250

(6.35)

D

F H

#24 AWG

E

.180 ± .005

(4.57 ± 0.13)

G

.0945 ± .0035 (2.40 ± .09) DIA.

THRU .187 (4.75) X .075 (1.91) DEEP "C" BORE

3 PLACES-A SIDE ONLY.

.187 (4.75) DIA. 3 PLACES-B SIDE ONLY

J

Part No.

184S

184SBR

Weight

oz. (gm.) Max.

A

±.015 (0.38)

B

±.010 (0.25)

.343 (8.71)

C

±.005 (0.13)

2.775 (70.49)

D

±.010 (0.25)

.400 (10.16)

E

±.010 (0.25)

F

Max.

G

Max.

.030 (0.76)

H

±.020 (0.51)

.200 (5.08)

J

±.010 (0.25)

.250 (6.35)

1.0 (28.35)

5.800 (147.32)

1.0 (28.35)

.300 (7.62) .280 (7.11)

All round pigtail #25 AWG wire termination designs available for the MEB1-12B receptacle will apply on the MEB1-184 series also.

*Will accept up to .093 (2.36) thick P.C. Board with shell modifications.

Dimensions shown in inch (mm)

Specifications and dimensions subject to change

www.ittcannon.com

56

Micro Edgeboard - .050" Contact Spacing

PC Board Right Angle

MEB1-128SBR

.075

(1.91)

.050

(1.27)

B6 B4 B2

B7

.150

(3.81)

.075

(1.91)

.100

(2.54)

.275

(6.99)

B1

.110

(2.79)

MIN.

MEB

ROW B

EVEN*

ROW B

ODD*

A6

A2

A7 A5 A3 A1

.180

(4.57)

ROW A

EVEN*

ROW A

ODD*

PC

BOARD

B1

.100

(2.54)

3 PLACES

A1

Keying Accessory - Key and Retaining Pin

Polarizing Hardware Kit

MEB-128-P/N 320-9514-003

MEB-184-P/N 320-9514-002

Contains 2 polarizing keys and 4 spiral pins.

E

A

.029 (0.74)

DIA. MAX.

.034 ± .001

(0.86 ± 0.03)

MEB-184

P/N 980-0004-129

#2-56 UNC-2B

THREAD

.029 (0.74)

DIA. MAX.

.034 ± .001

(0.86 ± 0.03)

B

C

.186 ± .003 HEX.

(4.72 ± 0.08)

.106 ± .003

(2.69 ± 0.08)

DIA.

D

P/N 201-9509-000

A

± .003 (0.08)

.081 (2.06)

B

± .005 (0.13)

.325 (8.26)

C

± .003 (0.08)

.089 (2.26)

MEB-128

P/N 980-0003-879

D

± .010 (0.25)

.250 (6.35)

E

± .010 (0.25)

.313 (7.95)

Dimensions shown in inch (mm)

Specifications and dimensions subject to change

www.ittcannon.com

57

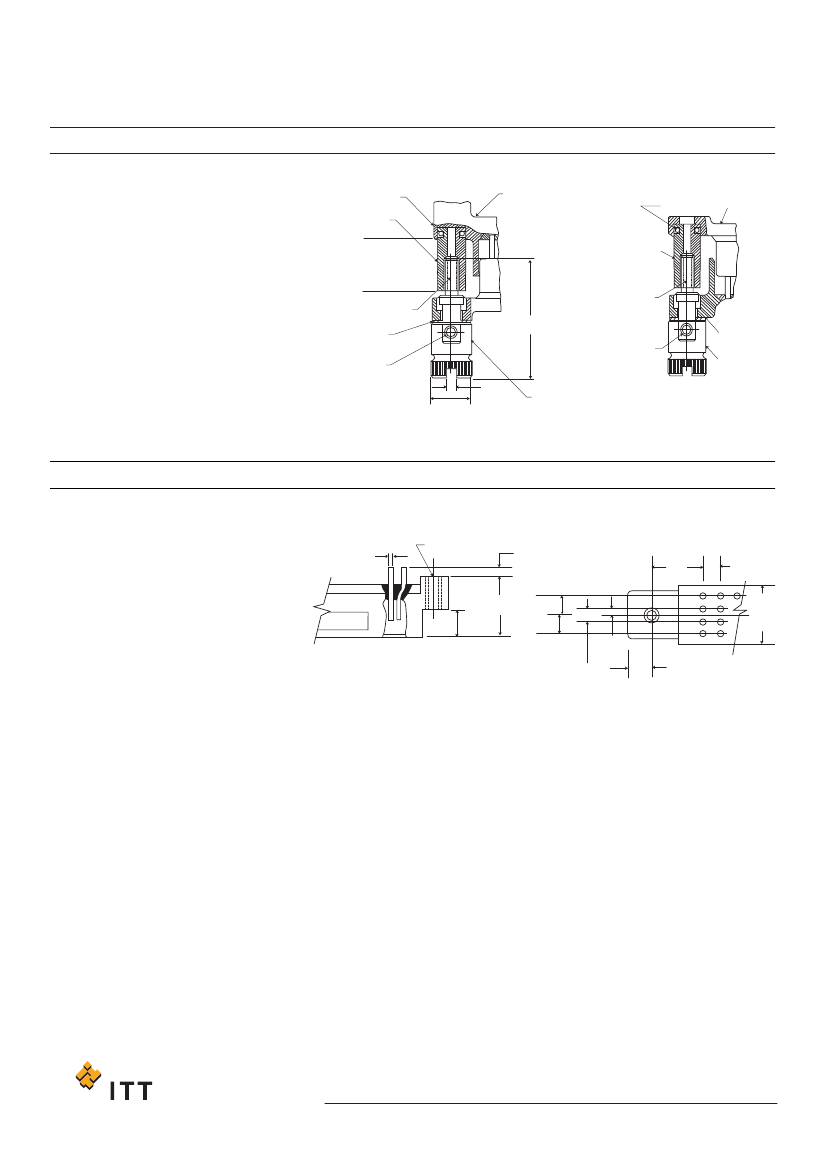

Micro Edgeboard - .050" Contact Spacing

Jackscrew/ Jackpost Assembly (MEB 64 & 128 Sizes Only)

Jackpost Kit

MEB plug or receptacle-P/N 320-9514-001

Contains 2 bushings and 4 spirals pins

Jackscrew Kit

MEB plug-P/N 320-9521-001

MEB receptacle-P/N 320-9521-000

Contains 2 jackscrew assemblies

RETAINING

JACKPOST

MEB

RECEPTACLE

CONNECTOR

RETAINING

PLUG

CONNECTOR

.260

(6.60)

MAX.

#2-56

UNC-2A

THREAD

WASHER

[.032 (0.81) THK]

RETAINING

.270 (6.86)

MAX.

.045

(1.14)

REF.

JACKSCREW

ASSEMBLY

#2-56

UNC-2A

THREAD

.790 ± .010

20.07 ± 0.25)

RETAINING

WASHER

[.022 (0.56) thk]

JACKSCREW

ASSEMBLY

Plug

with Jackscrew

Receptacle

with Jackscrew

Special Variations

Alternative Receptacle Configuration

.016

(0.41)

DIA.

4-40 UNC-THD

THRU HOLE

.200

(5.08)

MIN.

.275

(6.99)

.100

(2.54)

31 PLACES

.580

(14.73)

.285

(7.24)

MAX.

.110

(2.79)

2 PLACES

.060

(1.52)

.030

(0.76)

.125 + .010

_

(3.18 + 0.25)

2 PLACES

.250

(6.35)

Dimensions shown in inch (mm)

Specifications and dimensions subject to change

www.ittcannon.com

58
