171866-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 171866-4

171866-4: Description3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size125KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

171866-4 Overview

3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

171866-4 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	171866
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

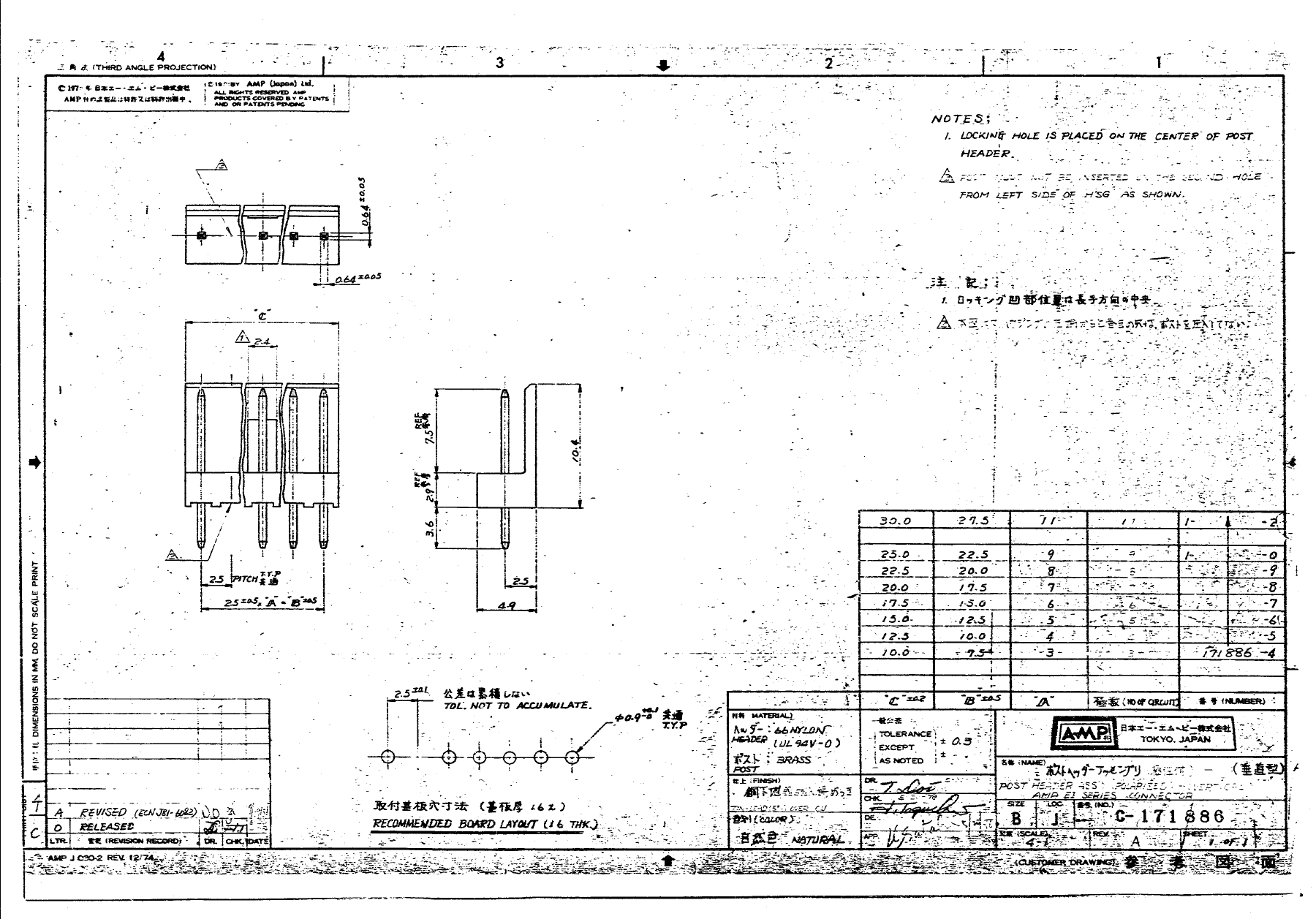

Preview

Download Datasheet

View All

171866-4 Related Products

	171866-4	1-171866-0	1-171866-2	171866-5	171866-6	171866-7	171866-8	09VR1B15L2C504A2
Description	3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	9 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	11 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	5 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	6 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	7 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	9mm Panel Potentiometer
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	-
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	-
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	-
DIN compliance	NO	NO	NO	NO	NO	NO	NO	-
Filter function	NO	NO	NO	NO	NO	NO	NO	-
IEC compliance	NO	NO	NO	NO	NO	NO	NO	-
MIL compliance	NO	NO	NO	NO	NO	NO	NO	-
Manufacturer's serial number	171866	171866	171866	171866	171866	171866	171866	-
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	-
Number of rows loaded	1	1	1	1	1	1	1	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	-
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	-
Total number of contacts	3	9	11	4	5	6	7	-
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	-
Base Number Matches	1	1	1	1	1	1	1	-
