OMA541SD amplifier basic information:
OMA541SD is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIP,
OMA541SD amplifier core information:
The minimum operating temperature of the OMA541SD is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.00005 µA

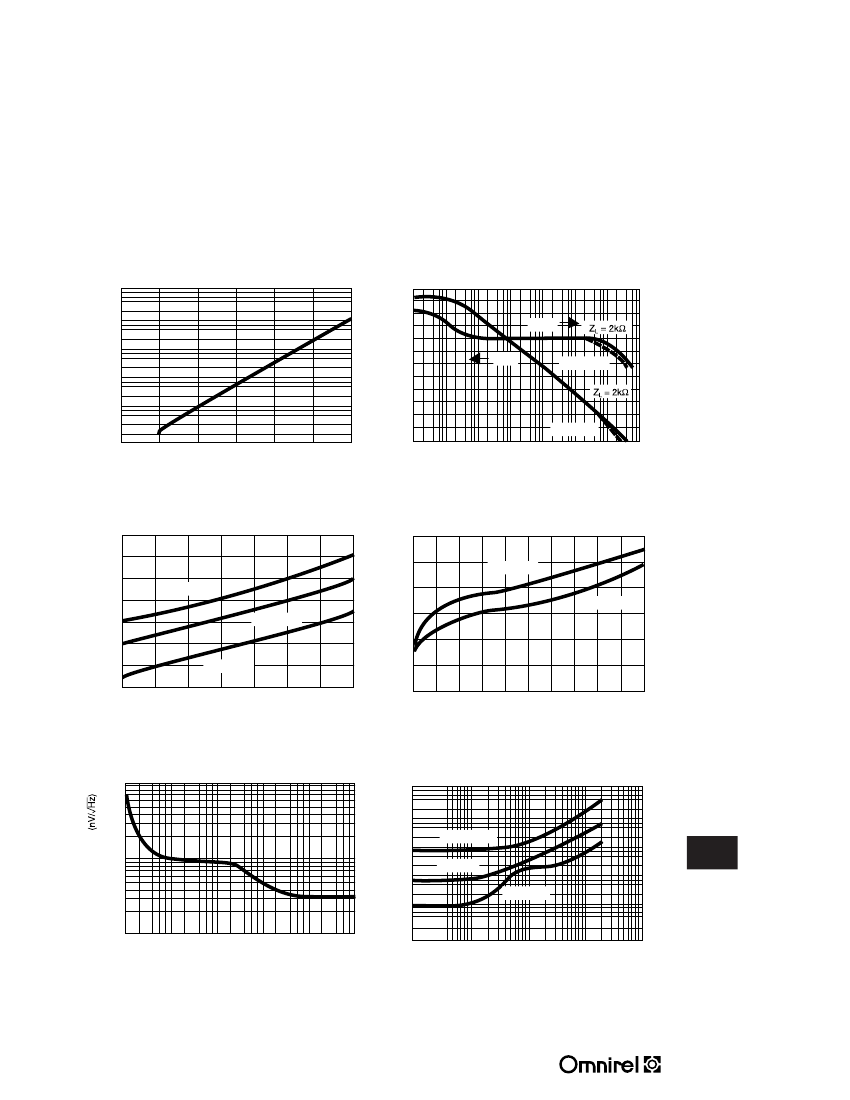

How to simply check the efficiency of an amplifier? Looking at its slew rate, the OMA541SD has a nominal slew rate of 10 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the OMA541SD gain becomes 0.707 times the low-frequency gain is 1600 kHz.
The nominal supply voltage of the OMA541SD is 34 V, and its corresponding nominal negative supply voltage is -34 V. The input offset voltage of OMA541SD is 2000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

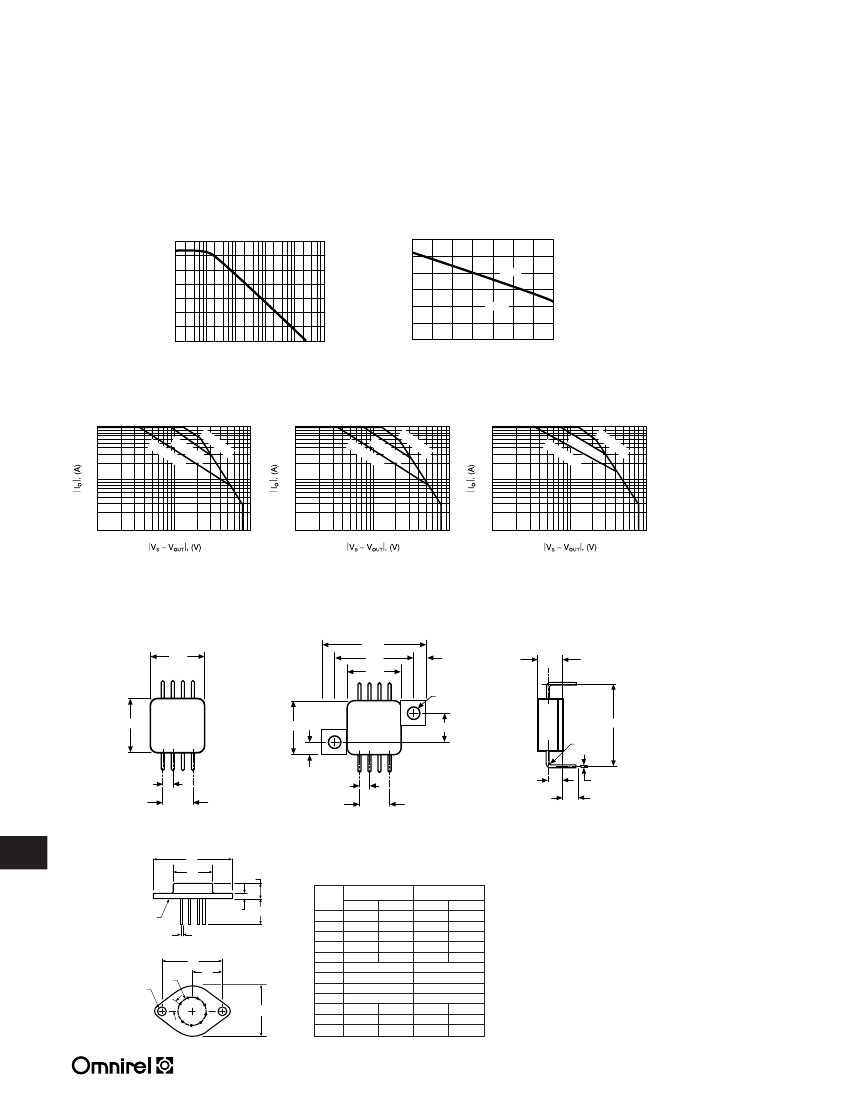

Related dimensions of OMA541SD:
The width of OMA541SD is: 22.86 mm, and the length is 13.716 mm. OMA541SD has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8
OMA541SD amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: S-MDIP-P8. The packaging code of OMA541SD is: DIP. OMA541SD packaging materials are mostly METAL. The package shape is SQUARE.
The OMA541SD package pin format is: IN-LINE. Its terminal forms are: PIN/PEG. The maximum seat height is 6.604 mm.
OMA541SD amplifier basic information:
OMA541SD is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIP,
OMA541SD amplifier core information:
The minimum operating temperature of the OMA541SD is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.00005 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the OMA541SD has a nominal slew rate of 10 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the OMA541SD gain becomes 0.707 times the low-frequency gain is 1600 kHz.
The nominal supply voltage of the OMA541SD is 34 V, and its corresponding nominal negative supply voltage is -34 V. The input offset voltage of OMA541SD is 2000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of OMA541SD:
The width of OMA541SD is: 22.86 mm, and the length is 13.716 mm. OMA541SD has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8
OMA541SD amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: S-MDIP-P8. The packaging code of OMA541SD is: DIP. OMA541SD packaging materials are mostly METAL. The package shape is SQUARE.
The OMA541SD package pin format is: IN-LINE. Its terminal forms are: PIN/PEG. The maximum seat height is 6.604 mm.
| Parameter Name | Attribute value |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 8 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.00005 µA |
| Nominal Common Mode Rejection Ratio | 113 dB |
| Maximum input offset voltage | 2000 µV |
| JESD-30 code | S-MDIP-P8 |
| length | 13.716 mm |
| Negative supply voltage upper limit | -40 V |
| Nominal Negative Supply Voltage (Vsup) | -34 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | METAL |
| encapsulated code | DIP |
| Package shape | SQUARE |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Maximum seat height | 6.604 mm |
| Nominal slew rate | 10 V/us |
| Supply voltage upper limit | 40 V |
| Nominal supply voltage (Vsup) | 34 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal form | PIN/PEG |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Nominal Uniform Gain Bandwidth | 1600 kHz |
| width | 22.86 mm |
| Base Number Matches | 1 |
| OMA541SD | OMA541SDZ | OMA541SK | OMA541SKC | |
|---|---|---|---|---|
| Description | Operational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, MDIP8, POWER, DIP-8 | Operational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, MDFM8, POWER, DIP-8 | Operational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, MBFM8, TO-3, 8 PIN | Operational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, MBFM8, COPPER SLUG, TO-3, 8 PIN |
| Parts packaging code | DIP | DFM | TO-204AA | TO-204AA |
| package instruction | DIP, | POWER, DIP-8 | TO-3, 8 PIN | COPPER SLUG, TO-3, 8 PIN |
| Contacts | 8 | 8 | 2 | 2 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Is Samacsys | N | N | N | N |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.00005 µA | 0.00005 µA | 0.00005 µA | 0.00005 µA |
| Nominal Common Mode Rejection Ratio | 113 dB | 113 dB | 113 dB | 113 dB |
| Maximum input offset voltage | 2000 µV | 2000 µV | 2000 µV | 2000 µV |
| JESD-30 code | S-MDIP-P8 | S-MDFM-P8 | O-MBFM-P8 | O-MBFM-P8 |
| Negative supply voltage upper limit | -40 V | -40 V | -40 V | -40 V |
| Nominal Negative Supply Voltage (Vsup) | -34 V | -34 V | -34 V | -34 V |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | METAL | METAL | METAL | METAL |
| Package shape | SQUARE | SQUARE | ROUND | ROUND |
| Package form | IN-LINE | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal slew rate | 10 V/us | 10 V/us | 10 V/us | 10 V/us |
| Supply voltage upper limit | 40 V | 40 V | 40 V | 40 V |
| Nominal supply voltage (Vsup) | 34 V | 34 V | 34 V | 34 V |
| surface mount | NO | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG |
| Terminal location | DUAL | DUAL | BOTTOM | BOTTOM |
| Nominal Uniform Gain Bandwidth | 1600 kHz | 1600 kHz | 1600 kHz | 1600 kHz |
| Base Number Matches | 1 | 1 | 1 | 1 |
