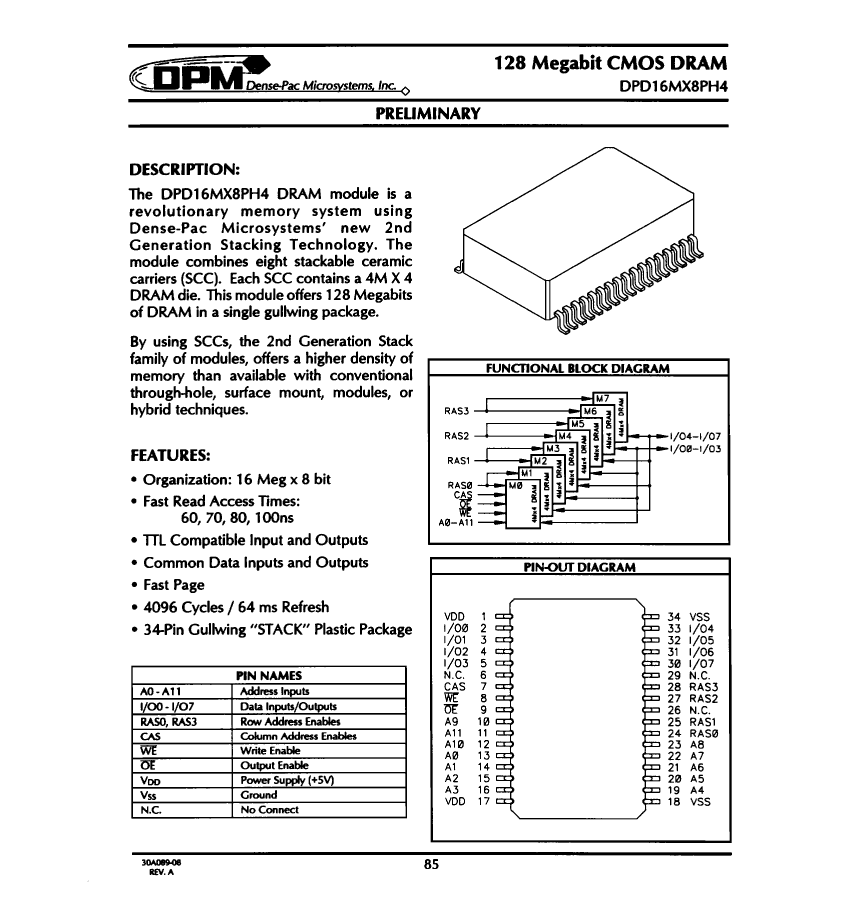

DPD16MX8PH4-80C: DescriptionFast Page DRAM Module, 16MX8, 80ns, CMOS, PDSO34, STACK, GULLWING, PLASTIC, MODULE-34; Categorystorage storage; File Size521KB，21 Pages; ManufacturerB&B Electronics Manufacturing Company

Download Datasheet Parametric Compare View All

DPD16MX8PH4-80C Overview

Fast Page DRAM Module, 16MX8, 80ns, CMOS, PDSO34, STACK, GULLWING, PLASTIC, MODULE-34

DPD16MX8PH4-80C Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	ASOP,
Contacts	34
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
access mode	FAST PAGE
Maximum access time	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE
JESD-30 code	R-PDSO-G34
length	20.32 mm
memory density	134217728 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	34
word count	16777216 words
character code	16000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	ASOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, PIGGYBACK
Certification status	Not Qualified
refresh cycle	4096
Maximum seat height	7.747 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.016 mm
Terminal location	DUAL
width	11.684 mm
Base Number Matches	1

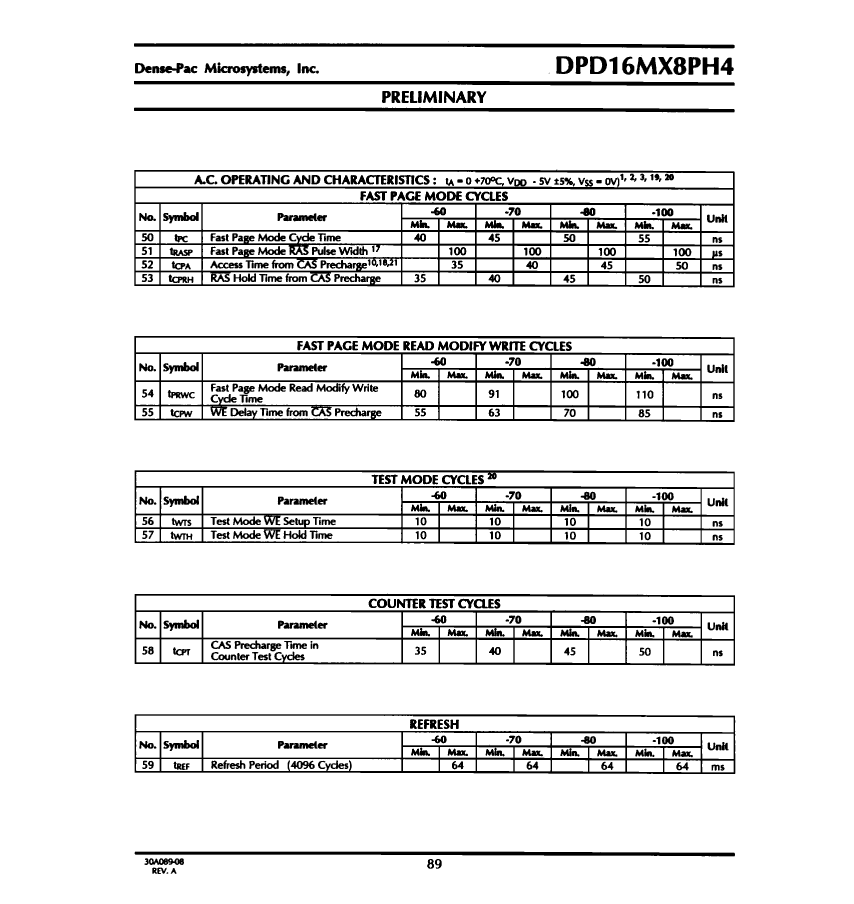

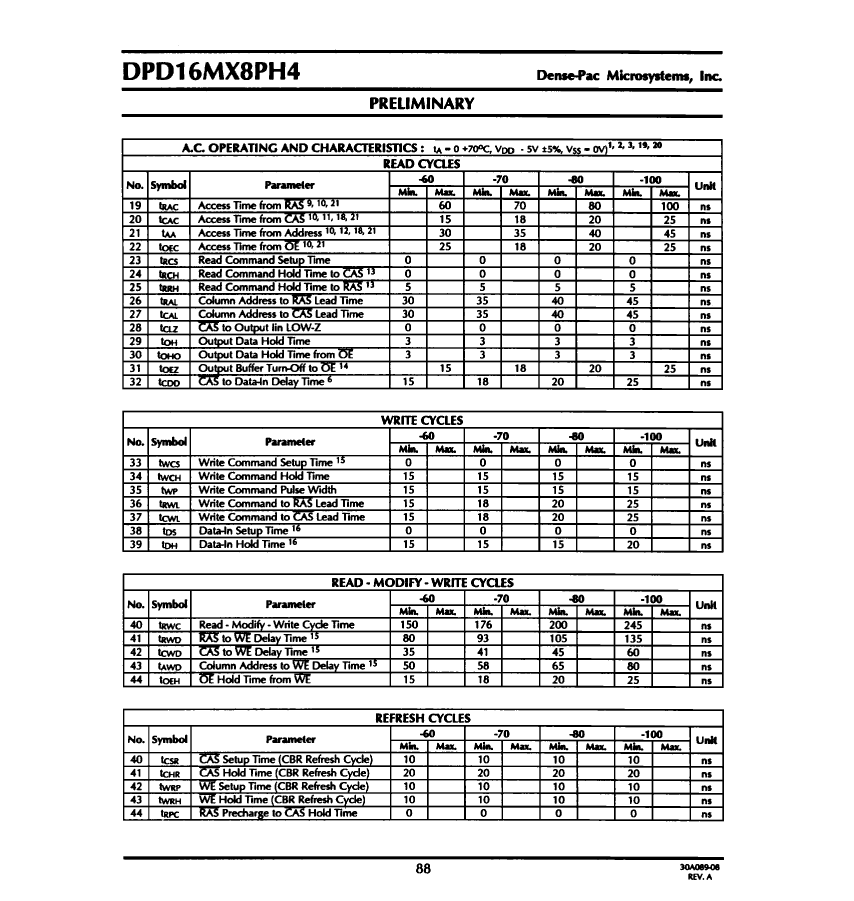

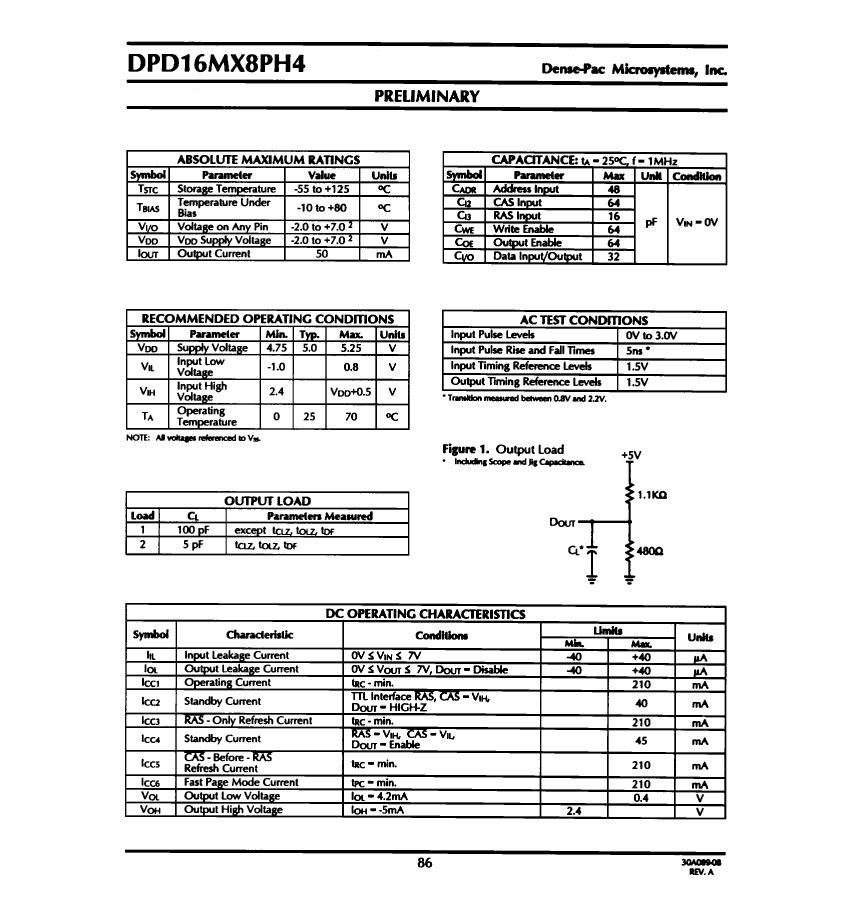

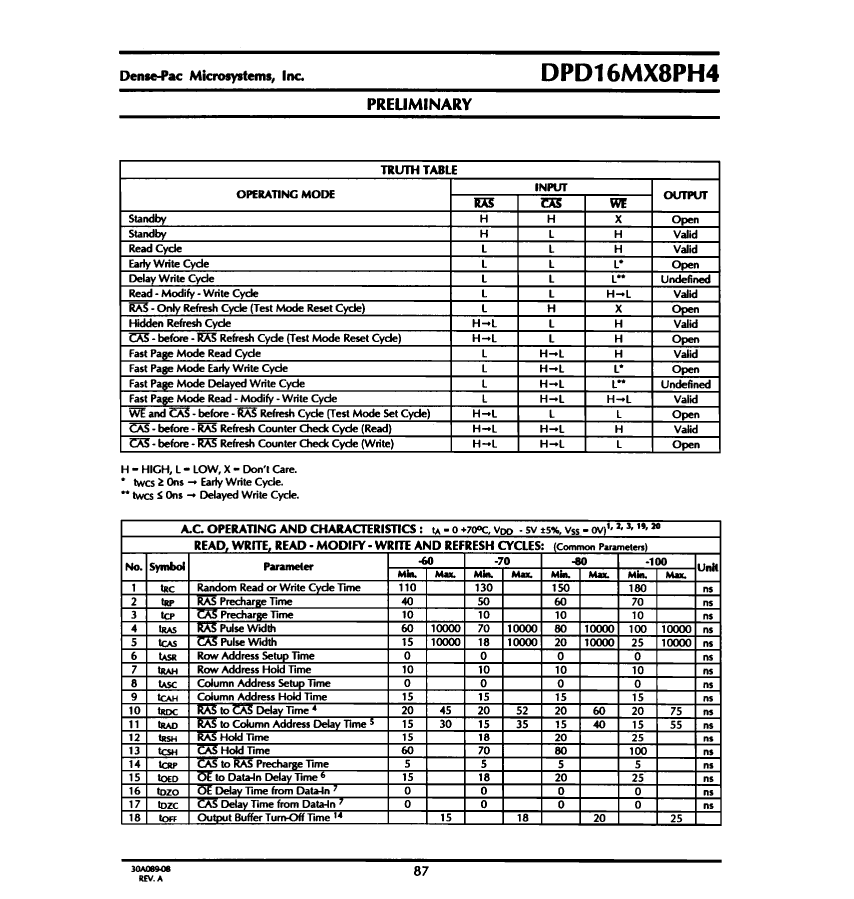

Preview

Download Datasheet

View All

DPD16MX8PH4-80C Related Products

	DPD16MX8PH4-80C	DPD16MX8PH4-60C	DPD16MX8PH4-10C	DPD16MX8PH4-70C
Description	Fast Page DRAM Module, 16MX8, 80ns, CMOS, PDSO34, STACK, GULLWING, PLASTIC, MODULE-34	Fast Page DRAM Module, 16MX8, 60ns, CMOS, PDSO34, STACK, GULLWING, PLASTIC, MODULE-34	Fast Page DRAM Module, 16MX8, 100ns, CMOS, PDSO34, STACK, GULLWING, PLASTIC, MODULE-34	Fast Page DRAM Module, 16MX8, 70ns, CMOS, PDSO34, STACK, GULLWING, PLASTIC, MODULE-34
Parts packaging code	SOIC	SOIC	SOIC	SOIC
package instruction	ASOP,	ASOP,	ASOP,	ASOP,
Contacts	34	34	34	34
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	80 ns	60 ns	100 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE
JESD-30 code	R-PDSO-G34	R-PDSO-G34	R-PDSO-G34	R-PDSO-G34
length	20.32 mm	20.32 mm	20.32 mm	20.32 mm
memory density	134217728 bit	134217728 bit	134217728 bit	134217728 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	34	34	34	34
word count	16777216 words	16777216 words	16777216 words	16777216 words
character code	16000000	16000000	16000000	16000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	16MX8	16MX8	16MX8	16MX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	ASOP	ASOP	ASOP	ASOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, PIGGYBACK	SMALL OUTLINE, PIGGYBACK	SMALL OUTLINE, PIGGYBACK	SMALL OUTLINE, PIGGYBACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096
Maximum seat height	7.747 mm	7.747 mm	7.747 mm	7.747 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.016 mm	1.016 mm	1.016 mm	1.016 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	11.684 mm	11.684 mm	11.684 mm	11.684 mm
Maker	-	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company
