16232312001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 16232312001

16232312001: DescriptionBoard Connector, 55 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal; CategoryThe connector The connector; File Size122KB，1 Pages; ManufacturerHARTING

Download Datasheet Parametric View All

16232312001 Overview

Board Connector, 55 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal

16232312001 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	STANDARD: IEC 61076-4-101
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	1623
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	55
Base Number Matches	1

Preview

Download Datasheet

View All

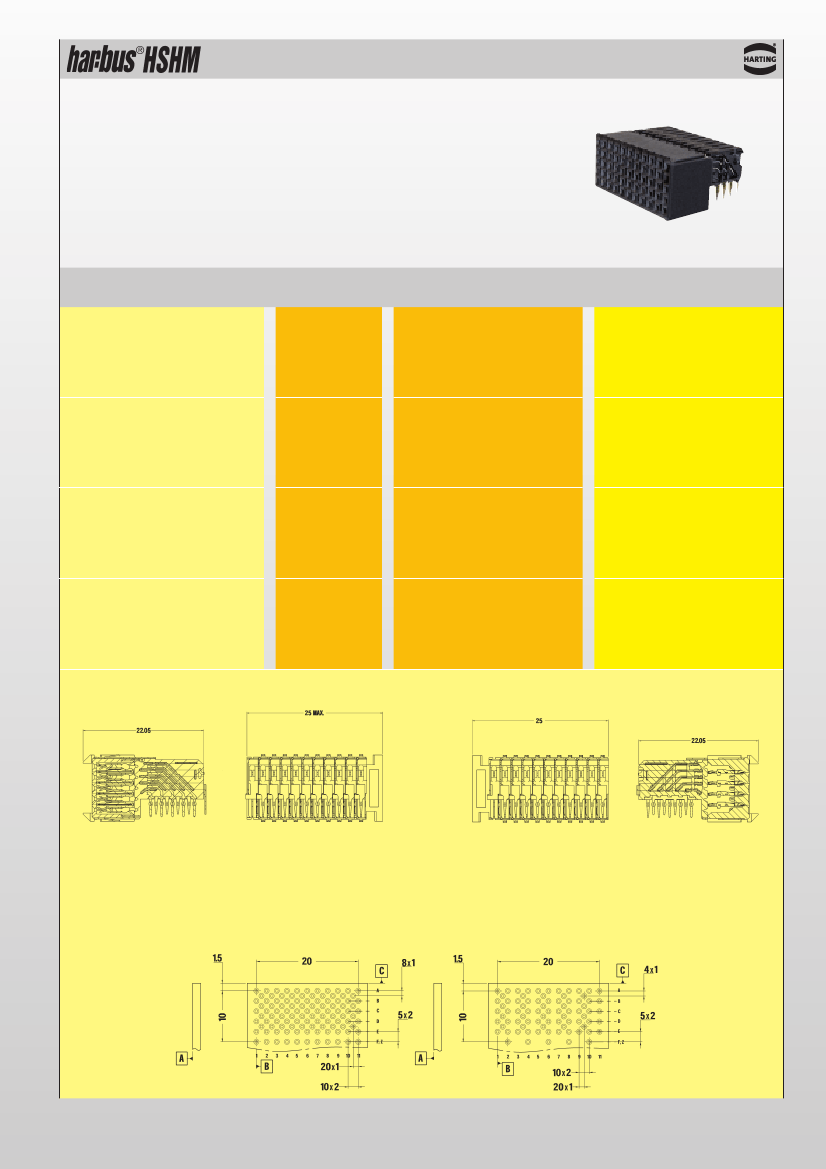

Type C

Female connectors, angled

Identification

Number of contacts

Shielding arrangement

Single ended

Differential pairs in rows

16 23 431 2001

16 23 431 5001

16 23 221 2001

16 23 221 5001

16 23 231 2001

16 23 231 5001

16 27 421 2001

16 27 421 5001

16 27 431 2001

16 27 431 5001

16 27 221 2001

16 27 221 5001

16 27 231 2001

16 27 231 5001

Dimensions [mm]

Part number

16 23 421 2001

16 23 421 5001

Type C

guiding on the left

Type C

guiding on the left

with pre-installed shield

Single ended

Differential pairs in rows

Type C

guiding on the right

Single ended

Differential pairs in rows

Type C

guiding on the right

with pre-installed shield

Single ended

Differential pairs in rows

Type C

guiding on the left

Type C

guiding on the right

Board drillings

single ended

Board drillings

differential pairs in row

Thin print part numbers: performance level 1

Bold print part numbers: performance level 2
