MEMS CLOCK OSCILLATOR
ASVMP
ASVMP
FEATURES:
Moisture Sensitivity Level –
MSL 1
Pb
RoHS/RoHS II compliant
7.0 x 5.0 x 0.85mm
APPLICATIONS:
• Low Power Consumption for high speed communication
• Exceptional Stability Over Temp. at -40 to +85°C, ±15ppm
• Extended Automotive Grade Temp. stability at -55 to +125°C, ±25ppm
• Available in 50kG Shock Resistance Configuration upon request
• MIL-STD-883 shock and vibration compliant
• Durable QFN Plastic Compact Packaging
• Standby or Disable Tri-state function
• Low jitter (Period jitter RMS and Phase jitter RMS)
• High power supply noise reduction, -50dBc
• Storage Area Networks
High Performance
(SATA, SAS, Fiber Channel)
3G MEMS Technology!
• Passive Optical Networks (EPON,
10G-EPON, GPON, 10G-PON)
• Ethernet (1G, 10GBASE-T,/KR/LR/SR, FCoE
• PCI Express
• Display port
Low Jitter
STANDARD SPECIFICATIONS:
Common Key Electrical Specifications – CMOS, LVPECL, LVDS, and HCSL
Parameters
Minimum
2.3000*
3.3000*
2.3000*
2.3000*
2.3000*
-20
-55
-50
+2.25
Typical
Maximum
170.0000
170.0000
460.0000
460.0000
460.0000
°C
°C
ppm
V
ms
ns
ms
ns
mA
V
ppm
MHz
CMOS
CMOS
Frequency Range
LVPECL
LVDS
HCSL
Operating Temperature
Storage Temperature
Overall Frequency Stability
Supply Voltage (Vdd)
Startup Time
Enable Time
Disable Time
Disable Current
Tri-state Function (Standby/Disable)
Aging
Units
Notes
-20 ~ +70
°C
-40 ~ +85
°C
-40 ~ +105
°C
-55 ~ +125
°C
* For 2.3000MHz < F0 < 9.9999MHz, 6-8 weeks lead-time applies
Key Electrical Specifications – CMOS
Parameters
Supply Current (I
dd
)
Output Logic Level
Rise Time
Fall Time
Duty Cycle
Integrated Phase Jitter (J
PH
)
Period Jitter RMS (J
PER
)
Minimum
V
OH
V
OL
Tr
Tf
0.9*V
dd
Typical
31
1.1
1.3
0.30
0.38
1.70
3.0
+70
+150
+50
+3.6
5
20
5
5
20
22
0.095
"1" (VIH 0.75*Vdd) or Open: Oscillation
"0" (VIL<0.25*Vdd) : Hi Z
-5.0
+5.0
See options
See options
Commercial, Industrial
temp. range
Commercial, Industrial
temp range
Commercial, Industrial
temp. range
STD (Tri-state)
PD option (Power Down)
STD (Tri-state)
40k pull-up resister
embedded
First year
PD option (Power Down)
Maximum
35
0.1*V
dd
2.0
2.0
55
2
2
2
45
Units
mA
V
V
ns
ns
%
ps
ps
Notes
CL=15pF, 125MHz
I=±6mA
CL=15pF
20% to 80%
200kHz ~ 20MHz@125MHz
100kHz ~ 20MHz@125MHz
12kHz ~ 20MHz@125MHz
LL
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
REVISED:
11.30.2018
ISO9001-2015
CERTIFIED
MEMS CLOCK OSCILLATOR
ASVMP
ASVMP
Key Electrical Specifications – LVPECL
Parameters
Supply Current (I
dd
)
Output Logic Level
Minimum
V
OH
V
OL
V
dd
-1.08
Typical
56.5
800
250
250
0.25
Integrated Phase Jitter (J
PH
)
Period Jitter RMS (J
PER
)
0.38
1.70
2.5
Minimum
1.125
Typical
29
350
200
200
0.28
Integrated Phase Jitter (J
PH
)
Period Jitter RMS (J
PER
)
0.40
1.70
2.5
Pb
RoHS/RoHS II compliant
7.0 x 5.0 x 0.85mm
Maximum
58
V
dd
-1.55
Peak to Peak Output Swing (V
pp
)
Rise Time
Tr
Fall Time
Tf
Duty Cycle
Units
mA
V
V
mV
ps
%
ps
ps
RL=50
RL=50
Notes
Single ended
RL=50 , CL=0pF
Differential
20% to 80%
200kHz ~ 20MHz
@156.25MHz
100kHz ~ 20MHz
@156.25MHz
12kHz ~ 20MHz
@156.25MHz
48
52
2
2
2
Key Electrical Specifications – LVDS
Parameters
Supply Current (I
dd
)
Output Offset Voltage (V
OS
)
Delta Offset Voltage ( V
OS
)
Peak to Peak Output Swing (V
pp
)
Rise Time
Tr
Fall Time
Tf
Duty Cycle
Maximum
32
1.4
50
Units
mA
V
mV
mV
ps
%
ps
ps
Notes
RL=100
RL=100 differential
Single ended
RL=50 , CL=2pF
Differential
20% to 80%
200kHz ~ 20MHz
@156.25MHz
100kHz ~ 20MHz
@156.25MHz
12kHz ~ 20MHz
@156.25MHz
48
52
2
2
2
Key Electrical Specifications – HCSL
Parameters
Supply Current (I
dd
)
Output Logic Level
Minimum
V
OH
V
OL
0.725
200
200
48
Typical
40
750
Maximum
42
0.1
400
400
52
2
2
2
ps
ps
Units
mA
V
V
mV
ps
%
RL=50
RL=50
Single ended
RL=50 , CL=2pF
Differential
20% to 80%
200kHz ~ 20MHz
@156.25MHz
100kHz ~ 20MHz
@156.25MHz
12kHz ~ 20MHz
@156.25MHz
Notes
Peak to Peak Output Swing (V
pp
)
Rise Time
Tr
Fall Time
Tf
Duty Cycle
Integrated Phase Jitter (J
PH
)
Period Jitter RMS (J
PER
)
0.25
0.37
1.70
2.5
ABRACON IS
LLC
D
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
REVISED:
11.30.2018
ISO9001-2015
CERTIFIED
MEMS CLOCK OSCILLATOR
ASVMP
ASVMP
Absolute Maximum Ratings
Item
Supply Voltage
Input Voltage
Junction Temp.
Storage Temp.
Soldering Temp.
ESD
HBM
MM
CDM
Minimum
-0.3
-0.3
-55
Pb
Maximum
+4.0
V
dd
+0.3
+150
+150
+260
4,000
400
1,500
RoHS/RoHS II compliant
7.0 x 5.0 x 0.85mm
Unit
V
V
°C
°C
°C
V
Condition
40sec max
OPTIONS AND PART IDENTIFICATION: (Left Blank if Standard)
Programmed Orders (Quantity > 1,000pcs)
ASVMP
-
MHz -
-
-
Output Type
C: CMOS
LP: LVPECL
LV: LVDS
HC: HCSL
Frequency in MHz
e.g. 156.2500 MHz
(Maximum 4 digits
after decimal)
Operating Temp.
Blank: -20°C ~ +70°C
L: -40°C ~ +85°C
X: -40°C ~ +105°C
Z**: -55°C ~ +125°C
Overall Freq.
Stability
Blank: ±50ppm
Y: ±10ppm*
R: ±25 ppm
Tri-state (Pin 1)
Blank: Tri-state
PD: Power Down
* Temp option L, X or -20°C ~ +70°C, only
** CMOS output only
*** For Quick turn-around programmable orders < 1000pcs: Due to the
immediate availability of stock and the qty of the order, the parts may
be delivered as BULK: Cut Tape, Loose parts in Antistatic Bag or in
Tube(s). The MOQ per the series will still apply for Tube packaging.
Packaging
Blank***: Tube
(50pcs / Tube)
T: Tape & Reel
(1kpcs / reel)
T3: Tape & Reel
(3kpcs / reel)
Un-Programmed Orders
Blank un-programmed oscillators and our low cost portable programmer are available for quick turn engineering requirements.
Please call ABRACON or visit MEMSpeed Pro II site
http://www.abracon.com/memspeedpro/MEMSpeedProFlyerII.pdf
for more information.
ASVMP
- BLANK -
Overall Freq. Stability
Blank: ±50ppm
Y: ±10ppm*
R: ±25 ppm
-
-
Packaging
Blank: Tube (50pcs / Tube)
T: Tape & Reel (1kpcs / reel)
T3: Tape & Reel (3kpcs / reel)
Output Type
C: CMOS
LP: LVPECL
LV: LVDS
HC: HCSL
Operating Temp.
Blank: -20°C ~ +70°C
L: -40°C ~ +85°C
X: -40°C ~ +105°C
Z**: -55°C ~ +125°C
Tri-state (Pin 1)
Blank: Tri-state
PD: Power Down
* Temp option L, X or -20°C ~ +70°C, only
** CMOS output only
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
LLC
REVISED:
11.30.2018
ISO9001-2015
CERTIFIED
MEMS CLOCK OSCILLATOR
ASVMP
ASVMP

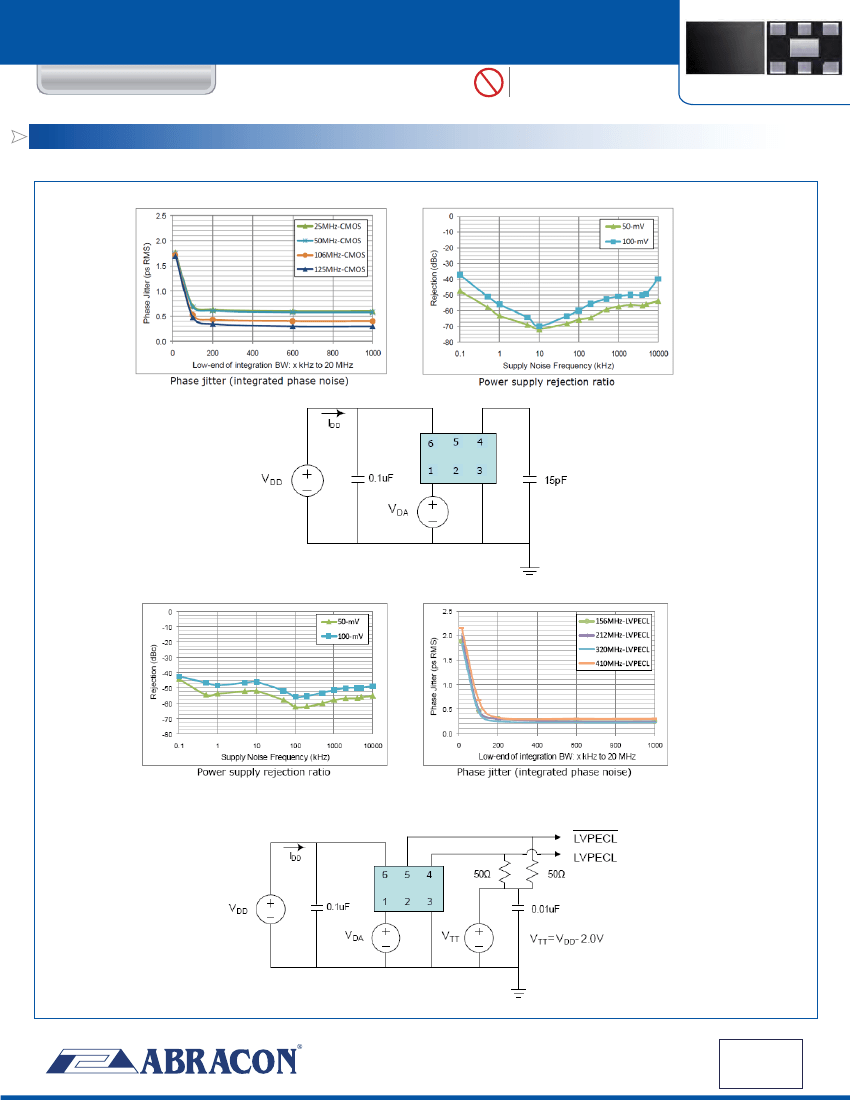

PERFORMANCE PARAMETERS
(Unless specified otherwise: T=25° C, VDD=3.3 V)
CMOS OUTPUT
Pb
RoHS/RoHS II compliant
7.0 x 5.0 x 0.85mm
Test Circuit
LVPECL output
Test Circuit
LLC
C E R TIF IE D
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
REVISED:
11.30.2018
ISO9001-2015
CERTIFIED

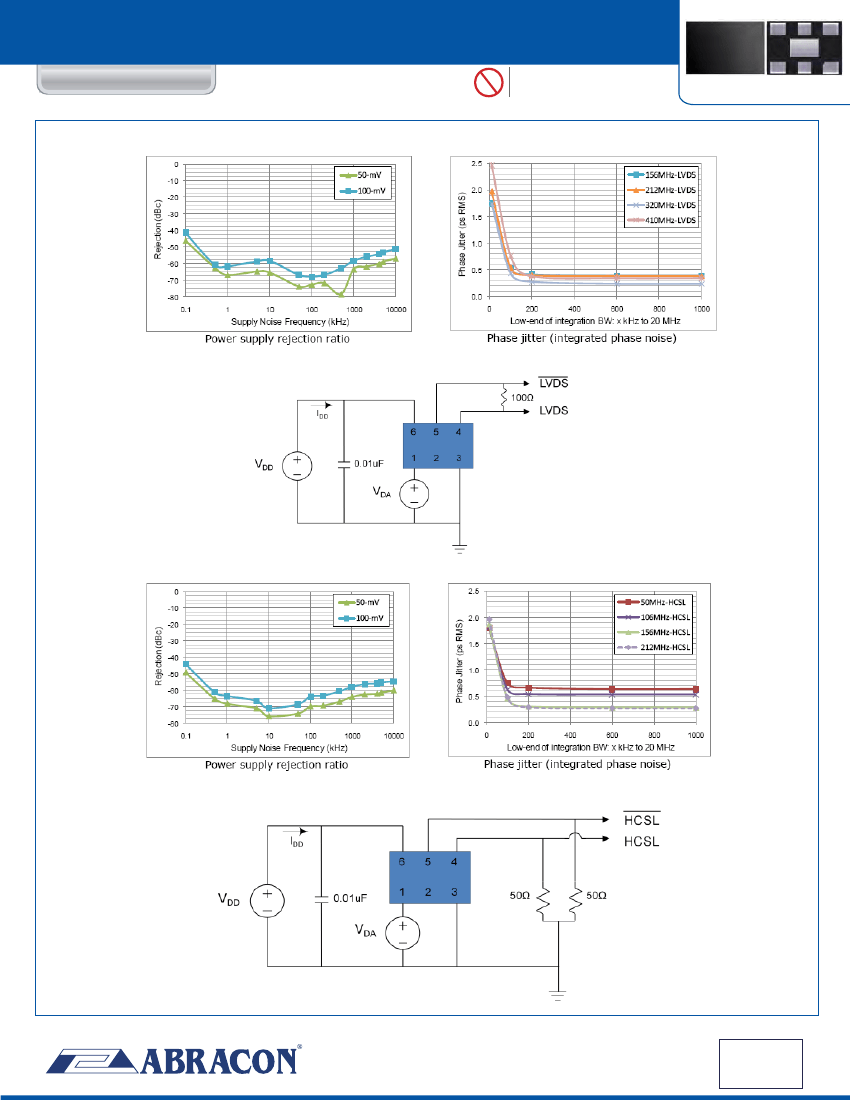

MEMS CLOCK OSCILLATOR
